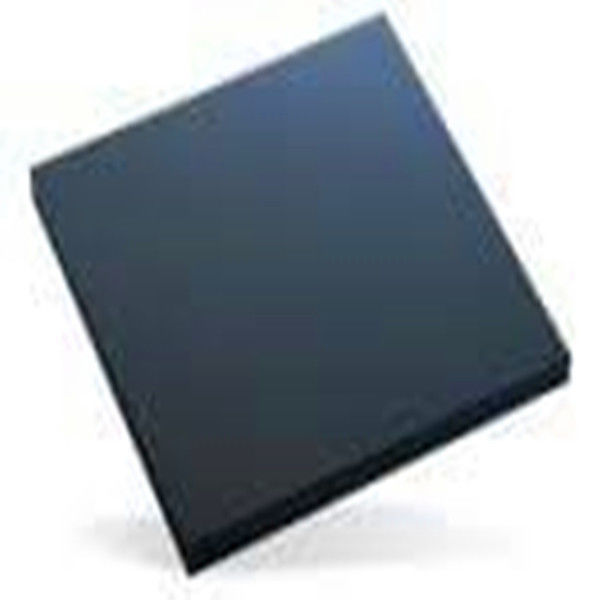

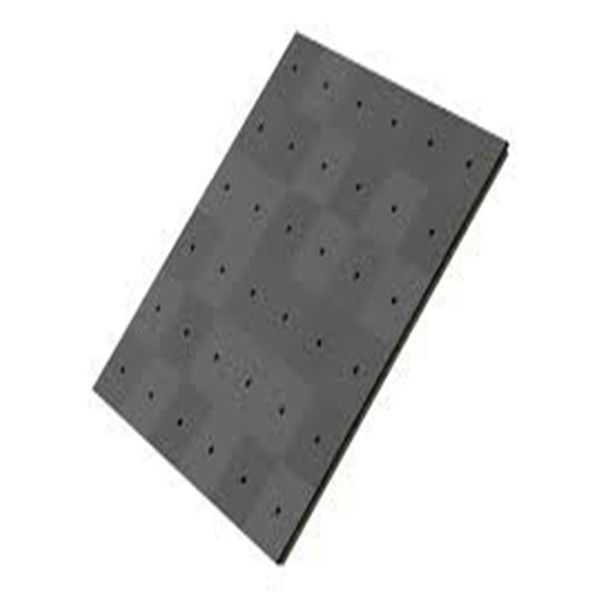

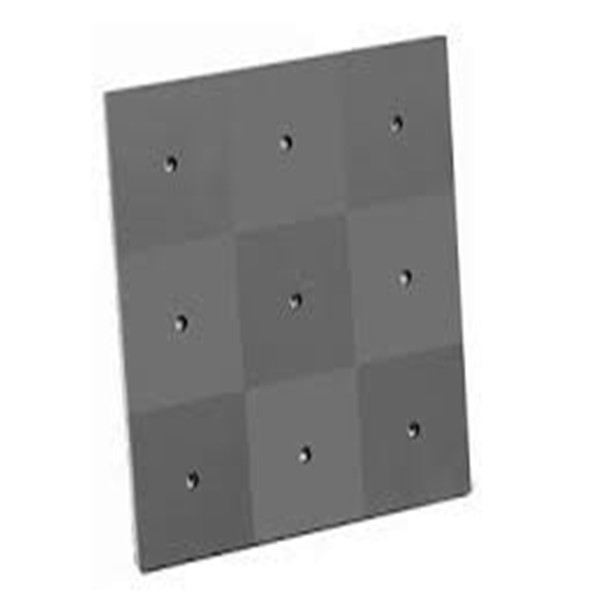

6.7mm thickness 100*100 Ferrite tiles for EMC Chamber
The key physical attributes of Ferrite within shielding is that it consists of domains with polarised bias and this rotates against the oscillating wave to absorb radiated energy. Ferrites are very good between the frequency range 30MHz to 800MHz with performance diminishing thereafter.

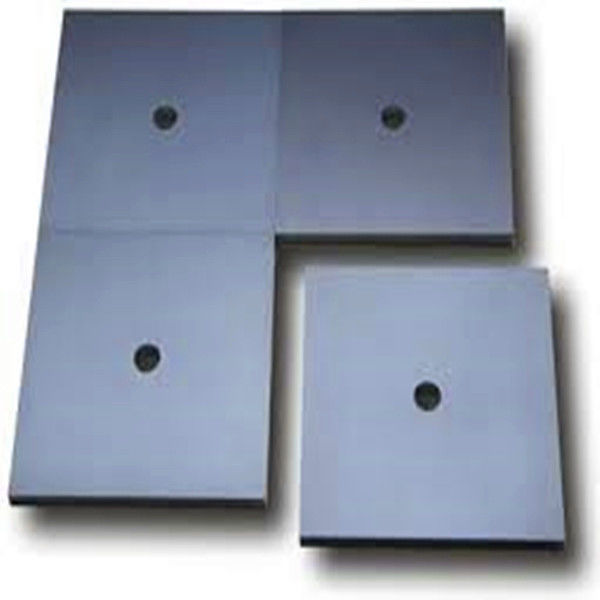

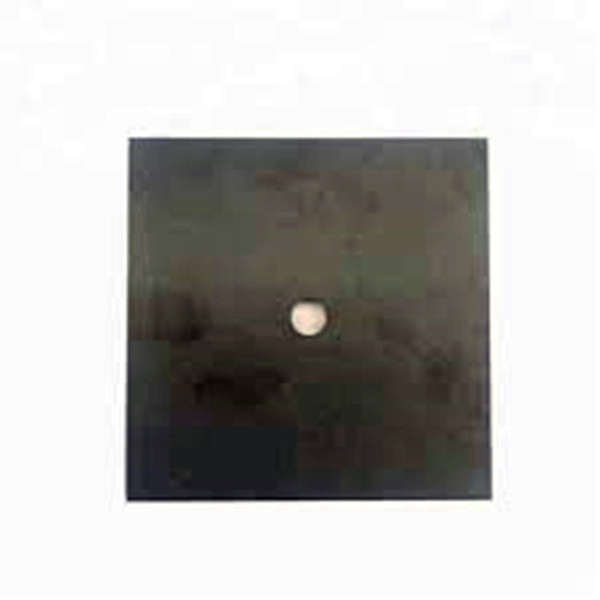

Ferrite Tile Size
· Base size: 100*100mm
· Standard height: 5.2mm, 6.7mm
· Diameter of bore: 10mm
| Initial permeability |
5500 |
| Relative loss factor |
15@0.1MHz |
| Saturation flux density |
280(1194A/m) |
| Remanence |
180 |
| coercivity |
3 |
| Relative temp.factor |
3 |
| Curie temp. |
90 |
| Density |
4.85*1000 |
| Resistivity |
100 |
| 30MHz |
-25.5dB |
| 100MHz |
-38dB |
| 300MHz |
-19.5dB |
| 500MHz |
-16dB |
| 700MHz |
-12dB |
| 1000MHz |
-10dB |
Ferrite Tile Application

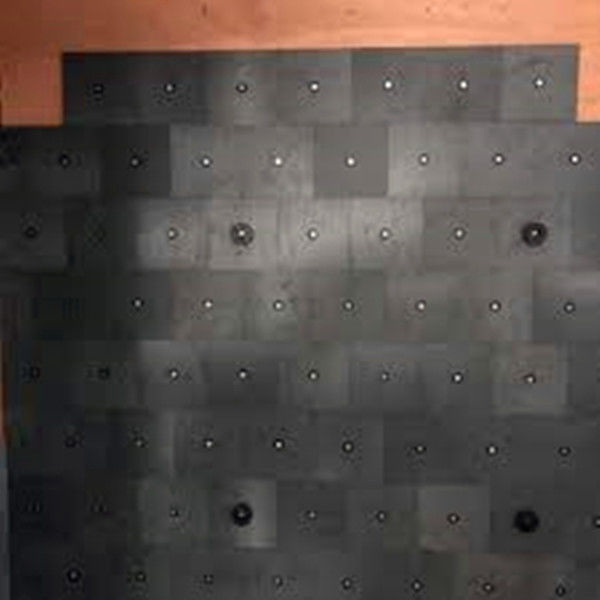

· Used for EMC chamber
Based on the principle of having complex magnetic permeability equal (or nearly equal) to complex dielectric constant. Materials with this property exhibit an impedance equal to that of "free space" and therefore do not reflect radiated energy at normal incidence. Ferrite Tile can provide 10dB - 25dB of absorption between 30MHz and 1GHz. Tiles are thin (approximately 0.26 inches), but can be heavy (roughly 10 lbs per square foot).
Size for EMC chamber ferrite tile
· Base size: 100*100mm
· Standard height: 5.5mm, 6.7mm
· Diameter of bore: 10mm
Application for EMC chamber ferrite tile Used for EMC chamber
