1.5t 1.3t Rf Shielding Room Design For Mri Rooms RFI EMI Shielded Enclosure

Modular RF Shielding Designed for MRI Facilities
This RF shield room is engineered specifically for MRI suites and related medical environments requiring robust electromagnetic isolation. Developed by experienced emi filter manufacturers, the design targets hospitals, research laboratories, and medical testing facilities seeking to control radiated electromagnetic interference. The modular configuration allows scalable deployment tailored to space and shielding requirements of MRI rooms, making integration with existing infrastructure feasible. This configurable solution meets the critical need to minimize RF disturbances that could degrade imaging quality or patient safety, serving engineers and procurement teams in healthcare technology management.

Technical Performance and Specifications of the Shielding System
Featuring copper shielding panels assembled in a self-supported modular framework, this RF shield room attains copper RF attenuation exceeding 100 dB up to 400 MHz. Radiated emissions are controlled effectively from 30 MHz to 18 GHz, with radiated immunity ensured between 30 MHz and 6 GHz. The system incorporates wide 4.4 cm sealing seams and non-penetrating interior fasteners to reduce leakage paths and enhance longevity. Options include electrically operated doors and ventilated cellular waveguide windows to maintain airflow while preserving shielding effectiveness. Compatibility with supplemental accessories from emi filter manufacturer product lines ensures comprehensive EMI mitigation within the enclosure.

Industry Applications for EMI-Controlled MRI Environments
This RF shielding enclosure supports a variety of critical industry uses including MRI suites in hospitals, coil and hardware testing cages, and shielded control rooms linked to RF compliance testing labs. It enables compliance with stringent electromagnetic compatibility requirements for diagnostic imaging, providing a controlled electrical environment to support precise MRI operation. The system also facilitates safe, secure training and demonstration spaces within MRI facilities. End users benefit from enhanced measurement accuracy and reduced electromagnetic disturbance risks, making this modular rf shield room a vital component in medical imaging infrastructure and research institutions globally.


Product Advantages

Innovative Modular Design with High Reliability

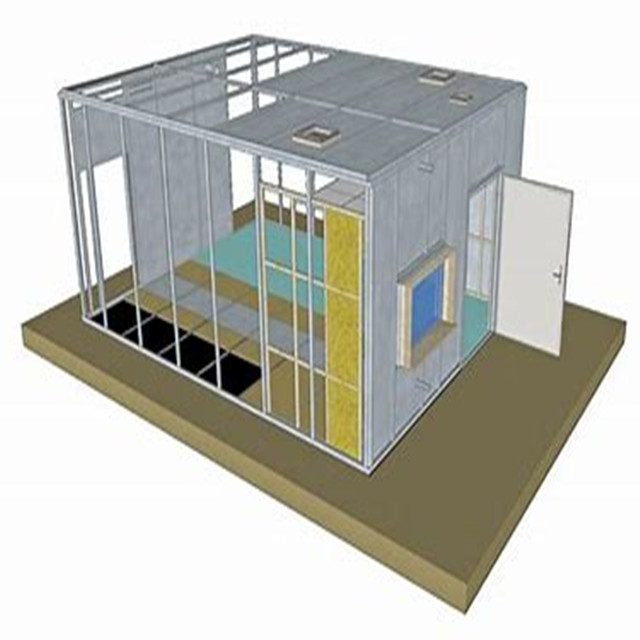

The RF shield room is constructed using lightweight, modular panels made from copper-coated cold-rolled steel, configured within a self-supported frame for quick and contractor-friendly installation. Wide seams measuring approximately 4.4 cm reduce RF leakage significantly. Interior fasteners are recessed and do not penetrate the shielding surface, extending structural durability over time. Door configurations include standard electromotive and fully automatic options for secure access control. Ventilated cellular-waveguide windows allow airflow without compromising shielding integrity. This system design, developed in cooperation with leading industrial filter manufacturers, enables versatile integration into existing architectural layouts with minimal disruption.

Optimal Performance and Enhanced Usability
Designed by a reputable emi filter company, the enclosure achieves outstanding RF attenuation—over 100 dB up to 400 MHz—effectively suppressing electromagnetic interference critical for MRI reliability. The modular approach permits tailored room layouts to accommodate specific clinical or research needs, while accessory compatibility supports integration with waveguides and power filters. User-friendly door options improve operational convenience, and ventilated window designs maintain environmental control while preserving electromagnetic isolation. This balance of high-performance shielding and practical usability enhances system ROI by reducing maintenance demands and ensuring stable MRI functionality.


Use Scenarios

RF Shielding for Hospital MRI Suites
In modern healthcare settings, maintaining an RF-quiet environment is essential to ensure the precision of MRI diagnostics. This rf shield room functions as a critical barrier against external and internal electromagnetic interference in hospital MRI suites. It preserves imaging fidelity by meeting stringent RF attenuation requirements and supports regulatory compliance. The modular design facilitates phased installation and retrofit projects, integrating seamlessly with facility power and ventilation systems. Compatibility with filtering components from emi filter manufacturers guarantees comprehensive electromagnetic noise suppression in complex hospital ecosystems.

Application in MRI Research and Testing Laboratories
MRI research labs require controlled electromagnetic environments for hardware validation and coil testing to advance imaging technologies. This modular RF shielding enclosure offers flexible layouts and rigorous EMI control, leveraging the expertise of emi filter manufacturers and rfi line filter suppliers. It enables repeatable testing conditions by minimizing RF disturbances, critical for experimental accuracy and equipment reliability validation. Integration with existing lab infrastructure is supported by modular walls and accessory compatibility, allowing researchers to focus on innovation within a stable electromagnetic environment.

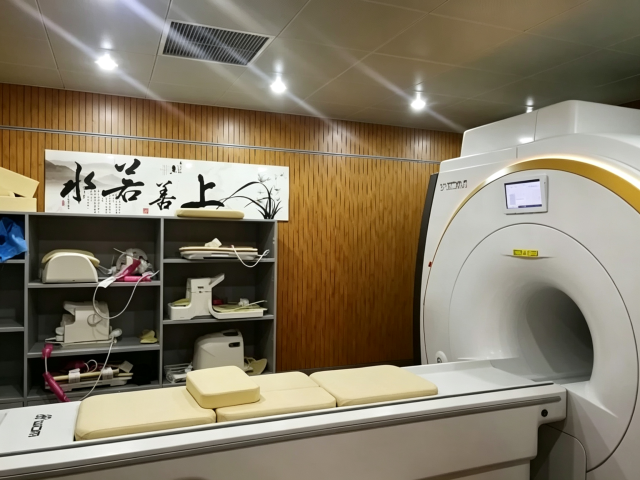

1.5T and 1.3T customized MRI RF CAGE

MRI Scanning Room Product Features:

RF Shielded rooms provide the necessary RF quiet environment in which to conduct many different application tests such as EMC, wireless technology on automotive or military vehicles, MRI scans, etc. These rooms are built with Smartshield TM modular RF shielding,electromagnetic pulse protection EMPP shielding,TEMPEST (secure communications) shielding and architectural shielding full systems. Radiated Emission: 30MHz ‐ 18GHz Radiated Immunity: 30MHz ‐ 6GHz

• Pure, electrically deposited copper
• RF attenuation levels of > 100 dB up to 400 MHz frequencies
• Free standing, structurally isolated RF walls
• Light weight wall and ceiling panels
• Factory engineered and fabricated RF shield panels
• Contractor friendly interiors

MRI Scanning Room Description:

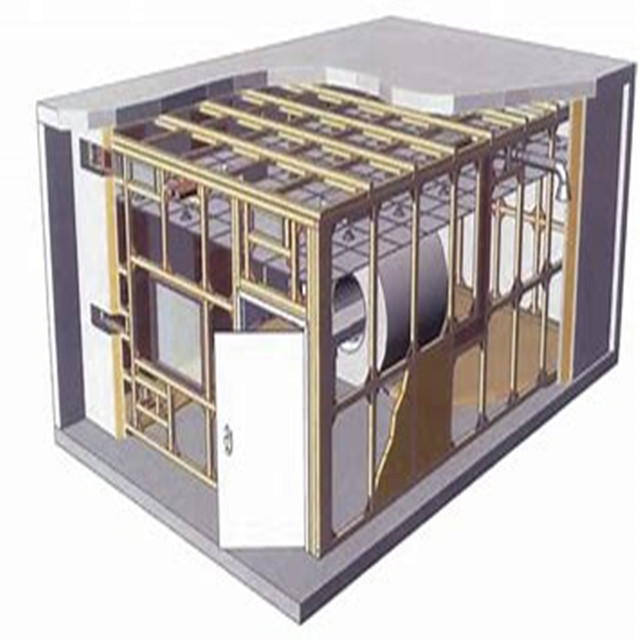

This modular frame construction is wrapped with electroplated copper which can conform to any design criteria. The engineered and bolted system enhances RF integrity with wide 4.4 cm (1 3/4") seams that are highly compressed, offering a seamless shield surface. Interior fasteners do not have to penetrate the shield surface by design, which enhances the long term life of the shield.
