rf Pyramidal foam absorber for anechoic chamber

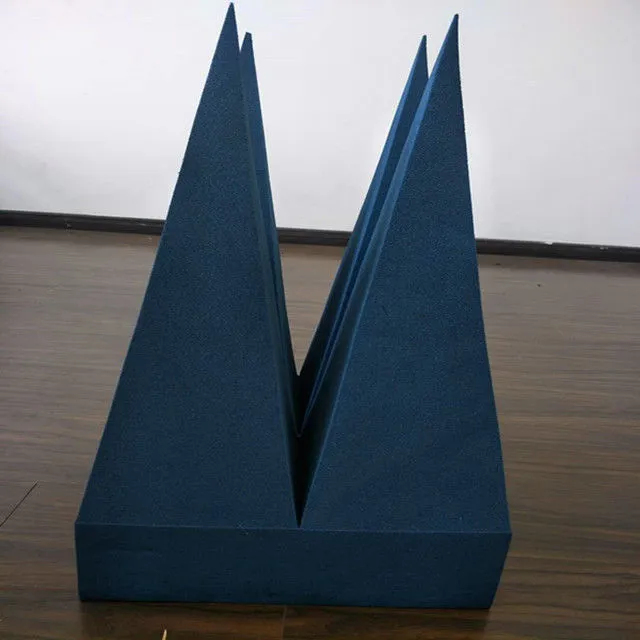

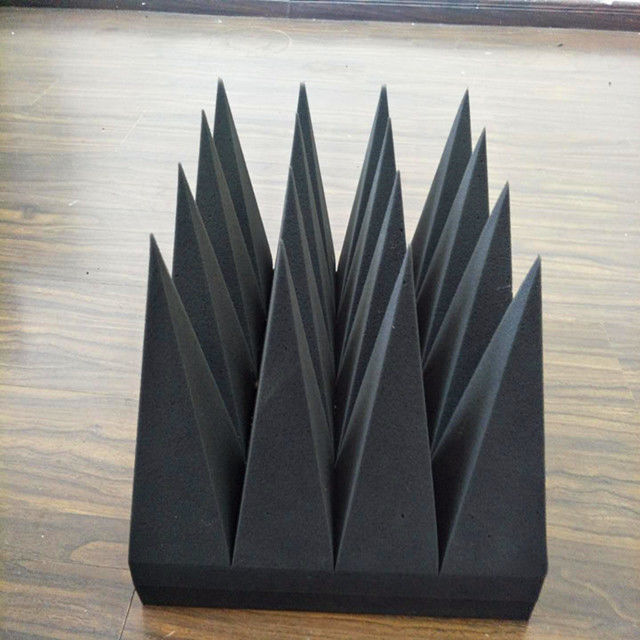

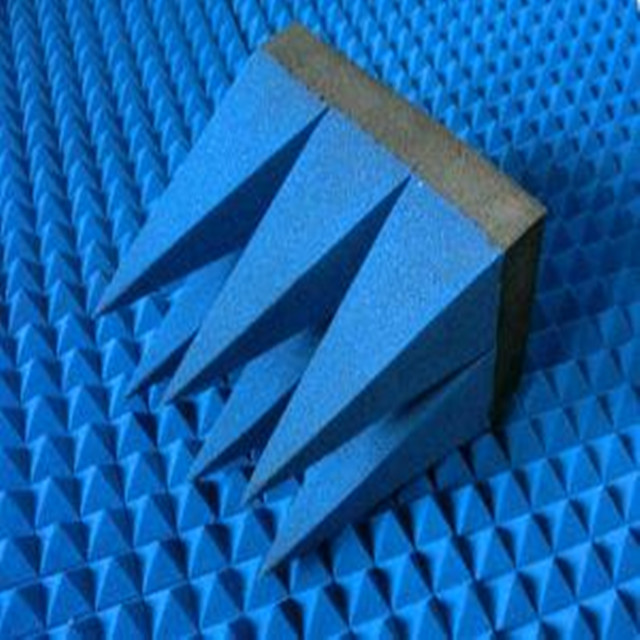

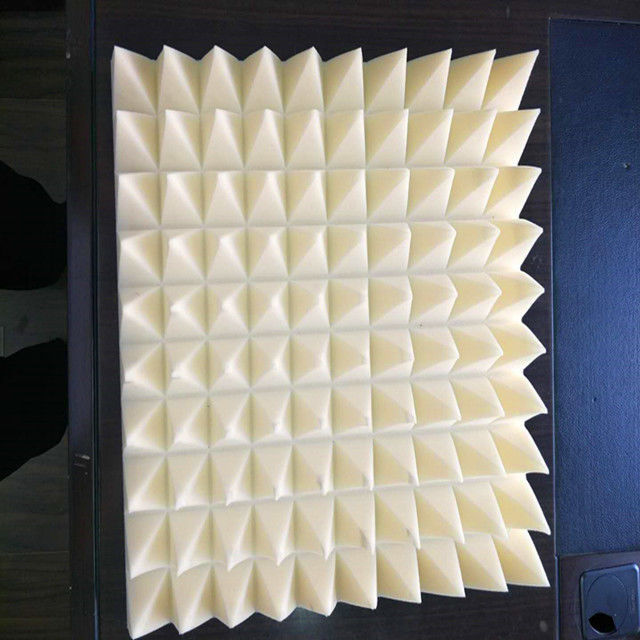

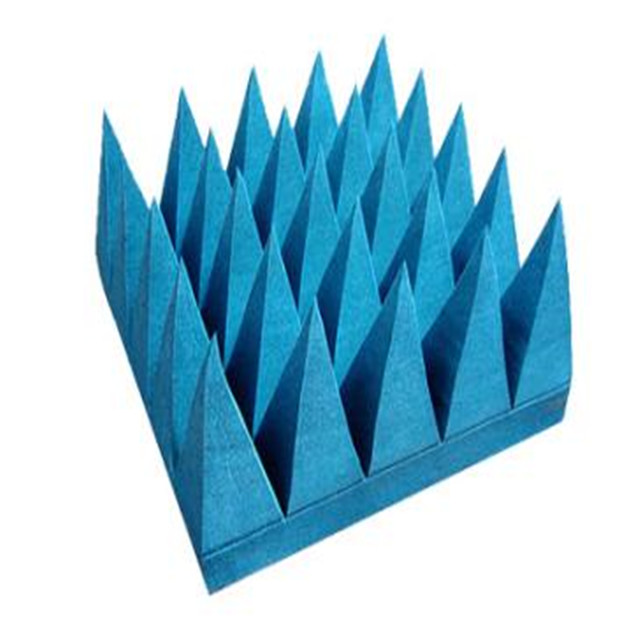

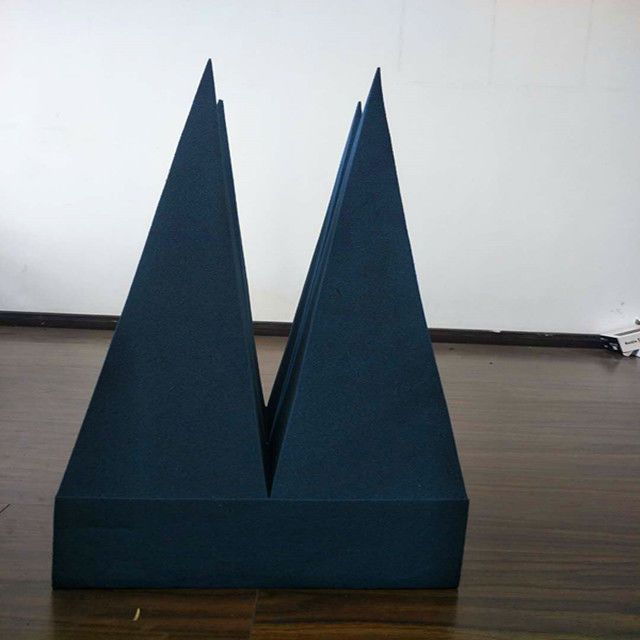

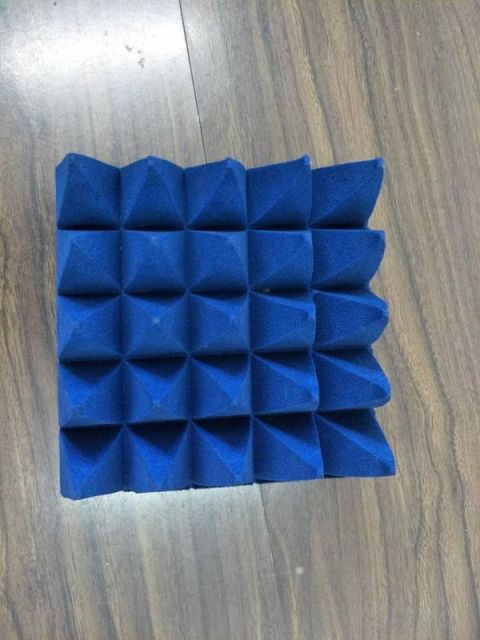

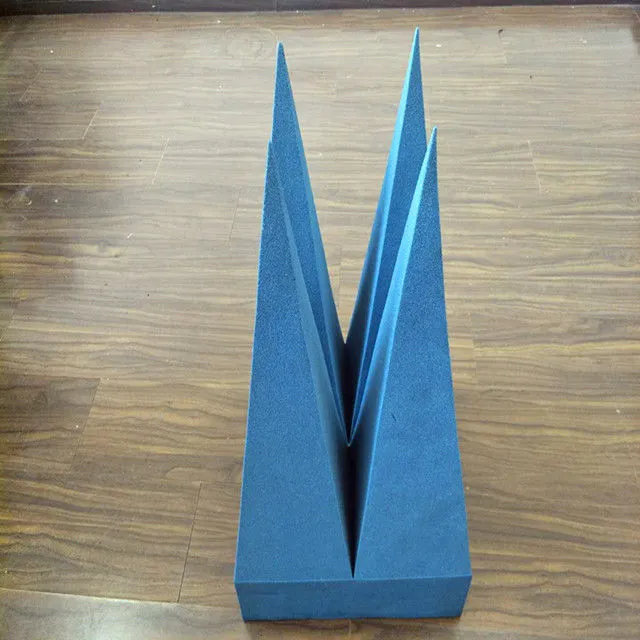

Pyramidal Foam absorber can be utilised for the frequency range 100MHz to 40GHz. The factor determining the lowest useable frequency is the physical size of the foam pyramid. The larger the dimensions of the pyramid, the lower the frequency of operation. Due to the volume consumed within an anechoic enclosure when using large pyramidal foam. Ferrite Tiles are often overlaid with smaller Pyramidal Foam absorber to extend the anechoic performance down to 30MHz without losing valuable space. Polyurethane foam loaded with carbon (and fire retardant) can be supplied in various dimensions.
RF Foam Absorber Types
· Rubber sheet micromave absorber
· Carbon-based foam microwave absorber
· Honeycomb & high power microwave absorber
· Sprayable microwave absorber
· Rigid and castable microwave absorber
| TYPE | BASE SIZE | NUMBER OF PYRAMIDAL | WEIGHT | TOTAL HEIGHT | BASE HEIGHT | PYRAMIDAL HEIGHT |
PYRAMIDAL WIDTH |
| HZ-30 | 500*500 | 36*36 | 1.1 | 30 | 15 | 15 | 14 |
| HZ-50 | 500*500 | 20*20 | 1.8 | 50 | 20 | 30 | 25 |
| HZ-70 | 500*500 | 20*20 | 2.5 | 70 | 20 | 50 | 25 |
| HZ-100 | 500*500 | 13*13 | 3.3 | 100 | 25 | 75 | 38 |
| HZ-150 | 500*500 | 9*9 | 4.8 | 150 | 30 | 120 | 56 |
| HZ-200 | 500*500 | 7*7 | 6.3 | 200 | 40 | 160 | 71 |
| HZ-300 | 500*500 | 5*5 | 9 | 300 | 60 | 240 | 100 |
| HZ-400 | 500*500 | 4*4 | 12 | 400 | 70 | 330 | 125 |
| HZ-500 | 500*500 | 3*3 | 15 | 500 | 80 | 420 | 167 |
| HZ-600 | 400*400 | 2*2 | 18 | 600 | 90 | 510 | 200 |
| HZ-700 | 250*500 | 1*2 | 21 | 700 | 100 | 600 | 250 |
| HZ-800 | 250*500 | 1*2 | 24 | 800 | 100 | 700 | 250 |
| HZ-1000 | 334*334 | 1*1 | 30 | 1000 | 150 | 850 | 3 |
| TYPE | HEIGHT | REFLECTIVITY | ||||||||
| 40 | 15 | 10 | 3 | 1.5 | 0.5 | 0.3 | 0.2 | 0.15 | ||
| HZ-100 | 100 | 50 | 45 | 40 | 30 | 20 | ||||
| HZ-150 | 150 | 50 | 50 | 45 | 33 | 25 | ||||
| HZ-200 | 200 | 50 | 50 | 50 | 37 | 30 | 17 | |||
| HZ-300 | 300 | 50 | 50 | 50 | 40 | 33 | 20 | |||
| HZ-400 | 400 | 50 | 50 | 50 | 45 | 40 | 25 | 17 | ||
| HZ-500 | 500 | 50 | 50 | 50 | 45 | 40 | 30 | 20 | 17 | |
| HZ-600 | 600 | 50 | 50 | 50 | 50 | 40 | 30 | 25 | 20 | |
| HZ-700 | 700 | 50 | 50 | 50 | 50 | 43 | 35 | 30 | 20 | 17 |
| HZ-800 | 800 | 50 | 50 | 50 | 50 | 45 | 36 | 30 | 20 | 17 |
| HZ-1000 | 1000 | 50 | 50 | 50 | 50 | 45 | 38 | 35 | 25 | 20 |
RF Foam Absorber Basic Information
· Base size: 500*500mm, customized acceptable
· Standard height: 30,50,100,150,200,300,400,500,700,800,1000mm
RF Foam Absorber Features
· The traditional material for anechoic chambers
· Outstanding absorbing over a wide frequency range
· Flexible
About US
、、
Before-sale:
1.All inquires will be replied with 8 hours. 7D/24H service,Please feel free to contact us with Email/TM/Skype.
2.Strong technical team and Professional sales.
3.Customized packaging is acceptable.
4.Welcom customers from all the world to visit our factory.
After-sale:
1.All emi filter will be tested and adjusted before shipping.
2.After receiving the products,Any question we will try our best to solve.
Broadband Absorption with Lightweight Design
The pyramid foam absorber is engineered for EMI test chambers, delivering strong absorption across the 100 MHz–40 GHz range. Its tapered geometry traps and dissipates RF energy, aligning with emi filter circuit strategies while allowing attachment of low pass filter, lowpass filter, and ac filter modules at chamber entry points. This design clarifies what is a low pass filter within anechoic setups, providing educational value and practical shielding.
Custom Sizes and Material Grades
Haozhuo produces absorber panels in heights of 30, 50, 100, 150, 200, 300, 400, 500, 700, 800, and 1000 mm, with base size 500×500 mm or customer-defined dimensions. Each panel supports emi filter, low pass rc filter, and rfi filter module integration in layered configurations without touching chamber walls, which preserves emi filter purpose and minimizes reflections.
Fire-Rated PU Foam with Structural Stability
Made from fire-retardant polyurethane foam loaded with carbon and iron, the absorber meets flame‑retardant standards while maintaining consistent RF attenuation. It integrates with emi filter, low pass filter, and emi filter circuit systems and sustains dimensional stability up to 120 °C. The honeycomb reflection structure aligns with what is low pass filter and what is a low pass filter implementation for EMC integrity.
Lab-Tested Performance & Quality Assurance
Each batch undergoes internal RF testing using free-space and cavity-resonance methods, confirming insertion loss and reflectivity metrics. The panels are fully documented for emi filter purpose, with declared performance across wide frequency bands and distribution-ready certification, ensuring readiness for telecom, automotive, and military applications requiring low pass filter compliance.
Product Advantages
1. Broadband RF Attenuation
Designed to suppress EMI from 100 MHz to 40 GHz, these pyramid panels support low pass filter, emi filter, and rfi filter configurations to ensure clean RF environments and define what is low pass filter in use.
2. Flexible & Modular Sizing
Available in multiple heights and configurable base sizes, the panels accommodate emi filter circuit, lowpass filter, and low pass rc filter additions without resizing chamber walls, supporting horizontal and vertical layouts.
3. High Temperature and Fire Resistance
Constructed from carbon-loaded PU foam with flame retardancy and stable performance up to 120 °C, and fully compatible with ac filter, emi filter circuit, and emi filter purpose strategies for safe operation in industrial and lab settings.
4. Space-Efficient Performance
By interleaving absorber with emi filter, low pass filter, and rfi filter mounting options, the design reduces chamber footprint while maintaining RF absorption, delivering efficiency and shielding effectiveness.
5. Quality Inspected & Documented
Each foam panel is measured for reflectivity and insertion loss across the frequency range and comes with datasheets explaining what is a low pass filter and system integration standards, ensuring traceability for engineering teams.
Optimize your anechoic chamber performance with Haozhuo’s broadband RF pyramid absorber foam—engineered for integration with emi filter circuit, low pass filter, and rfi filter systems. Contact us now for custom sizing, datasheets, and volume pricing.
