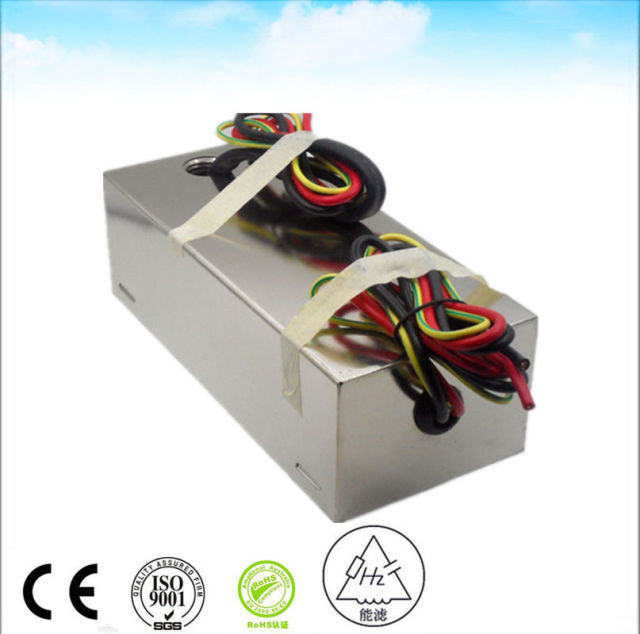

25A Single Phase EMI Filter Design

Functional Role and Target Market Specifics

The 25A Single Phase EMI Filter Design meets critical electromagnetic compatibility needs in industrial and medical electrical systems. It serves engineers and procurement specialists who require dependable solutions to mitigate noise on single-phase power lines rated up to 30A and 250 VAC. This low-pass filter supports low impedance grounding and is particularly valued by EMC test chamber absorber suppliers and RF absorber manufacturers tasked with safeguarding sensitive electronics against EMI disturbances. The product’s design and certifications align with stringent application standards, ensuring compatibility across diverse sectors requiring electromagnetic noise control.

High-Performance Specifications and Technical Attributes

Engineered to provide insertion loss up to 100 dB and stopband attenuation between 70 to 100 dB, this EMI filter excels in minimizing noise interference. The compact through-hole packaging supports secure mounting while maintaining optimal electrical characteristics centered at 50/60 Hz nominal frequency. Its dielectric strength, harmonic distortion of less than 2%, and compliance with CE and RoHS certifications reflect its manufacturing quality and efficacy. This design is a reliable choice among microwave absorbing foam and custom RF absorber material suppliers seeking components that deliver measurable EMI suppression within critical frequency bands.

Broad Application Scope and Industry Relevance

This EMI filter finds applications across medical, industrial, and commercial sectors, where electromagnetic compatibility is non-negotiable. It is widely used in MRI Faraday cages, industrial power supplies, and RF shielded environments to prevent power line interference and maintain signal integrity. Enterprises relying on EMC pyramid absorbers and anechoic chamber absorber manufacturers recognize this filter’s role in enhancing system reliability and compliance. Its ability to integrate easily into existing power distribution networks makes it a valuable asset for maintaining operational stability and regulatory adherence in complex electronic ecosystems.

Structural and Design Merits Underpinning Reliability

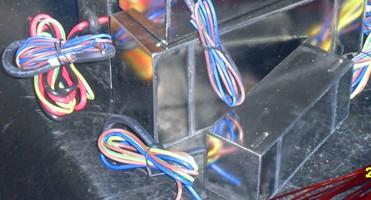

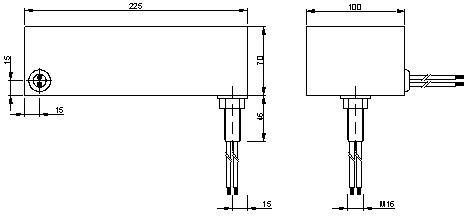

The 25A EMI filter features a robust through-hole package design that ensures durability and ease of installation within various electrical assemblies. Its low pass filter architecture is optimized specifically for frequencies at 50/60 Hz, facilitating consistent insertion loss performance. As an offering trusted by RF pyramidal absorber suppliers and EMC absorber suppliers, the device accommodates low impedance grounding, enhancing filtering efficiency while adhering to strict electromagnetic compatibility standards. The modular design also supports efficient integration within broader EMC test chamber absorber supplier workflows, simplifying replacement and maintenance.

Superior Performance and Practical Utility for Operational Efficiency

Delivering up to 100 dB insertion loss, the filter effectively suppresses EMI that could compromise sensitive instrumentation or industrial equipment operations. Its compact size and compliance with international certifications such as CE and RoHS assure users of safety and longevity. The product’s low harmonic distortion and overload capacity provide operational reliability under varied load conditions, a feature highly valued by microwave absorber wholesale channels and RF absorbing foam suppliers. Additionally, streamlined installation practices minimize downtime, enhancing overall system uptime and user return on investment.

Electromagnetic interference (EMI) filters are crucial for a wide range of equipment and devices. Installing an EMI filter helps them function as intended and prevent them from interfering with other devices. Electromagnetic compatibility (EMC) is also a key component of meeting the compliance requirements of global regulations and many industry standards. For EMI filters to provide desired performance, they must be installed correctly. Following best practices for installing EMI filters helps in optimizing their performance and ensures safe compliance margins for the devices.

While certain best practices apply to almost all EMI filter installations, the installation process for each filter can be slightly different. Because of this variation, be sure to consult the product literature for the EMI filter when installing it or contact application engineering. With that in mind, here are some of the most important recommended installation practices for EMI filters.

The following tips can help ensure proper EMI grounding:

• Use low impedance connections to connect the various parts of the ground system. Flat wires, for instance, offer lower HF impedance than round wires do.
• Ensure that all the ground connections are as short as possible. Consider using a flat, braided ground strap, as these components provide increased surface area.
• Use the largest available area as the ground conductor. The cabinet wall is often a suitable surface.
• Removing paint from mounting surfaces of the cabinets can help achieve a low impedance bond.
• To ensure safety and proper performance, make sure the power system ground is connected to the filter ground termination point before connecting any wires.
• Be sure to research and follow all relevant safety regulations related to grounding.
• Examine all the connections in your low impedance grounding systems as part of your routine maintenance checks.
