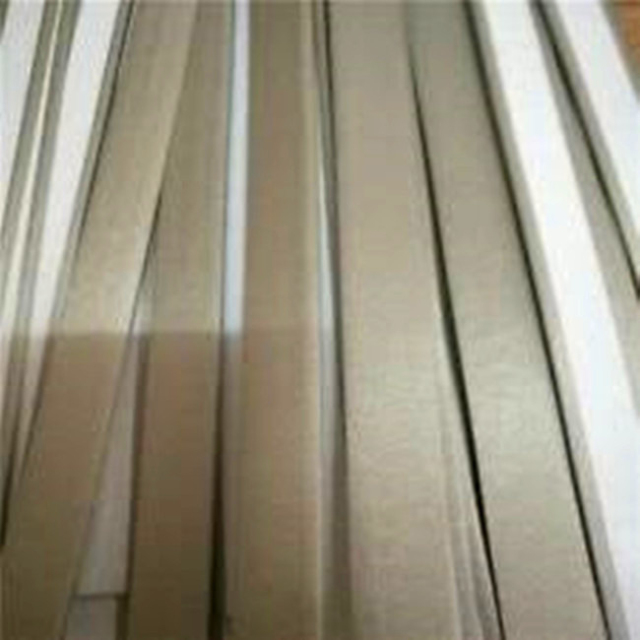

Foam gasket with conductive adhesive tape
Product Description
• Product features for foam gasket with conductive adhesive tape
1. Compact conductive fibers, no sharp edges
2. Good elasticity and consistency
3. Conductive adhesive
4. Low surface contact resistance
5. Shielding performance will not reduce after 10,000 times friction

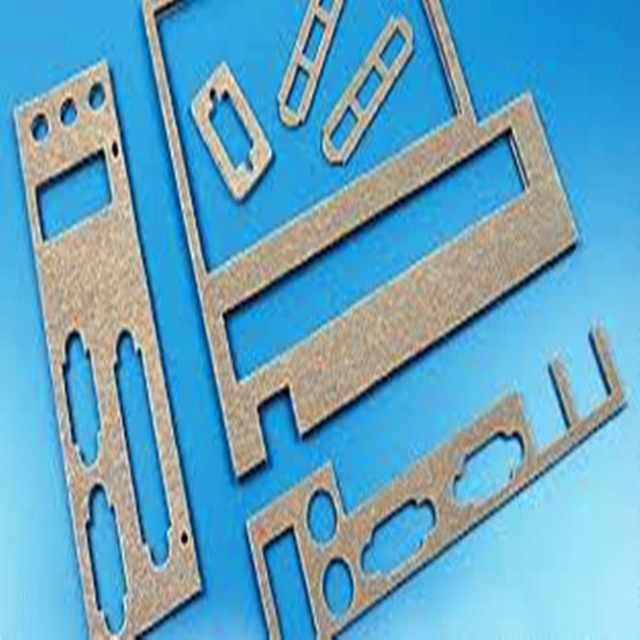

6. Thin section suitable for I/O and D- subminiature lining
7. Could be used to ground connection
• Specification for foam gasket with conductive adhesive tape
| Name | foam gasket with conductive tape |
| Shielding effectiveness | 60-80dB/30MHz-1GHz |
| Surface resistance | <0.07ohms/sq inch |
| Permanent deformation | < 10% |
| Temperature range | -10~110°c |
| Flammability | UL 94(HF-1) |
| Compression | 30-50% |
• Application for foam gasket with conductive adhesive tape
Widely used in electronic box,case,interior chassis, industrial equipment,
notebook PC, mobile communication devices,medical equipment, RF door and MRI door etc.

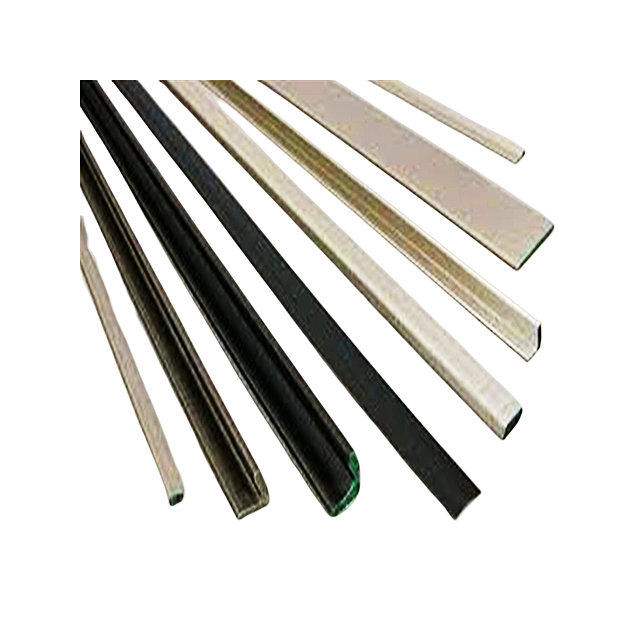

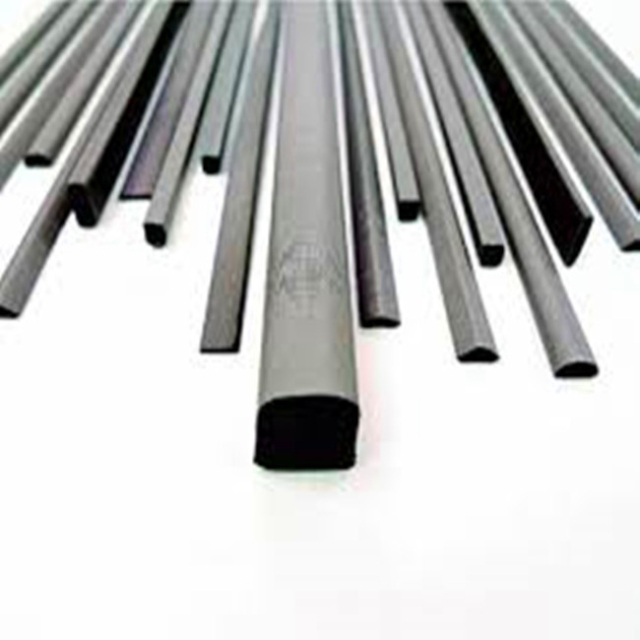

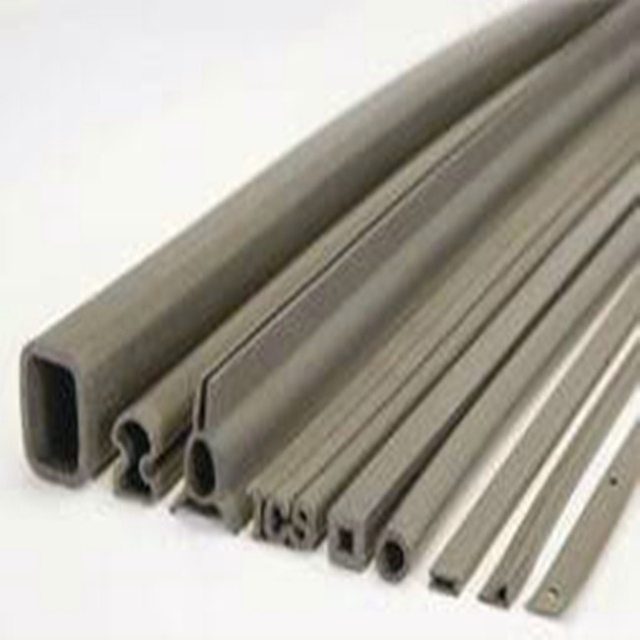

• Type for foam gasket with conductive adhesive tape
“V” type
“D” type

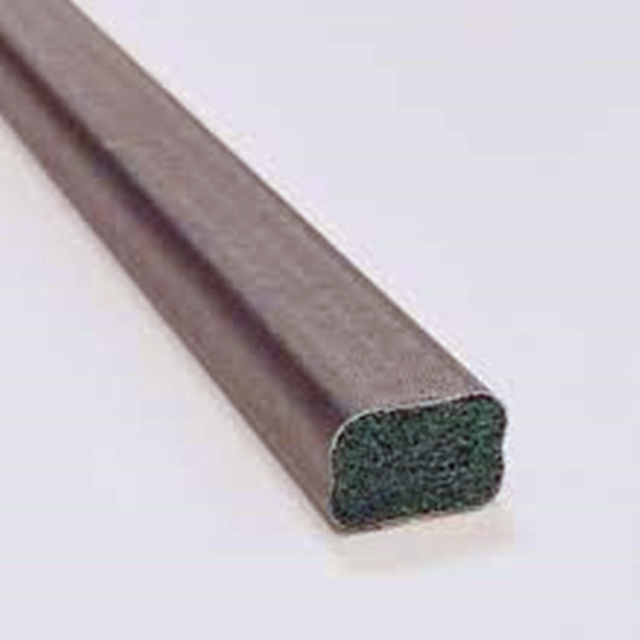

Rectangle type
Customized accept
• Other information for conductive foam gasket with adhesive
| Foam gasket | |
| MOQ | 50M |
| Delivery time | 5-7days |
| Payment Terms | T/T, Paypal, Western Union |
| Longest dimension cut | 1.22m/pcs |
| Place of region | China |
| PRODUCT DATASHEET | ||
| PRODUCT NAME | ||

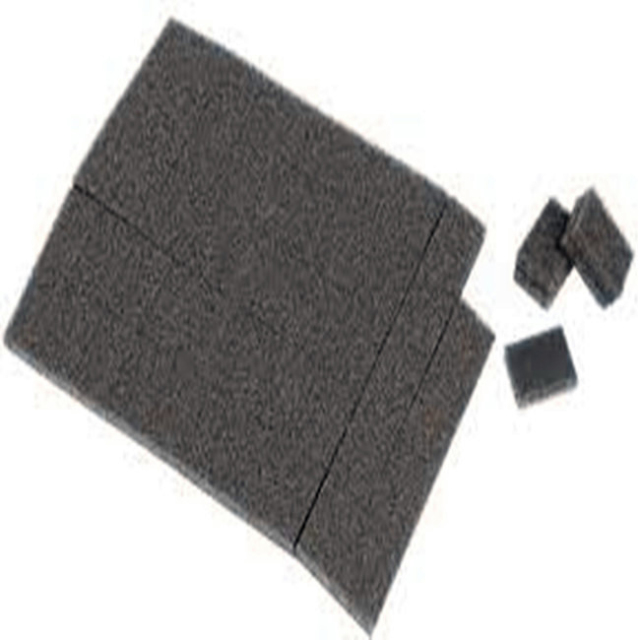

| CONDUCTIVE FOAM | ||
| PRODUCT PERFORMANCE | ||
| SURFACE RESISTANCE | ≤0.05Ω/INCH UNDER 100g LOAD | |
| RF SHIELDING EFFECTIVENESS | 80dB@30M-1HHz ASTM4935 | |
| heat resistant temperature | -10℃-110℃ | |
| Adhesion strength | ≥1.3(Kg/25mm) | |
| initial adhesion | 1600g/25mm (non-conductive type) | |
| Maintain adhesion | 1440Min/inch | |
| Product material ingredient | ||
| Sponge | ||
| Density | 50Kg/m3 | |
| Elongation | 75% | |
| Fire-proof level | UL94(HF-1) | |
| Conductive fabric | ||
| Material | Polyester0.09mm plating Cu0.003mm+Ni 0.003mm | |
| Thickness | 0.093mm | |
| Surface resistance | 0.022Ω-0.03Ω/inch | |
| Elongation | 20/22%(wp/wt) | |
| Operating temperature | -10℃-170℃ | |
| tensile strength | 25.4/24.4Kg f/25mm (wp/wt) | |
| Rf shielding effectiveness | 80dB/30M-1GHz (ASTM4935) | |
| organization | Ripstop type Taffeta type | |
| Both sided conductive tape | ||
| Material | no substrate acrylic glue+Ni | |
| Operating temperature | -20℃-100℃ | |
| initial force | 6#CM | |
| Peel force | 1.6Kg/25mm | |
| Maintain force | 24hrs/1Kg/25mm*25mm | |
| Surface resistance | ≤0.05Ω/sp |
|
