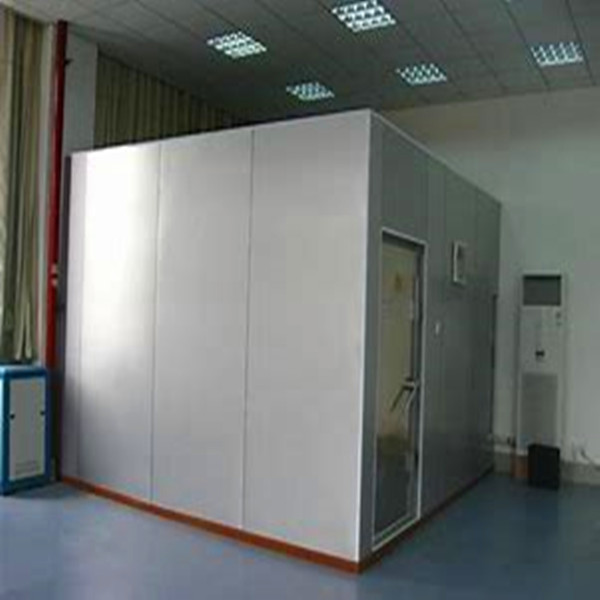

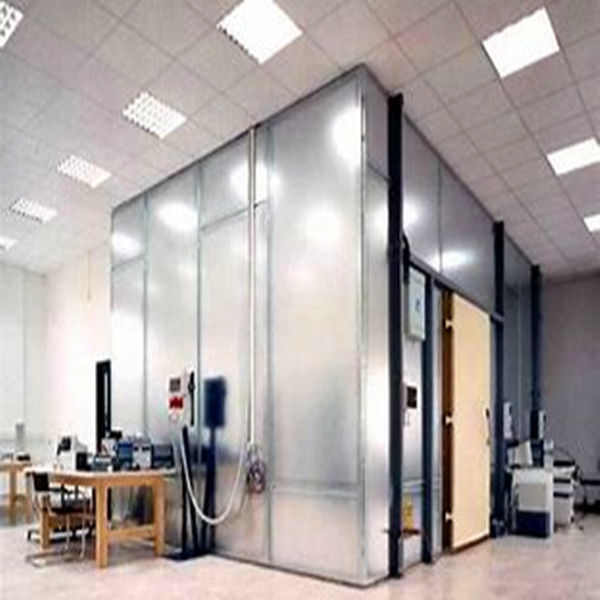

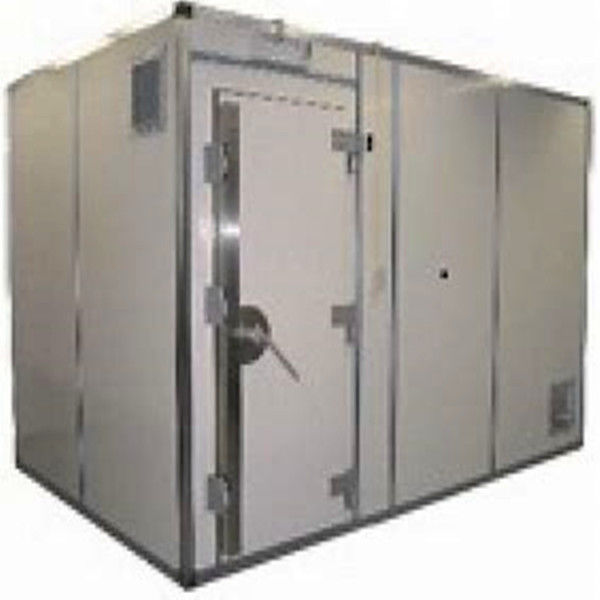

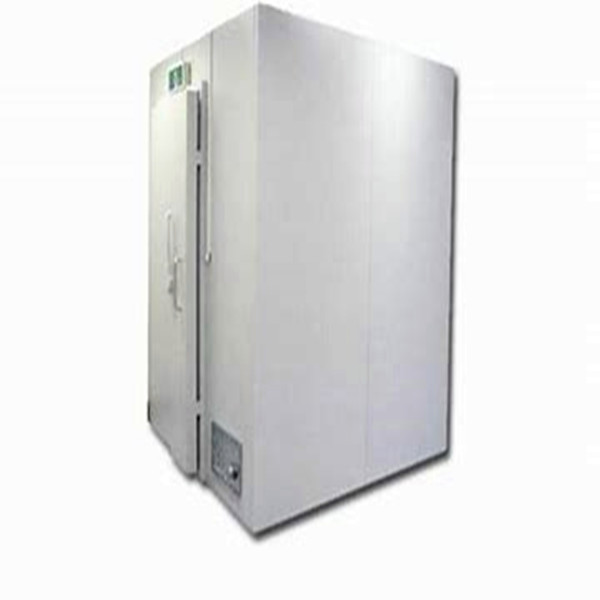

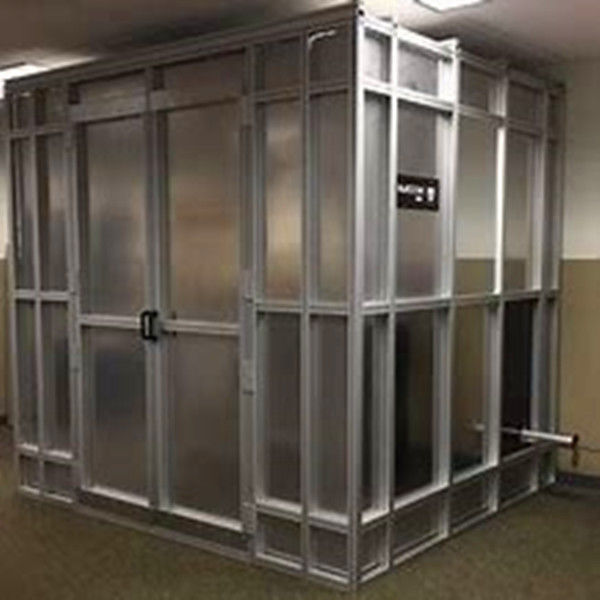

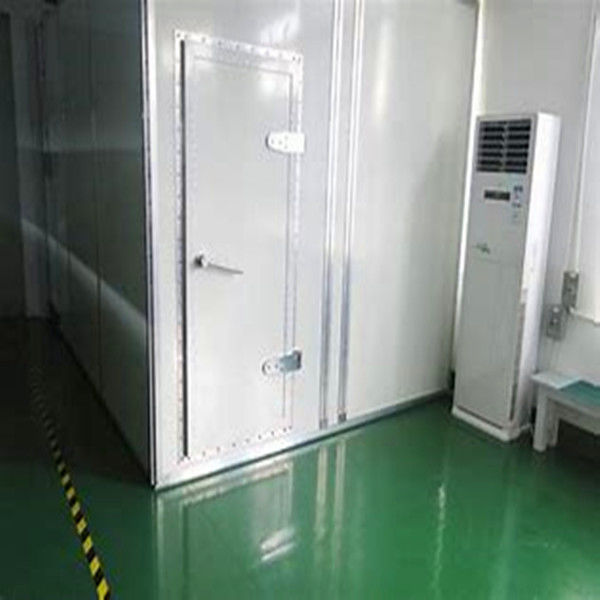

14KHz-40GHz more than 100dB rf enclosure emi shield emc tester
- 2mm or 3mm thick Galvanized steel
- Modular design allows for easy assembly and disassembly at a later date
- Can easily be modified into larger or smaller rooms
- Used by industry to perform radiated emissions and;
- Radiated immunity testing of electrical/electronic equipment to various International specifications
When a shielded room is necessary?
· If your lab is near a broad spectrum emitter (i.e equipment that transmits multiple frequencies under 400Hz), radio tower, mobile phone transmitter or other large field generators, then you should consider a shielded room.
· If your research is in the gamma band and you do not want to use a 60/50Hz notch filter to remove mains power noise, you might consider a shielded room. We recommend taking the steps above to first minimize the mains power noise. If that is not sufficient for your needs, then a shielded room may help.
| Product Features |
| Shielding panels are made of molded cold-rolled steel plates. They are jointed in way and welded with CO2 protection, which can restrain the plates from distortion and ensure the leveling of the steel plates. |
| Self-supported frame construction is made of section materials. |
| Shielding door is optional: standard electromotive door (electromotive / manual alternative), full-automatic shielding door (light-activated with password) sliding door. Subshining stainless steel decoration is on surface of the door. Standard dimension of the door is:0.85×2(m). |
| Large-scale hanging sliding shielding-door, electromotive sliding push-in door, electromotive sliding gasbag door, rotated door with track. |
| Ventilated window is designed in cellular wave-guide type with dimension:300×300(mm). |
| Power filter is in condition of high-performance and low-leakage. |
| Telephone, air-conditioning, fire-fight devices, optical fiber and CAT5 cables can be equipped customized. |
| Decoration will be arranged in the shielding room according to standard equipment room requirements. |
| Shielding Properties (dB) |
|
Magnetic field
|
14kHz |
85dB |
| 100KHz |
100dB |
| 200KHz |
110dB |
| Plane wave |
50-103MHz |
120dB |
|
Microware
|
1-10GHz |
110dB |
| 10-20GHz |
100dB |
| 20-40GHz |
80dB |
| Application Scope |
| EMC tesing |
| Items 1 |
Module Panel type, 2mm/3mm galvanized steel plate |
|
| Items 2 |
RF Shielding Door, Open size:1000*2000mm
Or Customized dimension |
|
| Items 3 |
Power Filters
16A/ 32A/50A/63A
Or Customized parameter |
|
| Items 4 |
Honeycomb Ventilation panels
300x300x25mm
300x600x25mm
Or Customized dimension |
|
| Items 5 |
RF Panel
300*200mm,including waveguide Ø4cm / L220cm x1 BNC*2/N*2/SMA*2
Or Customized dimension |
|
| Items 6 |
Floor
Anti-static floor or Laminate flooring
Or customized materials |
|
| Items 7 |
Foam RF absorber
Ferrite tile
High power absorber |
|
| Items 8 |
Beryllium copper Fingers |
|
| Items 9 |
Steel waveguide |
|
| Items 10 |
EMI Shielding Gasket |
|
| RF Anechoic chamber Shielding Properties (dB) |
|
Magnetic field
|
14kHz |
75dB |
| 100KHz |
100dB |
| 200KHz |
110dB |
| Plane wave |
50-103MHz |
120dB |
|
Microware
|
1-10GHz |
110dB |
| 10-20GHz |
100dB
|
Before-sale:1.All inquires will be replied with 8 hours. 7D/24H service,Please feel free to contact us with Email/TM/Skype. 2.Strong technical team and Professional sales. 3.Customized packaging is acceptable. 4.Welcom customers from all the world to visit our factory. After-sale:1.All emi filter will be tested and adjusted before shipping. 2.After receiving the products,Any question we will try our best to solve.Robust Shielding from Low to Microwave FrequenciesThe High-Shielding EMC Testing Room – RF Shielding Room 14 kHz–40 GHz features modular galvanized steel panels, either 2 mm or 3 mm in thickness, assembled without welding and fastened securely for a distortion-free structure. The room achieves ≥100 dB attenuation across 14 kHz to 40 GHz. With magnetic field attenuation of 85 dB at 14 kHz and 120 dB at 50–103 MHz, and strong performance in the microwave bands (110 dB at 1–10 GHz, 100 dB at 10–20 GHz, and 80 dB at 20–40 GHz), it ensures clean environments for emc testing. Its modular design supports easy assembly, future expansion, and adaptable installation to varying lab configurations.Flexible Configuration for Diverse Testing NeedsThis RF enclosure supports custom room and door dimensions to suit different test setups. It offers optional shielding doors—electromotive, manual, or sliding—equipped with waveguide ventilation windows (300×300 mm), and high-performance power filters for single-phase, three-phase, or DC systems. Additional utilities, such as telephone, air-conditioning, fire-control devices, optical fiber, and CAT5 interfaces, can be integrated without compromising electromagnetic shielding. The structure is shipped in wooden crates with a typical lead time of 2–3 weeks from the Shanghai port.Engineered for Test Integrity and Environmental AdaptationConstructed with cold-rolled galvanized panels connected via CO₂-welded joints and self-supporting frame structure, this room maintains flat, magnetic-free surfaces. It’s built for radiated emission and immunity testing under multiple international standards. The modular format allows quick reconfiguration, supporting expansions or relocations. Delivered completely packaged, it supports reliable EMC test conditions in laboratories or production facilities near strong RF sources like radio towers or broad-field emitters.Product AdvantagesSuperior Shielding Performance Across All Frequency BandsThis RF shielding room provides exceptional shielding efficiency with attenuation levels reaching more than 100dB across an ultra-wide frequency range from 14KHz to 40GHz. It is engineered specifically to meet the highest demands of EMC test laboratories, certification bodies, and manufacturers operating in RF-heavy environments. With verified attenuation levels including 85dB at 14KHz, 100dB at 10–20GHz, and 80dB at 20–40GHz, this enclosure protects against both low-frequency and high-frequency radio interference. Whether used for immunity or emission testing, it offers unmatched emi protection, ensuring that sensitive equipment and test setups remain unaffected by external electromagnetic noise. This consistency in shielding makes it indispensable in environments demanding precise control over emc emi compliance. Customizable and Future-Ready Modular ConstructionUnlike fixed structures, the modular panels—available in 2mm or 3mm galvanized steel—allow the shielding room to be configured, expanded, or relocated without compromising performance. The layout accommodates different room sizes, door types (manual, automatic, or sliding), and interface ports without diminishing electromagnetic shielding efficiency. This ensures high flexibility for labs with dynamic spatial or operational needs. Users can also request ventilation waveguides, filtered power inputs (AC, DC, or 3-phase), and communication interfaces like optical fiber, fire alarm systems, and telephone or network ports. This adaptability makes the product especially suitable for rf shield box manufacturers, system integrators, or facility engineers seeking long-term investment with minimal need for infrastructure overhaul. Fast Deployment with Long-Term Operational ReliabilityWith a delivery time of just 2–3 weeks and pre-packed in protective wooden crates, the RF shielding room offers a hassle-free installation process. The internal structure is built using CO₂-welded cold-rolled galvanized panels that ensure long-term structural integrity, while the non-welded self-supporting frame guarantees zero magnetic interference within the space. Each component is quality-checked for durability and test compatibility, including high-performance emi filters for power lines and optional HVAC-compatible designs. Customers benefit from a cost-effective and maintenance-light shielding system that remains robust even under constant high-frequency usage. The shielding room’s tested performance, compatibility with international standards, and easy integration into existing EMC test labs set it apart in the competitive field of emi shielding solutions.
Use Scenarios
Radiated Emissions Testing in Aerospace and Telecommunications
In aerospace and telecommunications sectors, precision in radiated emissions testing is critical for adherence to strict EMC standards. The Haozhuo rf shielding room functions as an electromagnetic isolation chamber where devices under test are shielded from external noise sources, ensuring measurement accuracy. Its capability to attenuate signals over 100 dB from 14 kHz to 40 GHz safeguards compliance with aviation and communications performance regulations. By integrating with spectrum analyzers and test equipment, the shield room facilitates seamless workflow execution in these industries, supporting product certification processes and accelerating development cycles.
Equipment Calibration and R&D Applications in Healthcare Manufacturing
Healthcare equipment manufacturers utilize the Haozhuo rf room to establish interference-free conditions critical for the calibration and development of sensitive diagnostic devices. The modular design accommodates various laboratory environments, offering secure EMC shielding to maintain instrument accuracy. This controlled setting enables precise calibration runs and iterative testing during R&D, reducing measurement variability caused by ambient electromagnetic interference. The rf shielding room enhances laboratory compliance with international standards, ensuring that healthcare devices meet stringent safety and performance specifications essential for market approval and operational reliability.
About UsHaozhuo, established in 2012 under Changzhou Hezi International Trading Co., Ltd., specializes in EMI/EMC solutions as both an emi filter manufacturer and industrial filter manufacturer. Serving healthcare, aerospace, transportation, and manufacturing sectors, our product range includes low pass filters, ac filters, power distribution units, and complete shielding solutions. With a skilled team, global exports of 90–100%, and credentials under CE, UL, VDE, CSA, and CQC, we design systems to meet standards like IEC 61800‑3, EN 55011, and GJB series. Our in-house testing capabilities—LCR bridges, spectrum analyzers, shield rooms—ensure every product meets emc test and shielding requirements. Clients value our fast lead times, customization, two-year warranty, and responsive support as a trusted rf shield box manufacturer and EMI partner.Contact Haozhuo now to secure your custom high-performance RF Shielding Room and ensure comprehensive EMI control from 14 kHz to 40 GHz.
