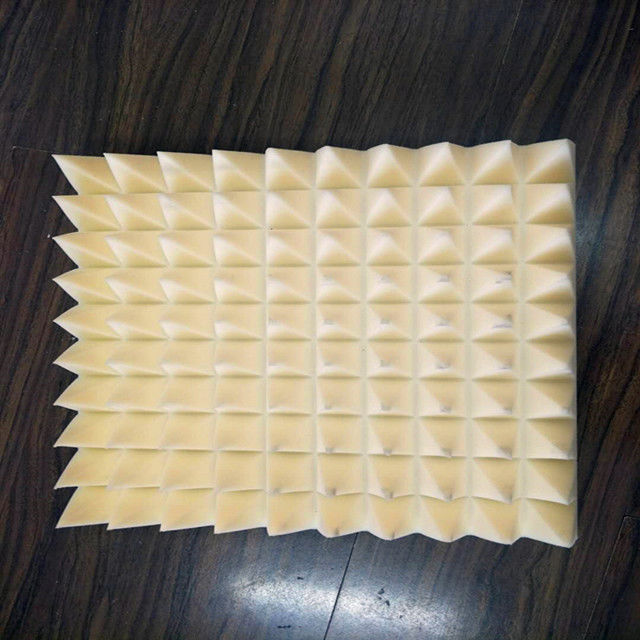

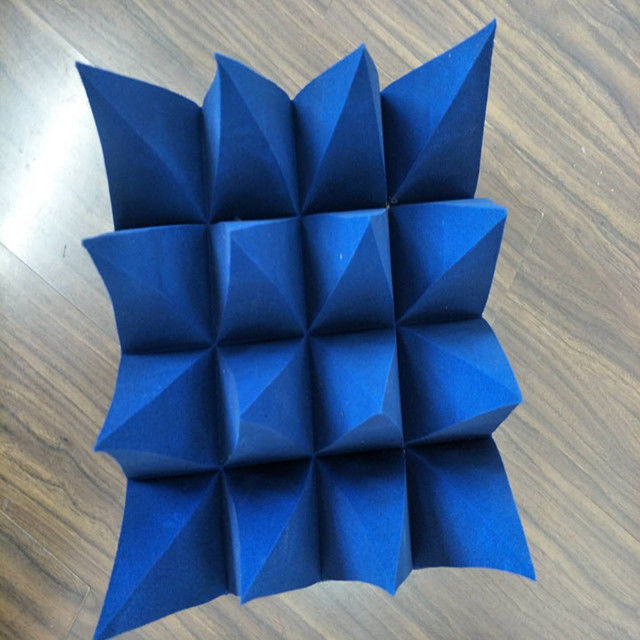

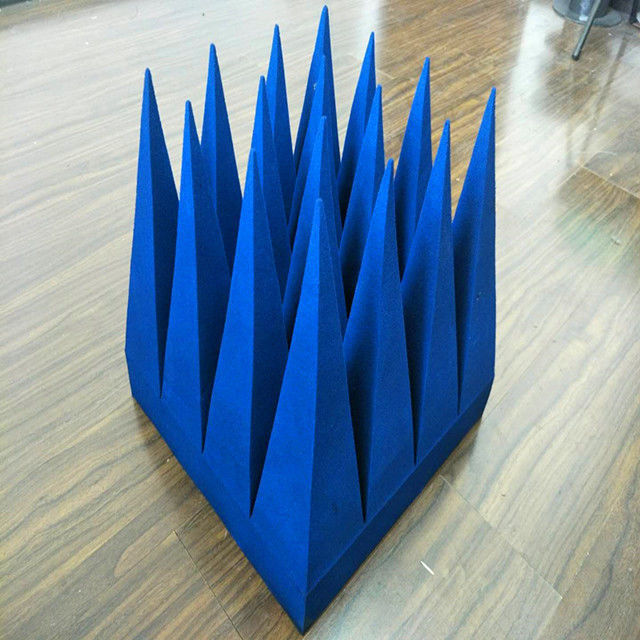

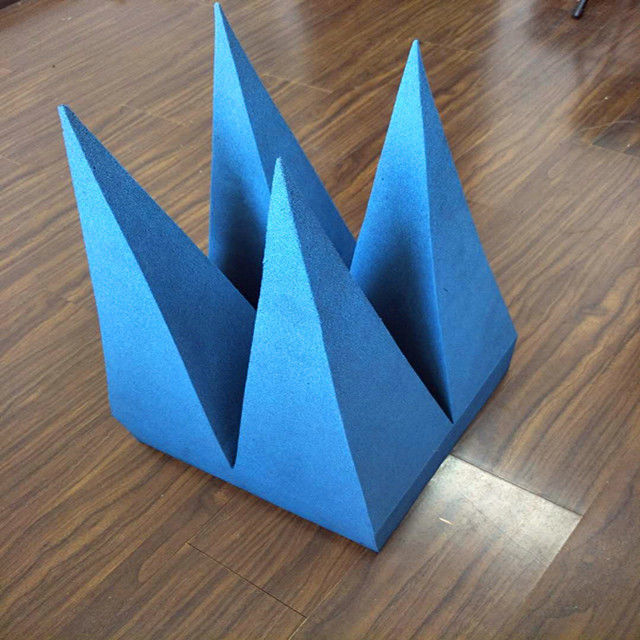

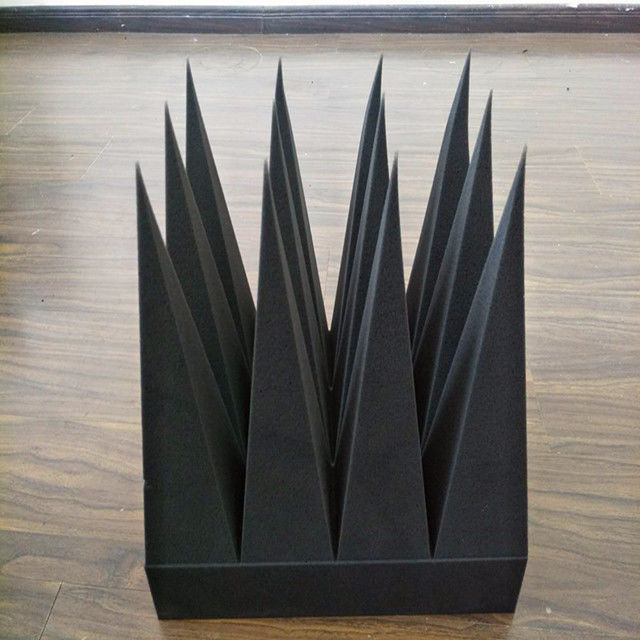

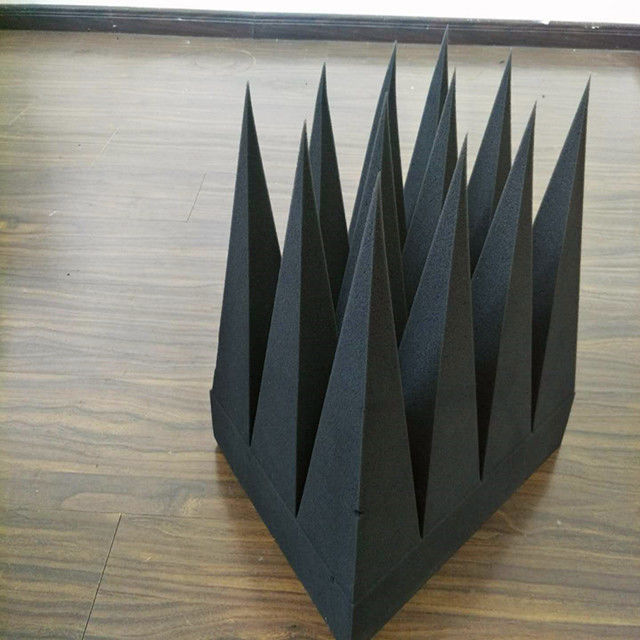

The Wave Foam Pyramidal Absorber provides superior electromagnetic wave absorption for RF shielding rooms. This solution by a trusted RF absorber manufacturer and EMC absorber supplier ensures precise attenuation in EMC and anechoic chamber applications.
Optimized Solution for RF Shielding Environments
The Wave Foam Pyramidal Absorber targets engineering teams designing or upgrading RF shielding rooms requiring reliable electromagnetic wave attenuation. As an essential product from a reputed RF pyramid absorber lineup, it caters to EMC laboratories and anechoic chamber builders seeking solutions compliant with rigorous absorption standards. Procurement specialists rely on this product for consistent performance across broad frequency ranges, supporting environments where controlled RF attenuation is critical for test accuracy and regulatory compliance.
Material Composition and Technical Specifications
Constructed from advanced polyurethane-based foam with a distinctive pyramidal geometry, this absorber achieves high reflectivity reduction between 10 and 50 dB over frequencies from 100 MHz up to 40 GHz. Available in customizable panel sizes and heights, it adapts precisely to spatial and attenuation requirements. The lightweight nature and modular design simplify installation in complex anechoic chamber setups. This product exemplifies superior engineering as an EMC test chamber absorber supplier and anechoic chamber absorber manufacturer, delivering measurable reductions in RF reflections and enhancing repeatability in electromagnetic testing.
Applications and Industry Integration
This absorber finds applications across diverse industries including telecommunications, aerospace, military testing, and electronics manufacturing. It is integral to constructing EMC chambers that demand controlled RF environments and is widely used for lining anechoic chambers to minimize signal distortion. Integration into hybrid shielding systems maximizes overall EMI reduction, supporting validation and development of RF devices. By selecting this microwave absorbing foam from a reliable pyramid absorber supplier, engineers ensure compliance with strict electromagnetic compatibility protocols and improve operational accuracy in critical R&D and production test facilities.
Modular Design and Structural Efficiency
The product’s pyramidal design enables optimal electromagnetic wave attenuation by progressively diminishing reflections, supported by lightweight, flexible polyurethane foam that reduces structural load on installations. Custom sizing options allow seamless integration into various shielding room configurations. These structural qualities make it a preferred choice among RF absorbing foam suppliers and microwave absorber wholesale distributors, offering scalable solutions that accommodate different attenuation levels and room geometries without compromising installation efficiency or chamber integrity.
Enhanced Performance and User-Centric Usability
Performance-wise, this absorber delivers stable, wide-range RF attenuation critical for high-precision electromagnetic compatibility testing and shielding applications. Its easy-to-handle panels facilitate rapid deployment and maintenance in demanding laboratory or manufacturing settings. The material’s durability ensures long-term operational stability, reducing downtime and replacement costs. Thanks to the efforts of an experienced EMC absorber supplier, users benefit from consistent product quality and tailored solutions that optimize test accuracy while minimizing electromagnetic interference within their setups.
| TYPE | BASE SIZE | NUMBER OF PYRAMIDAL | WEIGHT | TOTAL HEIGHT | BASE HEIGHT | PYRAMIDAL HEIGHT |
PYRAMIDAL WIDTH |
| HZ-30 | 500*500 | 36*36 | 1.1 | 30 | 15 | 15 | 14 |
| HZ-50 | 500*500 | 20*20 | 1.8 | 50 | 20 | 30 | 25 |
| HZ-70 | 500*500 | 20*20 | 2.5 | 70 | 20 | 50 | 25 |
| HZ-100 | 500*500 | 13*13 | 3.3 | 100 | 25 | 75 | 38 |
| HZ-150 | 500*500 | 9*9 | 4.8 | 150 | 30 | 120 | 56 |
| HZ-200 | 500*500 | 7*7 | 6.3 | 200 | 40 | 160 | 71 |
| HZ-300 | 500*500 | 5*5 | 9 | 300 | 60 | 240 | 100 |
| HZ-400 | 500*500 | 4*4 | 12 | 400 | 70 | 330 | 125 |
| HZ-500 | 500*500 | 3*3 | 15 | 500 | 80 | 420 | 167 |
| HZ-600 | 400*400 | 2*2 | 18 | 600 | 90 | 510 | 200 |
| HZ-700 | 250*500 | 1*2 | 21 | 700 | 100 | 600 | 250 |
| HZ-800 | 250*500 | 1*2 | 24 | 800 | 100 | 700 | 250 |
| HZ-1000 | 334*334 | 1*1 | 30 | 1000 | 150 | 850 | 3 |
| TYPE | HEIGHT | REFLECTIVITY | ||||||||
| 40 | 15 | 10 | 3 | 1.5 | 0.5 | 0.3 | 0.2 | 0.15 | ||
| HZ-100 | 100 | 50 | 45 | 40 | 30 | 20 | ||||
| HZ-150 | 150 | 50 | 50 | 45 | 33 | 25 | ||||
| HZ-200 | 200 | 50 | 50 | 50 | 37 | 30 | 17 | |||
| HZ-300 | 300 | 50 | 50 | 50 | 40 | 33 | 20 | |||
| HZ-400 | 400 | 50 | 50 | 50 | 45 | 40 | 25 | 17 | ||
| HZ-500 | 500 | 50 | 50 | 50 | 45 | 40 | 30 | 20 | 17 | |
| HZ-600 | 600 | 50 | 50 | 50 | 50 | 40 | 30 | 25 | 20 | |
| HZ-700 | 700 | 50 | 50 | 50 | 50 | 43 | 35 | 30 | 20 | 17 |
| HZ-800 | 800 | 50 | 50 | 50 | 50 | 45 | 36 | 30 | 20 | 17 |
| HZ-1000 | 1000 | 50 | 50 | 50 | 50 | 45 | 38 | 35 | 25 | 20 |
RF Foam Absorber Basic Information
· Base size: 500*500mm, customized acceptable
· Standard height: 30,50,100,150,200,300,400,500,700,800,1000mm
RF Foam Absorber Features
· The traditional material for anechoic chambers
· Outstanding absorbing over a wide frequency range
· Flexible
About US
Use Scenarios
EMC Testing Chamber Construction for Precision Validation
In the development of EMC test chambers, this RF pyramid absorber provides a controlled, low-reflection environment required for accurate electromagnetic interference measurements. The product serves as a crucial component in compliance testing facilities ensuring equipment meets EMC directives and industry standards. Its customizable dimensions and performance characteristics allow engineers to calibrate absorption profiles precisely to test parameters. Integration with chamber hardware and RF systems supports reliable signal isolation and repeatable measurement cycles necessary for industrial and military certification.
Anechoic Chamber Solution for Advanced RF Research
Within specialized anechoic chambers used in aerospace and telecommunications R&D, this absorber minimizes internal RF reflections that could otherwise distort antenna pattern measurements and signal behavior analysis. The product’s high-frequency attenuation and configurable sizes enable tailored setups accommodating various experimental frequencies and device geometries. As part of an overall testing system, it ensures compliance with electromagnetic compatibility requirements and enhances measurement fidelity, making it an essential item from a professional anechoic chamber absorber manufacturer portfolio for rigorous lab environments.
Can you customize the Wave Foam Pyramidal Absorber to fit specific RF chamber dimensions?
Yes, we specialize in custom manufacturing. Our RF pyramid absorber panels can be tailored in base size and height to meet your exact EMC or anechoic chamber requirements, ensuring optimal performance for your unique RF environment.
What materials are used in your RF absorbing foam to ensure wide frequency absorption?
Our absorbers utilize flexible polyurethane-based foam, engineered to deliver effective electromagnetic wave attenuation from 100 MHz to 40 GHz. This material ensures the EMC pyramid absorber maintains durability and high performance in diverse shielding environments.
How do you support installation and maintenance of your anechoic chamber absorber products?
We provide lightweight, easy-to-install panels designed for straightforward mounting. Our team offers technical guidance and after-supply support to ensure your anechoic chamber absorber installation delivers consistent reflectivity reduction and long-term stability.
What are your ordering and delivery terms for bulk purchase of microwave absorbing foam?
The minimum order quantity for our microwave absorbing foam is 1 square meter. We maintain strict quality control and test all panels prior to shipment, ensuring reliable performance for large-scale RF shielding projects and prompt delivery schedules.
