Electromagnetic compatibility (EMC) testing is critical in ensuring modern electronic devices function as expected without interfering with one another. To achieve reliable and repeatable results, it’s essential to use the right testing environment. EMC anechoic chambers play a significant role in such evaluations, but how do they compare to other EMC testing environments?
Table of contents：
Differences Between EMC Anechoic Chambers and Semi-Anechoic Chambers
Performance Metrics: Shielding Effectiveness and Absorption Rates
Application Suitability for Various Chamber Types
Cost-Effectiveness and Availability in the Global Market

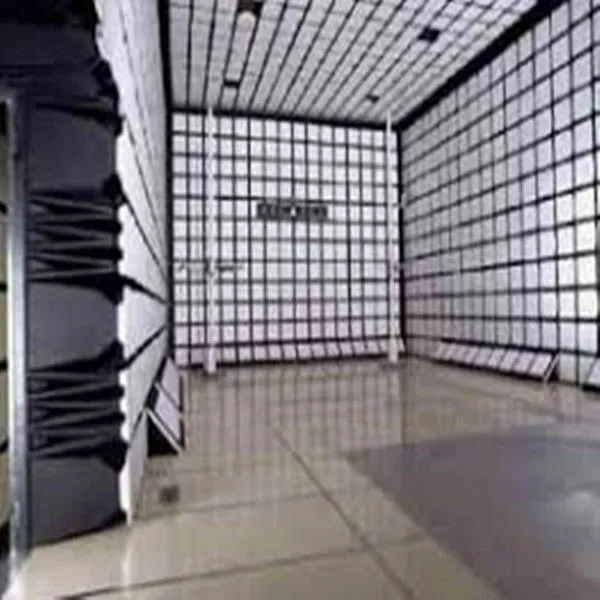

EMC anechoic chambers, also referred to as RF test chambers, are fully lined with RF absorber materials, making them ideal for isolating devices from external electromagnetic interference (EMI). These chambers create a controlled environment where electromagnetic waves can be accurately measured without external noise or reflections affecting the results. On the other hand, semi-anechoic chambers have a reflective floor to simulate a real-world setup while maintaining absorbing materials on the walls and ceiling. The reflective floor allows ground plane simulations, which are crucial for certain automotive or large equipment tests. Semi-anechoic chambers are often used for radiated emissions and immunity testing where conditions closer to real-world settings are desired. Fully RF anechoic test chambers are more suited to highly sensitive measurements where total isolation is needed. While both test environments are essential in EMC testing, the choice depends primarily on the testing standards and the type of equipment being tested.
The performance of an EMC test chamber depends significantly on two factors: shielding effectiveness and absorption rates. Shielding effectiveness represents the chamber's ability to block external electromagnetic signals. The Haozhuo EMC Test RF Anechoic Chamber, for instance, achieves over 100dB attenuation across frequencies ranging from 14kHz to 40GHz, ensuring minimal interference. Absorption rates, on the other hand, focus on how effectively the interior absorber materials reduce electromagnetic wave reflections within the room. High-quality RF absorbers, such as pyramid absorbers and ferrite tiles, play a pivotal role in determining the chamber's overall performance. Pyramid absorbers are particularly effective at high-frequency ranges, whereas ferrite tiles work well for low-frequency applications. Together, these materials ensure the chamber provides a reliable, interference-free environment for precise EMC measurements. Delivering superior shielding and absorption, EMC anechoic chambers stand out as one of the most effective tools for ensuring testing accuracy.
Different EMC chambers are designed for specific applications and industries. Fully RF anechoic test chambers are preferred where high-precision and minimal signal reflections are necessary. Industries such as telecommunications, aerospace, and consumer electronics frequently use these chambers to comply with stringent international standards like EN55022 and MIL-STD-461E. Semi-anechoic chambers, with their partially reflective surfaces, are well-suited for automotive industries and heavy equipment manufacturers. These chambers simulate real-world conditions, making them ideal for radiated emissions and immunity tests. Compact EMC chambers, meanwhile, cater to smaller devices and are widely used in research and development labs. The Haozhuo EMC Test RF Anechoic Chamber exemplifies versatility with options for customization, from small compact chambers to large 10-meter chambers. Its modular design allows industries to tailor testing environments to specific needs without compromising compliance or performance.
EMC anechoic chambers, while offering exceptional accuracy and reliability, come with higher investment costs compared to other testing solutions. Fully anechoic chambers, in particular, involve substantial expenses due to the advanced materials required, such as galvanized steel panels and high-performance RF absorbers. However, the cost is justified for industries where precision and compliance are non-negotiable. Semi-anechoic chambers are generally more cost-effective and widely used for routine testing, especially in industries like automotive manufacturing. Availability also varies globally; leading manufacturers, like Haozhuo, ensure their EMC chambers are accessible to a wide range of customers with international certifications and customizable features. Additional options for compact chambers or smaller test setups can further reduce costs while still delivering dependable performance.
Investing in a high-performance EMC test chamber ultimately ensures compliance with global standards, reduces costly design errors, and accelerates time to market. The flexibility of manufacturers to provide tailored solutions ensures that businesses, regardless of size, can find the right EMC testing environment for their needs.
