EMC RF shielded Anechoic Chamber for testing
Anechoic Chamber
|
Anechoic Chamber Description
we provide Semi-EMC Chamber and Full EMC Chamber for EMC Testing.

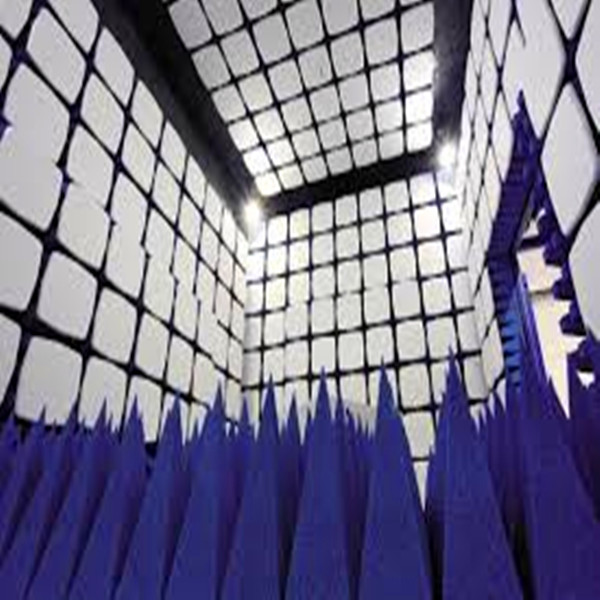

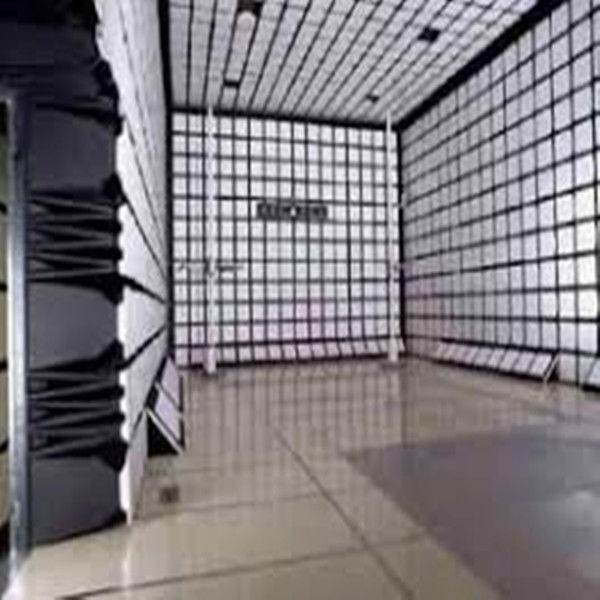

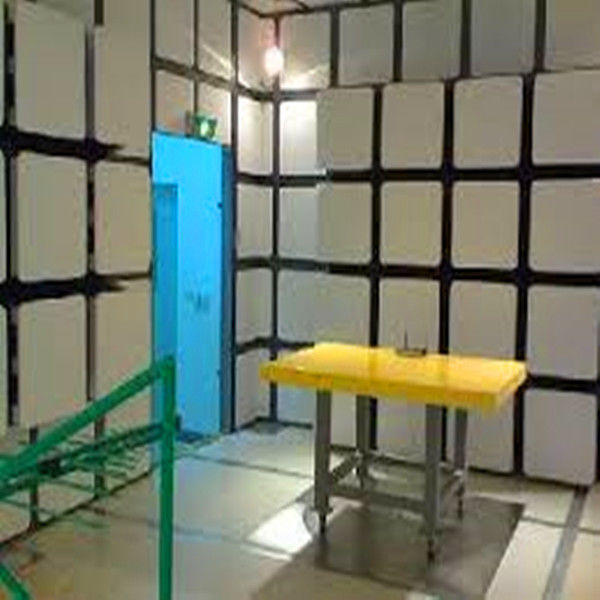

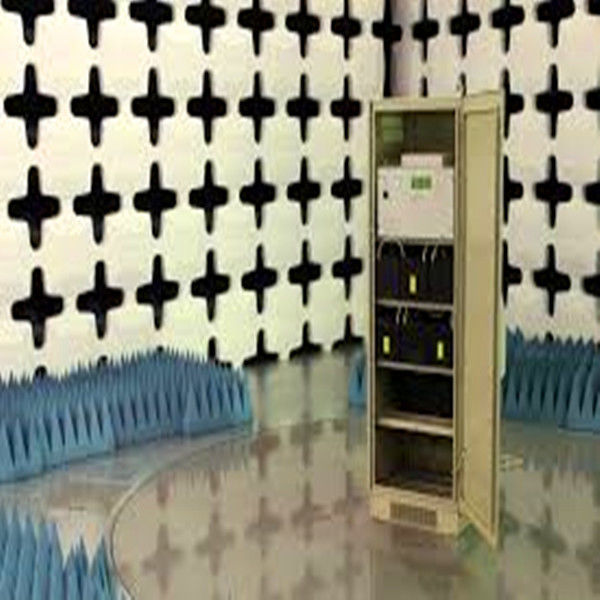

An Anechoic Chamber generally consists of an RF shielded room which is either partially or fully lined with RF absorber material. It is used to perform several types of testing and measurements.
our chambers are typically constructed from the modular shielding system.
EMC anechoic test chambers are used by industry to perform radiated emissions and radiated immunity testing of electrical/electronic equipment to various International specifications such as EN 50147 part 2 / ANSI C63.4 / EN55022 / EN61000-4-3 and various CISPR documents.
Chambers are also designed for EMC testing for testing in accordance with military and avionics specifications such as MIL STD 4612E, DO 160 and DEF STD 59-41.
we offers a fully range of anechoic chambers, including:
- Antenna EMC Testing Chamber
- Compact Chambers
- 3 Meter Chambers
- 5 Meter Chambers
- 10 Meter Chambers
- Free Space Chambers
- MIL-STD Chambers
|
The types we provided for anechoic chamber room with RF absorber
- Compact chamber
- 3 Meter chamber
- 5 Meter chamber
- 10 Meter chamber
- Free space chamber
- MIL-STD chamber
- Customized Anechoic chamber acceptable
Shielding performance for anechoic chamber room with RF absorber
| Magnetic field |
14kHz |
75dB |
| 100KHz |
100dB |
| 200KHz |
110dB |
| Plane wave |
50-103MHz |
120dB |
| Microware |
1-10GHz |
110dB |
| 10-20GHz |
100dB |
| 20-40GHz |
80dB |
High-Performance EMC Chamber for Accurate TestingThe Haozhuo EMC Test RF Anechoic Chamber is engineered to create an environment free from external electromagnetic interference. This EMC chamber achieves superior shielding performance, using 2mm or 3mm galvanized steel panels with an attenuation level exceeding 100dB across 14kHz to 40GHz. This makes it the ideal solution for rf shield box manufacturers, single phase emi filter manufacturers, and emi filter manufacturers seeking precise and repeatable test results.Customizable Solutions for RF Shielding and ComplianceWhether you require a compact EMC chamber or a large-scale 10-meter chamber, Haozhuo provides customizable solutions tailored to meet your testing needs. Our chambers comply with international standards such as EN55022, EN61000-4-3, and MIL-STD-461E, making them a perfect fit for power line filter manufacturers and rfi line filter suppliers conducting electromagnetic compatibility assessments.Advanced RF Shielding for Reliable Test EnvironmentsOur chambers utilize high-quality RF absorber materials, including pyramid absorbers and ferrite tiles, ensuring minimal signal reflections. This advanced RF shielding is crucial for rf shield box manufacturers and emi filter manufacturers conducting emission and immunity tests on their products.Wide Application Across EMC Testing NeedsDesigned for comprehensive EMC chamber testing, our chambers support a variety of industries, including telecommunications, aerospace, and automotive sectors. Single phase emi filter manufacturers, power line filter manufacturers, and rfi line filter suppliers rely on our solutions to validate their products' electromagnetic performance before entering the market.
Product Advantages
-
Superior Shielding Effectiveness – Achieves over 100dB attenuation from 14kHz to 40GHz, ensuring accurate EMC testing.
-
Customizable Chamber Sizes – Available in multiple sizes, from compact to 10-meter EMC chambers, tailored to meet different testing needs.
-
Compliance with Global Standards – Certified for EN55022, ANSI C63.4, and MIL-STD-461E, providing reliable testing solutions for rf shield box manufacturers and emi filter manufacturers.
-
High-Performance Absorbers – Utilizes pyramid and ferrite tile absorbers to minimize signal reflections and maximize testing accuracy.
-
Durable and Long-Lasting – Constructed from high-quality galvanized steel panels for extended operational life.
About Us
Positioning in the Industry
As a leading manufacturer specializing in Electromagnetic Interference (EMI) filters, Changzhou Haozhuo Electronic Co., Ltd. (HAOZHUO) is committed to delivering high-quality solutions that ensure electromagnetic compatibility across various applications.
Core Manufacturing Capabilities and Quality Assurance
- Expert Technical Team: Our engineers possess over a decade of experience in designing EMI filters, with in-depth knowledge of international safety standards such as UL, VDE, CSA, CE, and CQC.
- Comprehensive Testing Equipment: We utilize advanced instruments, including LCR digital bridges, voltage proof testers, insulation resistance testers, spectrum analyzers, and shield rooms, to ensure the reliability and performance of our products.
Production Strength in Numbers
- Established Expertise: Operating since 2003, we have steadily grown our capabilities and market presence.
- Global Reach: With an export percentage between 90% and 100%, our products serve customers worldwide.
- Diverse Workforce: Our team comprises 50 to 100 dedicated professionals.
- Financial Performance: We achieve annual sales ranging from $1,000,000 to $1,500,000.
- Customer Base: We have successfully served over 100 customers globally.
Commitment to Sustainability
In 2017, we enhanced our environmental and occupational health standards by obtaining ISO14000 and ISO18000 certifications, reflecting our dedication to sustainable practices.
Customer Collaboration Process
- Consultation: Engage with clients to understand specific EMI requirements and challenges.
- Customized Solutions: Develop tailored filter designs that align with client needs and compliance standards.
- Prototyping and Testing: Produce prototypes and conduct rigorous testing to validate performance.
- Feedback and Refinement: Incorporate client feedback to optimize the solution.
- Production and Delivery: Finalize production and ensure timely delivery, followed by ongoing support.
Global Service Capabilities
With a strong international presence, including a branch in Italy established in 2014, we are well-equipped to meet the needs of clients worldwide, providing localized support and services.
Partner with HAOZHUO to experience innovative EMI solutions that drive your success.
Ensure your products meet stringent EMC standards with Haozhuo's EMC Test RF Anechoic Chambers. Contact us today to discuss your specific testing requirements and discover how our customizable solutions can support your compliance and product development needs.
