customized MRI RF SHIELDING ROOM
Due to increased environmental electromagnetic pollution, sensitive and accurate measurements are often affected by RF noise. The application of Comtest RF shielded rooms provides the highest possible shielding attenuation, creating a controlled electromagnetic environment to perform high sensitive testing without distortion.
MRI Scanning Room Product Features:
- Pure, electrically deposited copper
- RF attenuation levels of > 100 dB up to 400 MHz frequencies
- Free standing, structurally isolated RF walls
- Light weight wall and ceiling panels
- Factory engineered and fabricated RF shield panels
- Contractor friendly interiors
MRI Scanning Room Description:

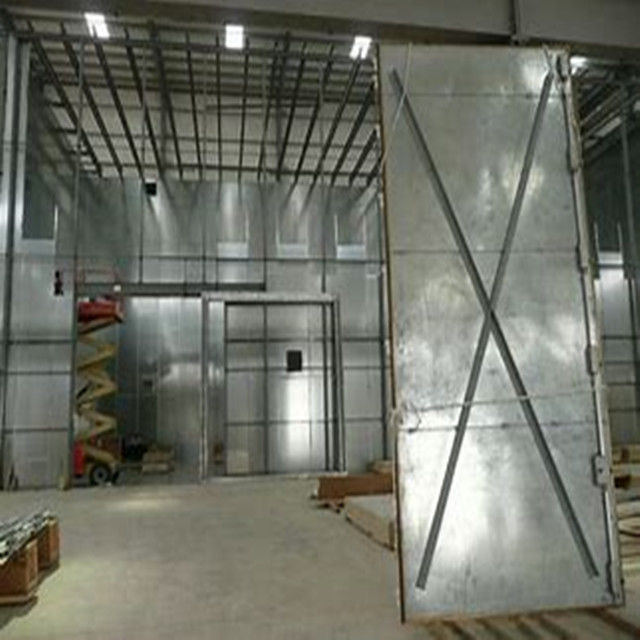

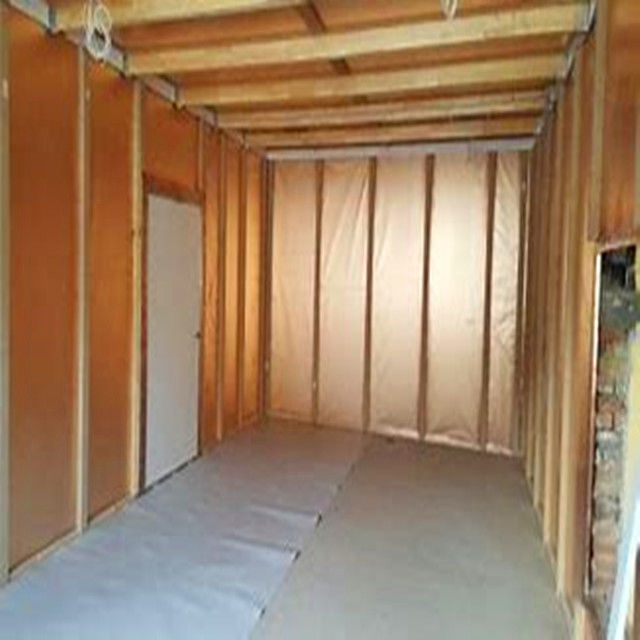

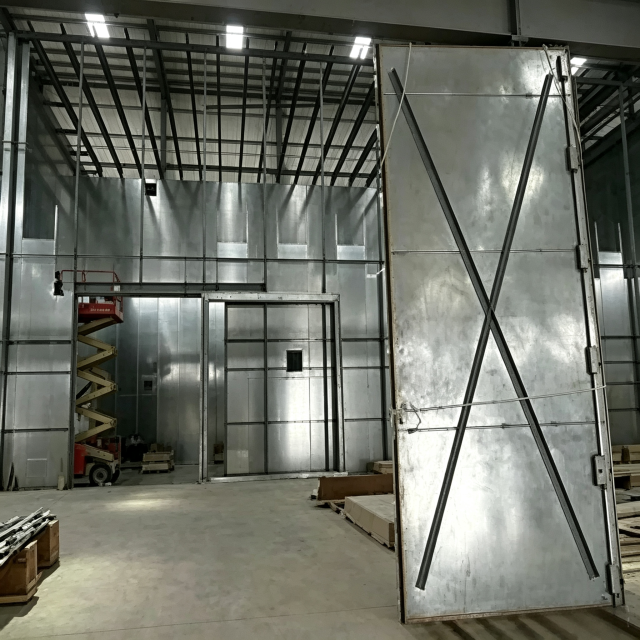

This modular frame construction is wrapped with electroplated copper which can conform to any design criteria. The engineered and bolted system enhances RF integrity with wide 4.4 cm (1 3/4") seams that are highly compressed, offering a seamless shield surface. Interior fasteners do not have to penetrate the shield surface by design, which enhances the long term life of the shield.
| Product Features |
| Shielding panels are made of molded cold-rolled steel plates. They are jointed in way and welded with CO2 protection, which can restrain the plates from distortion and ensure the leveling of the steel plates. |
| Self-supported frame construction is made of section materials. |
| Shielding door is optional: standard electromotive door (electromotive / manual alternative), full-automatic shielding door (light-activated with password) sliding door. Subshining stainless steel decoration is on surface of the door. Standard dimension of the door is:0.85×2(m). |
| Large-scale hanging sliding shielding-door, electromotive sliding push-in door, electromotive sliding gasbag door, rotated door with track. |
| Ventilated window is designed in cellular wave-guide type with dimension:300×300(mm). |
| Power filter is in condition of high-performance and low-leakage. |
| Telephone, air-conditioning, fire-fight devices, optical fiber and CAT5 cables can be equipped customized. |
| Decoration will be arranged in the shielding room according to standard equipment room requirements. |
| Shielding Properties (dB) |
|
Magnetic field
|
14kHz |
85dB |
| 100KHz |
100dB |
| 200KHz |
110dB |
| Plane wave |
50-103MHz |
120dB |
|
Microware
|
1-10GHz |
110dB |
| 10-20GHz |
100dB |
| 20-40GHz |
80dB |
| Application Scope |
| EMC tesing |
| Items 1 |
Module Panel type, 2mm/3mm galvanized steel plate |
|
| Items 2 |
RF Shielding Door, Open size:1000*2000mm
Or Customized dimension |
|
| Items 3 |
Power Filters
16A/ 32A/50A/63A
Or Customized parameter |
|
| Items 4 |
Honeycomb Ventilation panels
300x300x25mm
300x600x25mm
Or Customized dimension |
|
| Items 5 |
RF Panel
300*200mm,including waveguide Ø4cm / L220cm x1 BNC*2/N*2/SMA*2
Or Customized dimension |
|
| Items 6 |
Floor
Anti-static floor or Laminate flooring
Or customized materials |
|
| Items 7 |
Foam RF absorber
Ferrite tile
High power absorber |
|
| Items 8 |
Beryllium copper Fingers |
|
| Items 9 |
Steel waveguide |
|
| Items 10 |
EMI Shielding Gasket |
|
MRI Scanning Room Accessories
| Accessories 1 |

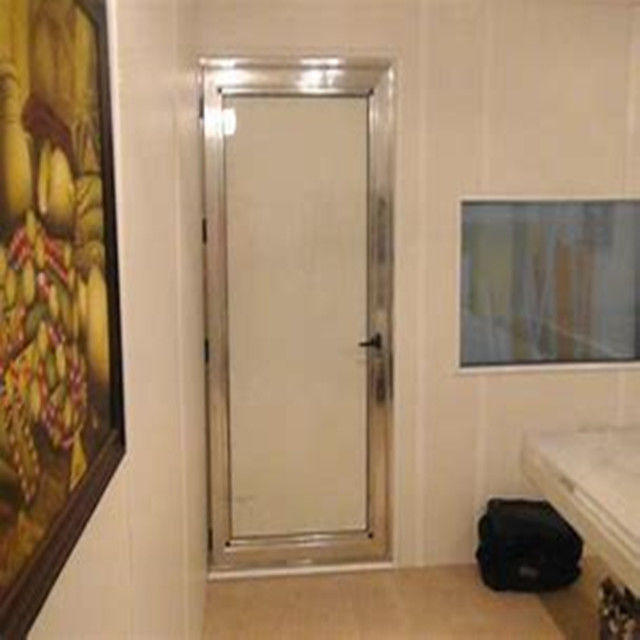

MRI door 1.2x2.1M |
| Accessories 2 |
MRI window 0.8x1.2M |
| Accessories 3 |
EMI filter 16A/ 25A/ 30A |
| Accessories 4 |
Brass Honeycomb filter
300x300x25mm
300x600x25mm
|
| Accessories 5 |
Copper panel
Copper foil 1380mmx0.105mm
|
| Accessories 6 |
Brass waveguide |
| Accessories 7 |
Copper tape
25mm width 50M/Roll
50mm width 50M/Roll
|
| Accessories 8 |
Copper wool
2.5KGS/Roll
|
| Accessories 9 |
Beryllium copper fingers |
Before-sale:
1.All inquires will be replied with 8 hours. 7D/24H service,Please feel free to contact us with Email/TM/Skype.
2.Strong technical team and Professional sales.
3.Customized packaging is acceptable.
4.Welcom customers from all the world to visit our factory.
After-sale:
1.All emi filter will be tested and adjusted before shipping.
2.After receiving the products,Any question we will try our best to solve.
Robust Copper Shielding for Ultra-Low EMICrafted with pure copper panels and copper shield room construction, this rf shield room delivers exceptional EMI protection from 14 kHz to 40 GHz, maintaining over 100 dB attenuation even up to 10 GHz, and 80 dB up to 40 GHz. The copper-based construction provides superior durability and long-term shielding effectiveness ideal for critical applications.Modular Design with Doors, Windows & Power BoxesConfigured as a fully modular rf shield box manufactured by HAOZHUO, it includes a standard 1.2 × 2.1 m shielding door, an rf shielded window sized 0.8 × 1.2 m, built-in power filtering boxes (16 A/25 A/30 A), waveguide honeycomb vents (300 × 300 × 25 mm or custom sizes), and copper waveguides. This modular rf shield room design allows installation flexibility and easy customization per site requirements.Fully Furnished MRI-Ready EMI RoomDelivered as a turnkey rf shield room solution, it includes copper shielding foil, copper wool roll, beryllium copper fingers, steel waveguides, anti-static flooring, and compliance-grade EMI filters. Designed specifically for medical and EMC environments, it assures consistent screening for sensitive equipment like MRI scanners and EMC devices.Product Advantages
Industry-Leading Shielding PerformanceThe rf shielding foil and copper panel construction provide unparalleled electromagnetic isolation, ensuring magnetic field shielding of 100 kHz–110 dB, plane wave at 50–103 MHz > 120 dB, microwave 1–10 GHz 110 dB and 10–20 GHz 100 dB, with 80 dB performance up to 40 GHz. Ideal for EMI-critical installations such as MRI rooms and EMC chambers.Fully Integrated Shield Room EcosystemConfigured with rf shield box manufacturers’ excellence, each shield room includes optimal modules: door systems, windows, power entry boxes, honeycomb vents, copper waveguides, and flooring—all tailored. This turnkey design simplifies procurement and accelerates deployment for medical facilities, research labs, and EMC test environments.Sturdy Modular Copper Panel ConstructionShielding panels are fabricated from cold‑rolled steel with 2–3 mm galvanized sheet, electroplated with copper for seamless shielding. Panels utilize CO₂‑protected welding and 4.4 cm overlapping seams for mechanical strength and no EMI leakage. Interior is reinforced with copper finger strips and tape for conductive continuity and assembly integrity.Advanced Ventilation & EMI Filter SystemIncorporates cellular waveguide honeycomb vents for noise‑free airflow and EMI suppression. Includes power filters (16 / 25 / 30 A) for low-leakage AC line entry. Additional copper waveguides, foam absorbers, and beryllium copper fingers ensure HVEM-compatible thermal management without sacrificing shielding.Scalable & Fully CustomizableTailored to facility size, panel configuration, access door type (manual, electromechanical, or password‑activated), power box specs, waveguide-port layout, window options, and optional anti-static flooring. HAOZHUO delivers custom rf shield room solutions scaled for medical, industrial, and defense sectors.About UsChangzhou Hezi International Trading Co., Ltd. (Brand: HAOZHUO) is a global professional EMI filter and shield room manufacturer established in 2012. With 50‑100 employees, annual sales of USD 1–1.5 million, and 90–100% export to 100+ clients, we offer experienced technical design (UL, VDE, CSA, CE, CQC) and full EMC standards support (IEC, EN, GJB). We ensure high quality, cost-effective solutions, short lead times, two-year warranty, and reliable service for medical, solar inverter, rail transit, and shielding facility customers.Contact us now for a tailored rf shield room solution that meets your medical or EMC needs—experience guaranteed quality and performance. Let’s start designing your shielded environment today!
