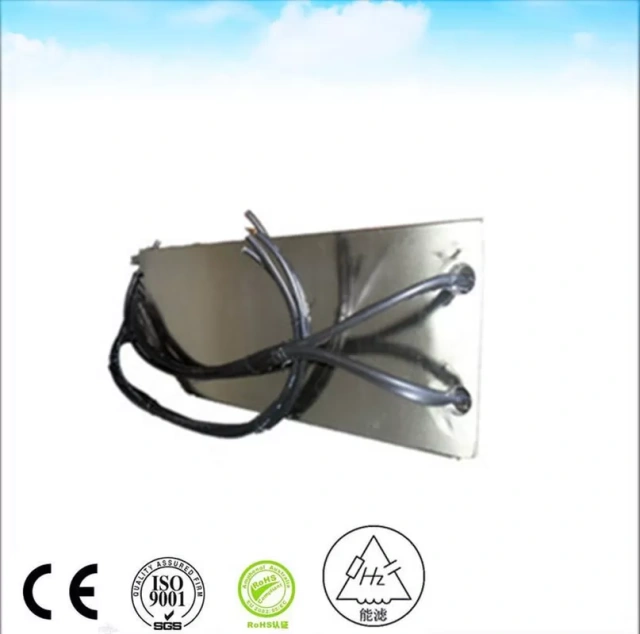

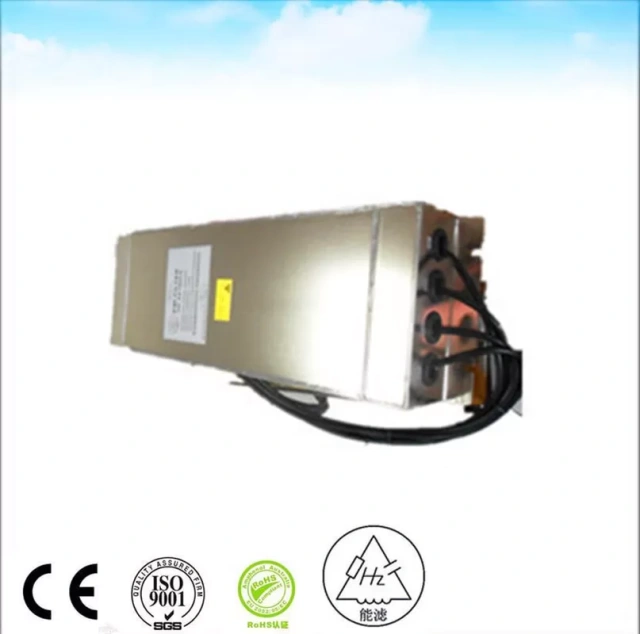

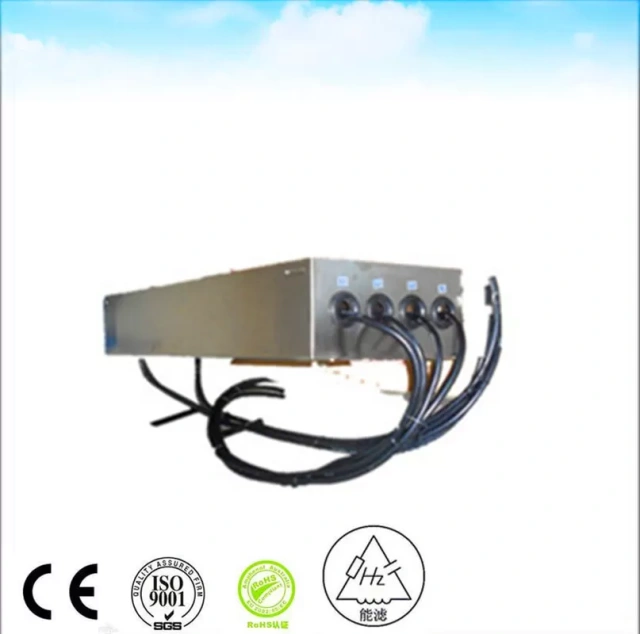

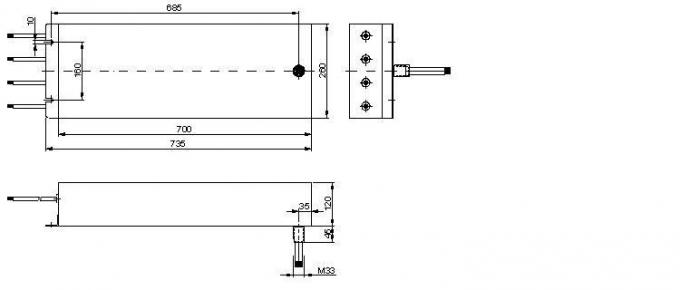

The 100A 380V AC Input emi power line filter offers robust EMI/RFI suppression with up to 100 dB insertion loss, ensuring stable power delivery in demanding electrical environments. Trusted by leading emi power line filter manufacturers.
Functional Role and Intended Users of the EMI Filter
The 100A 380V AC Input emi power line filter serves as a critical component for industries requiring stringent electromagnetic compatibility (EMC) compliance. It is specifically designed for engineers and procurement teams overseeing sensitive equipment installations subject to high electromagnetic interference. This filter supports environments operating at 380VAC and up to 100A current load, delivering clean power essential for reducing system downtime and maintaining reliability. Our emi filter manufacturer capabilities ensure customizable configurations suitable for high-noise industrial, medical, and research applications, facilitating smooth integration into existing power infrastructure.
Technical Specifications Ensuring Compliance and Performance
With a maximum current rating of 100A and an operating voltage of 380VAC, this emi power line filter exhibits superior noise attenuation, delivering an insertion loss of ≥100 dB across 14KHz to 40 GHz frequency ranges under load conditions. The filter features a voltage drop below 1V and leakage current of ≤0.2A, guaranteeing minimal power loss and system safety. Meeting international EMC standards and undergoing rigorous testing including MIL-STD-202 and MIL-F-15733 temperature rise protocols, the design ensures durability and long-term performance. Our emi filter architecture is optimized for RF shielding rooms and anechoic chambers, providing essential protection against conducted EMI and RFI disturbances.
Industry Applications and Practical Impact in High-Noise Settings
This 100A 380V AC Input emi power line filter is widely deployed in industrial power systems, EMC testing facilities, and RF shielded environments. It supports applications such as motor drives, servo systems, and frequency inverter setups by suppressing electromagnetic interference that could compromise sensitive measurement and control operations. Many emi power line filter manufacturers prioritize this solution for upgrading aging infrastructure to meet evolving EMC standards. Its robust design enhances equipment longevity and mitigates risks of signal distortion, making it indispensable for compliance-critical environments including laboratories, manufacturing plants, and medical device installations.
A line filter is the kind of electronic filter that is placed between electronic equipment and a line external to it, to attenuate conducted radio frequencies -- RFI, also known as electromagnetic interference (EMI) -- between the line and the equipment. In particular, an AC Line Filter is used between the AC power line and the equipment (SMPS or an Electronic Circuit).
A line filter may be used to attenuate EMI in either direction. For example:
The attenuation of Line filters is measured in 2 areas:
For each Mode, the attenuation is characterized over the frequency spectrum, and measured in dB
|
RATED VOLTAGE
|
380 VAC
|
||
|
RATED CURRENT
|
100 A
|
||
|
Voltage Drop
|
Less than 1V
|
||
|
Overload
|
140% of rated current for 15 minutes
|
||
|
Harmonic Distortion
|
Less than 2% @ full rated current
|
||
|
Leakage Current
|
≤0.2A@380/230VAC and 50Hz
|
||
|
Dielectric Withstanding Voltage
|
1000VDC (line to line) 1000VDC (line to case)
|
||
|
DC Insulation Resistance
|
As Per MIL-STD-202 Method 202
|
||
|
Terminal Strength
|
As Per MIL-STD-202 Method 211
|
||
|
Temperature Rise
|
As Per MIL-F-15733
|
||
|
Insertion Loss
|
≥100dB@14K-40GHz As Per MIL-STD-220A, Under Load Condition
|
||
|
Climatic Classification
|
25/070/21
|
||
We are a professional and famous EMI filter manufacturer.
Our technical team has more than 10 years’ experience in designing EMI filter. We know UL VDE CSA CE CQC etc safety standard very well.
Our technical service team learn many kinds of test standard such as industrial application (IEC61800-3 for frequency inverter drive EN12015 for elevator EN55011 for ISM device etc) and military application (GJB151A GJB152A etc).We can solve EMI problem quickly effectively and low-costly.
We are a leading EMI filter manufacturer with over 10 years of expertise in designing effective and cost-efficient solutions. Our technical team is skilled in adhering to international safety standards such as UL, CE, CSA, and military applications. We provide high-quality and reliable products to customers worldwide, ensuring they meet the highest performance standards.
Why Choose Us:
Use Scenarios
Application in EMC-Compliant Industrial Power Systems
Within high-voltage industrial power environments, electromagnetic interference can severely disrupt control systems and sensitive measurement devices. Deploying the 100A 380V AC Input emi power line filter enables effective suppression of conducted EMI/RFI across power lines, ensuring compliance with international EMC standards. This filter operates reliably under the demanding conditions of machinery-driven electrical noise and complex power grid interfaces. It integrates seamlessly into existing power distribution frameworks, providing enhanced power quality and protecting critical process control equipment. Procurement managers and system engineers rely on this solution for upgrading legacy systems while maintaining continuous operational integrity.
Role in RF Shielded Laboratories and EMC Testing Facilities
In RF test chambers and EMC anechoic environments, accurate noise suppression is mandatory to ensure test validity and equipment protection. The 100A 380V AC Input emi filter optimized for RF shielding rooms delivers up to 100 dB insertion loss, effectively isolating sensitive instrumentation from ambient and conducted interference. Its design complies with strict EMC testing protocols, making it essential for research institutions and certification laboratories. The filter’s ability to sustain high current loads with minimal voltage drop ensures stable test conditions. Integration is straightforward with existing power delivery systems, reinforcing the reliability and repeatability of electromagnetic compatibility assessments.
What current and voltage ratings do your EMI power line filters support?
Our EMI power line filter for power lines supports up to 100 A current at a rated voltage of 380 VAC. It operates reliably with a voltage drop of less than 1 V and can handle 140% overload for short durations, ensuring stable power delivery in industrial settings.
Can you customize EMI filter solutions for specific industrial applications?
Yes, we provide customized emi power line filter solutions tailored to your exact requirements. Our engineering team works closely with you to design filters compatible with your system, including configurations for RF shielding rooms, EMC anechoic chambers, and other environments demanding noise suppression.
What standards and certifications do your EMI filters comply with?
Our EMI filters comply with international EMC standards and safety certifications including UL, VDE, CE, and CSA. We also reference industrial-specific standards like IEC61800-3 for frequency inverter drives and military standards such as GJB151A, ensuring high-quality and reliable performance.
How is quality control managed during the manufacture of your EMI filters?
Quality is a priority in our manufacturing process. We use advanced test equipment such as spectrum analyzers, insulation resistance testers, and shield rooms to ensure all EMI filter products meet strict standards. Each filter is rigorously tested for insertion loss, dielectric strength, and leakage current before shipment.
