Optimized for EMC Chamber and Testing Environments
Designed specifically for EMC chambers and anechoic rooms, the 100x100mm ferrite tile absorber addresses the needs of engineers and technical professionals requiring precise electromagnetic interference control. These tiles enable targeted EMI suppression and consistent ac filter integration within complex test environments, supporting compliance with strict industrial filter manufacturers’ standards. The compact size and high-performance characteristics facilitate installation in limited spaces, catering to system integrators focused on optimizing shielding solutions and enhancing measurement accuracy.
Advanced Electromagnetic Properties and Specifications
These ferrite absorber tiles feature a 6.7mm thickness and a controlled size of 100x100mm, combining ferrite material with urethane foam wedge structures to achieve broad frequency absorption from 30 MHz to 1 GHz with notable reflectivity reduction up to 20 GHz. Their technical parameters, such as an initial permeability of 5500 and a low relative loss factor, ensure high magnetic permeability and efficient suppression of electromagnetic waves. This design supports ac power line filters where space and performance metrics are critical, leveraging advanced engineering to maintain consistent EMI attenuation across industrial and military frequency bands.
Application in Shielding Rooms and Industrial EMC Testing
In industrial and research applications, these ferrite tiles serve as essential components for RF shielding rooms and anechoic chambers. They improve electromagnetic compatibility test accuracy by significantly reducing reflections and interference. Their compact design enables easy integration within complex test setups, supporting test facility workflows that demand high reliability and compliance with regional and international standards. These tiles are utilized extensively by industrial filter manufacturers and system integrators working on ac emi filter implementations for frequency inverters, servo drives, and other high-demand apparatus.
Product Advantages
Modular Design and Space-Efficient Construction
The innovative hybrid structure of ferrite materials combined with urethane foam wedges delivers superior absorption while minimizing physical footprint. This modular dimensioning enables flexible configuration within ac filter architectures and supports scalable deployment across varied EMC shielding applications. The well-defined tile size of 100x100mm facilitates seamless integration with custom ac filters, ensuring alignment with industrial filter manufacturers’ system requirements. The combination of consistent manufacturing tolerances and robust material characteristics guarantees reproducibility and durability in demanding operational conditions.
Enhanced EMI Suppression and Operational Reliability
Performance-wise, these tiles offer stable attenuation levels across a wide frequency spectrum, enhancing ac power line filter efficiency with substantial reflectivity reduction. The high magnetic permeability and low loss factor result in improved noise suppression, critical in high-precision electromagnetic compatibility testing and product development cycles. Usability is further optimized by their lightweight yet dense construction, enabling easier installation and maintenance within RF shielding rooms. This contributes to maintenance cost reductions and improved operational uptime for testing facilities and industrial users.

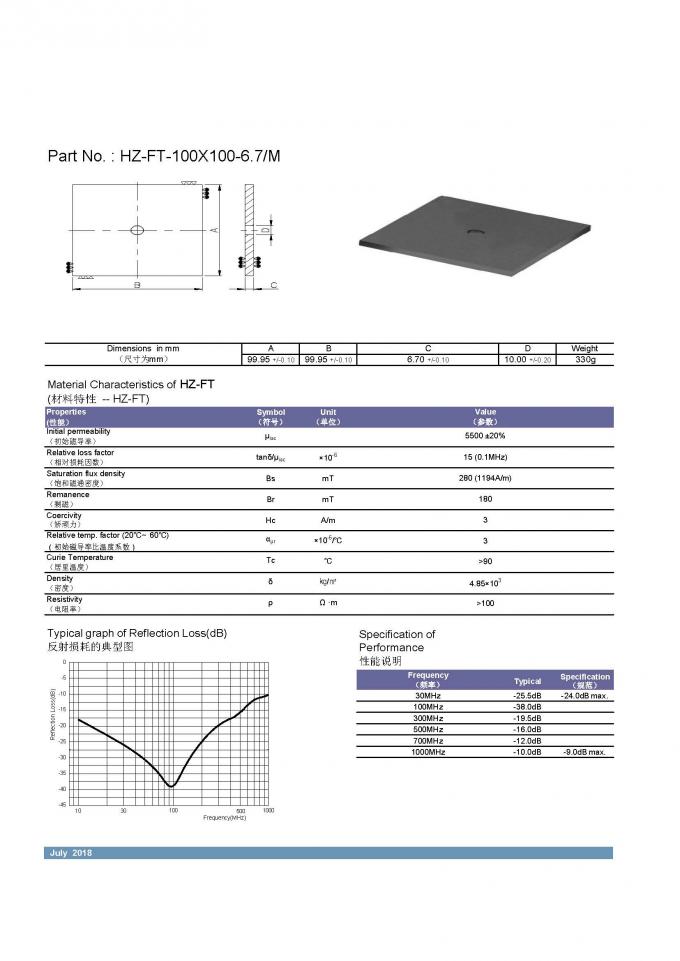

6.7mm thickness 100*100 Ferrite tiles for EMC Chamber rf shielding room

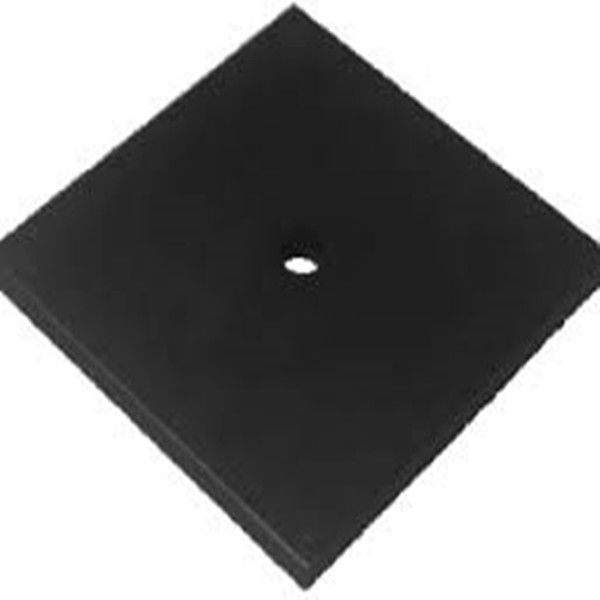

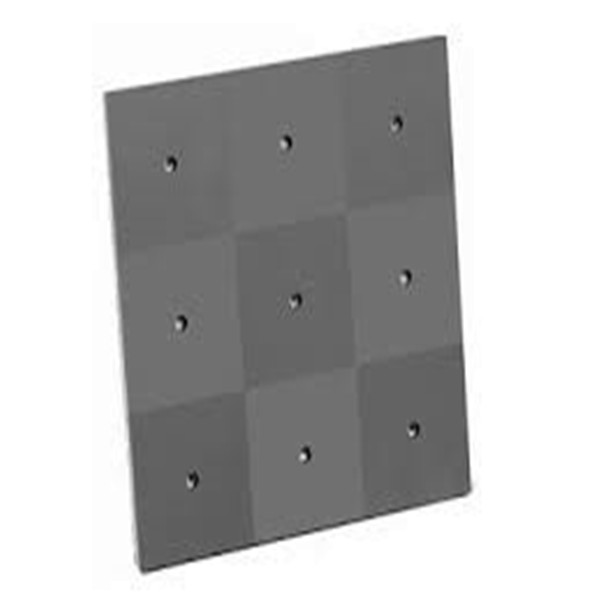

Ferrite Tile Size
· Base size: 100*100mm
· Standard height: 5.2mm, 6.7mm
· Diameter of bore: 10mm
| Initial permeability | 5500 |
| Relative loss factor | 15@0.1MHz |
| Saturation flux density | 280(1194A/m) |
| Remanence | 180 |
| coercivity | 3 |
| Relative temp.factor | 3 |
| Curie temp. | 90 |
| Density | 4.85*1000 |
| Resistivity | 100 |
| 30MHz | -25.5dB |
| 100MHz | -38dB |
| 300MHz | -19.5dB |
| 500MHz | -16dB |
| 700MHz | -12dB |
| 1000MHz | -10dB |
Ferrite Tile Application

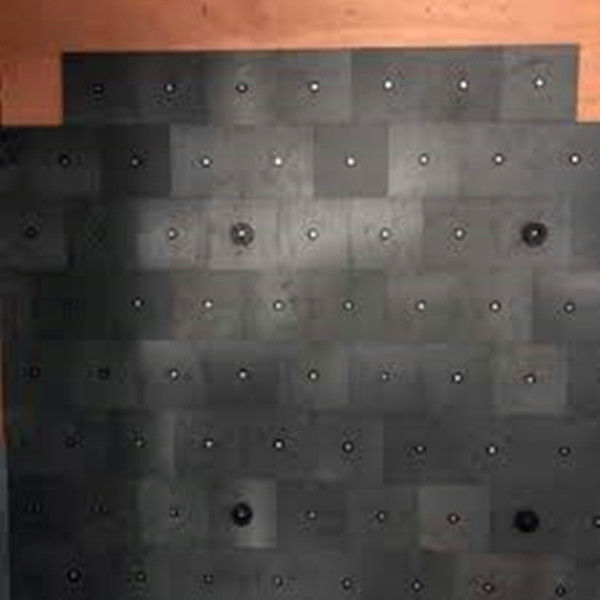

· Used for EMC chamber
Based on the principle of having complex magnetic permeability equal (or nearly equal) to complex dielectric constant. Materials with this property exhibit an impedance equal to that of "free space" and therefore do not reflect radiated energy at normal incidence. Ferrite Tile can provide 10dB - 25dB of absorption between 30MHz and 1GHz. Tiles are thin (approximately 0.26 inches), but can be heavy (roughly 10 lbs per square foot).

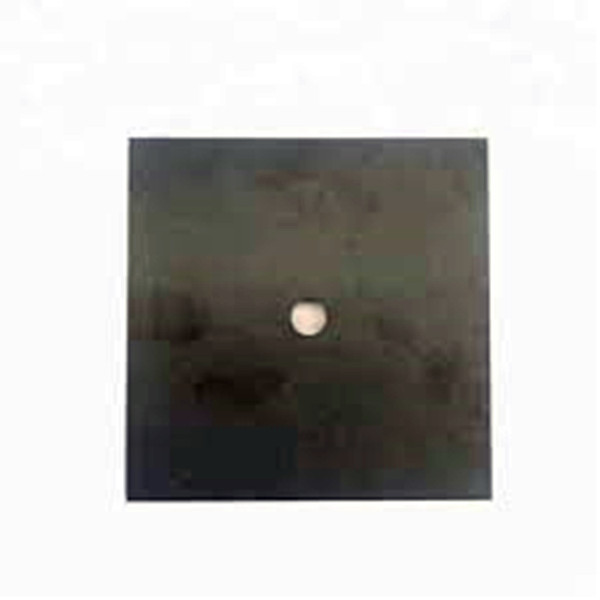

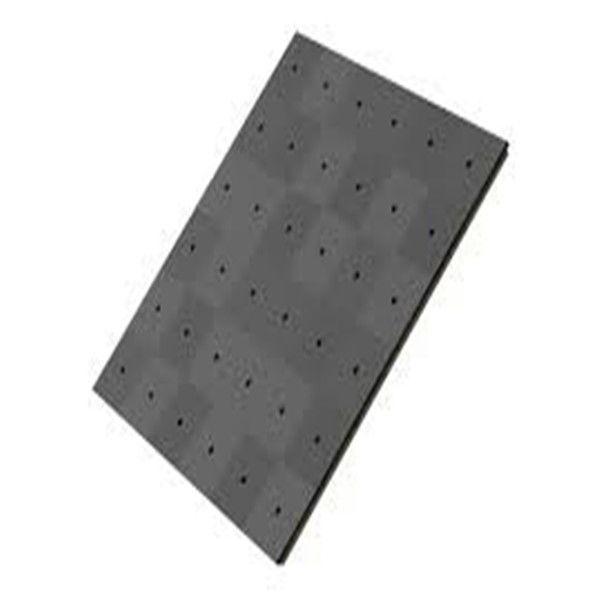

Size for EMC chamber ferrite tile
· Base size: 100*100mm
· Standard height: 5.5mm, 6.7mm
· Diameter of bore: 10mm
Application for EMC chamber ferrite tile Used for EMC chamber
