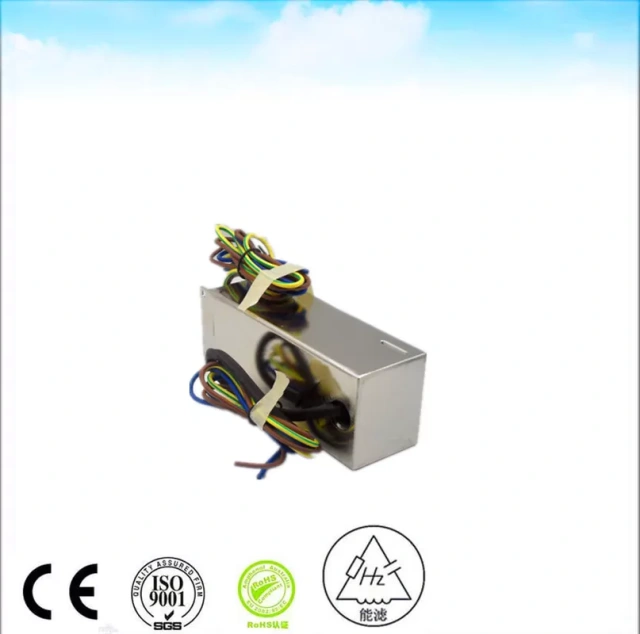

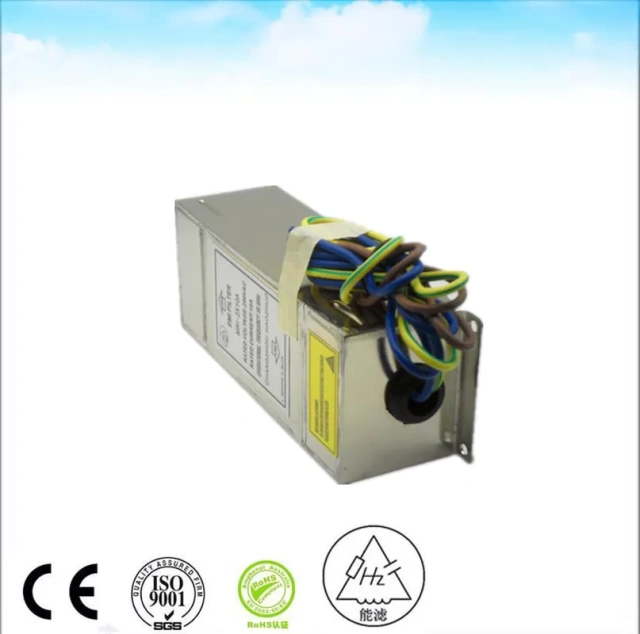

250VAC 10A emi power line filter mri rf cage
The electromagnetic interference that EMI filters deal with can be caused in a number of ways. Inside of an electrical device the interference can be generated by impendence opposition to current, in interconnected wiring. It can also be generated by voltage variances in conductors. EMI is produced externally by cosmic energy, such as solar flares, power or telephone lines, appliances, and power cords. A significant portion of electromagnetic interference is generated along and carried by power lines to equipment. Electromagnetic interference filters can be either devices or internal modules that are designed to reduce or eliminate these types of interference.
Product Parameters:
| RATED VOLTAGE |
250 vac |
| RATED CURRENT |
10 A |
| Voltage Drop |
Less than 1V |
| Overload |
140% of rated current for 15 minutes |
| Harmonic Distortion |
Less than 2% @ full rated current |
| Leakage Current |
≤0.2A@380/230VAC and 50Hz |
| Dielectric Withstanding Voltage |
1000VDC (line to line) 1000VDC (line to case) |
| DC Insulation Resistance |
As Per MIL-STD-202 Method 202 |
| Terminal Strength |
As Per MIL-STD-202 Method 211 |
| Temperature Rise |
As Per MIL-F-15733 |
| Insertion Loss |
≥70dB@150K-10GHz As Per MIL-STD-220A, Under Load Condition |
| Climatic Classification |
25/070/21 |
Electromagnetic interference (EMI) is broadly defined as the electrical or magnetic interference that degrades or damages the integrity of a signal or the components and functionality of electrical equipment. Electromagnetic interference; which encompasses radio frequency interference, is normally broken into two broad areas:
Narrowband emissions are usually man-made and limited to a tiny area of the radio spectrum. The hum that power lines make are a good example of a narrowband emission. They may be continuous or sporadic.
Broadband emissions can be either mad-made or natural in origin. They tend to effect a large area of the electromagnetic spectrum. They can be one time events that are random, sporadic, or continuous. Everything from a lightning strike to computers generate broadband emissions.
We are a professional and famous EMI filter manufacturer.
Our technical team has more than 10 years' experience in designing EMI filter. We know UL VDE CSA CE CQC etc safety standard very well.
Our technical service team learn many kinds of test standard such as industrial application (IEC61800-3 for frequency inverter drive EN12015 for elevator EN55011 for ISM device etc) and military application (GJB151A GJB152A etc).We can solve EMI problem quickly effectively and low-costly.
