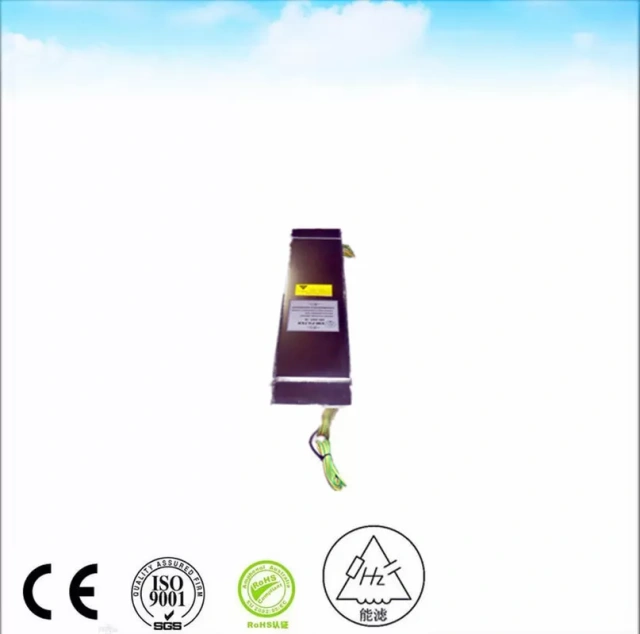

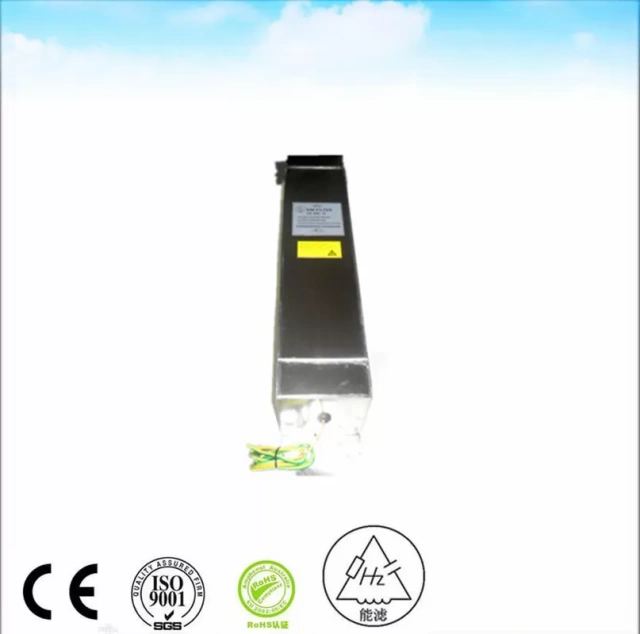

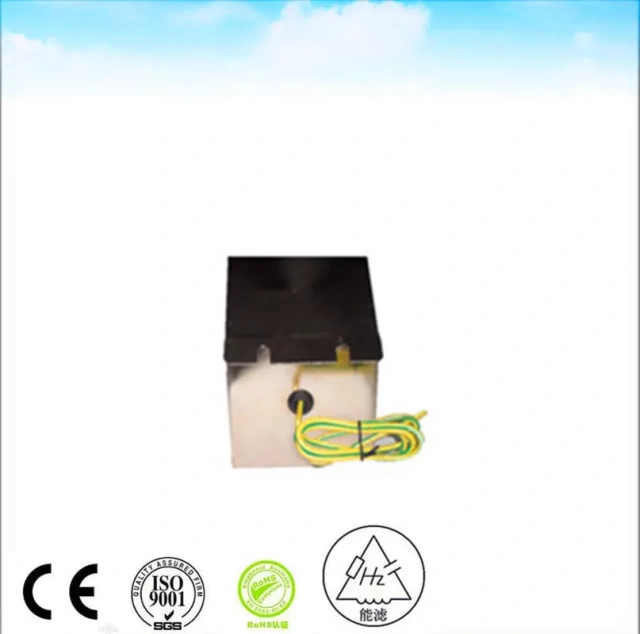

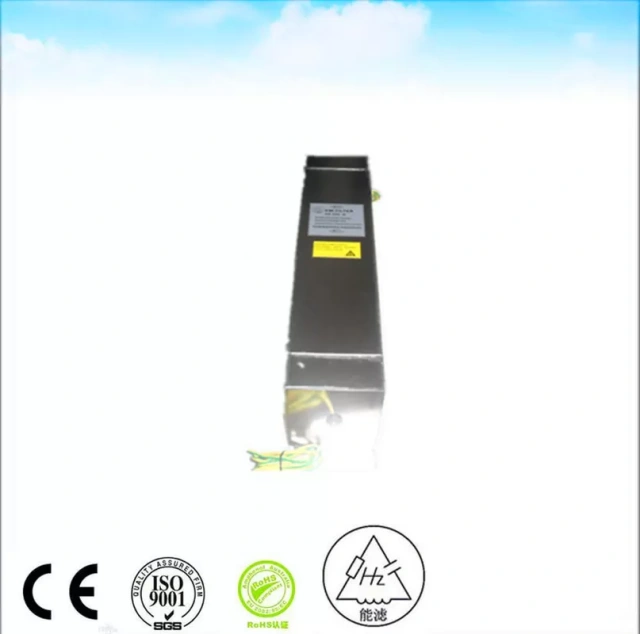

The 120-250VAC Single Phase emi power line filter offers robust interference suppression for variable frequency drives, ensuring reliable power quality with easy integration from trusted emi power line filter manufacturers.
Targeted Solution for VFD Systems and Industrial Users
This emi power line filter is engineered specifically for integration with variable frequency drive (VFD) systems in industrial and commercial applications. Designed by leading emi power line filter manufacturers, it caters to engineers and procurement teams requiring reliable EMC interference mitigation to enhance equipment longevity and operational stability. Its compact, through-hole design facilitates swift installation in control panels, minimizing system downtime. The product is suited for environments demanding compliance with international EMC standards, providing effective noise attenuation and shielding performance essential for maintaining consistent power line integrity.
Advanced Technical Features Ensuring High Suppression Efficiency
This emi filter features a rated voltage of 250 VAC and supports currents up to 30A with a voltage drop below 1 V, ensuring minimal power loss. Its design achieves over 140% overload capacity for short durations and maintains harmonic distortion under 2% at nominal load. The filter complies with MIL-STD-202 methodologies for dielectric strength and terminal robustness, underscoring its durability under harsh conditions. The leakage current is maintained at ≤0.2 A with 380/230 VAC input, positioning this emi power line filter as a high-performance solution for noise suppression and electromagnetic compatibility, thereby reducing equipment malfunctions and electromagnetic disturbances.
Application in Industrial Control and EMC Compliance Environments
Industries reliant on variable frequency drives, such as automation, manufacturing, and process control, benefit from the integration of this emi power line filter to uphold EMC compliance and ensure uninterrupted operation. It supports retrofit projects for existing servo drives and inverters, optimizing power quality and reducing electromagnetic interference on power input lines. Its universal design facilitates inclusion in power distribution within control cabinets, test benches, and lab prototypes, reinforcing conformity with EMC regulations while enabling smoother product development, testing, and maintenance workflows.
High-Performance Filtering
Provides effective suppression of both EMI and RFI, ensuring your devices operate without interference.
Optimized for VFD Systems
Specially designed for VFDs, providing stable power and reducing the risk of equipment failure due to electrical noise.
Durability and Reliability
Built to withstand industrial environments, ensuring long-lasting performance even under heavy loads and continuous operation.
Global Compliance
Meets international standards for electromagnetic compatibility (EMC), making it suitable for use in diverse regions and industries.
Easy Integration
With a compact design, this filter can be easily integrated into existing power systems, ensuring minimal downtime during installation.
| RATED VOLTAGE | 250 VAC | ||
| RATED CURRENT | 30 A | ||
| OPERATIONAL FREQUENCY | 50 60 Hz | ||
| Voltage Drop | Less than 1V | ||
| Overload | 140% of rated current for 15 minutes | ||
| Harmonic Distortion | Less than 2% @ full rated current | ||
| Leakage Current | ≤0.2A@380/230VAC and 50Hz | ||
| Dielectric Withstanding Voltage | 1000VDC (line to line) 1000VDC (line to case) | ||
| DC Insulation Resistance | As Per MIL-STD-202 Method 202 | ||
| Terminal Strength | As Per MIL-STD-202 Method 211 | ||
| Temperature Rise | As Per MIL-F-15733 | ||
Order Now for Reliable Power Line Filtering and Enhanced VFD System Performance!

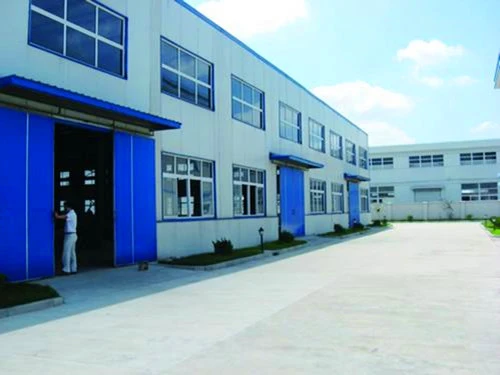

We are a leading EMI filter manufacturer with over 10 years of expertise in designing effective and cost-efficient solutions. Our technical team is skilled in adhering to international safety standards such as UL, CE, CSA, and military applications. We provide high-quality and reliable products to customers worldwide, ensuring they meet the highest performance standards.
Why Choose Us:
Use Scenarios
Power Quality Enhancement in Industrial Automation Systems
Within automated manufacturing and process control environments, this emi power line filter serves as a critical component to suppress electromagnetic interference on power supply lines feeding variable frequency drives. Its integration reduces susceptibility to EMI-induced disruptions, thereby safeguarding sensitive control hardware. The filter’s compliance with international EMC standards guarantees adherence to regulatory requirements, facilitating system reliability during continuous operation. Its design enables easy retrofit or new installation in control panels, aligning with workflows that prioritize minimal interruption and high operational efficiency.
EMC Compliance in Test Benches and Laboratory Settings
In testing and validation facilities, where electromagnetic compatibility assessment is essential, this emi power line filter contributes to noise reduction on power rails, ensuring precise measurement conditions. It enables engineers to replicate operational environments with reduced interference, critical for product qualification and development. The filter’s robust technical specifications, including dielectric withstand and leakage current limits, support demanding laboratory protocols. Its easy integration within test benches facilitates streamlined workflows and accurate EMI performance verification, reinforcing product quality and regulatory compliance.
What makes your 120-250VAC Single Phase EMI Power Line Filter suitable for VFD applications?
Our emi power line filter is specifically optimized to suppress high-frequency noise generated by Variable Frequency Drives (VFDs). It provides robust EMI/RFI suppression and RF shielding to ensure stable and clean power delivery in demanding industrial environments.
Can you customize EMI power line filters to fit specific industrial requirements?
Yes, we accept OEM orders and can tailor our emi filter products to your specifications. Please provide your label design or specific technical requirements, and our team will work with you to ensure the custom solution meets your application needs.
How is the installation process for your EMI filters designed to minimize downtime?
Our filter uses a compact through-hole design that allows for easy integration into existing wiring and panel assemblies. This streamlined installation reduces downtime, enabling quick upgrades or retrofits in industrial setups with minimal operational disruption.
What quality standards and testing does your EMI power line filter undergo?
Quality and reliability are our priorities. Our emi power line filter manufacturers adhere to stringent EMC standards and conduct tests including MIL-STD-202 for insulation resistance and terminal strength. This ensures our filters perform reliably under industrial load conditions.
