12.5MM EMI Honeycomb Air Vents Filter Stainless Steel Honeycomb Ventilation Panels

EMI RFI shield ventilation air filter for mri rf shielding stainless steel material

Honeycomb vents are used to shield openings for ventilation or acoustic/visual contact. We can make these vents according to your drawing within a few days, or you can use our standard range from stock.

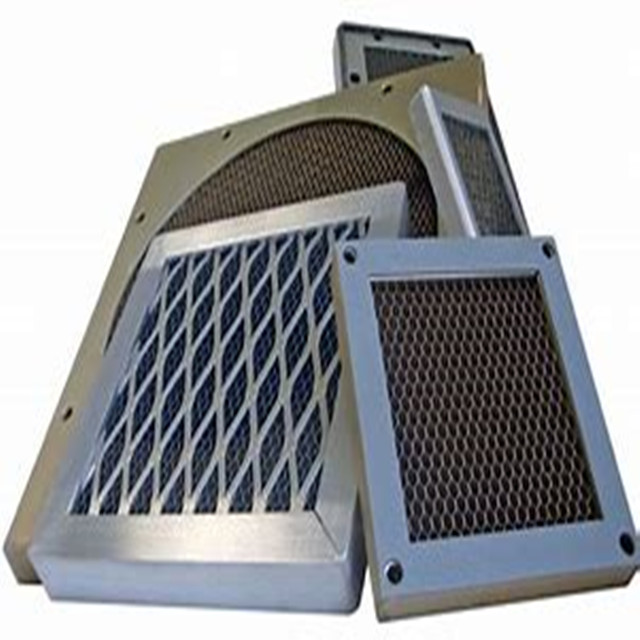

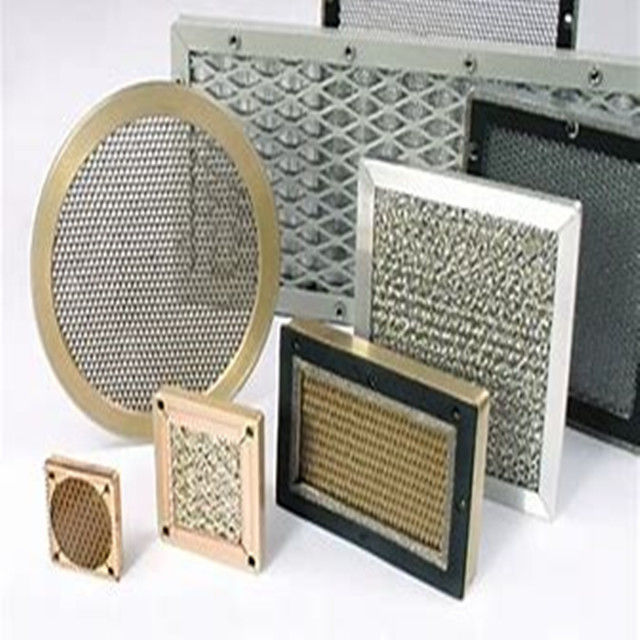

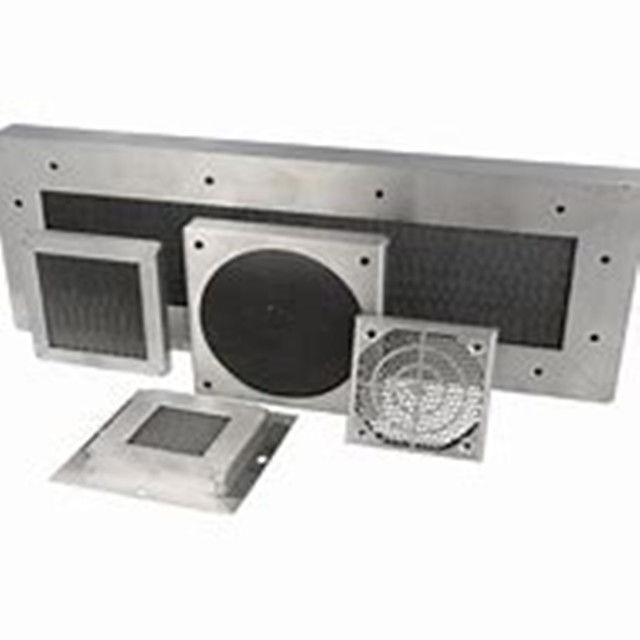

We can supply Honeycomb vents with frames, pre-drilled with fasteners, or with flow-drilled thread holes. The standard material is aluminium which can be given a nickel finish (or any other finish you choose).

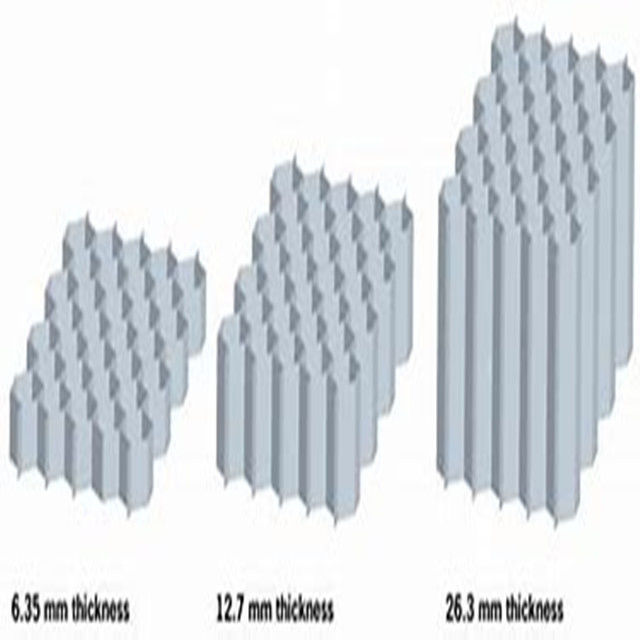

If high shielding levels are required, the use of cross-cell honeycombs is recommended. These are constructed from multiple sections of 6.35 mm or 12.7 mm or 26.3 mm thick honeycombs within a single frame. The shielding performance will improve as airflow is decreased, but not eliminated.

Features for honeycomb vent window for shielding room

1- Provide maximum RF attenuation while allowing optimum airflow.

2- Available to suit individual requirements

3- Soldering waveguide windows use imported tin-plating to press molding, to ensure the quality while transport and assembly process and guarantee the shielding effect.

4- Produce various customized specification for civil or military use

Standard Dimension for honeycomb vent window for shielding room

Sheilding Performance for honeycomb vent window for shielding room

Product Advantages

1. High-performance ventilation with electromagnetic integrity
   The honeycomb panel provides generous airflow via its dense yet open stainless-steel matrix, enabling effective cooling and air exchange in shielded environments. At the same time, its internal geometry disrupts RF propagation—acting much like a passive filter to impede unwanted electromagnetic emissions. This dual function draws on the same engineering principles used by emi filter companies and line filter designers, ensuring that ventilation does not compromise shielding performance. The robust stainless steel construction ensures durability, corrosion resistance, and long lifetime even in high-rate test chambers or industrial settings.

2. Integration-ready for shielded systems and filter banks
   Designed with modular mounting and standard flange interfaces, this vent panel fits into walls, ceilings or rack enclosures adjacent to PDUs, EMI filters or power distribution units. It supports the ecosystem of power line filter manufacturers and 3-phase EMI filter manufacturers by providing ventilation without introducing EMI weak points. Its installation preserves gasket sealing and grounding continuity, making it suitable for shielded rooms, RF shield boxes, and EMC test facilities. The manufacturing draws on EMI filter manufacturing practices—precision, repeatability and performance verification ensure the panel aligns with system-level shielding requirements.

3. Optimized design for minimal pressure drop and reliable long-term operation
   Despite its shielding role, the panel maintains low airflow resistance (pressure drop) thanks to optimized honeycomb geometry. This means ventilation fans or HVAC systems can operate efficiently without being overburdened. The panel’s design leverages low-pass filter analogues to achieve electromagnetic attenuation while allowing modest airflow. Maintenance is simplified by the accessible structure and stainless finish. The panel supports industrial operational demands—continuous airflow, minimal performance degradation, and consistent shielding behavior over time, reflecting the same reliability expectations as EMC filters and EMI shielding products.

Application Scenarios

1. EMC Test Chambers and RF Shielded Rooms
   In dedicated EMC test setups, maintaining shielding integrity while providing ventilation is a common challenge. This honeycomb air vent panel is ideal for use in RF shielded rooms, anechoic chambers or semi-shielded test enclosures where air exchange must occur without compromising shielding. It allows HVAC or local ventilation systems to serve the chamber while simultaneously acting as part of the electromagnetic shielding chain—enabling reliable emc test results and overall system integrity.

2. Industrial Enclosures with EMI Filters and Power Distribution Units
   Facilities deploying high-power electronics, power conversion systems, or large inverter banks often include EMI filters, PDUs and other noise mitigation hardware. These systems generate heat and require ventilation, yet must remain within a controlled electromagnetic environment. The honeycomb panel integrates into rack doors or cabinet walls to permit airflow while maintaining the shielding barrier between the internal components and surrounding environment. This supports the mission of single phase emi filter manufacturers, 3 phase emi filter manufacturer and power line filter manufacturers by preserving performance of the filter infrastructure and ensuring long-term reliability.

3. Medical, Telecom and Data Centre Shielding Applications
   Environments such as MRI rooms, telecom base station shelters, data centres or controlled-environment labs often require shielded enclosures to manage interference while providing temperature control and ventilation. In such spaces, installing ventilation openings can undermine shielding unless specifically designed. This panel meets that need by offering a ventilation solution aligned with EMI filter and EMI shielding requirements. By blending ventilation capacity with electromagnetic integrity, it supports sensitive equipment operations in sectors where both environmental and interference control are mandatory.

About Us

Founded and operating under Changzhou Hezi International Trading Co., Ltd. (also branded as Haozhuo), we specialize in providing advanced EMI/EMC solutions for global industrial, military and commercial customers. Our core business includes the manufacture and supply of power line filters, signal line filters, feed-through filters, absorbers (such as pyramid and ferrite tile types), RF shielding gaskets and copper foils, honeycomb ventilation panels, RF shielding rooms and shielding boxes.

As a professional and renowned EMI filter manufacturer, our technical team possesses over a decade of experience in designing and integrating filter technologies, including for inverter drives, solar inverters, rail transit systems and servo applications. We maintain a state-of-the-art laboratory equipped with shielding rooms, surge generators, spectrum analyzers, LCR digital bridges and standard signal sources—enabling us to support full EMC testing and custom design services.

Our mission is to enable dependable, interference-free operation for our clients. Whether the requirement is to supply single phase or three phase EMI filters, low pass filter solutions, ac filter systems, or full electromagnetic shielding enclosures, we provide a one-stop solution across the spectrum of EMI/EMC infrastructure. We serve as both industrial filter manufacturers and emi filter company partners, committed to high quality, efficient lead times and cost-effective customization.

With expertise spanning RF shielding boxes, honeycomb ventilation panels, filter systems and shielding rooms, we understand both the airflow and shielding requirements of modern installations. From power distribution units in industrial settings to sensitive MRI suites or telecom shelters, our products support electromagnetic shielding, emi shielding and system-level EMC filter performance. We invite you to engage with our technical team to assess your EMI/EMC challenge and deliver a tailored solution.
