Functional Targeting for Sensitive RF Environments
This rf filter is engineered specifically for use in environments demanding precise EMI suppression, such as RF shielding rooms and electronic equipment requiring interference containment. Designed for installation on 220VAC single-phase mains, the filter serves OEMs and end-users who require reliable mitigation of conducted EMI. Its bi-directional network design prevents high-frequency noise from entering or escaping shielded enclosures, maintaining compliance with EMC standards. The compact and potted construction supports easy integration into various electrical architectures, securing system integrity in demanding industrial and laboratory settings.
Technical Specifications Ensuring Exceptional EMI Performance
The filter features a rated voltage of 220VAC at 50/60 Hz and supports a continuous current of up to 16A. It offers a minimal voltage drop of less than 1V, ensuring system efficiency is not compromised. Its high dielectric withstand voltage of 1000VDC between line-to-line and line-to-case safeguards against insulation breakdown. Leakage current is tightly controlled to ≤0.2A for safety compliance. EMI suppression efficacy is impressive, achieving at least 60dB attenuation at 10kHz, 100dB within 1–20MHz, and sustained attenuation up to 40GHz, addressing interference across broad frequency ranges. These characteristics reflect rigorous design in line with industry EMC requirements.
Industry Applications Demonstrating Practical Value
Widely applicable in power input filtering for RF measurement instruments, control panels, and shielded enclosures, this EMI mains filter enhances electromagnetic compatibility in industrial, medical, and communication sectors. It supports prototype designs by reducing conducted EMI during EMC pre-compliance testing and retrofit applications. The product’s OEM customization capabilities make it suitable for integration into frequency inverter drives, MRI shielding systems, and solar inverter setups. Its performance reliability enables engineers to achieve enhanced EMC containment, improving overall product certification success rates and operational stability in complex electrical environments.
Product Advantages
Advanced Structural and Design Integration
This EMI mains filter employs a compact, potted design that enhances mechanical robustness and environmental resistance, suitable for demanding industrial conditions. The filter’s modular architecture allows seamless integration with 220VAC single-phase power systems, facilitating straightforward retrofitting or inclusion in new equipment builds. The rf filters supplier-provided customization options enable tailoring of configurations to specific system requirements. Additionally, the high dielectric withstand voltage and low leakage current features demonstrate an emphasis on safety and reliability by the rf filters manufacturer, ensuring compliance with stringent EMC and insulation standards.
Operational Performance and User Efficiency Benefits
From a performance perspective, the filter delivers consistent EMI attenuation across a vast frequency spectrum, crucial for maintaining electromagnetic integrity in sensitive RF shielded environments. The low voltage drop minimizes power losses, enhancing system energy efficiency. Its ability to handle currents up to 16A with harmonic distortion under 2% supports stable electrical operation under variable loads. The low leakage current safeguards personal and equipment safety, making it suitable for integration in critical applications like medical imaging and industrial control. Users benefit from easy installation, standard-compatible packaging, and the robust performance that reduces costly EMI troubleshooting and product recalls.

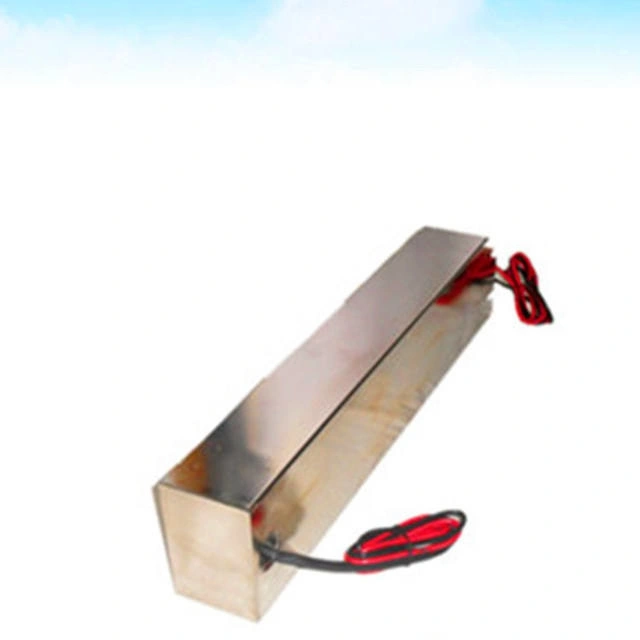

1P 220VAC 50/60 Hz16A EMI POWER LINE FILTER FOR RF SHIELDING ROOM
Most electronics contains an EMI filter, either as a separate device, or embedded in circuit boards. Its function is to reduce high frequency electronic noise that may cause interference with other devices. Regulatory standards exist in most countries that limit the amount of noise that can emitted.
|
Performance Data
|
|
Voltage Drop: Less than 1V
|
|
Overload: 140% of rated current for 15 minutes
|
|
Harmonic Distortion: Less than 2% @ full rated current
|
|
Leakage Current:≤0.2A@380/230VAC and 50Hz
|
|
Dielectric Withstanding Voltage: 1000VDC (line to line) 1000VDC (line to case)
|
|
DC Insulation Resistance: As Per MIL-STD-202 Method 202
|
|
Terminal Strength: As Per MIL-STD-202 Method 211
|
|
Temperature Rise: As Per MIL-F-15733
|
|
Shielding effective:
|
|
10KHz≥60dB
|
|
1MHz~20MHz≥100dB
|
|
20MHz~18GHz≥100dB
|
|
18GHz~40GHz≥80dB
|
|
Climatic Classification: 25/070/21
|
A power line filter, also called EMI power line filter, is a passive bi-directional network, electrical equipment which effectively filters the particular frequency point in the power line or the frequency out of the particular frequency point. Line filters are designed for electromagnetic interference (EMI) in the mains, and it is a frequency-selective two-port network usually composed of inductors, capacitors, resistors. Actually it is a kind of filters and can also be called reflection filter according the working principle. It provides high series impedance and low parallel impedance in the filter stop band, severely mismatching noise source and its impedance with load impedance, thus transmitting the undesired frequency components back to the noise source.
When selecting the power line filter, three main indicators should be considered: first is voltage and current, the following is insertion loss, and finally it is size and structure. Since the filter inside is typically potted, environment is not a main concern. However, the temperature characteristics of all potting materials and filter capacitors have some influence on the environmental characteristics of the power filter.
We Can Supply EMI Filter Like
100a EMI Filter
2 Stage EMI Filter
230v Ac EMI Filter
240v Ac EMI Filter
3 Phase 400hz EMI Filter
3 Phase RFI Filter
50a EMI Filter
AC Socket EMI Filter With Fuse And Switch
EMI Filter 5A
Ac Dc EMI Filter
Ac Input EMI Filter Design
Ac Line Filter For Audio
Ac Power Line Noise Filter
Anti-Interference Filter
Electromagnetic Interference Filters
EMC EMI Filter For PV Inverters
EMI Electrical Power Filter For Equipment
EMI Filter 10a
EMI Filter 230v
EMI Filter Ac
EMI Filter Feedthrough Capacitor
EMI Filter For Led Lights
EMI Filter For Power Supply
EMI Filter For Vfd
EMI Filter Manufacturers
EMI Filters For Mechanical Equipment
EMI RFI Ac Power Line Filters
EMI RFI Noise Filtration
EMI RFI Noise Suppression Protection Filters
Ethernet EMI Filter
Feedthru Capacitors
General Purpose Socket Emc RFI Noise Filter With Fuse
Gigabit Ethernet EMI Filter
Iec EMI Filters
Inline EMI Filter
Inverter EMI Filter
Laser Cutting Single Phase EMI Filter
Lc EMI Filter
Lcr Electronics EMI Filter
Led EMI Filter
Low Pass EMI Filter
Lvds EMI Filter
Mains EMI Filter
Military EMI Filters
Mri Rf Filter
Passive EMI Filter
Plc Noise Filter
Plug In EMI Filters
Power Filter With Fuse For Medical Equipment
Power Line Filters Single Phase
Power Supply EMI Filter
Radio Frequency Interference Filters
RF Feedthrough Capacitor
RFI Filter For Radio
RFI Filter For Tv
RFI Filter For Vfd
RFI Suppression Filter
Rj45 EMI Filter
Single Phase EMI Filter
Single Phase RFI Filter
Solar Inverter EMI Filter
Three Phase EMI Filters
Vfd EMI Filter
EMI Filter With Rocker Switch And Fuse
Two Stages EMI Ac Power RFI Filter ETC.
Before-sale:
1.All inquires will be replied with 8 hours. 7D/24H service,Please feel free to contact us with Email/TM/Skype.
2.Strong technical team and Professional sales.
3.Customized packaging is acceptable.
4.Welcom customers from all the world to visit our factory.
After-sale:
1.All emi filter will be tested and adjusted before shipping.
2.After receiving the products,Any question we will try our best to solve.
About Us
Changzhou Hezi International Trading Co., Ltd. is a professional manufacturer specializing in EMI filters since 2003. With a strong technical team bringing over 10 years of experience in EMI filter design, we are well-versed in international safety and test standards including UL, VDE, CSA, CE, and CQC. Our expertise extends across industrial and military applications, supported by advanced testing equipment such as LCR digital bridges, spectrum analyzers, and shielded rooms. Our product range covers general-purpose EMI filters, filters for frequency inverters, shielding facilities, and military applications. We prioritize high quality, cost-effectiveness, and short lead times, with every product backed by a two-year warranty.
Our main clientele includes frequency inverter and servo drive producers, MRI shielding providers, solar inverter systems, and rail transit companies. With a history of certifications like CE, ISO14000, and ISO18000 and branches in Italy, Germany, and South Korea, we have demonstrated consistent growth and commitment to international business. We also offer OEM packaging and customization options tailored to your needs.
Contact our technical team for expert help to optimize your EMI filtering solutions.
