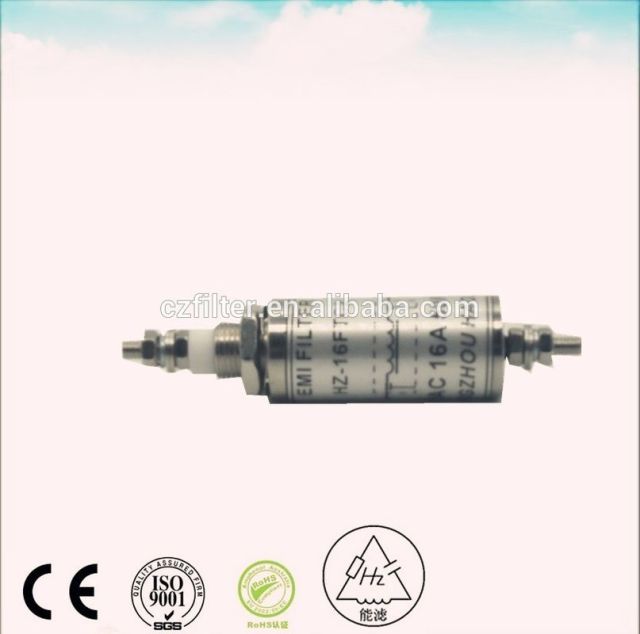

250VAC 16A feedthrough emi filter for anechoic chamber

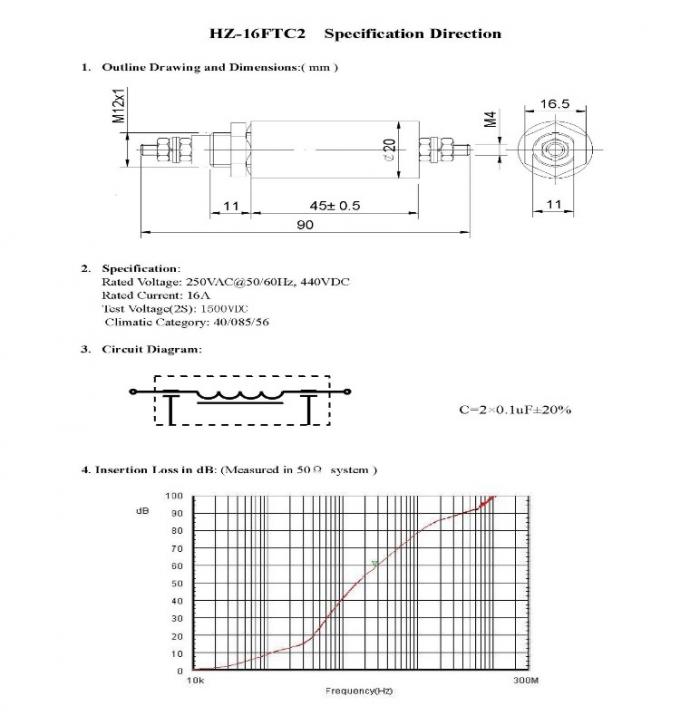

Technical Specification
- Rated voltage:250VAC/600VDC
- Rated current: 1A-300A
- Operating frequency: 50/60Hz
- Temperature range : 40/085/56
|
Product name
|
EMI filter
|
|
Working current
|
16A
|
|
Rated Voltage
|
115/250V AC
|
|
Power line frequency
|
50/60 Hz
|
|
The net weight/pcs
|
197.5g/pcs
|
|
Operating temp
|
-25～85℃
|
|
Pressure test
|
Line to Ground:2250V DC
|
|
Line to Line:1450V DC
|
|
|
Max.Leakage current (eath)
|
Line to Ground:115V AC 60HZ 0.25mA
|
|
Line to Ground:250V AC 50HZ 0.45mA
|
|
|
Design Reference standard
|
CSA222NO.1986,IEC/EN 60939
|
Product Features
- AC feedthrough filter offer a high insertion loss across a board band of frequencies from a few tens of KHz up to GHz region.
- Columnar/Cylindrical /cylindric case,small size, easy to install
- High reliability,much wider operating frequency range from KHz to 10GHz
- Through bulkhead mounting
The C and Pi-type circuit, the rated voltage of 250VAC, the maximum operating current of 300 amperes.
- Custom design acceptable
Feature:
1). RoHS,REACH,CE approved!
2). Available in RF Components widely!
3). Custom design is available!
4). Certification: ISO9001:2008,ISO14001:2004, ISO18001:2007
| Filter | Rated Current(A) | Rated Voltage(V) | Leakage Current(mA) | Capacitance( μF) | Test Voltage1min(VDC) |
| 16-M4 | 16 | 250 | 4.14 | 2*0.022 | 2250 |
| 63-M6 | 63 | 250 | 88.5 | 2*0.47 | 2250 |
| 100-M8 | 100 | 250 | 564 | 2*3.0 | 2120 |
| 100-M8 | 100 | 250 | 564 | 2*3.0 | 2200 |
| 250-M12 | 250 | 250 | 157 | 2*1.0 | 2250 |
| 30-M5 | 30 | 600 | - | 2*0.018 | 2500 |
| 50-M6 | 50 | 200 | - | 0.22 | 720 |
| 65-M6 | 65 | 200 | - | 2*4.7 | 1000 |
| 62-M6 | 65 | 250 | - | 2*0.25 |
2250
|
Product Description
Ø Description:
n Feedthrough Capacitors offer a high insertion loss across a broad band of frequencies from
a few tens of kHz up to the GHz region
n Very low internal series idductance
n Very high self-resonant frequency
n Self-healing dielectric
n High quality and reliability
n Anti-twist protection
n Through-buikhead mounting
n Custom-specific or dual-versions on request
electrical feedthrough Low Pass power line filter
ØTypical Applications:
n AC Power line filter for 250VAC power lines
n DC Power line filter for 48VDC battery power
n Increasing system and information security
n Power supplies
n Swiching and cellular equipment
n computer servers
n UPS power supplies
n Medical equipment
n Shielded rooms
