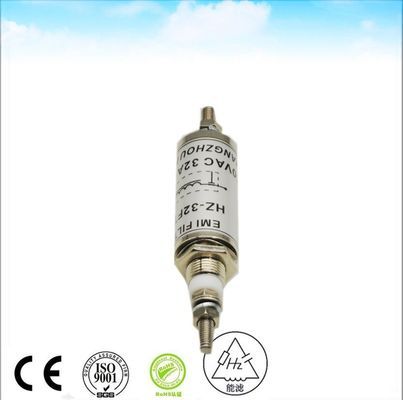

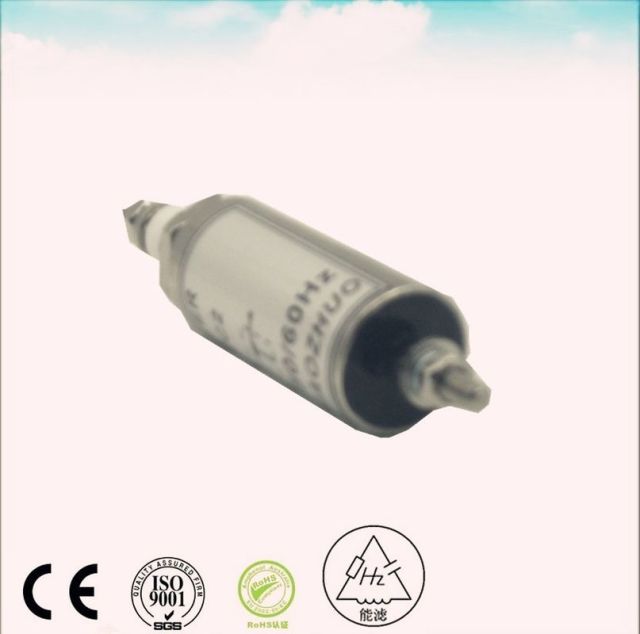

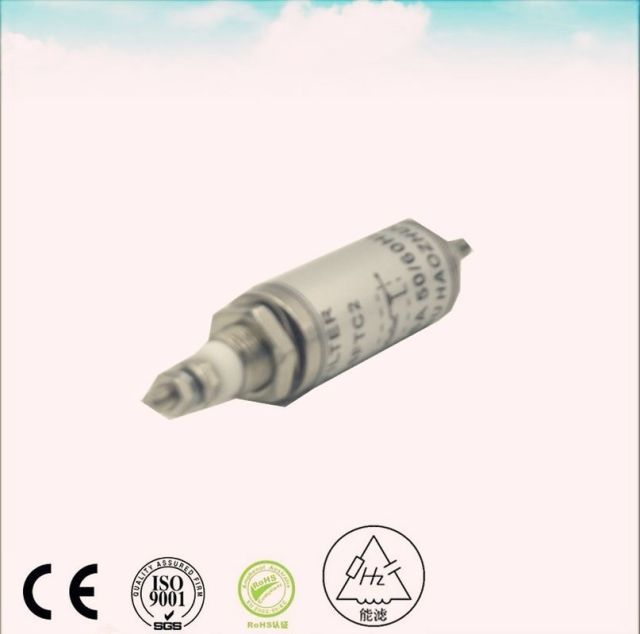

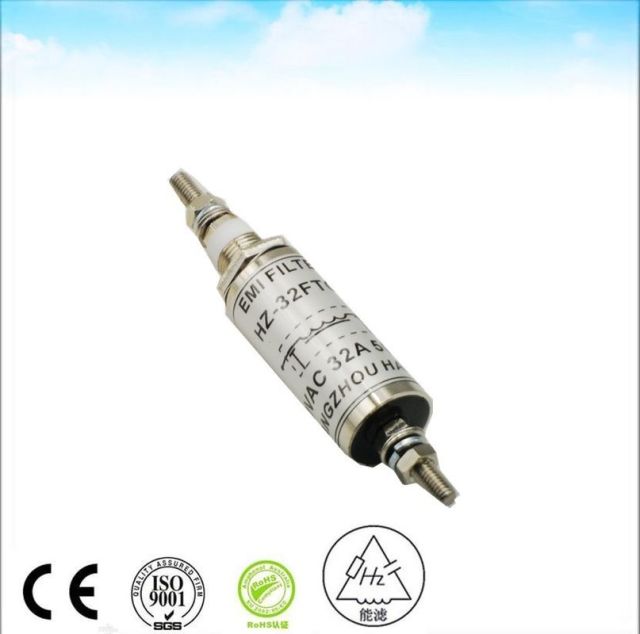

250VAC 16A Rf Feed Thru Emi Feedthrough Filter Electrical Power Filter

250VAC 16A feedthrough emi filter for rf shielding room

Note:

1. The selection of EMI filter should consider its working voltage, working current, withstand voltage.
2. EMI filter should be installed at the inlet of power supply, to reduce radiation interference.
3. It is better to choose twisted-pair cable as EMI filter connection cable, which can eliminate some high-frequency interference signal.
4. EMI filter input and output cable must not be parallel, keep them away from each other to a certain distance in order to ensure the function of filter.
5. E point and case of EMI filter must be in good contact, and connect to ground wire.

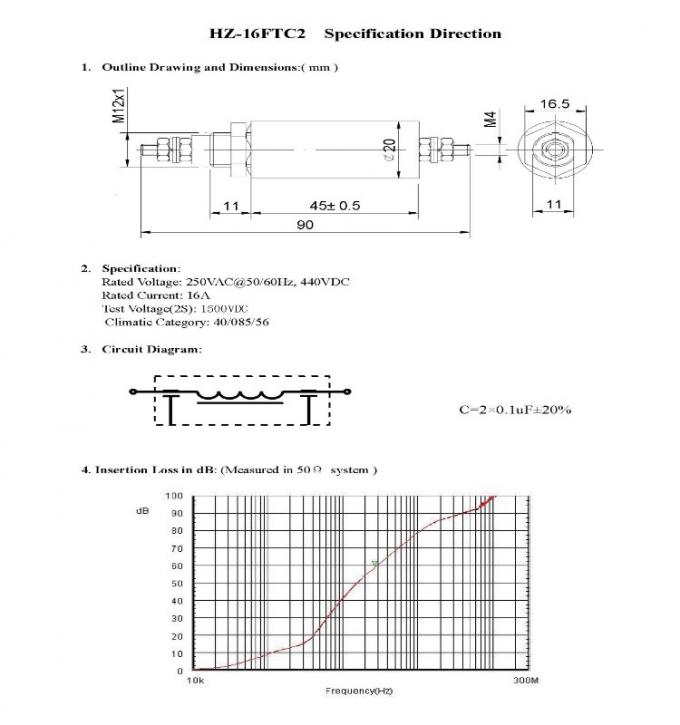

Technical Specification
- Rated voltage:250VAC/600VDC
- Rated current: 1A-300A
- Operating frequency: 50/60Hz
- Temperature range : 40/085/56

• Power supply EMI filter is a kind of reactance-type low-pass filter, installed at the power supply input of electronic equipment.
• The EMI Filter Module can inhibit noise transmitted through grid power cable, and can inhibit high-frequency interference signals generated by the electronic device itself.
• High quality imported components provide obvious filtering effect.
• EMI fliter has become a must have device installed in electronic equipment.Used to make the power filter out of the exchange of clutter interference, so that equipment at work without power grid or other interference into the power, filter /anti-surge / Lightning Protection.
• Widely used for precision measuring instruments, building automation, precision machinery, elevator lifting equipment, automated system, calculator inverter office equipment, servo system inverter equipment, frequency conversion equipment, lighting equipment, information and communication equipment, UPS power supply, automotive electronics, etc.
