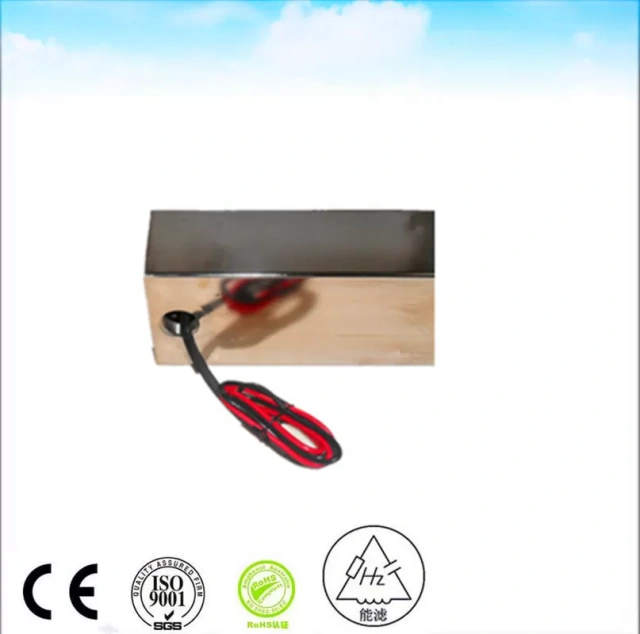

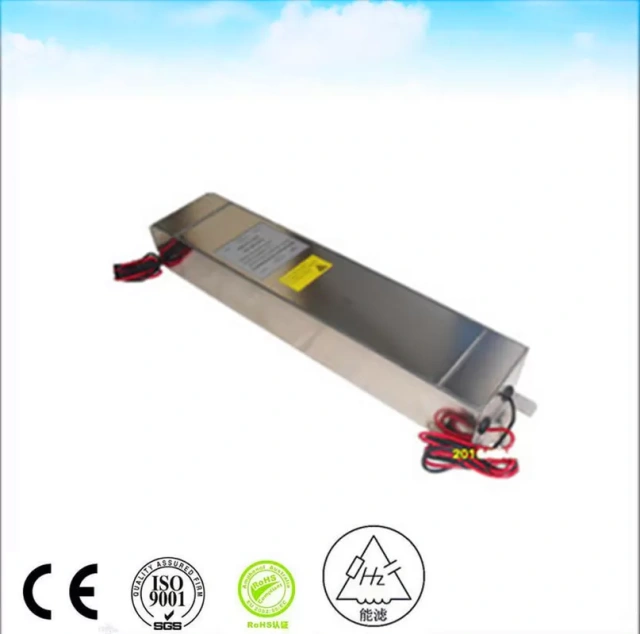

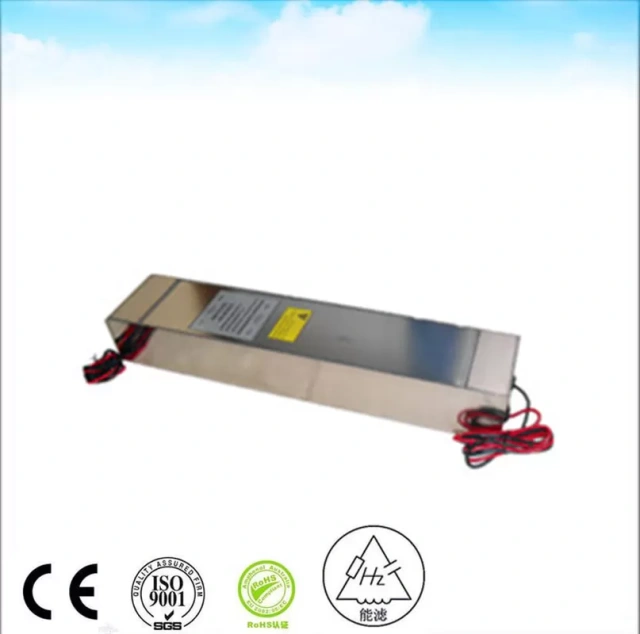

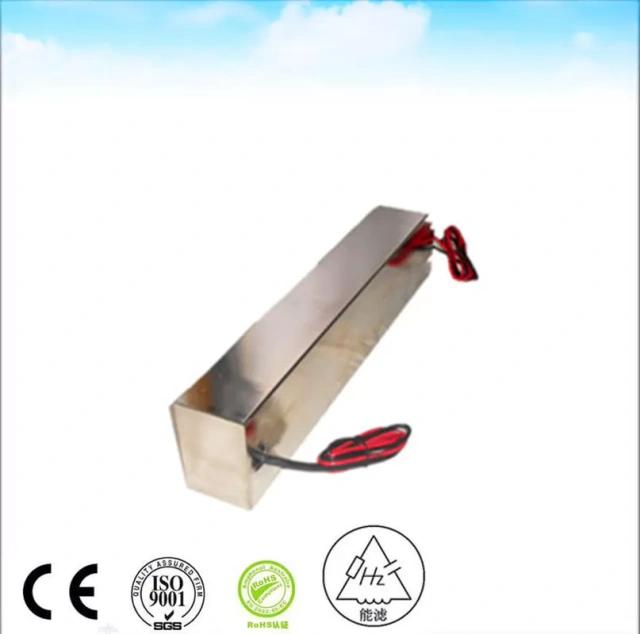

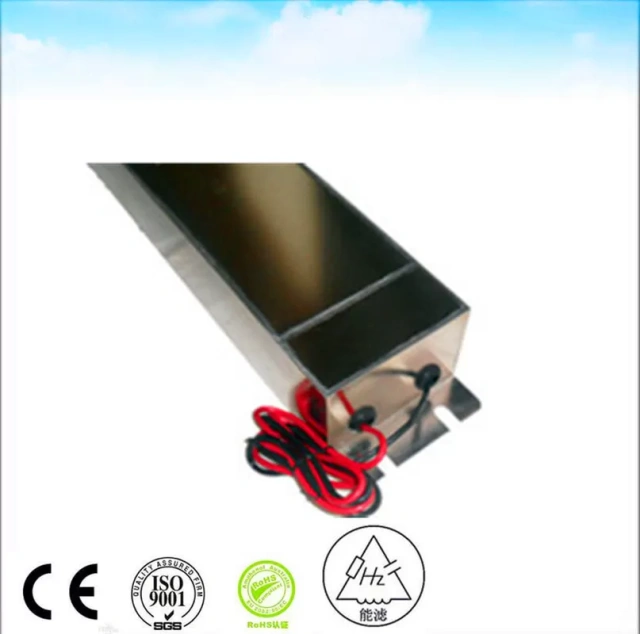

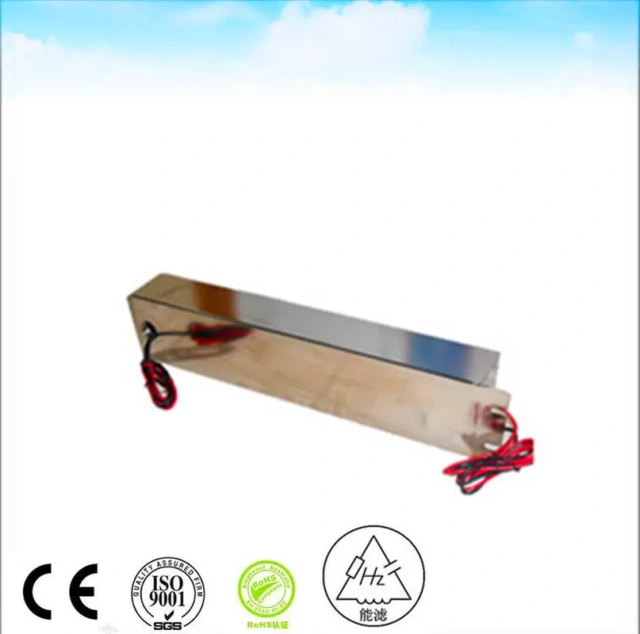

The 250VAC 30A EMI power line filter delivers 100 dB suppression of EMI and RFI for dual AC/DC compatibility, ensuring stable power and enhanced reliability. Ideal from leading emi filter manufacturers.
Functional Targeting for Power Line Noise Mitigation
This emi power line filter is engineered for industrial users requiring robust suppression of electromagnetic interference on both AC and DC power lines. Designed to accommodate loads up to 30 amps at 250 volts AC, it serves equipment reliant on clean power input to maintain operational stability. The filter’s compatibility with dual AC/DC power sources affords integrators and end-users flexibility in various electrical systems. Emi filter manufacturers prioritize such solutions for environments with strict noise immunity requirements, such as automation, robotics, and laboratory instrumentation systems. The product assists engineers and procurement professionals in compliance-driven procurement for enhanced system reliability.
Technical Specifications Underscoring High-Performance Noise Suppression
This emi power line filter manufacturer’s design achieves a broad frequency attenuation with a minimum insertion loss of 70 dB across 150 kHz to 10 GHz, including a notable 100 dB EMI/RFI noise suppression rating. Voltage drop is maintained below 1 V under nominal operating current, with capability to sustain overload conditions up to 140% rated current for 15 minutes. Built to industrial climatic classifications and validated by MIL-STD test methods for insulation resistance and terminal strength, the emi filter incorporates integrated RF shielding for external interference mitigation. Its robust construction supports continuous operation in demanding electrical environments, meeting stringent quality and safety standards required by global users.
Industry Applications Demonstrating System Integration and Enhanced Equipment Protection
The emi power line filter is widely deployed across industrial automation, data acquisition, CNC machinery, and sensitive test enclosures demanding low noise electrical environments. Its ability to condition power lines in MRI Faraday cages and RF shielding rooms exemplifies its versatility in protecting critical instrumentation from interference-induced malfunctions. By reducing power line noise, it directly contributes to minimizing equipment downtime and lifecycle degradation, thus improving return on investment for manufacturers and end users. Emi filter manufacturers ensure that this filter fits seamlessly into existing system architectures, serving as a vital component in power quality management strategies within complex industrial ecosystems.
| RATED VOLTAGE | 250 VAC | ||
| RATED CURRENT | 30 A | ||
| OPERATIONAL FREQUENCY | 50 60Hz | ||
| Voltage Drop | Less than 1V | ||
| Overload | 140% of rated current for 15 minutes | ||
| Harmonic Distortion | Less than 2% @ full rated current | ||
| Leakage Current | ≤0.2A@380/230VAC and 50Hz | ||
| Dielectric Withstanding Voltage | 1000VDC (line to line) 1000VDC (line to case) | ||
| DC Insulation Resistance | As Per MIL-STD-202 Method 202 | ||
| Terminal Strength | As Per MIL-STD-202 Method 211 | ||
| Temperature Rise | As Per MIL-F-15733 | ||
| Insertion Loss: | ≥70dB@150K-10GHz As Per MIL-STD-220A, Under Load Condition | ||
| Climatic Classification | 25/070/21 | ||
The following tips can help ensure proper EMI grounding:
We are a leading EMI filter manufacturer with over 10 years of expertise in designing effective and cost-efficient solutions. Our technical team is skilled in adhering to international safety standards such as UL, CE, CSA, and military applications. We provide high-quality and reliable products to customers worldwide, ensuring they meet the highest performance standards.
Why Choose Us:
Use Scenarios
Power Line Noise Suppression in Industrial Automation Facilities
In manufacturing environments deploying automated lines or robotics, electrical noise can cause erratic device behavior and data corruption. This emi power line filter effectively suppresses conducted and radiated interference on power inputs, ensuring smooth operation of controllers and drives. Its capability to handle 30A at 250VAC fits typical industrial equipment power demands. Integrated RF shielding and compliance with MIL-STD requirements enable operators to meet electromagnetic compatibility regulations while maintaining system uptime. The filter’s inclusion within power conditioning units or distribution panels facilitates seamless integration and improved power quality essential to industrial process stability.
EMI Mitigation for Sensitive Laboratory and Medical Equipment
Laboratory instruments and MRI Faraday cages require stringent power line noise control to preserve measurement accuracy and diagnostic imaging quality. This emi power line filter reduces electromagnetic disturbances that could corrupt sensitive signals in such environments. Its dual AC/DC compatibility supports different equipment power schemes, and its high attenuation rating ensures effective filtering across wide frequency bands. By incorporating this emi filter, medical and research facilities prevent electromagnetic interference that compromises data integrity and diagnostic outcomes. The filter integrates within power supply systems, supporting compliance with health and safety standards critical in regulated sectors.
What are the primary benefits of using your 250VAC 30A EMI filter in industrial settings?
Our emi power line filter provides up to 100 dB suppression of EMI and RFI across a wide frequency range, improving equipment reliability. It supports both AC and DC operation, which makes it ideal for industrial environments requiring stable, low-noise power delivery to sensitive machinery and control systems.
Can you customize EMI filters to fit specific voltage or current requirements?
Yes, we accept OEM orders and can tailor our emi power line filter and other EMI filters to meet your technical specifications. Please provide your custom label or design requirements, and our engineering team will work with you to develop a filter that suits your exact application needs.
What installation considerations should I keep in mind for the EMI power line filter?
Our EMI filters are designed for easy integration into existing power lines and equipment. Ensure correct wiring according to the rated voltage (250 VAC) and current (30 A), and verify proper grounding to maximize EMI filter effectiveness and protect your devices from electromagnetic disturbances.
How do you handle quality inspection and product reliability assurance?
We adhere strictly to international military and industry standards such as MIL-STD-202 and MIL-F-15733. Our quality control process covers dielectric withstand voltage, terminal strength, and temperature rise testing to ensure that each emi power line filter manufacturer item delivers reliable long-term performance under harsh industrial conditions.
