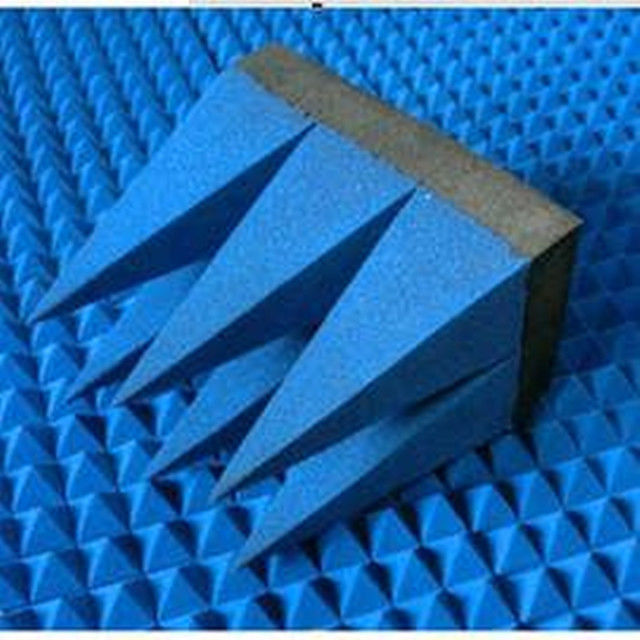

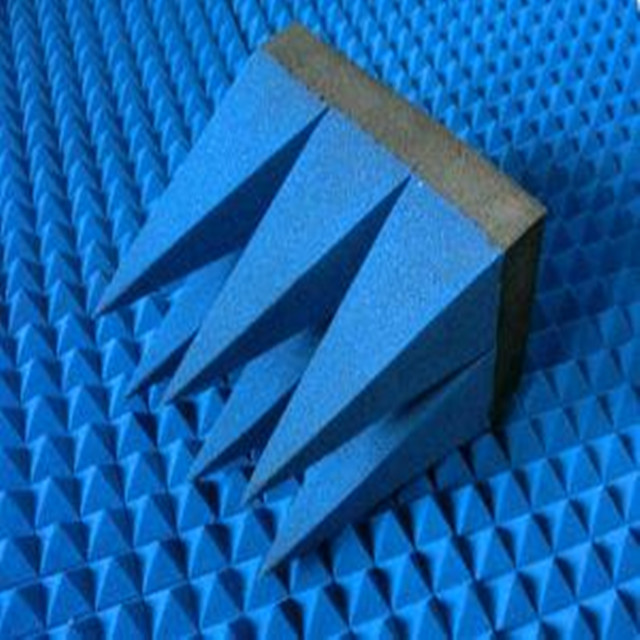

Haozhuo's 300mm EMC Honeycomb RF Absorber Foam Liner Cones are designed to provide exceptional electromagnetic compatibility performance in anechoic chambers. These durable and efficient absorbers ensure accurate and reliable RF testing.
Specialized Absorber Solution for EMC Testing Environments
Our 300mm EMC honeycomb RF absorber cones are engineered for professionals requiring enhanced electromagnetic wave management within anechoic chambers. As a product from a reputable EMC absorber supplier, these cones serve engineers and laboratory technicians focused on compliance testing, shielding effectiveness evaluation, and performance validation. Tailored to improve RF test accuracy, this anechoic chamber absorber integrates seamlessly into existing test setups, addressing the needs of facilities conducting high-precision electromagnetic compatibility assessments.
Optimized Design Featuring Honeycomb Microwave Absorbing Foam
Constructed from high-quality microwave absorbing foam with an innovative honeycomb structure, these cones ensure superior RF attenuation and durability. The product’s base dimension of 600mm x 600mm and standard height of 300mm are customizable to accommodate diverse chamber geometries. Reflectivity values range between 10 and 50 dB, enabling tailored absorption profiles for specific frequency bands. Certified by CE and RoHS standards, the cones assure performance consistency crucial for rigorous EMC testing protocols mandated by regulatory bodies.
Key Applications in EMC Test Chambers and RF Compliance
These RF pyramid absorbers are extensively utilized in EMC test chamber environments to minimize signal reflection and electromagnetic interference, critical for accurate radio frequency device characterization. By acting as an effective anechoic chamber absorber, they support industries involved in telecommunications, automotive electronics, and aerospace systems. Their deployment facilitates improved repeatability of EMC test results and complements the efforts of RF absorber manufacturers striving to meet compliance and quality assurance demands.
Product Advantages
Structural and Design Efficiency in Absorber Integration
The 300mm EMC honeycomb cones demonstrate a modular design enabling straightforward installation and replacement within diverse anechoic chamber layouts. Manufactured by a leading anechoic chamber absorber manufacturer, the honeycomb architecture optimizes material usage to maintain structural integrity while maximizing electromagnetic wave dissipation. Their standardized yet customizable sizing offers adaptability to varied test chamber configurations, simplifying logistics for RF absorber manufacturers and EMC test chamber absorber suppliers prioritizing system scalability and maintenance.
Enhanced Performance and Long-term Operational Value
With proven reflectivity attenuation in the 10 to 50 dB range, these cones provide measurable improvements in RF test precision and interference reduction, essential metrics for EMC compliance verification. The durable microwave absorbing foam composition resists wear over extended testing cycles, reducing replacement frequency and total cost of ownership for laboratory managers. As a reliable RF absorbing foam supplier product, it delivers consistent performance, enabling smoother workflow integration and reducing variability in electromagnetic measurements.
 |
 |

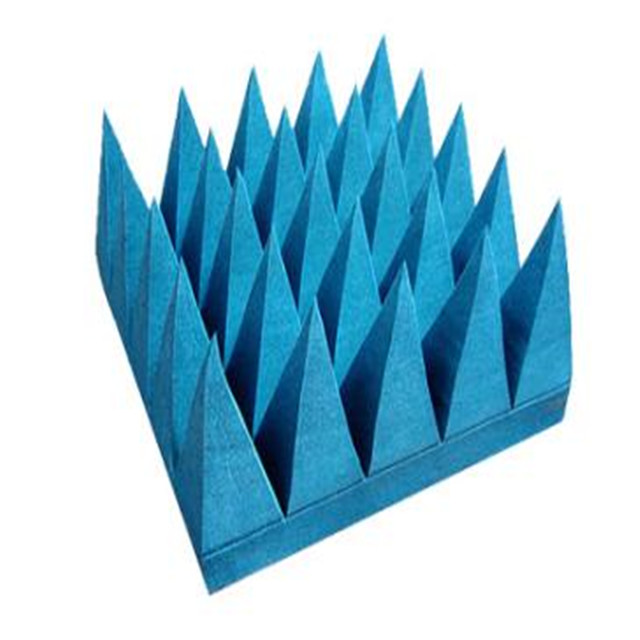

Rf Foam Absorber For Anechoic Chamber
Microwave Absorbers & RF Absorbers from the leading manufacturers are listed below. Use the filters to narrow down on products based on your requirement. Download Datasheets, Compare products and Request Quotations. Your Inquiry will be directed to the manufacturer and their distributors who will get back to you with a quote.

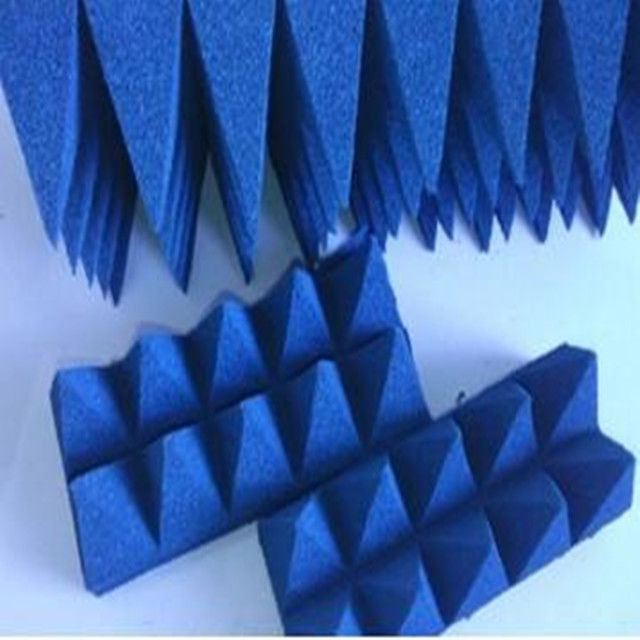

RF Foam Absorber Types
· Rubber sheet micromave absorber
· Carbon-based foam microwave absorber
· Honeycomb & high power microwave absorber
· Sprayable microwave absorber
· Rigid and castable microwave absorber

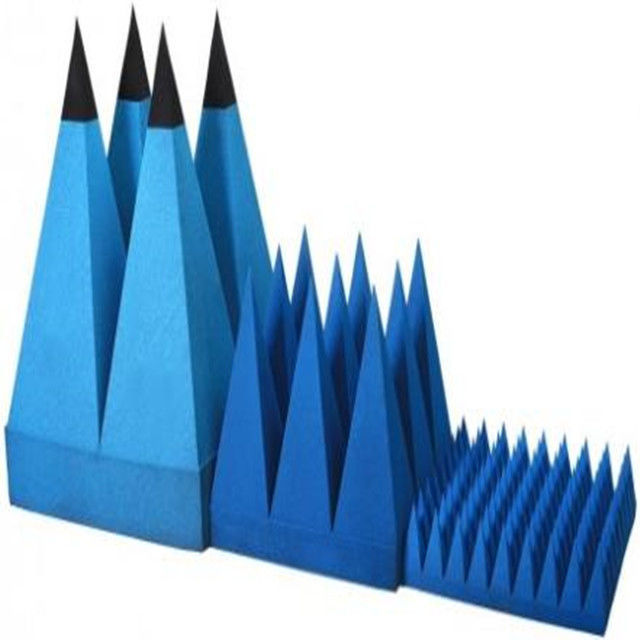

| TYPE | BASE SIZE | NUMBER OF PYRAMIDAL | WEIGHT | TOTAL HEIGHT | BASE HEIGHT | PYRAMIDAL HEIGHT |
PYRAMIDAL WIDTH |
| HZ-30 | 500*500 | 36*36 | 1.1 | 30 | 15 | 15 | 14 |
| HZ-50 | 500*500 | 20*20 | 1.8 | 50 | 20 | 30 | 25 |
| HZ-70 | 500*500 | 20*20 | 2.5 | 70 | 20 | 50 | 25 |
| HZ-100 | 500*500 | 13*13 | 3.3 | 100 | 25 | 75 | 38 |
| HZ-150 | 500*500 | 9*9 | 4.8 | 150 | 30 | 120 | 56 |
| HZ-200 | 500*500 | 7*7 | 6.3 | 200 | 40 | 160 | 71 |
| HZ-300 | 500*500 | 5*5 | 9 | 300 | 60 | 240 | 100 |
| HZ-400 | 500*500 | 4*4 | 12 | 400 | 70 | 330 | 125 |
| HZ-500 | 500*500 | 3*3 | 15 | 500 | 80 | 420 | 167 |
| HZ-600 | 400*400 | 2*2 | 18 | 600 | 90 | 510 | 200 |
| HZ-700 | 250*500 | 1*2 | 21 | 700 | 100 | 600 | 250 |
| HZ-800 | 250*500 | 1*2 | 24 | 800 | 100 | 700 | 250 |
| HZ-1000 | 334*334 | 1*1 | 30 | 1000 | 150 | 850 | 3 |
| TYPE | HEIGHT | REFLECTIVITY | ||||||||
| 40 | 15 | 10 | 3 | 1.5 | 0.5 | 0.3 | 0.2 | 0.15 | ||
| HZ-100 | 100 | 50 | 45 | 40 | 30 | 20 | ||||
| HZ-150 | 150 | 50 | 50 | 45 | 33 | 25 | ||||
| HZ-200 | 200 | 50 | 50 | 50 | 37 | 30 | 17 | |||
| HZ-300 | 300 | 50 | 50 | 50 | 40 | 33 | 20 | |||
| HZ-400 | 400 | 50 | 50 | 50 | 45 | 40 | 25 | 17 | ||
| HZ-500 | 500 | 50 | 50 | 50 | 45 | 40 | 30 | 20 | 17 | |
| HZ-600 | 600 | 50 | 50 | 50 | 50 | 40 | 30 | 25 | 20 | |
| HZ-700 | 700 | 50 | 50 | 50 | 50 | 43 | 35 | 30 | 20 | 17 |
| HZ-800 | 800 | 50 | 50 | 50 | 50 | 45 | 36 | 30 | 20 | 17 |
| HZ-1000 | 1000 | 50 | 50 | 50 | 50 | 45 | 38 | 35 | 25 | 20 |
RF Foam Absorber Basic Information
Base size: 500*500mm, customized acceptable
Standard height: 30,50,100,150,200,300,400,500,700,800,1000mm
RF Foam Absorber Features
The traditional material for anechoic chambers
Outstanding absorbing over a wide frequency range
Flexible
 |
 |
Founded in 2003, Haozhuo specializes in high-quality EMI filters, serving global clients across diverse industries. With branches in Shanghai and Italy, and a dedicated R&D center, we are committed to innovation, quality, and customer satisfaction. Our products, certified to meet international standards, are trusted for their performance and reliability.
For more information, visit our Company Profile.
Use Scenarios
Deployment in High-Precision EMC Testing Facilities

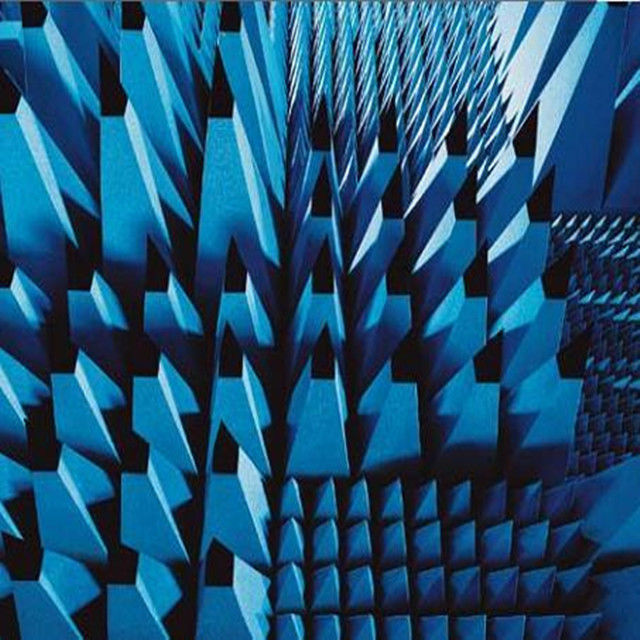

In specialized EMC test chambers within telecommunications manufacturing, these EMC pyramid absorbers play a critical role in creating a controlled RF environment. Their functionality in suppressing electromagnetic reflections improves the validity of compliance testing conducted under strict international guidelines. By integrating these absorbers, engineers achieve higher accuracy in measuring device emissions and immunity, streamlining overall quality assurance processes and regulatory approval workflows, consistent with the requirements of an EMC absorber supplier.
Upgrading Legacy Anechoic Chambers for Enhanced RF Signal Control
For research institutions and industrial testing labs, replacing outdated absorber panels with these microwave absorbing foam cones supplied by an experienced pyramid absorber supplier enhances chamber performance. The upgrade reduces stray signals and multipath interference, thereby improving the reliability of electromagnetic compatibility assessments. These absorbers complement existing chamber infrastructure, facilitating seamless integration with test equipment and ensuring continued adherence to evolving EMC test standards critical to product certification and innovation cycles.
What materials are used in your 300mm EMC Honeycomb RF Absorber Foam Liner Cones?
Our absorbers use durable, high-quality foam with a honeycomb structure optimized for RF absorption. This design enhances electromagnetic wave attenuation, making them ideal as a microwave absorbing foam solution for anechoic chambers.
Can I order custom sizes or configurations for the RF pyramid absorber?
Yes, we accept customized sizes and OEM orders for our RF pyramid absorber, including height and base dimensions. Provide your specifications or artwork so we can tailor the absorbers to your exact EMC test chamber requirements.
How should I install these anechoic chamber absorber cones for optimal performance?
Installation involves securely mounting the cones inside your anechoic chamber to maximize RF wave absorption and minimize reflections. Our anechoic chamber absorber cones are designed for straightforward integration with existing EMC testing setups.
What shipping and tracking options are available when ordering EMC absorber materials?
We ship via EMS, DHL, FedEx, UPS, or TNT, providing full digital tracking for your order. Our logistics process supports global delivery of EMC absorber products, ensuring timely arrival and order transparency throughout.
