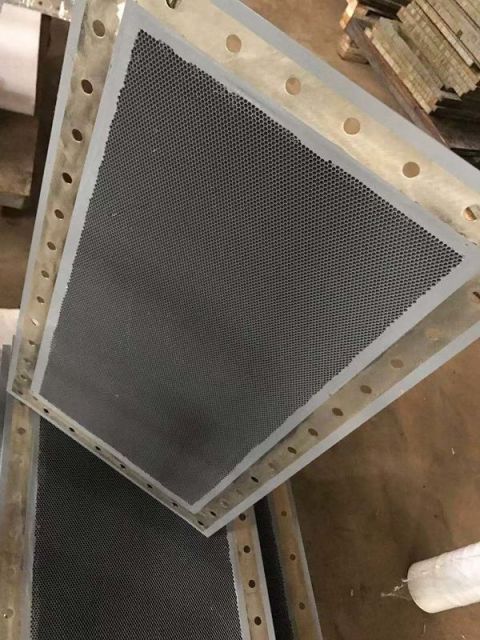

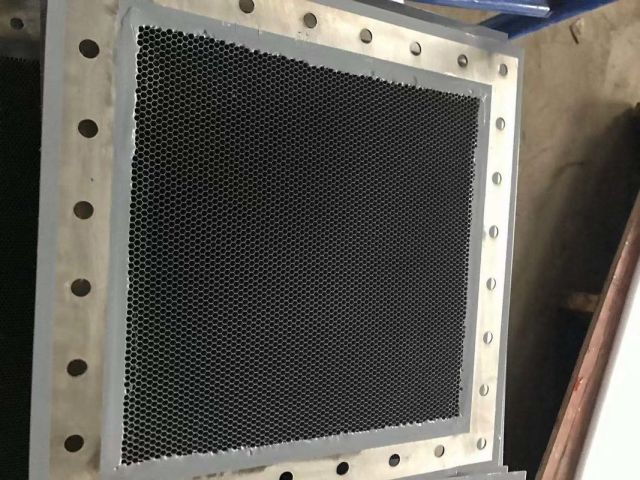

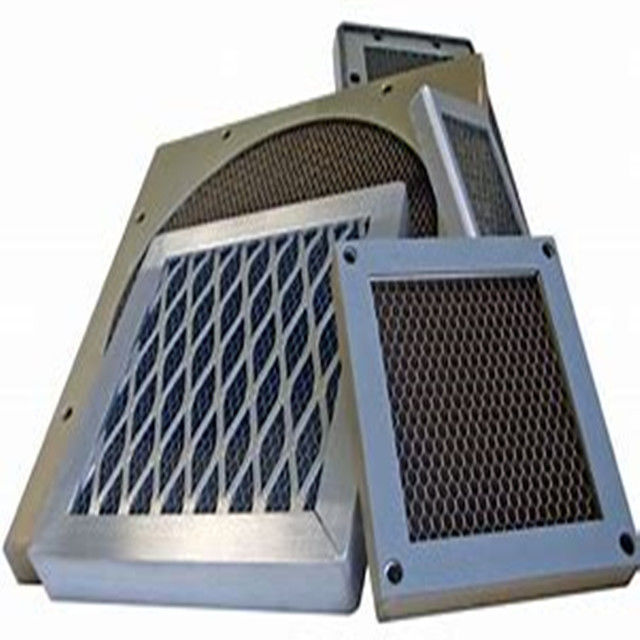

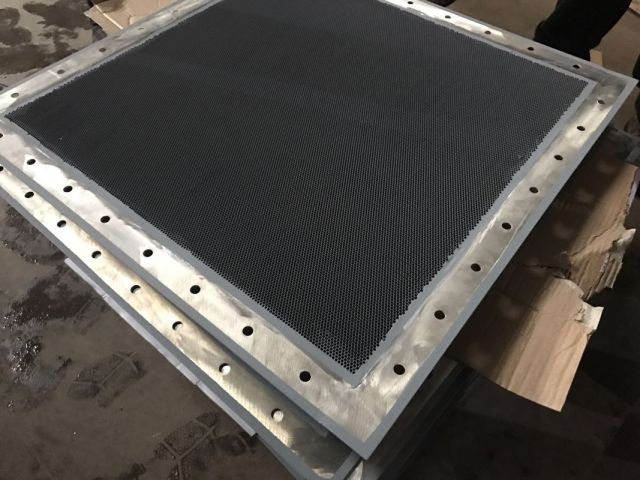

4.8mm 300x300Mm Steel EMI Honeycomb Air Vents Panel For Mrictxray Room

Name: 4.8mm 300x300Mm Steel EMI Honeycomb Air Vents Panel For Mrictxray Room
Brand: changzhou hezi international trading co.,ltd.
Availability: InStock
Rating: 5 (1 reviews)

High Light

EMI Honeycomb Vent panel, 4.8mm EMI Honeycomb Vents, 300Mm emi vents

Product

HONEYCOMB VENT

Honeycomb Filter Size

300x300x25

Material

Steel

Cell Size

4.8mm

Frame

Have

Surface Treatment

Customized

Thickness

15mm 20mm 25mm

Application

Rf Shielding Room

Install Way

Through Wall

Shielding Effective

100dB

Place of Origin

P.R.CHINA

Brand Name

HAOZHUO

Certification

CE RoHS

Model Number

V SERIES

Minimum Order Quantity

1 PCS

Price

USD 100 PER PCS

Packaging Details

CARTON

Supply Ability

1000 PCS PER WEEK

Get The Latest Quote

Description

Steel Honeycomb Vent For Rf Shielding Room High Quality Cell Size 4.8mm

Options

Cross-cell honeycomb for extra high shielding performance
Slant honeycomb 30°, 45°, 60° for outdoor rainproof applications
45° degrees is the most common implementation
Please note, slant honeycombs are available on request
Polyurethane filter for dust protection
Kick plate for mechanical protection
Stainless steel, mild steel or brass versions
Cell sizes 1.6mm, 3.2mm, 6.4mm, 9.5mm, 12.7mm, or 19mm (standard 3.2mm)
Gaskets for firm connections

Specifications

EMI Honeycomb filter
1. Material:Steel, brass,aluminum
2. W*L: 300x300mm, 300x600mm, 600x600mm
3. thickness: 12.5mm, 25mm, 19mm

Customized Brass/Steel/Aluminum Honeycomb

Brass/Steel/ Stainless steel honeycomb
1. Material:Steel, brass,stainless steel,aluminum
2. standard size: 300x300mm, 300x600mm
3. Standard cell size: 3.2/4.0/4.8mm

4. MOQ 1 piece

Product Features
Honeycomb filter use for shielding room and cabinet
Materials: Steel, brass, Aluminum, Stainless steel
The waveguide vent provides maximum RF attenuation while allowing optimum airflow
We can also produce various customized specification for civil or military use according to customer`s requirements.
High quality, Reasonable price and Short delivery, sample order accept
Technical Specifications
Honeycomb Standard Thickness(mm)	12.5mm/19mm/25mm/50mm
Honeycomb standard size	300x300/300x600/450x450/600x600mm
Hole size	3.2mm/4.0mm/4.8mm
The frame materials	Brass, Steel, Stainless steel
MOQ	1PCS
Shielding Performance
Magnetic field	14KHz≥75dB 150KHz≥100dB
Electric field	200KHz-50MHz≥110dB
Flatwave	50MHz-1GHz≥110dB
Microwave	1GHz-10GHz≥100dB 10GHz-18GHz≥90dB
