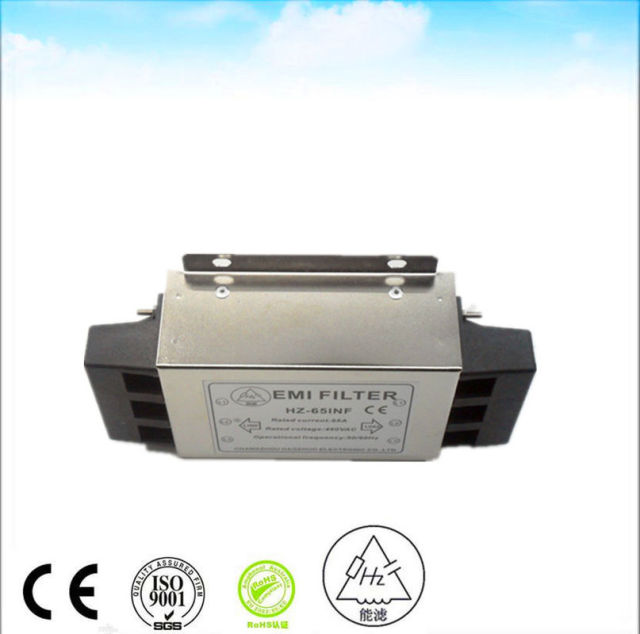

50ohm 220V Single Phase General Power EMI Noise Filter

Name: 50ohm 220V Single Phase General Power EMI Noise Filter
Brand: changzhou hezi international trading co.,ltd.
Price: 120.00 USD
Availability: InStock

High Light

220V EMI Noise Filter, 50ohm EMI Noise Filter, Single Phase EMI Filter

Type

EMI Filter

Transfer Function

Low Pass

Package Type

Throught Hole

Nominal Center Frequency

50/60Hz

3dB Bandwidth

Insertion Loss

100db

Input Impedance

50ohm

Stopband Attenuation

70-100dB

Rated Voltage

250VDC

Rated Current

3A 5A 10A

LINES NUMBER

Application

Air-conditioner

Test Voltage

L-G 1000VDC

Insulation Resistance

1000M Ohm @500 Vdc

Shielding Effective

100dB @ 14K-10GHz

Port

Changzhou Shanghai Hangzhou Or Others

Place of Origin

Jiangsu, China

Brand Name

Nenglv

Model Number

SF-K4

Minimum Order Quantity

>=1 Sets

Price

$120.00

Packaging Details

8 PCS IN ONE CARTON THE GROSS WEIGHT OF ONE CARTON IS ABOUT 18KG

Supply Ability

10000 Piece/Pieces per Week

$120.00

Get The Latest Quote

Description

SPECIFICATION

RATED VOLTAGE	250VAC
RATED CURRENT	3A
LINE NUMBER	2
PASS BAND	7K

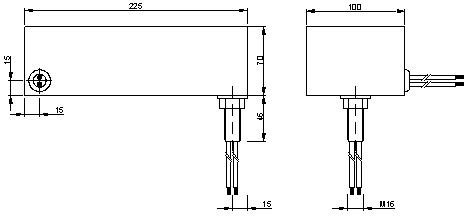

DIMENSION

Our Company

We are a professional and famous EMI filter manufacturer.
Our technical team has more than 10 years’ experience in designing EMI filter. We know UL VDE CSA CE CQC etc safety standard very well.
Our technical service team learn many kinds of test standard such as industrial application (IEC61800-3 for frequency inverter drive EN12015 for elevator EN55011 for ISM device etc) and military application (GJB151A GJB152A etc).We can solve EMI problem quickly effectively and low-costly.
Our test equipment: LCR digital bridge/voltage proof tester/insulation resistance tester/spectrum analyzer/inductor tester/standard signal source/shield room/interference intensity tester etc
