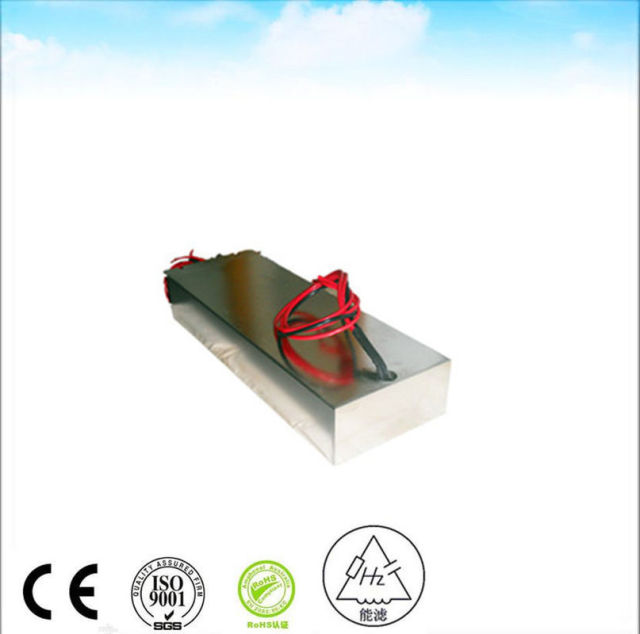

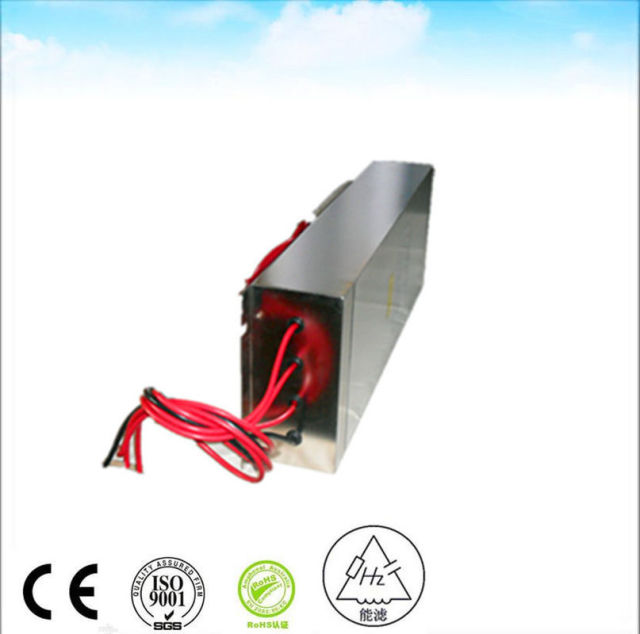

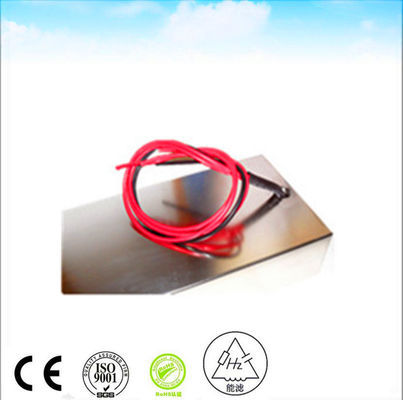

Name: 70A Rfi 380vAc Power Line Filter
Brand: changzhou hezi international trading co.,ltd.
SKU: HZ-4X70C5

Description

Heavy-Duty EMI Power Protection for Industrial Systems

There are a great deal of electronic devices used in our lives, such as mobile phones, AV devices, personal computers, copy machines, and fax machines. These devices are seldom free from electric noise generation. Devices that insufficiently control noise can at times cause trouble or large social problems.

HAOZHUO PowerGuard HZ-4X70C5 is a high-performance emi power line filter designed for 380VAC, 70A applications. In environments with motors, inverters, and high-power equipment, EMI and RFI threats are rampant. This filter delivers up to 100dB insertion loss from 14kHz to 40GHz (MIL-STD-220A), suppressing both differential and common-mode noise, ensuring stable, interference-free operation.

Precision Electrical Specs for Safety and Performance

Key specs include full-rated current carrying capacity, forced overload handling at 140% of current for 15 minutes, and <1V voltage drop. With <2% harmonic distortion and leakage current ≤0.2A at nominal load, it meets MIL-STD-202, MIL-STD-220, and MIL-F-15733. Its dielectric strength (1kV line-to-line and to-case) and rugged terminal connections support demanding industrial usage.

RATED VOLTAGE	380 VAC
RATED CURRENT	100 A (70A Optimized Design)
Voltage Drop	Less than 1V
Overload	140% of rated current for 15 minutes
Harmonic Distortion	Less than 2% @ full rated current
Leakage Current	≤0.2A@380/230VAC and 50Hz
Dielectric Withstanding Voltage	1000VDC (line to line) 1000VDC (line to case)
DC Insulation Resistance	As Per MIL-STD-202 Method 202
Terminal Strength	As Per MIL-STD-202 Method 211
Temperature Rise	As Per MIL-F-15733
Insertion Loss	≥100dB@14K-40GHz As Per MIL-STD-220A, Under Load Condition
Climatic Classification	25/070/21

Product Advantages

High EMI Attenuation Range: Delivers ≥100dB attenuation across 14kHz–40GHz for both common-mode and differential noise, ensuring EMC compliance in harsh industrial settings.
Heavy‑Current Reliability: Handles 70A continuous at 380VAC, tolerates overloads, and keeps performance stable under full load—ideal for power electronics and motor controls.
Low Voltage Drop, Low Noise: Maintains <1V drop and <2% harmonic distortion, minimizing power loss and heat while keeping systems quiet and efficient.
Rugged Build with Industry Certifications: Dust- and moisture-resistant steel housing, MIL-standard insulation and electrical specs, CE/RoHS compliance—designed for years of industrial service.
OEM-Friendly Design: Compact through-hole form, screw terminals, and modular frame allow easy integration into OEM panels, racks, and electrical cabinets.
Production-Ready with Volume Support: MOQ = 1 piece, with consistent quality and quick delivery for large-scale engineering projects.

We Can Supply EMI Filter Like

We provide a comprehensive range of high-efficiency filters to match diverse industrial applications:

• 100a EMI Filter • 2 Stage EMI Filter • 230v Ac EMI Filter • 240v Ac EMI Filter • 3 Phase 400hz EMI Filter • 3 Phase RFI Filter • 50a EMI Filter • AC Socket EMI Filter With Fuse And Switch • EMI Filter 5A • Ac Dc EMI Filter	• Ac Input EMI Filter Design • Ac Line Filter For Audio • Ac Power Line Noise Filter • Anti-Interference Filter • Electromagnetic Interference Filters • EMC EMI Filter For PV Inverters • EMI Electrical Power Filter For Equipment • EMI Filter 10a • EMI Filter 230v • EMI Filter Ac	• EMI Filter Feedthrough Capacitor • EMI Filter For Led Lights • EMI Filter For Power Supply • EMI Filter For Vfd • EMI Filter Manufacturers • EMI Filters For Mechanical Equipment • EMI RFI Ac Power Line Filters • EMI RFI Noise Filtration • Ethernet EMI Filter • Feedthru Capacitors
• General Purpose Socket Emc RFI Noise Filter • Gigabit Ethernet EMI Filter • Iec EMI Filters • Inline EMI Filter • Inverter EMI Filter • Laser Cutting Single Phase EMI Filter • Lc EMI Filter • Lcr Electronics EMI Filter	• Led EMI Filter • Low Pass EMI Filter • Lvds EMI Filter • Mains EMI Filter • Military EMI Filters • Mri Rf Filter • Passive EMI Filter • Plc Noise Filter	• Plug In EMI Filters • Power Filter With Fuse For Medical Equipment • Power Line Filters Single Phase • Power Supply EMI Filter • Radio Frequency Interference Filters • RFI Filter For Radio/TV/Vfd • Three Phase EMI Filters • ETC.

FAQ

What are the primary applications for this 380VAC 70A EMI filter?

This heavy-duty filter is specifically engineered for high-power industrial environments, including motor drives, frequency inverters, automation switchgear, and MRI shielded rooms requiring stringent RFI mitigation.

Does this filter comply with international military and industrial standards?

Yes, it is designed and tested in compliance with MIL-STD-202, MIL-STD-220A, and MIL-F-15733 standards, alongside CE and RoHS certifications to meet global regulatory requirements.

Can I request custom specifications for my industrial project?

Yes, we offer professional OEM and ODM customization services with a low MOQ of 1 piece, backed by our expert technical support team.
