Rf Door For Mri Rf Cage High Quality Competitive Price
Electromagnetic shielding, often shortened to EMI shielding, is used to prevent electromagnetic signals such as radio frequencies (RF) from interfering with sensitive electronic devices or equipment.
At PCB board level, EMI shielding normally comes in the form of a PCB shielding can. These shielding cans are often produced from a conductive or magnetic material to isolate the electrical devices from their surroundings.
Product Descriptio
| Size | Customized |
| Material | Customized |
| Attenuation requirements | Customized |
| Packing | Wooden packing or customized |
| Flange | With a copper flange for shielding |
Features for RF shielding door for EMC chamber
1. The most widely used electromagnetic shielding door nowadays. Access control system can be added.

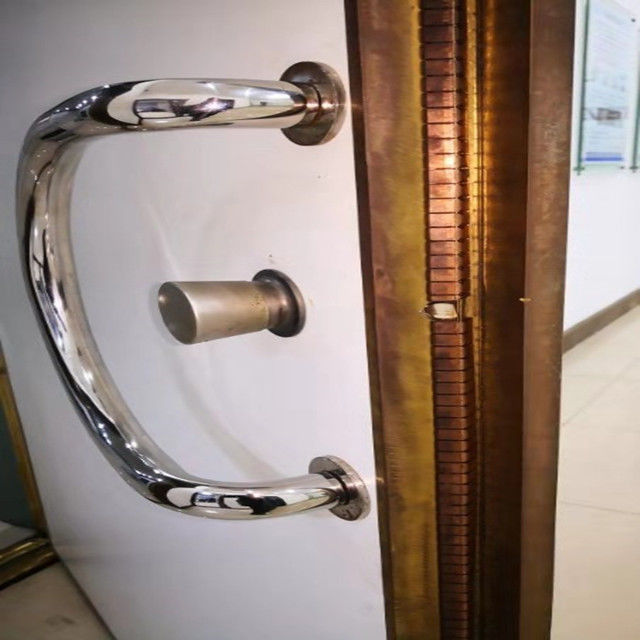

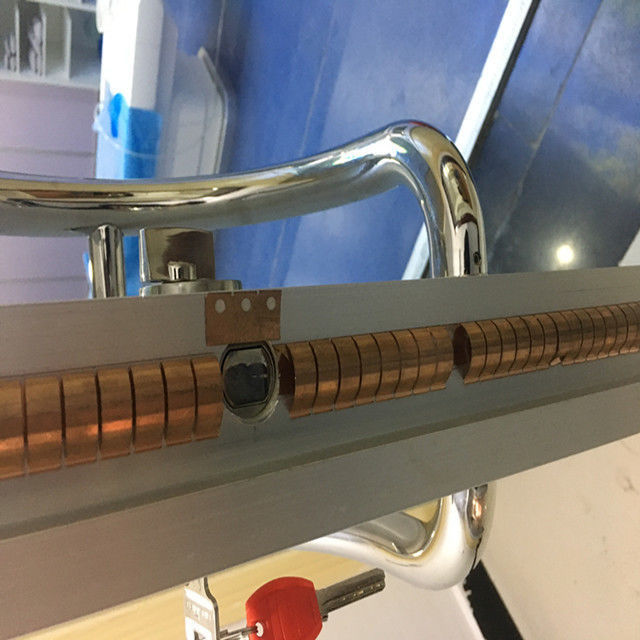

2. Using high performance Becu fingerstrips, long service life, easy and convenient to open and close.
3. Hinge rotation, single & double knife edge technology, double shielding effectiveness performance
4. Two-point latching mechanism for tight, locking seat frame with roller bearings structure, running smooth and light
5. PESD series RF shielding door compliance to GB/T-12190-2006, GJB5792-2006, LEEE Std 299-1997, MIL-STD-285:1956 Standards.
Application for RF shielding door for EMC chamber
- Nuclear magnetic resonance(NMR)
- Shielding room
- Communications room
- Security room and laboratory
- MRI room
- Military office
Options for RF shielding door for EMC chamber

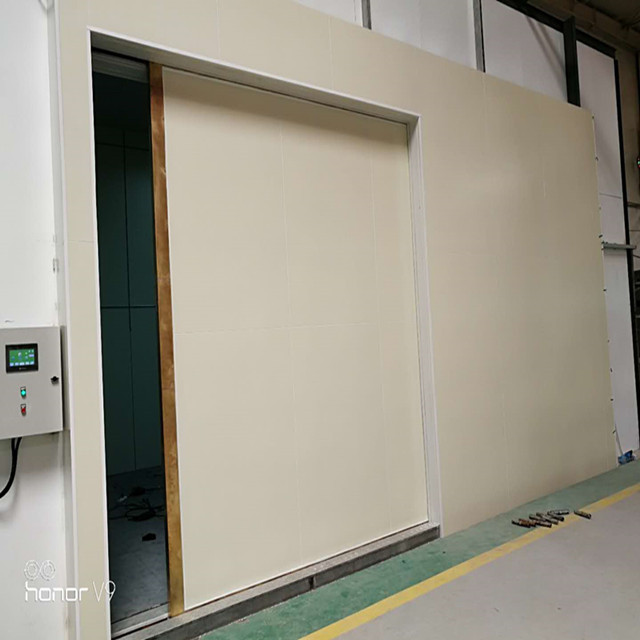

Door type 1: Manual door, Electric door, Pneumatic door.
Door type 2: Single door or double door
Door type 3: Single knife or double knife
Comprehensive Shielding Across Broad Frequency Range
Designed to cover 14 kHz to 40 GHz, this door and frame assembly ensures that shielding performance is maintained across both low-frequency magnetic and high-frequency RF domains. Just as industrial filter manufacturers design filters to handle broadband noise, this mechanical assembly replicates that philosophy in the structural domain. The gasketed seams, conductive joints and frame anchoring all combine to minimize leakage paths, maintaining shielding continuity and minimizing coupling of unwanted emissions. This level of coverage supports high-reliability environments and ensures that systems incorporating emi filter manufacturer components are not undermined by mechanical vulnerabilities.
Robust Construction with Integration-Friendly Design
The door is built from heavy-gauge materials and includes a precision frame with heavy-duty hinges and latches designed for frequent use. With mounting designed for flush-fit into shielded rooms or measurement enclosures, the physical build supports the demanding use cases seen in installations served by rf shield box manufacturers. Additionally, the interface to the floor and ceiling includes adjustable sealing measures, ensuring grounding continuity and minimal gap tolerances. This durability ensures a long service life and limits maintenance issues — a key requirement when used in conjunction with power line filter manufacturers and PDU installations.
Seamless Integration With EMI/EMC Systems and Efficient Operation
While the mechanical door provides the boundary, it is designed to integrate with the broader EMI/EMC system — from EMI filters to power distribution units to monitoring equipment. The structural design minimizes pressure drop (where ventilation ports are integrated) and allows optional mounting of filter interfaces or waveguide vents without compromising shielding. It complements active systems fashioned by rfi line filter suppliers, single phase emi filter manufacturers and 3 phase emi filter manufacturer setups. In operation, the door supports reliable shielding performance during emc test, enables access while maintaining system integrity, and allows facility managers to integrate mechanical and electrical control systems without compromising on performance.
EMC/RF Shielded Test Chambers and Measurement Rooms

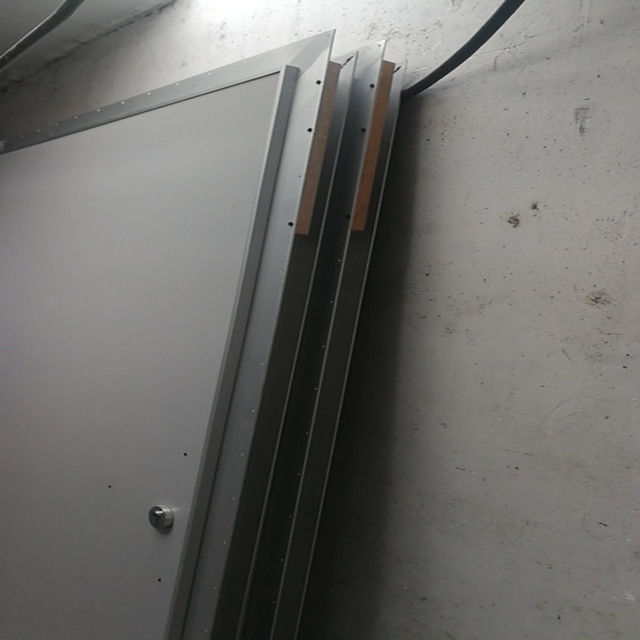

In environments conducting formal EMC test campaigns, RF compliance, or high-sensitivity measurement work, mechanical integrity of the shielding envelope is critical. The 900×1900 mm RF/EMC Shielded Door & Frame provides the access point while preserving shielding performance. Whether the room is used for radiated emissions testing, immunity testing or RF validation, the door ensures that the performance of the entire enclosure isn’t compromised by a weak mechanical boundary. Integration with EMI filter banks and power distribution units means the door forms part of a cohesive system along with electromechanical filtering and shielding strategies.
Secure Equipment Rooms, Data Centres & Power Distribution Enclosures
High-reliability environments such as data centres, telecom shelters, medical imaging suites (MRI), or power conversion rooms often include shielded sections to house sensitive electronics or EMI filter modules. Installing this RF/EMC shielded door allows access while preserving a controlled electromagnetic environment. The door supports installations adjacent to PDUs, inverter drive racks, or control systems where emi filter manufacturers have supplied filtering equipment. It ensures that the mechanical interface does not undermine the filtering or shielding performance of the equipment.
Industrial Manufacturing & Military/Defence Electronics Facilities
In industrial automation, manufacturing processes or defence electronics installations, the need for electromagnetic shielding, access control and operational reliability converge. The shielded door and frame serve as the controlled boundary for rooms housing critical systems, interfacing with power line filters, EMI filter banks and high-performance electronics equipment. Whether upgrading a production lab, building a secure electronics enclave or creating a shielded zone around power distribution and control systems, the door ensures the mechanical envelope meets the same performance expectations as the filtering and shielding hardware.
Before-sale:
1.All inquires will be replied with 8 hours. 7D/24H service,Please feel free to contact us with Email/TM/Skype.
2.Strong technical team and Professional sales.
3.Customized packaging is acceptable.
4.Welcom customers from all the world to visit our factory.
After-sale:
1.All emi filter will be tested and adjusted before shipping.
2.After receiving the products,Any question we will try our best to solve.
Founded and operating under Changzhou Hezi International Trading Co., Ltd. (also branded as Haozhuo), we specialize in providing advanced EMI/EMC solutions for global industrial, military and commercial customers. Our core business includes the manufacture and supply of power line filters, signal line filters, feed-through filters, absorbers (such as pyramid and ferrite tile types), RF shielding gaskets and copper foils, honeycomb ventilation panels, RF shielding rooms and shielding boxes.
As a professional and renowned EMI filter manufacturer, our technical team possesses over a decade of experience in designing and integrating filter technologies, including for inverter drives, solar inverters, rail transit systems and servo applications. We maintain a state-of-the-art laboratory equipped with shielding rooms, surge generators, spectrum analyzers, LCR digital bridges and standard signal sources—enabling us to support full EMC testing and custom design services.
Our mission is to enable dependable, interference-free operation for our clients. Whether the requirement is to supply single phase or three phase EMI filters, low pass filter solutions, ac filter systems, or full electromagnetic shielding enclosures, we provide a one-stop solution across the spectrum of EMI/EMC infrastructure. We serve as both industrial filter manufacturers and emi filter company partners, committed to high quality, efficient lead times and cost-effective customization.
With expertise spanning RF shielding boxes, honeycomb ventilation panels, filter systems and shielding rooms, we understand both the airflow and shielding requirements of modern installations. From power distribution units in industrial settings to sensitive MRI suites or telecom shelters, our products support electromagnetic shielding, emi shielding and system-level EMC filter performance. We invite you to engage with our technical team to assess your EMI/EMC challenge and deliver a tailored solution.
