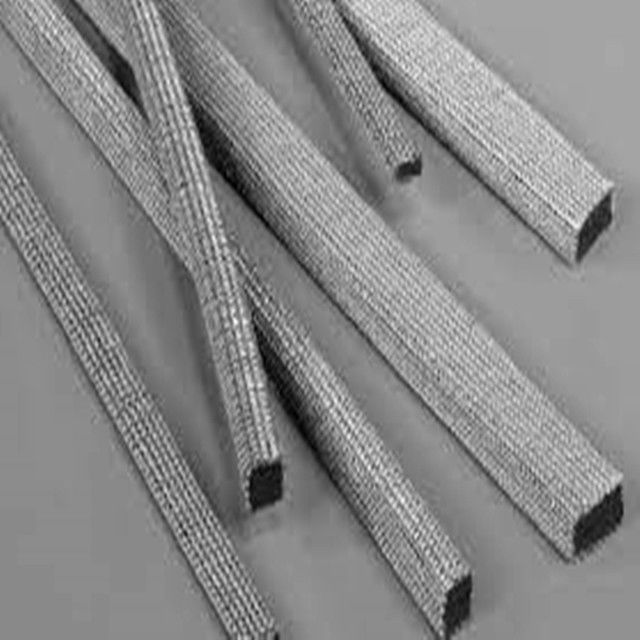

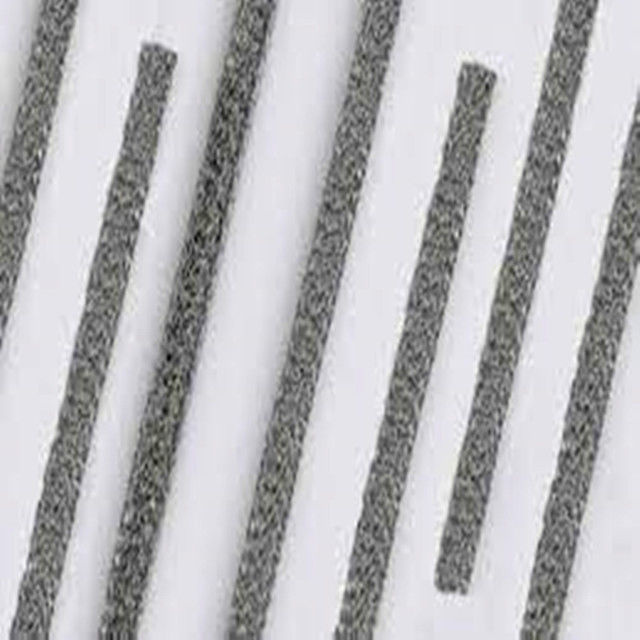

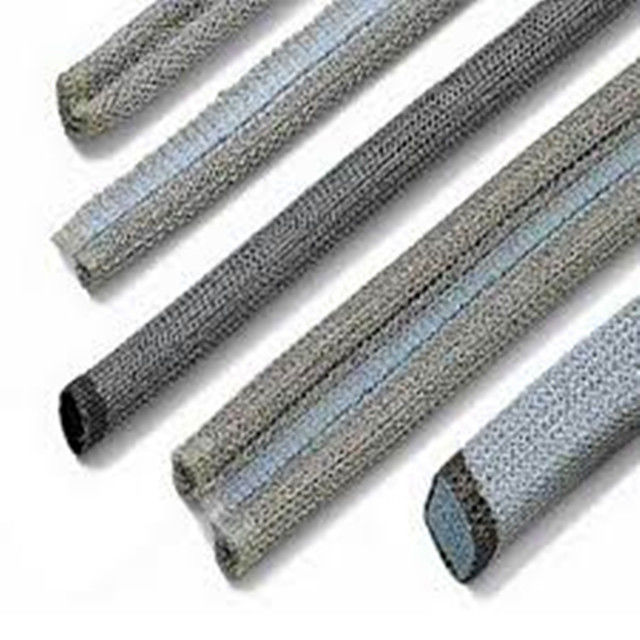

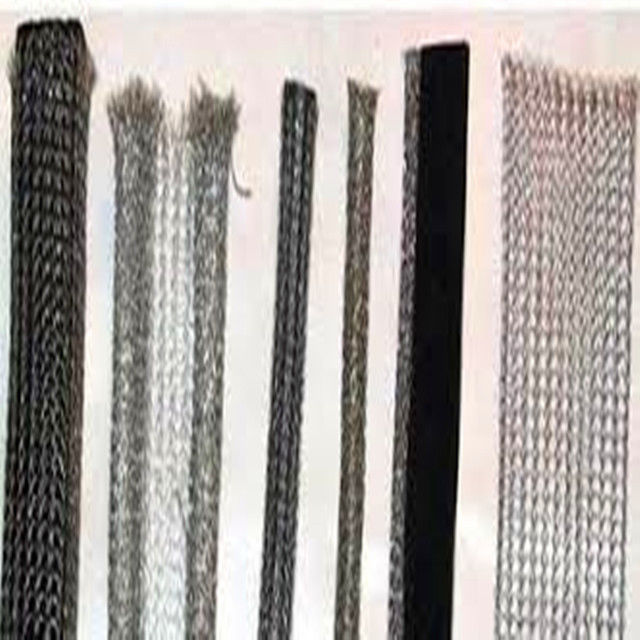

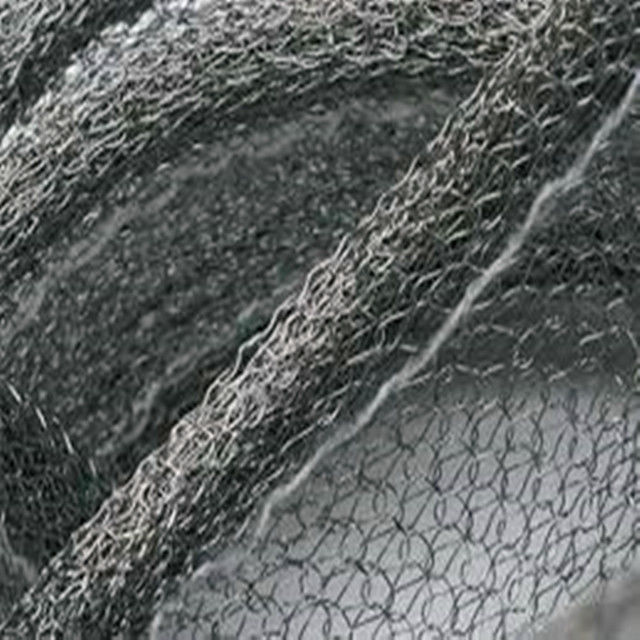

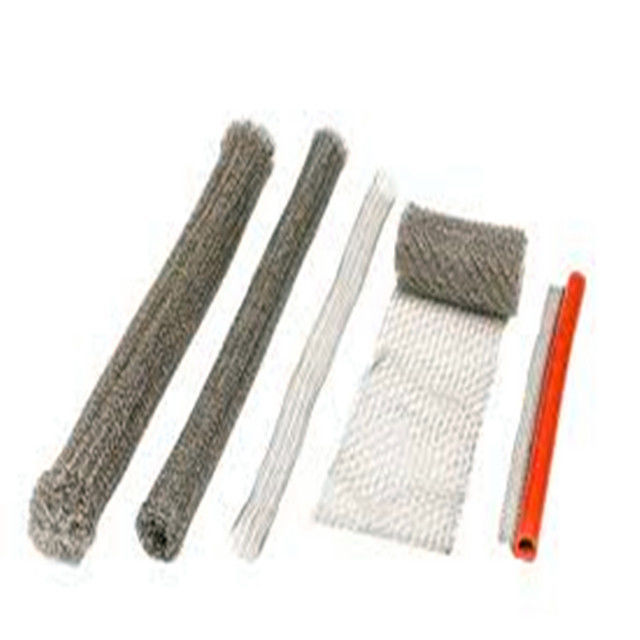

Knitted wire mesh gaskets, EMI mesh, emi emc shielding materials
RFI (radio frequency interference) shielding is a method of protecting electronic devices and technological systems from damaging electromagnetic interference (EMI). One of the most effective materials for defending against these electromagnetic waves is metal mesh — particularly copper wire cloth. Typically, EMI is generated from large electronic equipment to smaller devices. However, small electronics can also transmit waves that negatively affect other systems.
As a result, electronics tend to malfunction due to:
| Product Features |
| All mesh gasket’s cross section are rectangular, round,round with tail and double round with tail. |
| Materials are available intin-plated phosphor bronze (Sn/Ph/Bz), tin-plated copper-clad steel (Sn/Cu/Fe), silver-plated brass (Ag/Brass), Monel, and aluminum(Al). |
| Elastomeric core has various function(anti-chemistry, thermal resistance and water proof) for elasticity. |
| Selection shape |
| Solid Round Type |
| Solid Rectangular Type |
| Hollow Round Type |
| Solid Round with Fin Type |
| Hollow Round with Fin Type |
| Mesh/inch | Wire dia(mm/inch) | Aperture(mm) | |
Stainless steel wire mesh | 100 | 0.089/0.0035 | 0.17 |
| 110 | 0.1060/0.0040 | 0.1295 | |
| 120 | 0.0904/0.0037 | 0.1168 | |
| 150 | 0.0660/0.0026 | 0.1041 | |
| 160 | 0.0635/0.0025 | 0.0965 | |
| 180 | 0.0584/0.0023 | 0.0838 | |
| 200 | 0.0533/0.0021 | 0.737 |
Production range:
Product Description
• Material: SUS302,201, 304, 304L, 316, 316L, 310, 310S etc
• Weave: plain, twill, dutch
• Mesh: 1-2800 mesh
• Application: EMI/RFI shielding, Faraday cages, RF window,
• Specification list for faraday cage shielding stainless steel wire mesh
Before-sale:
1.All inquires will be replied with 8 hours. 7D/24H service,Please feel free to contact us with Email/TM/Skype.
2.Strong technical team and Professional sales.
3.Customized packaging is acceptable.
4.Welcom customers from all the world to visit our factory.
After-sale:
1.All emi filter will be tested and adjusted before shipping.
2.After receiving the products,Any question we will try our best to solve.
