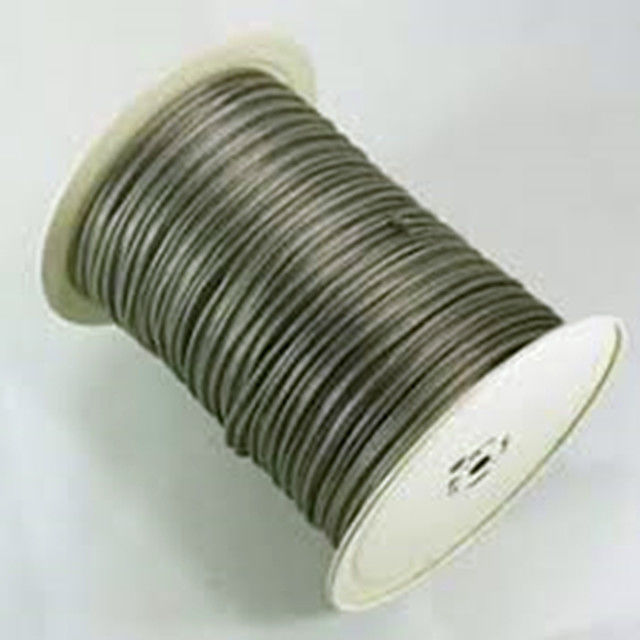

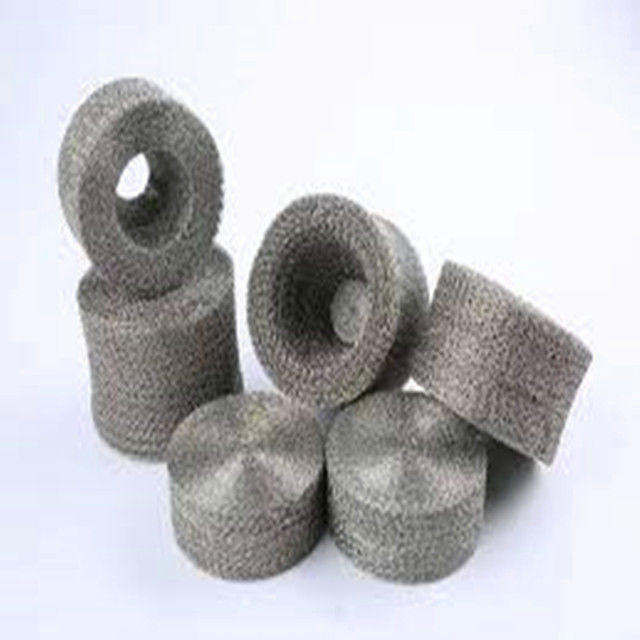

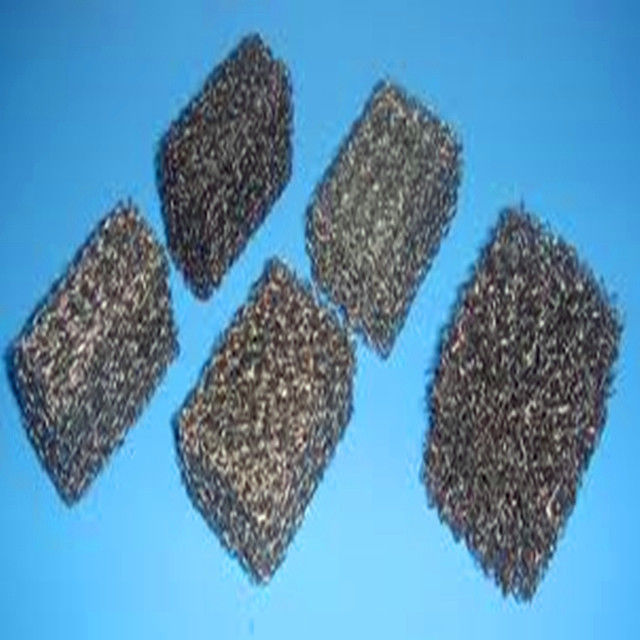

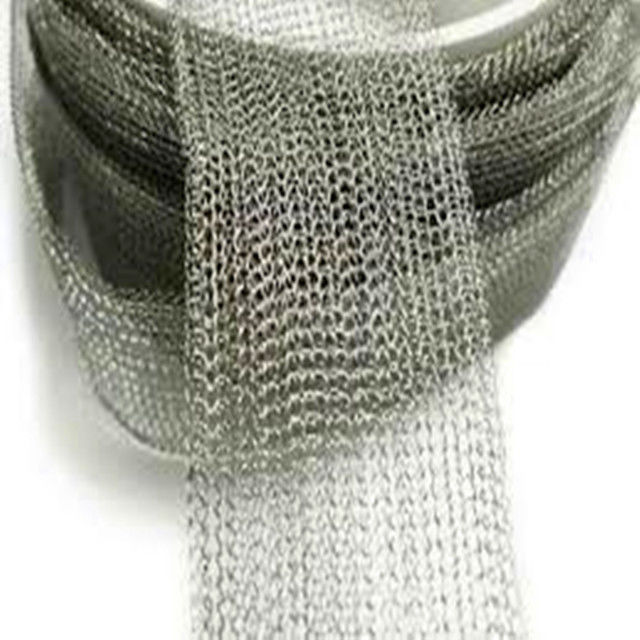

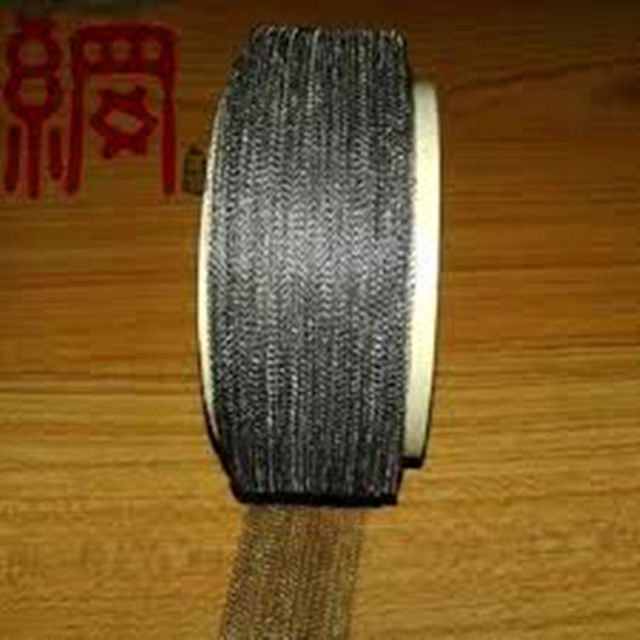

double layer all-metal EMI RF shielding wire mesh gasket
EMI / RFI shielding mesh is split into two categories - optical grade and non-optical grade. Optical grade material is used in windows, display screens etc. The mesh is laminated between various substrates and adhesives in a clean room to prevent any contamination. Optical grade material must be highly transparent, non-reflective and homogenous – as the eye is quickly drawn to any irregularities. In order to reduce reflectiveness, the mesh is often blackened. This is not to be confused with mesh for an optical filter. Optical filters filter out light of different wavelengths.
| Product Features |

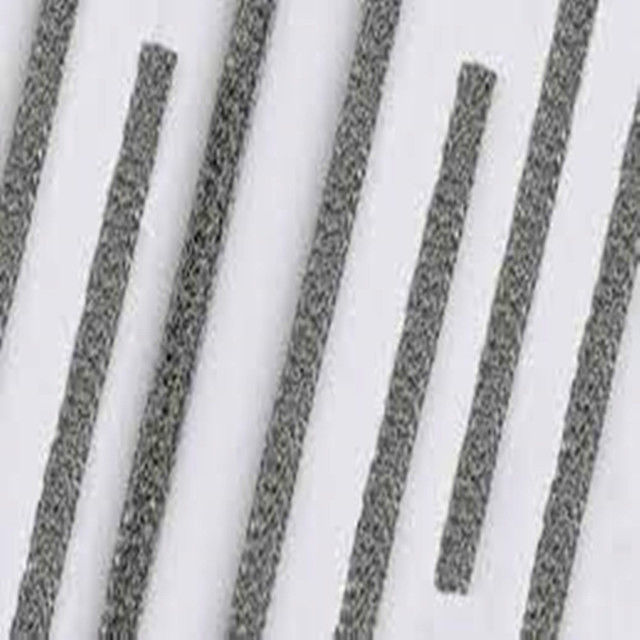

| All mesh gasket’s cross section are rectangular, round,round with tail and double round with tail. |
| Materials are available intin-plated phosphor bronze (Sn/Ph/Bz), tin-plated copper-clad steel (Sn/Cu/Fe), silver-plated brass (Ag/Brass), Monel, and aluminum(Al). |
| Elastomeric core has various function(anti-chemistry, thermal resistance and water proof) for elasticity. |
| Selection shape |
| Solid Round Type |
| Solid Rectangular Type |
| Hollow Round Type |
| Solid Round with Fin Type |
| Hollow Round with Fin Type |
| Mesh/inch | Wire dia(mm/inch) | Aperture(mm) | |
|
Stainless steel wire mesh |
100 | 0.089/0.0035 | 0.17 |
| 110 | 0.1060/0.0040 | 0.1295 | |
| 120 | 0.0904/0.0037 | 0.1168 | |
| 150 | 0.0660/0.0026 | 0.1041 | |
| 160 | 0.0635/0.0025 | 0.0965 | |
| 180 | 0.0584/0.0023 | 0.0838 | |
| 200 | 0.0533/0.0021 |
0.737 |
Production range:
Product Description
• Material: SUS302,201, 304, 304L, 316, 316L, 310, 310S etc
• Weave: plain, twill, dutch
• Mesh: 1-2800 mesh
• Application: EMI/RFI shielding, Faraday cages, RF window,
• Specification list for faraday cage shielding stainless steel wire mesh
Before-sale:
1.All inquires will be replied with 8 hours. 7D/24H service,Please feel free to contact us with Email/TM/Skype.
2.Strong technical team and Professional sales.
3.Customized packaging is acceptable.
4.Welcom customers from all the world to visit our factory.
After-sale:
1.All emi filter will be tested and adjusted before shipping.
2.After receiving the products,Any question we will try our best to solve.
