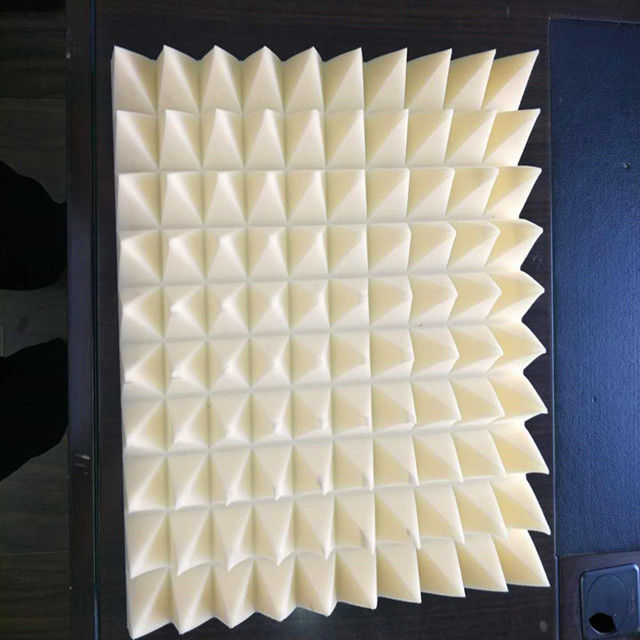

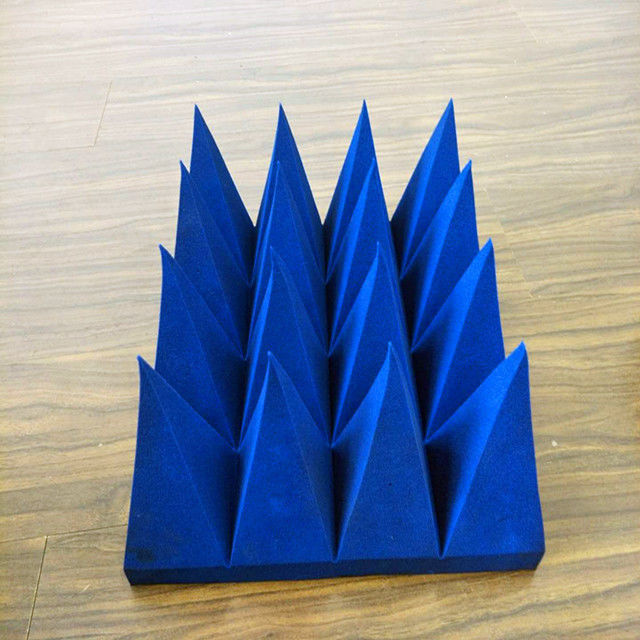

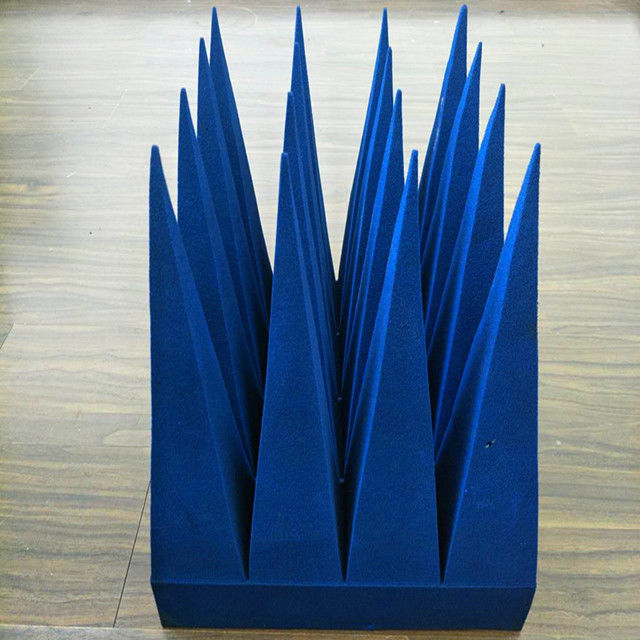

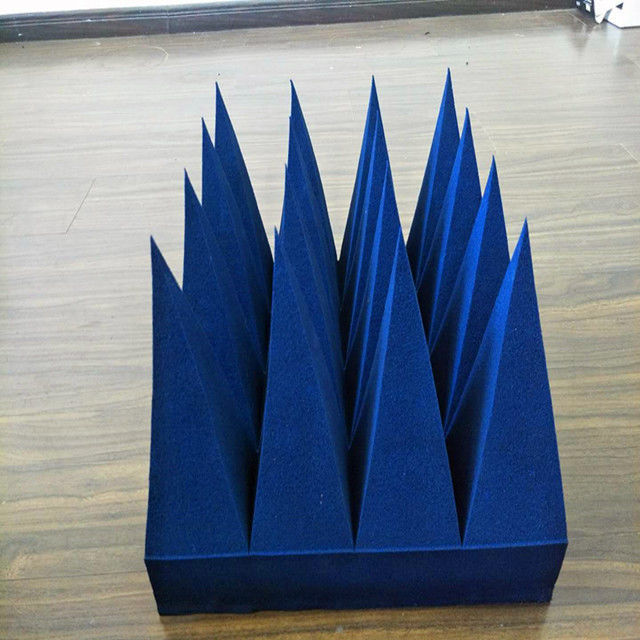

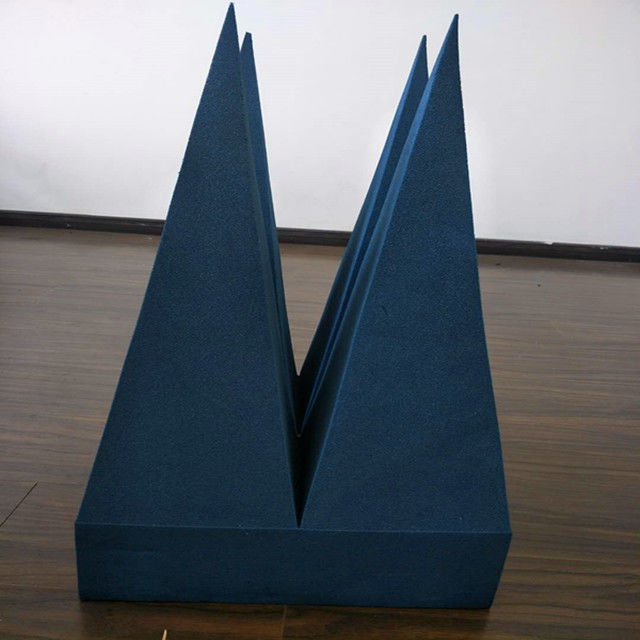

The Electrical Microwave RF Absorber Foam Pyramidal is engineered for EMC testing environments, providing superior microwave attenuation and signal integrity. Offered by leading EMC absorber supplier and RF absorber manufacturer, it adapts flexibly to anechoic chambers and RF test boxes.
Optimized for Controlled Electromagnetic Testing Environments
This EMC pyramid absorber foam is purpose-built for engineers and test facility operators requiring reliable electromagnetic wave absorption in EMC testing rooms and RF boxes. Its pyramidal geometry reduces microwave reflections and electromagnetic interference, ensuring precise measurement conditions. The product is favored by professionals managing anechoic chambers and RF shielded enclosures needing adaptable size and height configurations, which improve testing repeatability and compliance with international EMC standards. As a trusted anechoic chamber absorber manufacturer, our offering meets diverse chamber dimensions and design specifications, supporting various testing methodologies.
Advanced Design Specifications for Microwave Attenuation
Constructed from high-quality microwave absorbing foam, this RF absorber panel delivers attenuation levels between 10 to 50 dB depending on selected height and density. Available in standard 600x600 mm panels with custom sizing options, the product spans heights from 10 mm up to 1000 mm, addressing wide frequency bands effectively. The lightweight polyurethane-based foam facilitates easy installation and maintenance inside test environments. Precise reflectivity reduction characteristics validated through controlled testing confirm its status as a dependable RF pyramid absorber. This material’s flexibility optimizes chamber acoustics while maintaining structural integrity, meeting stringent technical demands of EMC and RF design validation.
Integration into RF and EMC Testing Applications
This pyramid absorber panel serves critical roles in electromagnetic compatibility test chambers, RF shielded rooms, and radar test facilities. It supports attenuation of microwave reflections critical for antenna pattern measurements, emission characterization, and reducing interference in wireless systems. Its function is essential in research institutions and manufacturing quality assurance laboratories to ensure compliance with EMC directives. The product also benefits portable RF test enclosures requiring lightweight, modular absorption material. Reliable distribution through our EMC test chamber absorber supplier services guarantees batch consistency for large-scale projects, enhancing product evaluation accuracy and operational efficiency.
Product Advantages
Innovative Structural Design and Modular Adaptability
The foam’s pyramidal architecture is engineered for maximum surface area exposure to incident electromagnetic waves, resulting in enhanced absorption efficiency. Each panel is manufactured with consistent geometric precision to ensure repeatability across installations. Lightweight and flexible panels simplify fitment in varying chamber configurations without compromising structural integrity. The availability of custom sizes and heights from a leading RF absorber manufacturer enables tailored absorption profiles, allowing integration within complex chamber systems or modest-sized RF boxes. This modular design supports rapid deployment and reconfiguration of EMC and RF test setups, catering to evolving testing requirements.
High Performance with User-Centric Usability
Functioning as an effective microwave absorbing foam, this product affords significant reflectivity reduction critical for maintaining signal integrity during tests. Its material properties enable long-term durability in test environments, resisting deformation or degradation under routine handling. End users benefit from panels that balance weight and absorption capacity, easing installation labor and reducing downtime. Moreover, offering commercial scalability as a microwave absorber wholesale item enables cost-effective procurement for large-scale applications. The customizable nature as a custom RF absorber material option promotes optimized ROI while ensuring compliance with EMC regulatory standards.
| TYPE | BASE SIZE | NUMBER OF PYRAMIDAL | WEIGHT | TOTAL HEIGHT | BASE HEIGHT | PYRAMIDAL HEIGHT |
PYRAMIDAL WIDTH |
| HZ-30 | 500*500 | 36*36 | 1.1 | 30 | 15 | 15 | 14 |
| HZ-50 | 500*500 | 20*20 | 1.8 | 50 | 20 | 30 | 25 |
| HZ-70 | 500*500 | 20*20 | 2.5 | 70 | 20 | 50 | 25 |
| HZ-100 | 500*500 | 13*13 | 3.3 | 100 | 25 | 75 | 38 |
| HZ-150 | 500*500 | 9*9 | 4.8 | 150 | 30 | 120 | 56 |
| HZ-200 | 500*500 | 7*7 | 6.3 | 200 | 40 | 160 | 71 |
| HZ-300 | 500*500 | 5*5 | 9 | 300 | 60 | 240 | 100 |
| HZ-400 | 500*500 | 4*4 | 12 | 400 | 70 | 330 | 125 |
| HZ-500 | 500*500 | 3*3 | 15 | 500 | 80 | 420 | 167 |
| HZ-600 | 400*400 | 2*2 | 18 | 600 | 90 | 510 | 200 |
| HZ-700 | 250*500 | 1*2 | 21 | 700 | 100 | 600 | 250 |
| HZ-800 | 250*500 | 1*2 | 24 | 800 | 100 | 700 | 250 |
| HZ-1000 | 334*334 | 1*1 | 30 | 1000 | 150 | 850 | 3 |
| TYPE | HEIGHT | REFLECTIVITY | ||||||||
| 40 | 15 | 10 | 3 | 1.5 | 0.5 | 0.3 | 0.2 | 0.15 | ||
| HZ-100 | 100 | 50 | 45 | 40 | 30 | 20 | ||||
| HZ-150 | 150 | 50 | 50 | 45 | 33 | 25 | ||||
| HZ-200 | 200 | 50 | 50 | 50 | 37 | 30 | 17 | |||
| HZ-300 | 300 | 50 | 50 | 50 | 40 | 33 | 20 | |||
| HZ-400 | 400 | 50 | 50 | 50 | 45 | 40 | 25 | 17 | ||
| HZ-500 | 500 | 50 | 50 | 50 | 45 | 40 | 30 | 20 | 17 | |
| HZ-600 | 600 | 50 | 50 | 50 | 50 | 40 | 30 | 25 | 20 | |
| HZ-700 | 700 | 50 | 50 | 50 | 50 | 43 | 35 | 30 | 20 | 17 |
| HZ-800 | 800 | 50 | 50 | 50 | 50 | 45 | 36 | 30 | 20 | 17 |
| HZ-1000 | 1000 | 50 | 50 | 50 | 50 | 45 | 38 | 35 | 25 | 20 |
RF Foam Absorber Basic Information
· Base size: 500*500mm, customized acceptable
· Standard height: 30,50,100,150,200,300,400,500,700,800,1000mm
RF Foam Absorber Features
· The traditional material for anechoic chambers
· Outstanding absorbing over a wide frequency range
· Flexible
About US
Use Scenarios

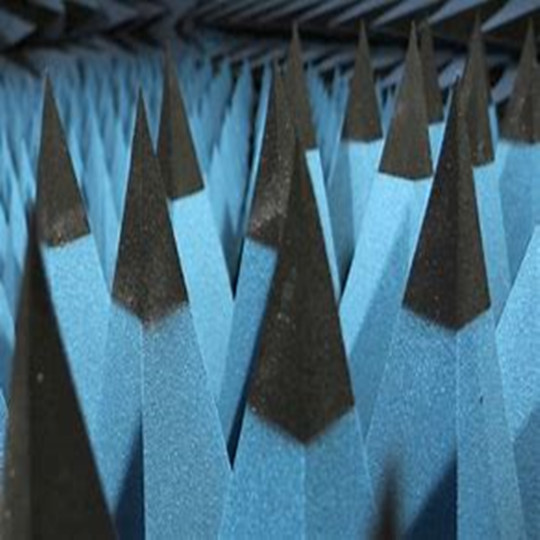

EMC Anechoic Chamber Lining for Precise Test Control
In high-performance EMC laboratories, lining chamber walls with this anechoic chamber absorber minimizes internal microwave reflections to achieve a uniform electromagnetic environment. This setup is essential for repeatable and accurate EMC compliance testing of electronic equipment and components. The product's modular panel sizes and selectable pyramidal heights provide engineers with adaptable solutions customized to chamber dimensions and frequency targets. Integration into existing shielding infrastructure supports compliance with international testing protocols and improves measurement uncertainty by preventing stray signal interference during evaluation procedures.
RF Shielding Solutions in Telecommunication and Radar Systems
Within telecommunications test centers and radar system development labs, this RF absorbing foam supplier product plays a crucial role in suppressing unwanted microwave reflections and environmental noise within shielded enclosures. Its rapid installation aids in creating stable RF environments critical for antenna characterization and emission testing. By effectively absorbing microwave energy across a broad spectrum, the material enhances test accuracy and equipment performance validation. Integration into portable or fixed RF boxes ensures consistent measurement conditions essential for developing communication devices compliant with EMC rules and military standards.
Can I order the Electrical Microwave RF Absorber Foam Pyramidal in custom sizes and heights?
Yes, we offer the EMC pyramid absorber in standard 600x600 mm panels and can customize sizes and heights from 10 mm up to 1000 mm to meet your specific test chamber or RF box requirements.
What materials are used to manufacture your microwave absorbing foam?
Our RF absorber foam is made from flexible, lightweight polyurethane-based materials engineered for effective microwave energy attenuation. This material composition helps provide consistent performance in EMC testing environments.
How should I install the pyramidal foam in my EMC test chamber or RF enclosure?
We recommend securely mounting the lightweight RF pyramid absorber panels on chamber walls or enclosure interiors. Their flexible form allows easy installation and adaptation, optimizing microwave absorption and reducing interference during testing.
What is the usual lead time and minimum order quantity for your EMC absorber products?
We maintain a strong supply capacity of up to 1,000,000 square meters weekly with a minimum order quantity of 1 square meter. This enables us to provide short lead times and meet high-volume microwave absorber wholesale demands efficiently.
