Engineered for Precision: EMC Chamber Ferrite Tile for RF Control
The HAOZHUO H-100 Ferrite Tile Absorber is a professional-grade electromagnetic interference solution engineered specifically for RF shielding in EMC test chambers. This product plays a pivotal role in attenuating reflected electromagnetic waves across a broad frequency range from 30 MHz to 1 GHz, making it an essential component in designing low-reflection and fully compliant test environments for EMI/EMC evaluation. With base dimensions of 100mm × 100mm and height options of 5.2mm and 6.7mm, this tile is precision-manufactured to support seamless modular assembly with minimal RF leakage.
High-Efficiency Absorption Performance for Critical Applications
Developed by leading industrial filter manufacturers, the HAOZHUO H-100 tile is capable of absorbing RF signals with attenuation levels ranging between 10 dB and 38 dB, depending on frequency. It is specially designed using high-density ferrite material with an initial magnetic permeability of 5500, allowing optimal low-frequency absorption. Additionally, it ensures broadband performance for both AC and DC electromagnetic signals, addressing the evolving needs of ac emi filter applications in complex RF testing environments.
Compliant, Durable, and Easy to Install
Our tiles are built under strict compliance with CE and RoHS certifications, ensuring global compatibility and eco-friendly construction. With surface-mount package style, it is easy to install and integrates well with ac power line filter systems and RF shielding components. The consistent structure and stable resistivity rating of 100 ohm-m make it an ideal solution for custom ac filters and EMC-certified enclosure construction, reducing installation errors and long-term operational failures.
Product Advantages
Broadband Attenuation Capability:The H-100 ferrite tile offers high-efficiency absorption of RF energy across 30 MHz to 1 GHz, ensuring full-spectrum suppression for electromagnetic interference. Absorption levels reach up to 38 dB at 100 MHz, outperforming many conventional ac filters in laboratory-grade testing.
Material Stability Under Environmental Stress:The tile's ferrite composition is thermally resilient, with a Curie temperature of 90°C and low relative temperature factor (≤3). This ensures operational stability during high-load testing in industrial filter manufacturing conditions.
Precision Machining with Tight Tolerances:Manufactured to exact 100 mm × 100 mm dimensions with bore diameters of 10 mm, the tile fits seamlessly in most standard test chambers. The choice of two tile heights (5.2 mm and 6.7 mm) enhances design flexibility for both full-size and modular RF chambers.
Zero Reflectivity via Free Space Impedance Matching:The tile's magnetic and dielectric properties are engineered to match free space impedance, ensuring minimal signal reflection. This makes it highly suitable for advanced ac emi filter systems and high-precision custom ac filter architectures.
Efficient and Scalable Deployment:Designed for high-volume manufacturing and supply (1000 pieces/week), the H-100 supports cost-effective scaling of EMC chamber construction without compromising performance. Each tile is shipped in durable wooden packaging to prevent transit damage.
Versatile Integration for OEMs:Fully compatible with hybrid absorbing systems and RF control panels, the tile is ideal for OEM partners in ac power line filter development and custom EMC infrastructure, offering dependable long-term RF shielding performance.

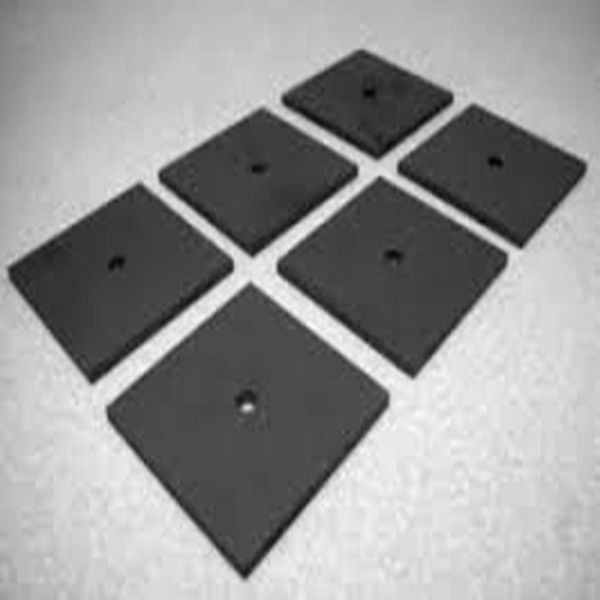

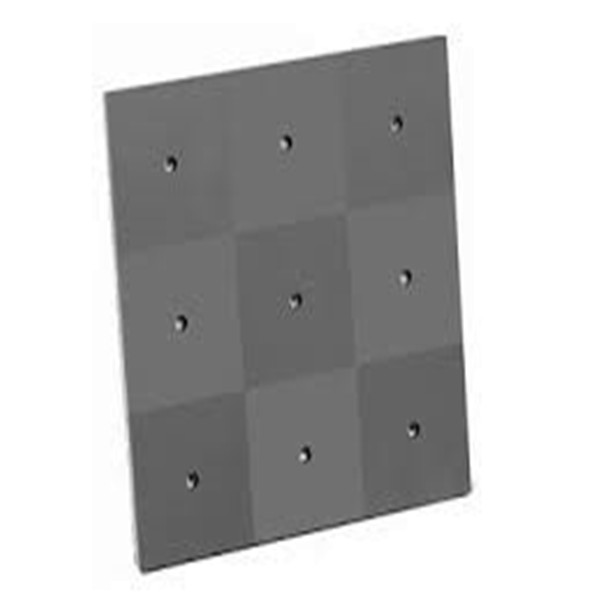

6.7mm 5.2mm height ferrite tile for EMC chamber

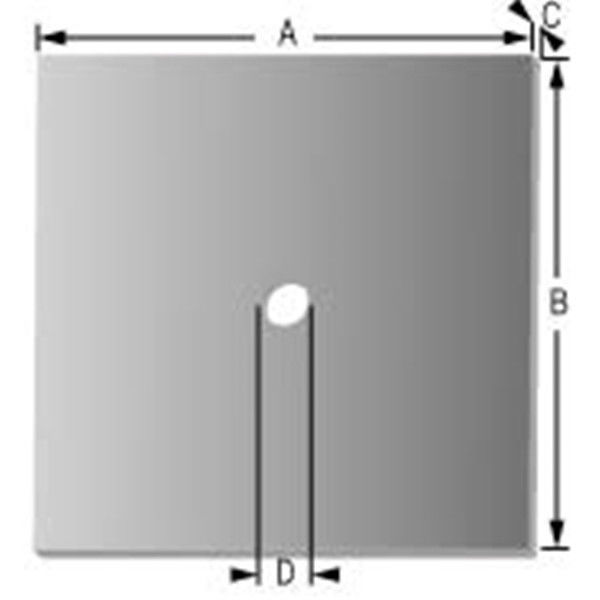

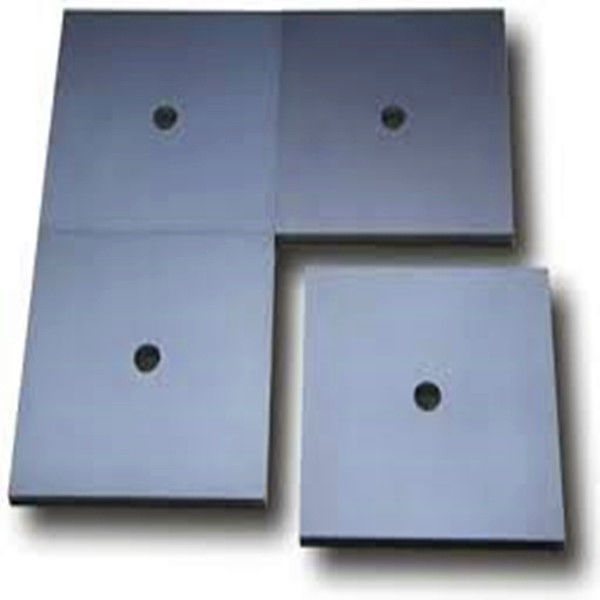

Ferrite Tile Size
· Base size: 100*100mm
· Standard height: 5.2mm, 6.7mm
· Diameter of bore: 10mm
| Initial permeability | 5500 |
| Relative loss factor | 15@0.1MHz |
| Saturation flux density | 280(1194A/m) |
| Remanence | 180 |
| coercivity | 3 |
| Relative temp.factor | 3 |
| Curie temp. | 90 |
| Density | 4.85*1000 |
| Resistivity | 100 |
| 30MHz | -25.5dB |
| 100MHz | -38dB |
| 300MHz | -19.5dB |
| 500MHz | -16dB |
| 700MHz | -12dB |
| 1000MHz | -10dB |

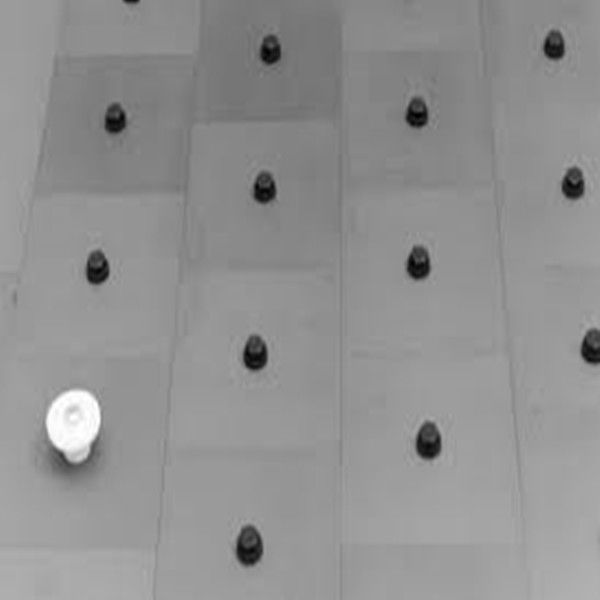

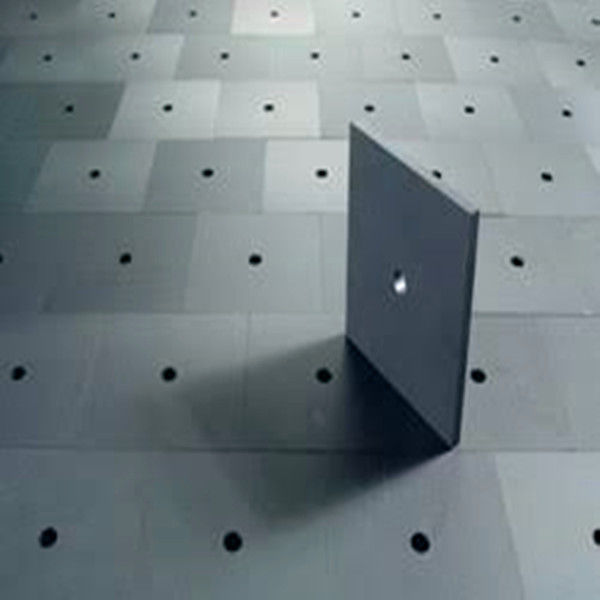

Ferrite Tile Application
· Used for EMC chamber
Based on the principle of having complex magnetic permeability equal (or nearly equal) to complex dielectric constant. Materials with this property exhibit an impedance equal to that of "free space" and therefore do not reflect radiated energy at normal incidence. Ferrite Tile can provide 10dB - 25dB of absorption between 30MHz and 1GHz. Tiles are thin (approximately 0.26 inches), but can be heavy (roughly 10 lbs per square foot).

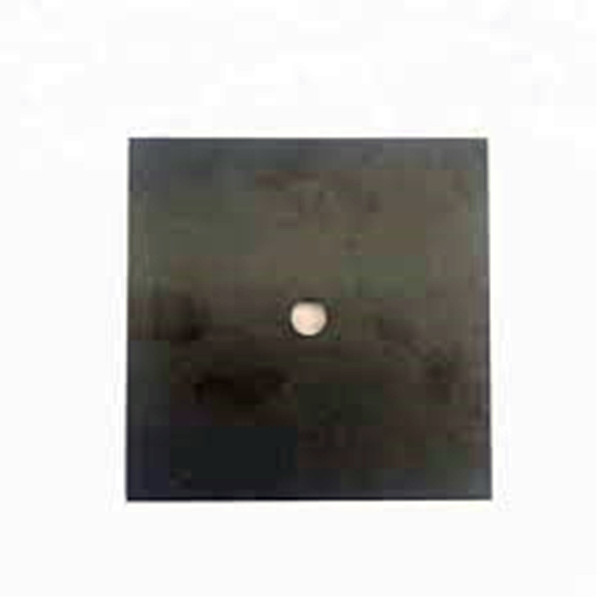

Size for EMC chamber ferrite tile
· Base size: 100*100mm
· Standard height: 5.5mm, 6.7mm
· Diameter of bore: 10mm
Application for EMC chamber ferrite tile Used for EMC chamber
