Functional Role in EMC Chamber Environments
These ferrite tile absorbers are specifically engineered for use in electromagnetic compatibility (EMC) chambers, targeting engineers and testing facilities requiring precise ac emi filter solutions. Their design addresses the need for minimal dimensional tolerances and secure alignment, essential for reducing electromagnetic interference during compliance testing. By integrating into chamber walls, these custom ac filters provide stable, reliable RF absorption to ensure consistent environmental control. The tiles enable accurate characterization of electromagnetic emissions and susceptibility, meeting the demands of rigorous EMC protocols and improving overall test system reliability.
Technical Specifications and Absorption Efficiency
Manufactured with a base size of 100 mm × 100 mm and thickness options of 5.2 mm or 6.7 mm, these ferrite tiles display an initial permeability of 5500 and a relative loss factor of 15 at 0.1 MHz, supporting efficient absorption across a broad frequency range from 30 MHz to 1 GHz. Reflectivity levels can reach as low as -38 dB at 100 MHz, demonstrating their strong electromagnetic wave attenuation capabilities. The bore of 10 mm facilitates straightforward, stable installation. The absorber design incorporates impedance matching with polyurethane and polypropylene hybrid materials, optimizing performance to function effectively as an ac power line filter element within EMC assessment systems.
Applications in Compliance and Industrial Testing

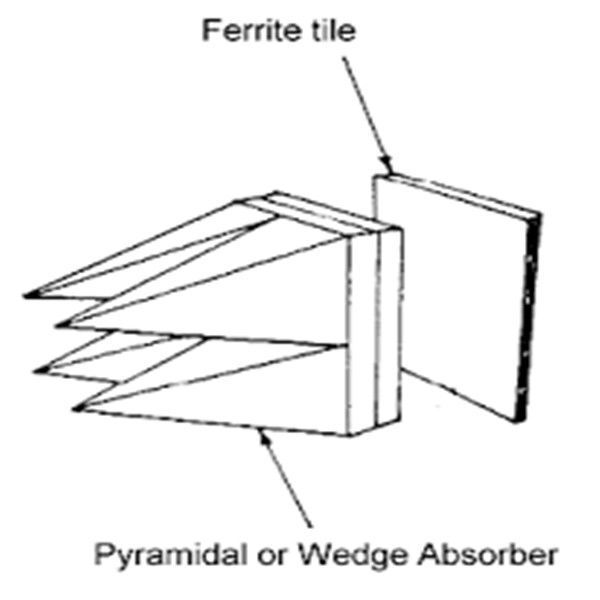

Widely applicable across industrial filter manufacturers and EMC testing organizations, these ferrite tiles contribute significantly to compliance verification consistent with standards such as ANSI C63.4, CISPR 16-1-4, and IEC 61000-4-3. Their robustness and high density enable efficient reduction of RF interference within EMC chambers, thus ensuring accurate normalized site attenuation measurements. This material serves as a reliable upgrade or replacement absorber in established test facilities, enhancing the performance of ac filter systems and supporting equipment susceptibility validation. The solution facilitates integration into hybrid absorber configurations, optimizing electromagnetic interference mitigation within demanding industrial environments.
Product Advantages
Structural and Integration Benefits
The structural design of these ferrite tile absorbers emphasizes precision machining and dimensional consistency, minimizing tile gaps to reduce reflection and electromagnetic leakage. Their standardized 100×100 mm base with a 10 mm bore diameter ensures modular assembly compatibility and simplified mounting within EMC chambers. The impedance matching with hybrid materials expands their integration potential with existing custom ac filters systems. This design affords not only robust mechanical stability but also seamless incorporation into complex test chamber lining systems, a crucial aspect for industrial filter manufacturers focusing on reliable, repeatable EMC testing environments.
Enhanced Performance and Operational Value
Performance-wise, these ferrite tiles deliver a combination of high absorption rates and low reflectivity that supports efficient electromagnetic interference suppression. Their dense composition, though thin, offers substantial weight to maintain effective RF wave attenuation, improving the measurement precision of ac emi filter test setups. Installation ease, supported by the bore design, facilitates quick maintenance or replacement, minimizing downtime for testing facilities. Ultimately, this product provides return on investment through enhanced testing accuracy, compliance assurance, and reduced interference, key factors valued by engineers prioritizing reliability and efficiency in EMC processes.
6.7mm 5.5mm height EMC chamber ferrite tile for testing
Ferrite tiles are precision machined to have almost zero dimensional tolerance which helps in proper alignment of tiles, reduce gap between tiles resulting better performance and Normalized site attenuation of EMC chambers per ANSI C63.4 and applications per CISPR 16-1-4 and IEC 61000-4-3

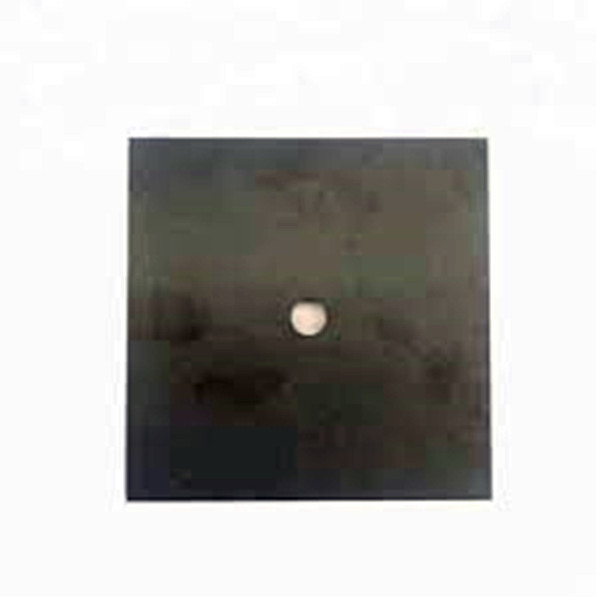

Ferrite Tile Size
· Base size: 100*100mm
· Standard height: 5.2mm, 6.7mm
· Diameter of bore: 10mm
| Initial permeability | 5500 |
| Relative loss factor | 15@0.1MHz |
| Saturation flux density | 280(1194A/m) |
| Remanence | 180 |
| coercivity | 3 |
| Relative temp.factor | 3 |
| Curie temp. | 90 |
| Density | 4.85*1000 |
| Resistivity | 100 |
| 30MHz | -25.5dB |
| 100MHz | -38dB |
| 300MHz | -19.5dB |
| 500MHz | -16dB |
| 700MHz | -12dB |
| 1000MHz | -10dB |
Ferrite Tile Application

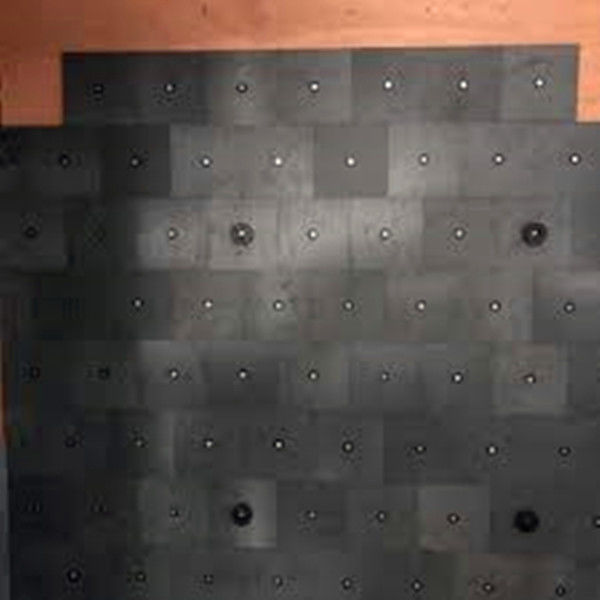

· Used for EMC chamber
Based on the principle of having complex magnetic permeability equal (or nearly equal) to complex dielectric constant. Materials with this property exhibit an impedance equal to that of "free space" and therefore do not reflect radiated energy at normal incidence. Ferrite Tile can provide 10dB - 25dB of absorption between 30MHz and 1GHz. Tiles are thin (approximately 0.26 inches), but can be heavy (roughly 10 lbs per square foot).

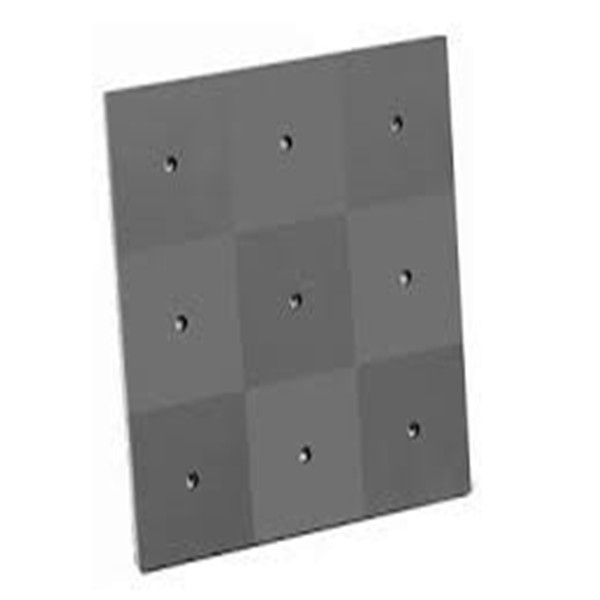

Size for EMC chamber ferrite tile
· Base size: 100*100mm
· Standard height: 5.5mm, 6.7mm
· Diameter of bore: 10mm
Application for EMC chamber ferrite tile Used for EMC chamber
