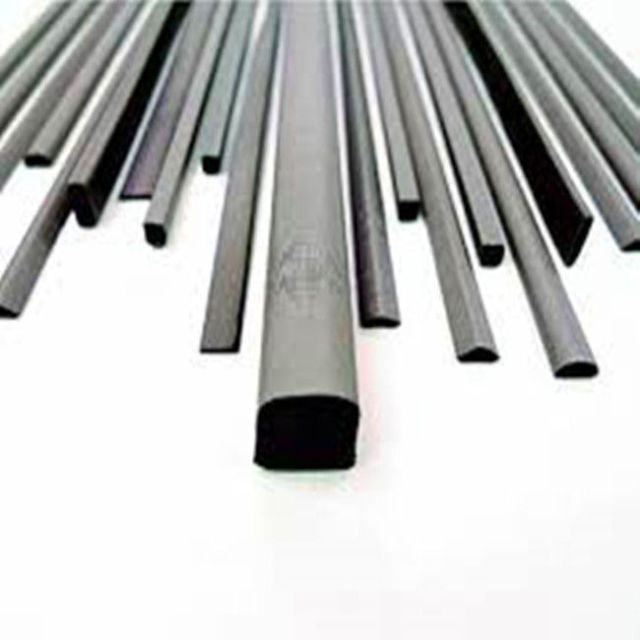

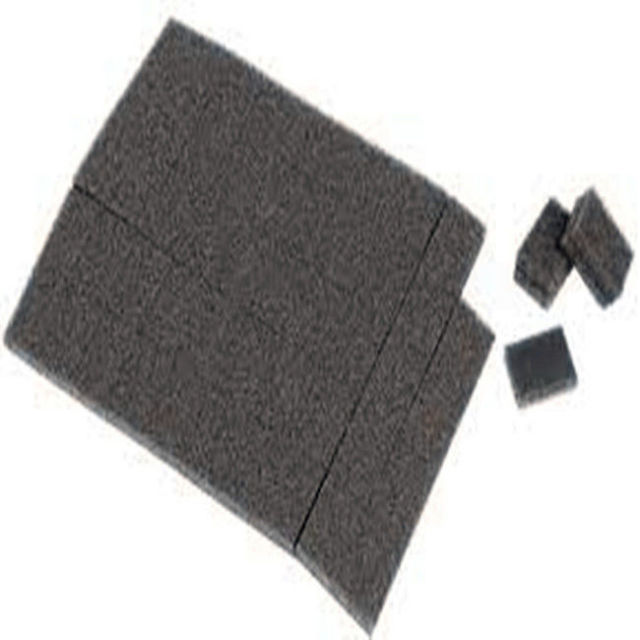

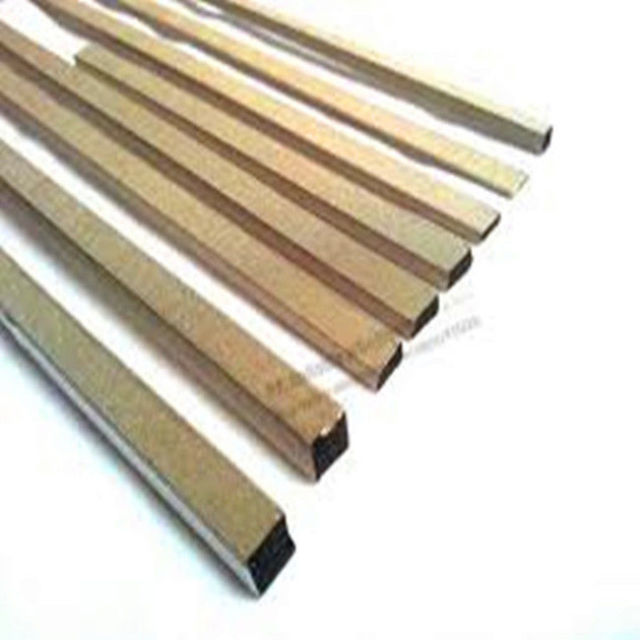

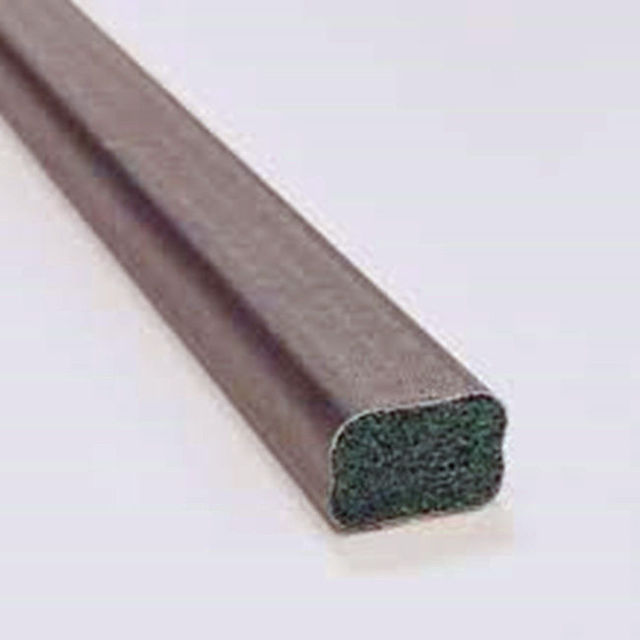

EMI Shielding Foam Gasket For RF Room
Foam gasket with conductive adhesive tape
The main purpose of effective EMC Shielding is to prevent electromagnetic interference (EMI) or radio frequency interference (RFI) from impacting sensitive electronics. This is achieved by using a metallic screen to absorb the electromagnetic interference that is being transmitted through the air. The shield effect is based on a principle used in a Faraday cage – the metallic screen completely surrounds either the sensitive electronics or the transmitting electronics. The screen absorbs the transmitted signals, and causes a current within the body of the screen. This current is absorbed by a ground connection, or a virtual ground plane.
Product features for foam gasket with conductive adhesive tape
1. Compact conductive fibers, no sharp edges
2. Good elasticity and consistency
3. Conductive adhesive
4. Low surface contact resistance
5. Shielding performance will not reduce after 10,000 times friction
6. Thin section suitable for I/O and D- subminiature lining
7. Could be used to ground connection
Specification for foam gasket with conductive adhesive tape
| Name | foam gasket with conductive tape |
| Shielding effectiveness | 60-80dB/30MHz-1GHz |
| Surface resistance | <0.07ohms/sq inch |
| Permanent deformation | < 10% |
| Temperature range | -10~110°c |
| Flammability | UL 94(HF-1) |
| Compression | 30-50% |
Application for foam gasket with conductive adhesive tape Widely used in electronic box,case,interior chassis, industrial equipment, notebook PC, mobile communication devices,medical equipment, RF door and MRI door etc.

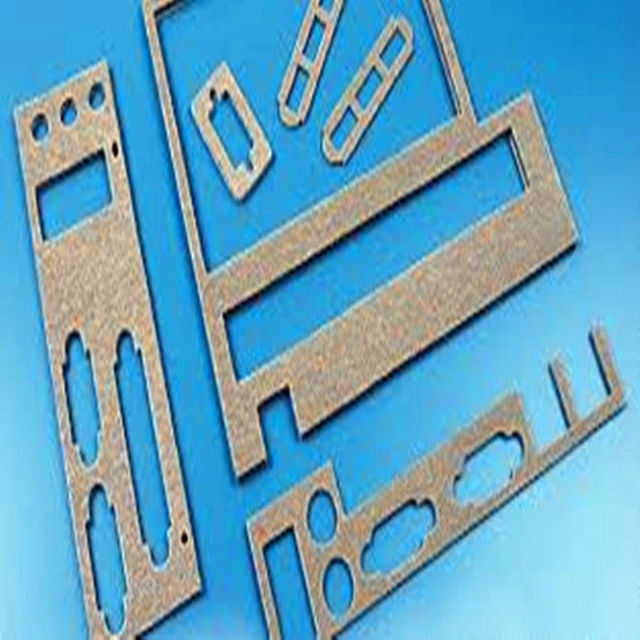

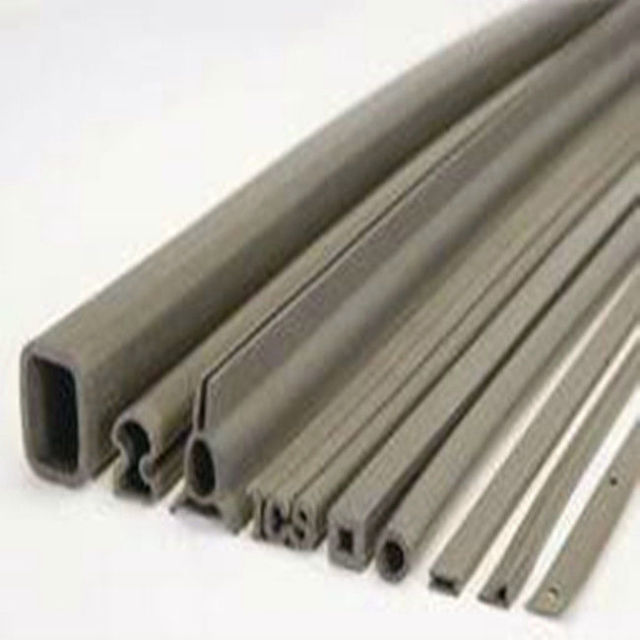

Type for foam gasket with conductive adhesive tape
Other information for conductive foam gasket with adhesive
| Foam gasket | |
| MOQ | 50M |
| Delivery time | 5-7days |
| Payment Terms | T/T, Paypal, Western Union |
| Longest dimension cut | 1.22m/pcs |
| Place of region | China |
