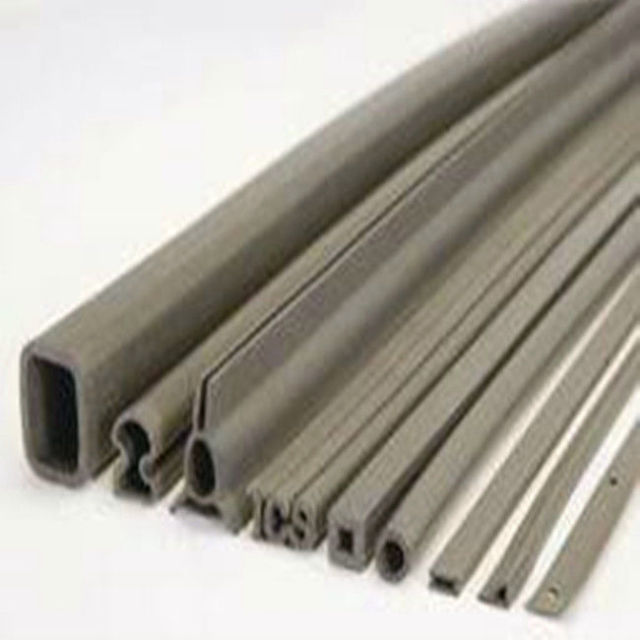

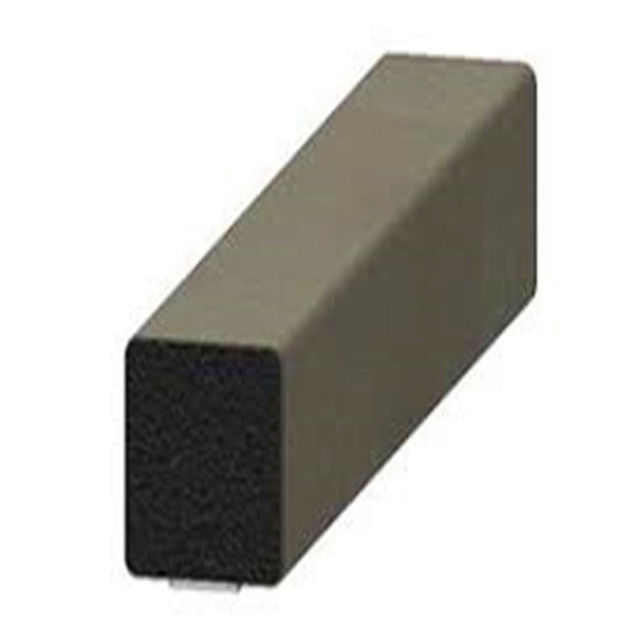

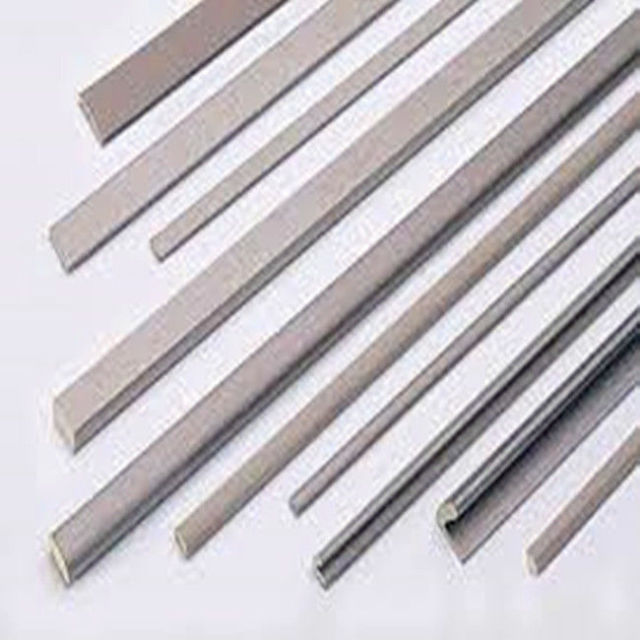

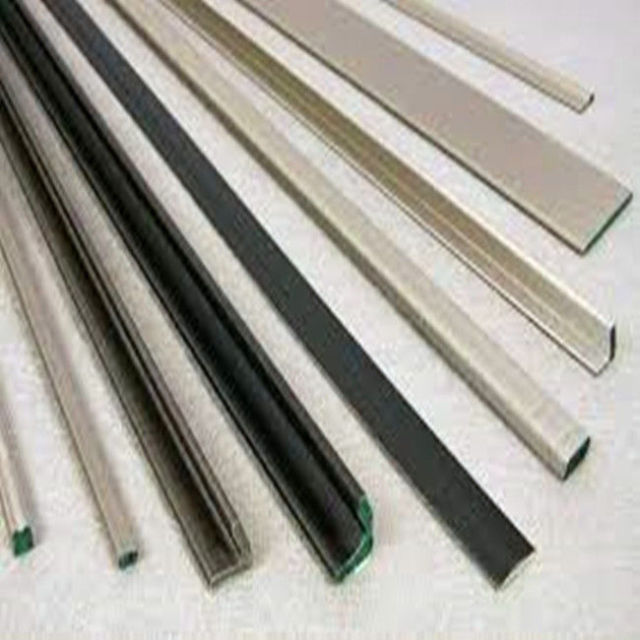

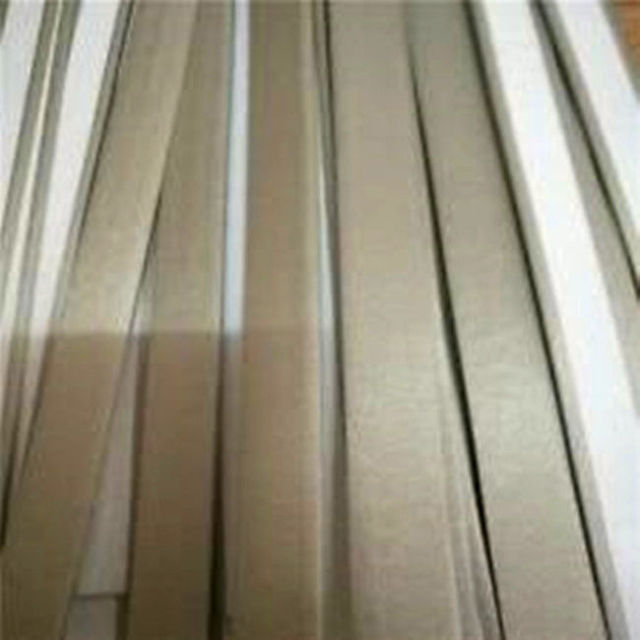

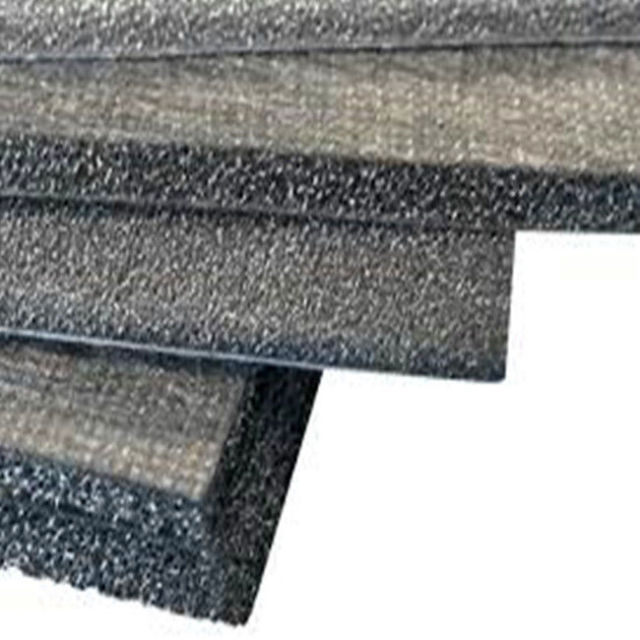

Foam gasket with conductive adhesive tape
Product features for foam gasket with conductive adhesive tape
1. Compact conductive fibers, no sharp edges
2. Good elasticity and consistency
3. Conductive adhesive
4. Low surface contact resistance
5. Shielding performance will not reduce after 10,000 times friction
6. Thin section suitable for I/O and D- subminiature lining
7. Could be used to ground connection
Specification for foam gasket with conductive adhesive tape
| Name | foam gasket with conductive tape |
| Shielding effectiveness | 60-80dB/30MHz-1GHz |
| Surface resistance | <0.07ohms/sq inch |
| Permanent deformation | < 10% |
| Temperature range | -10~110°c |
| Flammability | UL 94(HF-1) |
| Compression | 30-50% |
Application for foam gasket with conductive adhesive tape Widely used in electronic box,case,interior chassis, industrial equipment, notebook PC, mobile communication devices,medical equipment, RF door and MRI door etc.
Type for foam gasket with conductive adhesive tape
Other information for conductive foam gasket with adhesive
| Foam gasket | |
| MOQ | 50M |
| Delivery time | 5-7days |
| Payment Terms | T/T, Paypal, Western Union |
| Longest dimension cut | 1.22m/pcs |
| Place of region | China |
Before-sale:
1.All inquires will be replied with 8 hours. 7D/24H service,Please feel free to contact us with Email/TM/Skype.
2.Strong technical team and Professional sales.
3.Customized packaging is acceptable.
4.Welcom customers from all the world to visit our factory.
After-sale:
1.All emi filter will be tested and adjusted before shipping.
2.After receiving the products,Any question we will try our best to solve.
