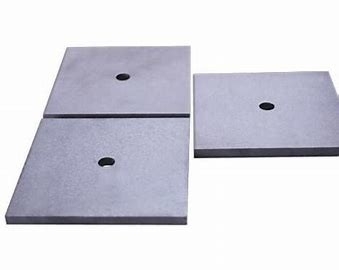

Functional Role in Electromagnetic Shielding Solutions
This ferrite tile absorber, sized 100x100 mm, is engineered specifically for integration within EMC test chambers and RF shielded enclosures, catering primarily to engineers and designers requiring consistent attenuation of electromagnetic interference. By leveraging advanced materials popular among emi filter manufacturers and industrial filter manufacturers, the product is suitable for applications demanding precise impedance matching and noise suppression. Its compact dimension and bore feature facilitate seamless incorporation into modular shielding systems, providing a targeted solution for RF attenuation up to 1 GHz across industrial and laboratory environments.
Advanced Technical Specifications and Material Properties
Utilizing ferrite material with an initial permeability of 5500 and a relative loss factor of 15 at 0.1 MHz, the absorber achieves a controlled absorption range from 10 dB to 25 dB between 30 MHz and 1 GHz. The tile’s 99.95 by 99.95 mm base with selectable heights of 5.2 or 6.7 mm and a 10 mm bore diameter allows for standardized mounting and consistent electromagnetic performance. With a density of 4.85 x 1000 and a robust design weighing approximately 330 grams per tile, it supports efficient packing density and thermal stability. Such technical parameters meet the stringent criteria preferred by power line filter manufacturers and emi filter manufacturer specialists in EMI control and RF noise mitigation.
Industry Applications and Integration in EMC Testing Environments
Commonly deployed within electromagnetic compatibility chambers and specialized RF shielding rooms, this ferrite tile provides demonstrated benefits for validating compliance in EMC testing, reducing reflected RF energy, and improving measurement accuracy. Its application extends to prototype shielded enclosures and retrofit projects in manufacturing facilities, where it complements core components supplied by rf shield box manufacturers and power line filters providers. The product’s compatibility with comprehensive EMI solutions ensures correlations with other suppression devices such as emi power line filter assemblies, optimizing overall facility performance and supporting regulatory compliance for industrial and scientific frequency-dependent interference control.
Product Advantages
Structural and System Design Strengths
This ferrite tile features precise dimensional tolerances of ±0.10 mm for base and height, enabling reliable modular installation within configurable shielding layouts. The 10 mm bore diameter is purposefully standardized for fastening mechanisms, enhancing integration with existing EMI control assemblies frequently offered by rfi line filter suppliers and single phase emi filter manufacturers. Its dense yet thin structural form balances manageable weight and volume efficiency, facilitating dense tile arrangement without compromising magnetic permeability or absorber performance. These design aspects reflect a high level of engineering diligence characteristic of leading emi filter company products aimed at precise electromagnetic compatibility system assembly.
Enhanced Performance and End-User Value
From a performance standpoint, the tile ensures consistent RF absorption in critical frequency bands relevant to industrial communication and control devices, contributing to reduced interference levels in complex power and signal environments. Its durable ferrite composition maintains effectiveness over operational temperature ranges and electromagnetic stress, providing lasting value within multi-phase power system applications aligned with 3 phase emi filter manufacturer standards. Ease of application supports fast implementation during chamber configuration or field retrofitting projects, offering engineers dependable EMI attenuation with minimal maintenance, thus improving overall testing reliability and system uptime for clients sourcing from power line filter manufacturers.
Use Scenarios
Integration in EMC Chamber Testing and Calibration Facilities
Within controlled EMC testing environments, especially in facilities specializing in electromagnetic immunity validation, this ferrite tile absorber functions as a crucial attenuation element embedded in chamber walls or stands. Its defined absorption characteristics allow precision tuning of test setups tailored by emi filter manufacturers and power line noise filter providers to meet stringent emission limits. By reducing reflected signals between 30 MHz and 1 GHz, the tile enhances measurement accuracy and repeatability, enabling engineers to evaluate device compliance comprehensively. The product’s compatibility with linear power feedthrough filters and shielded enclosures supports smooth integration into broad electromagnetic interference control workflows.
Application in Shielded Enclosure Panel Construction and Retrofit
In manufacturing or laboratory settings where shielded enclosures must be assembled or upgraded for improved RF containment, this ferrite tile presents a practical solution for augmenting barrier absorption without significant alteration to enclosure size or weight. Its modular 100x100 mm format and uniform absorption profile help engineers and maintenance teams sourced through emi filter company channels to strategically position tiles within panels, optimizing field attenuation against radiated emissions originating from power systems or industrial equipment. The absorber’s uniformity and mechanical stability facilitate efficient integration with existing shielding elements such as rf shield box manufacturers provide, reinforcing regulatory compliance and operational efficiency within sensitive electronic environments.

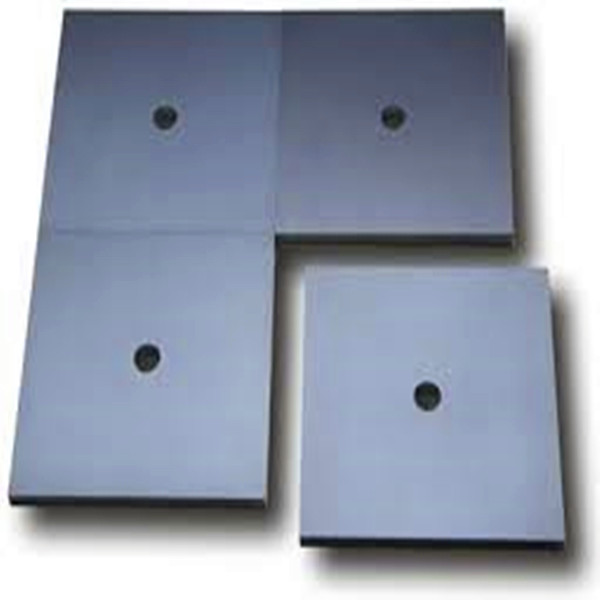

Ferrite Tile Size

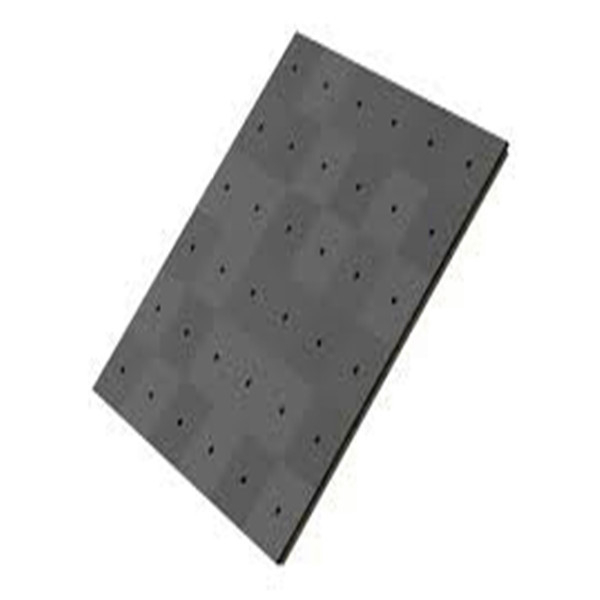

Ferrite Tile Application
Based on the principle of having complex magnetic permeability equal (or nearly equal) to complex dielectric constant. Materials with this property exhibit an impedance equal to that of "free space" and therefore do not reflect radiated energy at normal incidence.
Ferrite Tile can provide 10dB - 25dB of absorption between 30MHz and 1GHz. Tiles are thin (approximately 0.26 inches), but can be heavy (roughly 10 lbs per square foot).

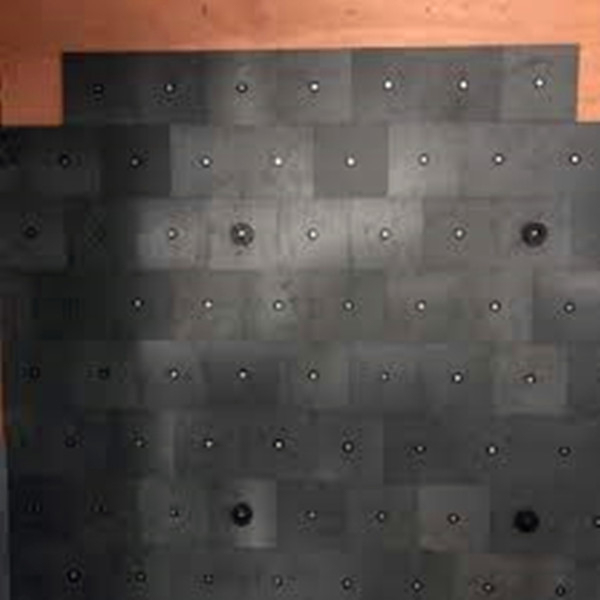

Size for EMC chamber ferrite tile

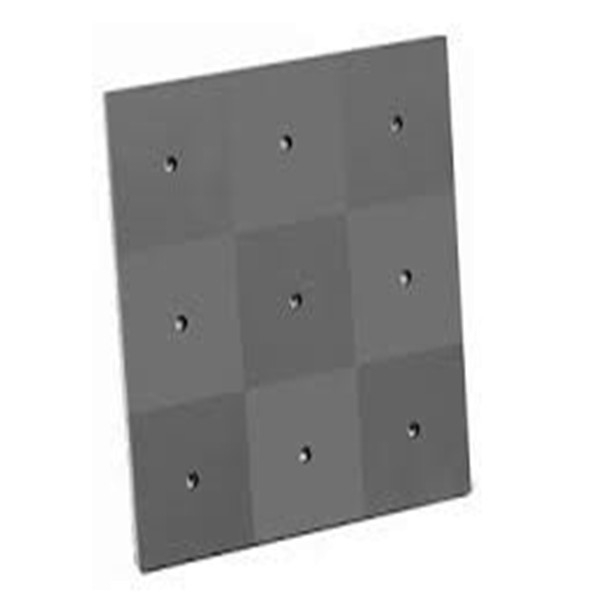

Application for EMC chamber ferrite tile
Used for EMC chamber
| Initial permeability | 5500 |
| Relative loss factor | 15@0.1MHz |
| Saturation flux density | 280(1194A/m) |
| Remanence | 180 |
| coercivity | 3 |
| Relative temp.factor | 3 |
| Curie temp. | 90 |
| Density | 4.85*1000 |
| Resistivity | 100 |

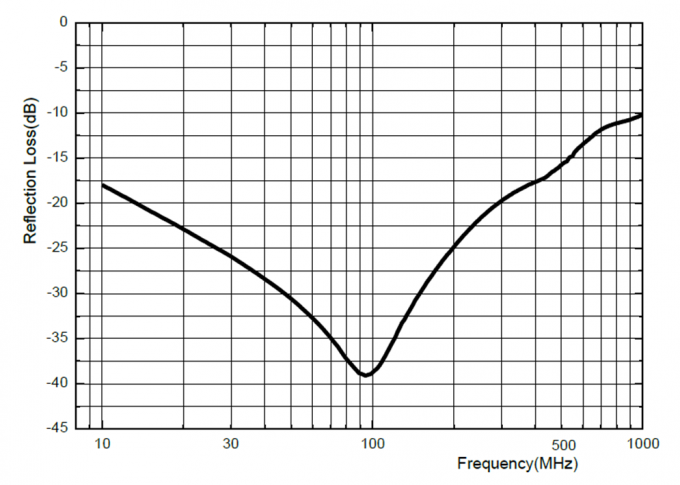

Performance
| 30MHz | -25.5dB |
| 100MHz | -38dB |
| 300MHz | -19.5dB |
| 500MHz | -16dB |
| 700MHz | -12dB |
| 1000MHz | -10dB |

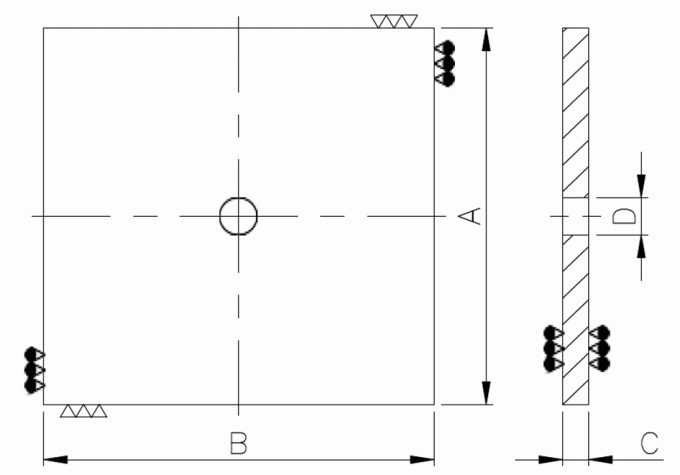

| Part | Dimentions in mm |
| A | 99.95 +/-0.10 |
| B | 99.95 +/-0.10 |
| C | 6.70 +/-0.10 |
| D | 10.00 +/-0.20 |
| Weight |
330g
|
