Optimized EMI Mitigation for Medical Equipment Protection
This dual-stage 250VAC, 16A rated rf filter caters to engineers and procurement professionals targeting EMI suppression in MRI RF cages. Designed to secure sensitive MRI systems from electromagnetic disturbances, it ensures clean power delivery that supports operational reliability and imaging accuracy. The device is strategically positioned to augment existing shielding infrastructures, offering a specialized solution for reducing interference on critical power lines within clinical MRI rooms. Its design enables seamless integration by rf filters suppliers focused on healthcare compliance demands.
Advanced Technical Compliance and Measurement Specifications
The filter delivers an insertion loss of at least 100 dB spanning frequencies from 14 kHz to 40 GHz, ensuring exceptional suppression of conducted EMI. It maintains leakage currents below 0.2 A under 380/230 VAC conditions at 50 Hz, coupled with robust dielectric withstand voltage rated at 1000 VDC (line to line and line to case). The low voltage drop under 1V optimizes power efficiency while preserving system stability. Its adherence to MIL-STD-202 test standards for insulation resistance and terminal strength confirms reliability under industrial and medical operating conditions. These technical features position it as a high-precision component among professional rf filters.
Integration in Medical Imaging and Shielded Environment Applications
Widely deployed in MRI room environments, this rf filter supports electromagnetic compatibility by filtering power line noise that could degrade imaging quality. It facilitates maintenance of EMI performance during MRI suite construction, refurbishment, or equipment upgrades. The product’s compatibility with RF shielding cages and power conduits enhances the comprehensive electromagnetic attenuation strategy required for hospital MRI facilities. As a key component sourced from established rf filters manufacturers, it contributes to regulatory compliance, system uptime, and patient safety in clinical diagnostics.

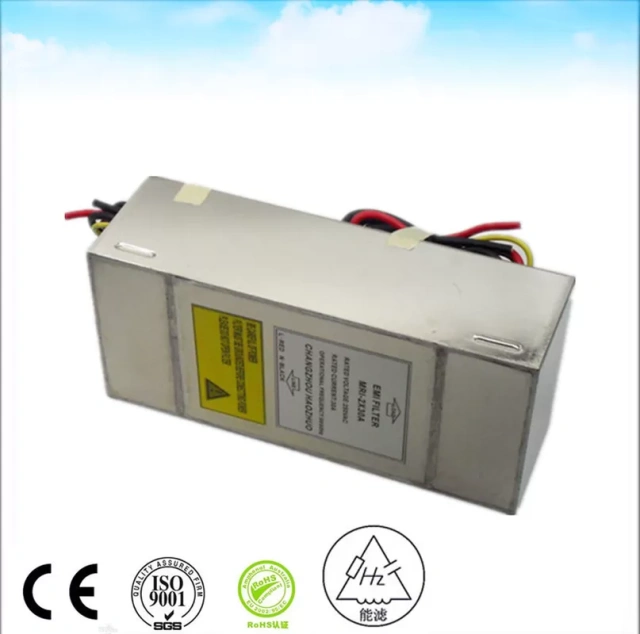

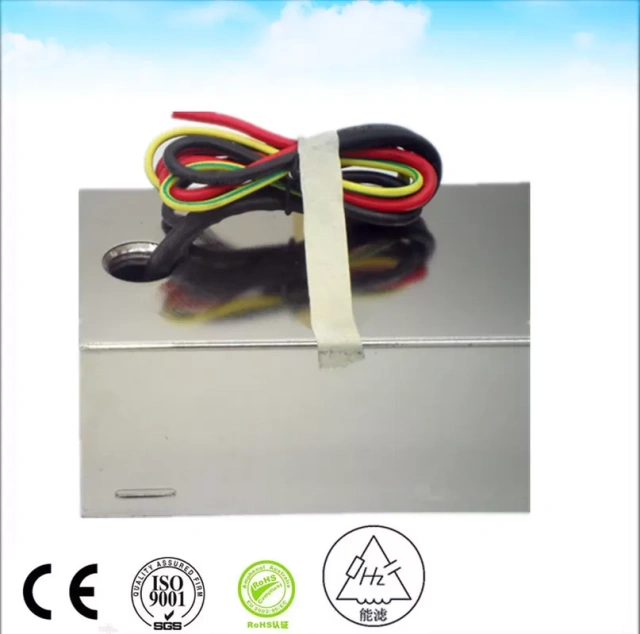

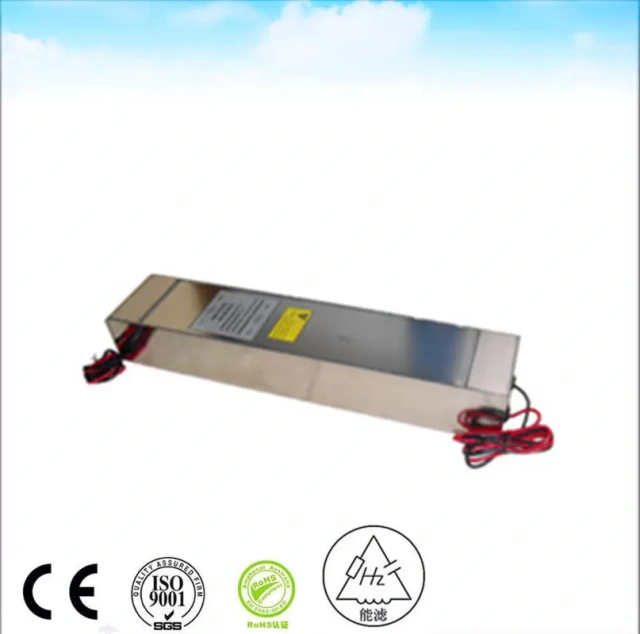

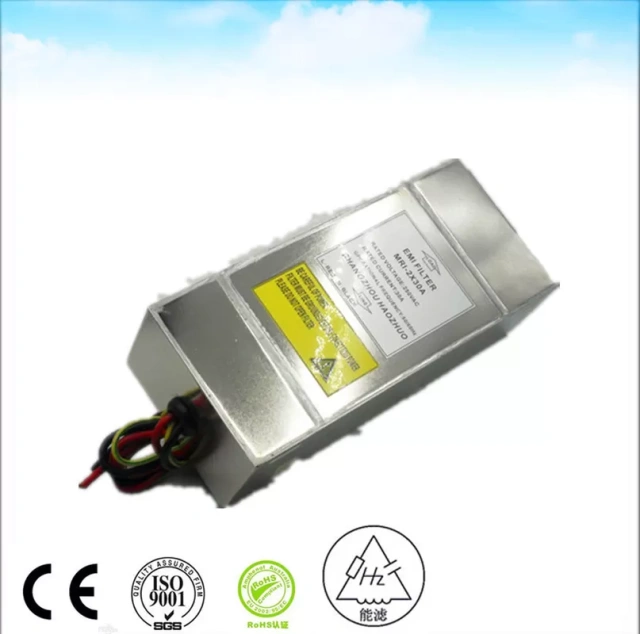

Protect your MRI equipment with the high-performance 250VAC 16A MRI RF Filter by Haozhuo. Engineered to minimize electromagnetic interference, this filter ensures the reliable operation of your MRI RF cages.
Designed to meet stringent industry standards, our EMI filter offers exceptional noise suppression for MRI environments, ensuring both safety and performance.
Ideal for RF shielding rooms and MRI RF cages, Haozhuo's filter provides superior EMI protection, enhancing the lifespan and reliability of your sensitive medical equipment.
 |
 |
| RATED VOLTAGE | 250 VAC | ||
| RATED CURRENT | 30 A | ||
| OPERATIONAL FREQUENCY | 50 60 Hz | ||
| Voltage Drop | Less than 1V | ||
| Overload | 140% of rated current for 15 minutes | ||
| Harmonic Distortion | Less than 2% @ full rated current | ||
| Leakage Current | ≤0.2A@380/230VAC and 50Hz | ||
| Dielectric Withstanding Voltage | 1000VDC (line to line) 1000VDC (line to case) | ||
| DC Insulation Resistance | As Per MIL-STD-202 Method 202 | ||
| Terminal Strength | As Per MIL-STD-202 Method 211 | ||
| Temperature Rise | As Per MIL-F-15733 | ||
| Insertion Loss | ≥100dB@14K-40GHz As Per MIL-STD-220A, Under Load Condition | ||
| Climatic Classification | 25/070/21 | ||
Our technical service team learn many kinds of test standard such as industrial application (IEC61800-3 for frequency inverter drive EN12015 for elevator EN55011 for ISM device etc) and military application (GJB151A GJB152A etc).We can solve EMI problem quickly effectively and low-costly.
Our test equipment: LCR digital bridge/voltage proof tester/insulation resistance tester/spectrum analyzer/inductor tester/standard signal source/shield room/interference intensity tester etc
Our product: EMI filter for general purpose/EMI filter for frequency inverter/EMI filter for shielding facility/EMI filter for military application
Product Advantages
Design Expertise Enabling Modular EMI Control Solutions
The structure incorporates dual-stage filtering to maximize EMI attenuation, with a configuration tailored for insertion into MRI RF cage power lines. Its compact footprint and industry-standard ratings facilitate easy system-level integration by rf filters suppliers. By adhering to recognized climatic and military test protocols, the design ensures resilience against environmental stress while maintaining performance consistency. The modularity aids rapid installation and retrofit without compromising existing shielding architectures, reflecting advanced engineering principles favored by professional rf filters manufacturers.
Reliable Performance Ensuring Operational Stability and Compliance
Operational benefits include minimal power loss due to low voltage drop, helping MRI equipment maintain stable electrical input conditions crucial for accurate imaging. The filter’s minimization of leakage current and harmonic distortion safeguards sensitive medical electronics and upholds electromagnetic compatibility standards. By simplifying compliance with EMI regulatory requirements, this rf filter reduces risk during equipment commissioning and ongoing operations. Additionally, its robust dielectric isolation prolongs component lifecycle, offering high value through reduced maintenance and downtime.
Narrowband emissions are usually man-made and limited to a tiny area of the radio spectrum. The hum that power lines make are a good example of a narrowband emission. They may be continuous or sporadic.
Broadband emissions can be either mad-made or natural in origin. They tend to effect a large area of the electromagnetic spectrum. They can be one time events that are random, sporadic, or continuous. Everything from a lightning strike to computers generate broadband emissions.
