High Power Microwave Absorbing Foam Materials Rf Anechoic Chamber Absorber Material

Targeted Performance for RF and EMC Testing Environments

This custom RF absorber material is engineered specifically for RF shielded rooms and anechoic chambers utilized by engineers and test facility managers who require precise electromagnetic interference mitigation. As a leading RF pyramid absorber and EMC absorber supplier, our microwave absorbing foam provides effective microwave energy absorption, enabling controlled, low-noise environments essential for RF device characterization, antenna measurements, and compliance verification. Its modular design caters to manufacturers and research facilities demanding high-performance, scalable solutions for complex EMC test chamber setups.

Advanced Engineering and Measurable Foam Characteristics

Our microwave absorbing foam exhibits a pyramid structure optimized for broad frequency attenuation with reflectivity levels adjustable between 10-50 dB. Manufactured through high-precision molding and drying processes, the foam maintains dimension stability across panels, ensuring consistent RF absorption performance. Multiple height options ranging from 10 to 1000 mm accommodate diverse testing configurations. As an anechoic chamber absorber manufacturer and RF absorbing foam supplier, we implement fire-retardant materials certified under CE and RoHS standards to comply with stringent safety requirements. The panel sizes and weight options facilitate straightforward installation while sustaining durability for long-term use.

Comprehensive Application Across EMC and Microwave Testing Industries

Widely employed in sectors including communication device testing, radar system development, and electromagnetic compatibility validation, this foam serves as an integral component in achieving regulatory compliance and measurement accuracy. By integrating this product, system integrators benefit from reduced microwave reflections and radiated interference in complex shielding enclosures. Our role as a pyramid absorber supplier extends to creating interference minimal environments that support military-grade standards, industrial frequency inverter drives, and medical imaging applications, delivering consistent performance in demanding RF test chambers and EMC test facilities.

Product Advantages

Innovative Design Optimizes Acoustic and Electromagnetic Absorption

The foam’s pyramid geometry enhances microwave energy attenuation by increasing surface area for wave dissipation while minimizing reflections. This structural efficacy is complemented by precise manufacturing techniques that ensure uniform panel thickness and dimensional stability, fundamental for maintaining consistent electromagnetic performance. As a reputable EMC test chamber absorber supplier and microwave absorber wholesale provider, we deliver panels compatible with modular chamber designs, easing integration into RF absorptive systems. The customizable nature of our solutions facilitates adaptability to unique chamber configurations, including irregular shapes or scaled installations, meeting advanced engineering specifications with repeatable quality.

Superior Performance, Longevity, and Compliance Assurance

Functionally, this microwave absorbing foam offers high absorption efficiency and fire retardancy, enhancing both safety and system reliability. End-users benefit from its light weight, facilitating easier handling during installation and maintenance compared to conventional absorbers. Our products hold CE and RoHS certifications, ensuring environmental and operational compliance. As an experienced RF absorber manufacturer and EMC absorber supplier, we provide materials that maintain performance over extensive operational cycles with minimal degradation, reducing total cost of ownership and supporting effective EMI management strategies critical in sensitive measurement and calibration environments.

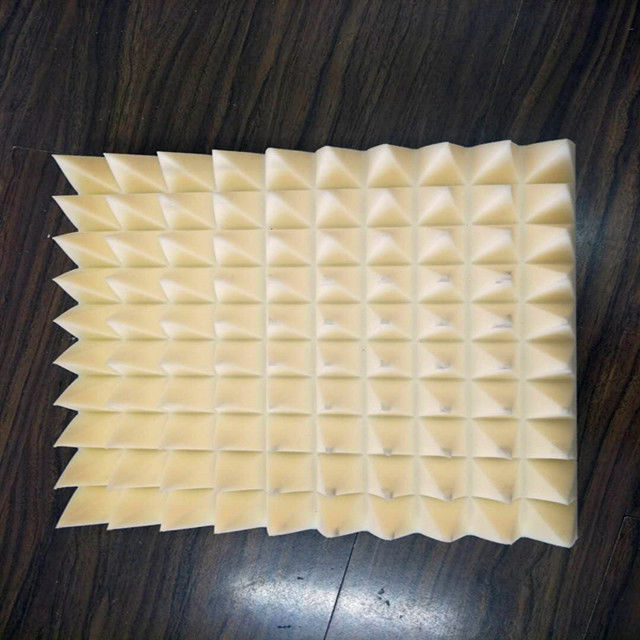

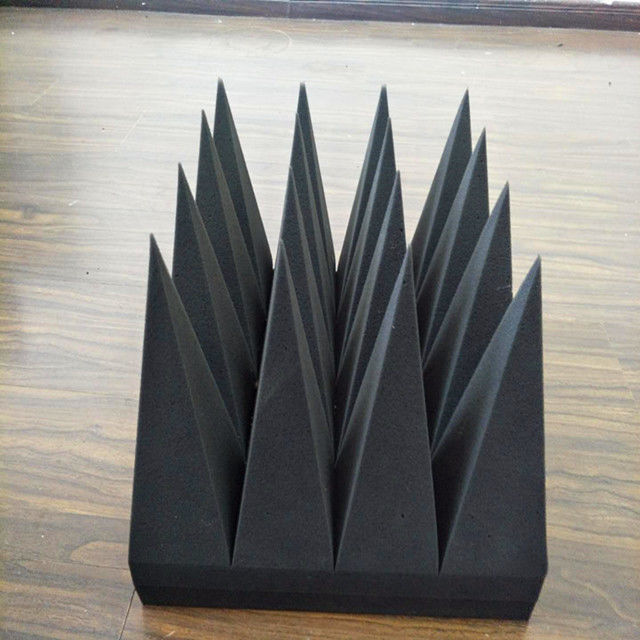

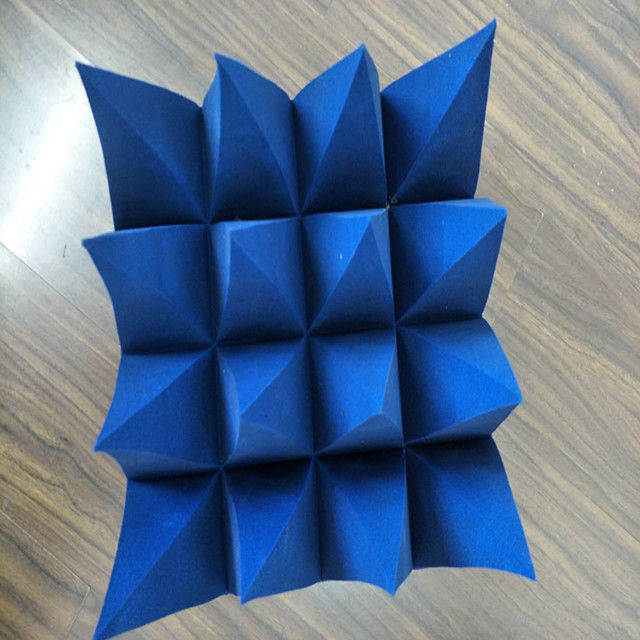

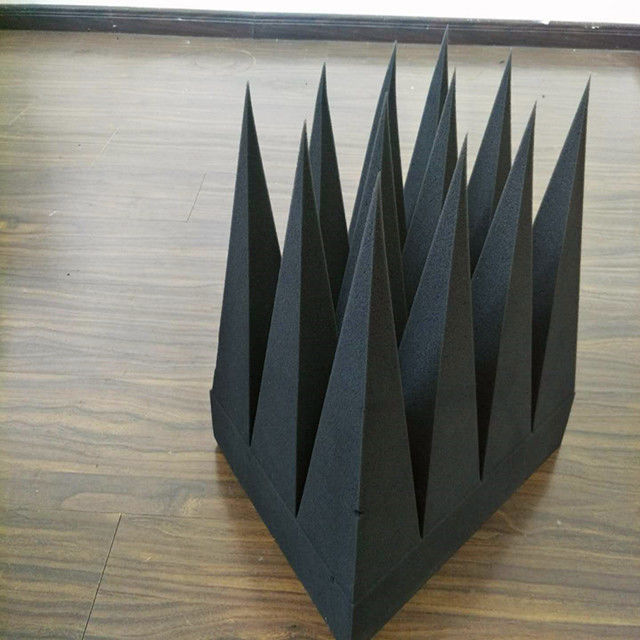

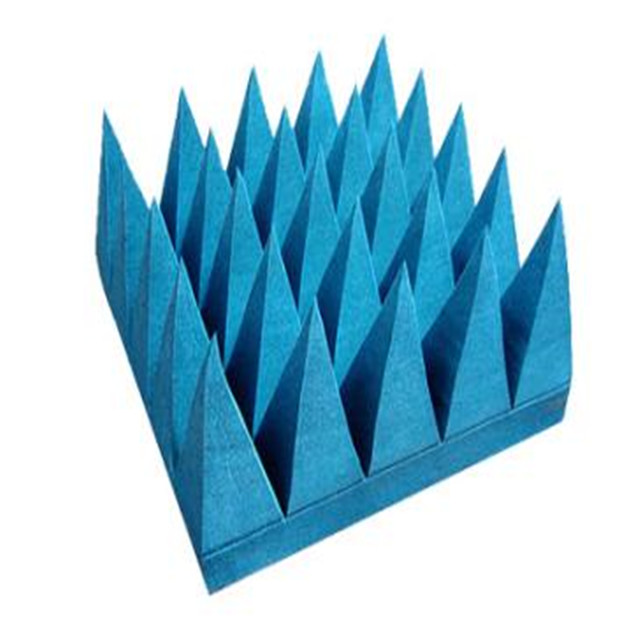

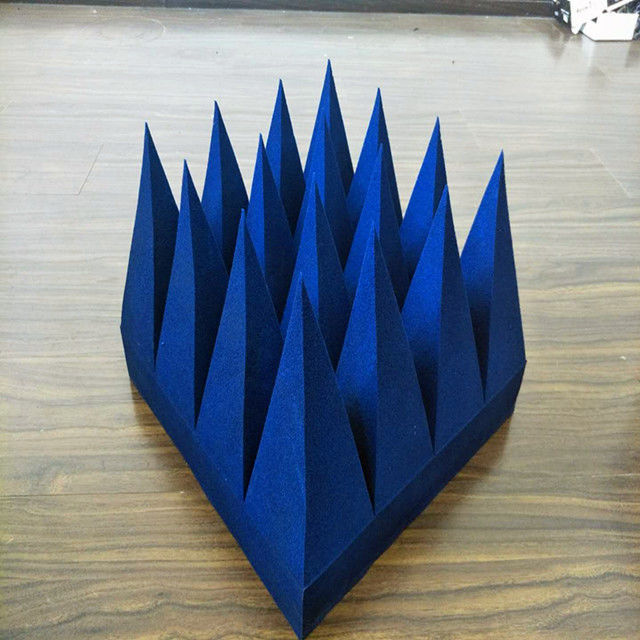

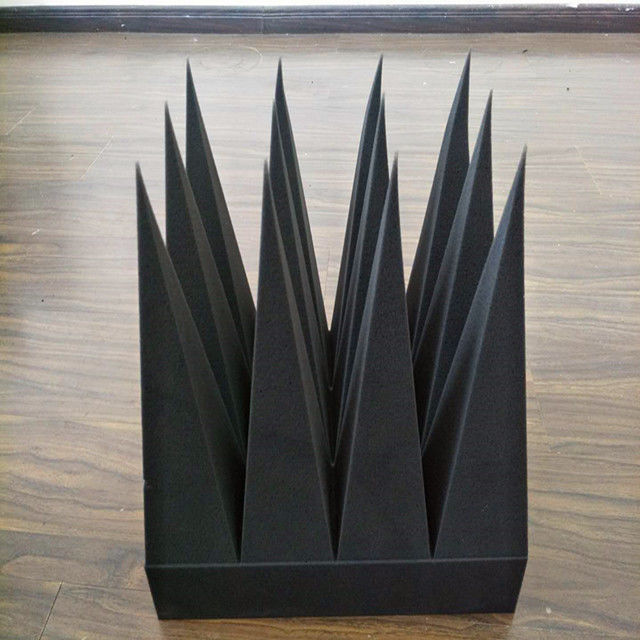

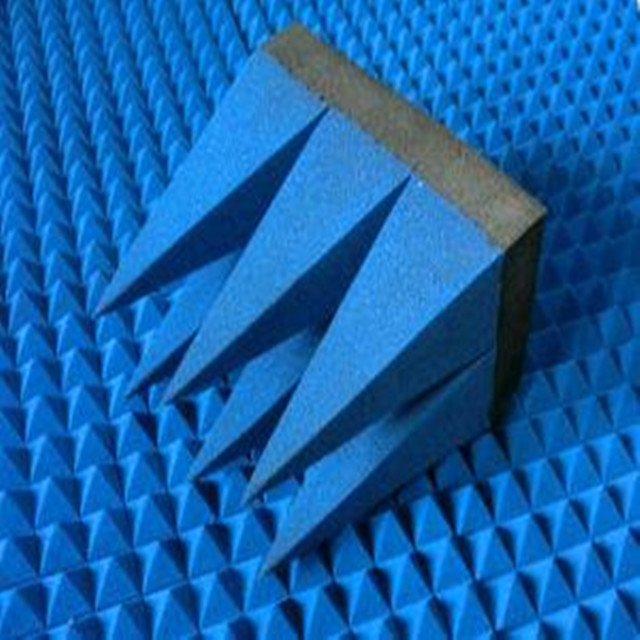

Fire retardant foam pyramid microwave absorber for shielding room

1. Input: EPP particles are suctioned into stock bin by suction system, and weighed for storage for use.
2. Load pressure: Pre-pressing can improve the deformation caused by transportation and increase the stability of products after molding, too. The pre-pressing system conclude six steps, that is, venting, weighing, suction, setting parameters, starting, and discharging.
3. Molding: Mould is designed according to the shape of absorber, here the foam absorber is pyramid shape. Before molding, following steps should to be done to get best molding condition: fixing mould, adjusting mould, setting parameters, pre-heating, suction and discharging. In molding process, it includes: closing moulds, suction, steam heating, cooling and stabilization, demould.
4. Drying: The surface of products taken out from mould has vapor and the product inside contains residual water. So drying is needed to ensure stable dimension.
5. Post-process: Smooth the edges and corners, correct local deformation.

RF Foam Absorber Types

· Rubber sheet micromave absorber

· Carbon-based foam microwave absorber

· Honeycomb & high power microwave absorber

· Sprayable microwave absorber

· Rigid and castable microwave absorber

RF Foam Absorber Basic Information

· Base size: 500*500mm, customized acceptable

· Standard height: 30,50,100,150,200,300,400,500,700,800,1000mm

RF Foam Absorber Features

· The traditional material for anechoic chambers

· Outstanding absorbing over a wide frequency range

· Flexible

About US

• Our technical team has more than 10 years’ experience in designing EMI filter. We know UL VDE CSA CE CQC etc safety standard very well.
• Our technical service team learn many kinds of test standard such as industrial application (IEC61800-3 for frequency inverter drive EN12015 for elevator EN55011 for ISM device etc) and military application (GJB151A GJB152A etc).We can solve EMI problem quickly effectively and low-costly.
• Our test equipment: LCR digital bridge/voltage proof tester/insulation resistance tester/spectrum analyzer/inductor tester/standard signal source/shield room/interference intensity tester etc
• Our product: EMI filter for general purpose/EMI filter for frequency inverter/EMI filter for shielding facility/EMI filter for military application
• Our advantage: high quality/high cost-effective/short lead time
• Our service: all products have two years guarantee
• Our main customers: frequency inverter drive and servo drive system/MRI shielding system/solar inverter system/rail transit system etc

Use Scenarios

Enhancement of EMI Shielded Rooms in Communication Testing Facilities

Communication device manufacturers rely on controlled EMI shielding rooms to validate signal integrity and reduce radiated interference during prototype evaluation and mass production testing. Our RF absorbing foam supplier solution delivers stable microwave absorption characteristics ideal for lining these chambers, enhancing measurement accuracy and compliance with electromagnetic compatibility regulations. Installation integrates seamlessly with chamber architecture, minimizing reflection effects that could distort test results. The foam’s customizable dimensions support retrofit modifications or new builds tailored to evolving frequency spectrum requirements, optimizing test workflows and ensuring consistent quality assurance.

Integration into Radar and Military-Grade EMC Test Chambers

In radar development and military electromagnetic testing environments, strict control of stray microwave signals is crucial for accurate system performance evaluation and regulatory adherence. Leveraging our role as a pyramid absorber supplier and anechoic chamber absorber manufacturer, this foam material effectively diminishes high-frequency reflections within shielded test cells. Its fire-retardant, dimensionally stable structure withstands rigorous operational conditions and frequent handling. The absorber’s compatibility with standard panel sizes facilitates efficient integration into large test arrays or bespoke chamber designs, providing key performance advantages in electromagnetic interference control essential for defense and aerospace certification workflows.

FAQ

Can you customize the size and height of your microwave absorbing foam?

Yes, we offer fully customizable options for both size and height of our microwave absorbing foam to meet diverse project needs. Our precision molding and post-processing ensure dimensional stability and reliable performance for your specific application.

What frequency ranges do your RF pyramid absorbers cover?

Our RF pyramid absorber materials are effective across a broad frequency spectrum, providing reflectivity typically between 10 to 50 dB. This range supports various RF testing and EMC applications, ensuring efficient absorption and interference reduction.

How should I install the foam in an anechoic chamber or EMC test environment?

We recommend installing our pyramid foam panels securely on walls or ceilings within RF shielded rooms, leveraging their custom sizes for optimal coverage. Their fire-retardant and dimensionally stable properties help maintain long-term performance in EMC test chamber absorber setups.

What packaging and delivery options do you provide for bulk orders?

We pack all foam panels in cartons designed for safe transport and offer a weekly supply capability of up to 1,000,000 square meters. As a trusted anechoic chamber absorber manufacturer, we manage logistics efficiently to ensure timely delivery worldwide.
