EMI/RFI shielding Knitted wire mesh gaskets
| Product Features |

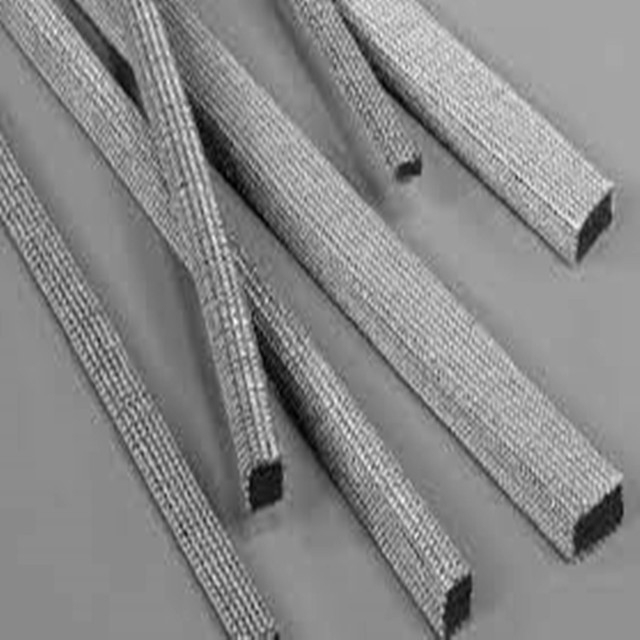

| All mesh gasket’s cross section are rectangular, round,round with tail and double round with tail. |
| Materials are available intin-plated phosphor bronze (Sn/Ph/Bz), tin-plated copper-clad steel (Sn/Cu/Fe), silver-plated brass (Ag/Brass), Monel, and aluminum(Al). |
| Elastomeric core has various function(anti-chemistry, thermal resistance and water proof) for elasticity. |
| Selection shape |
| Solid Round Type |
| Solid Rectangular Type |
| Hollow Round Type |
| Solid Round with Fin Type |
| Hollow Round with Fin Type |

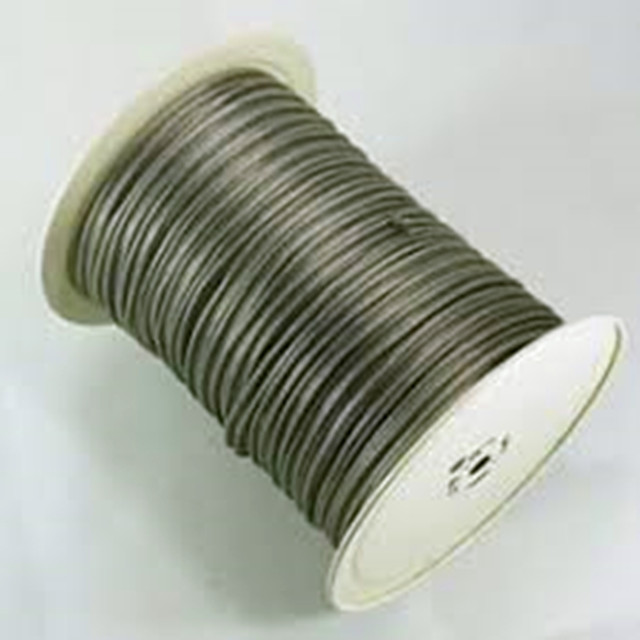

Product picture:

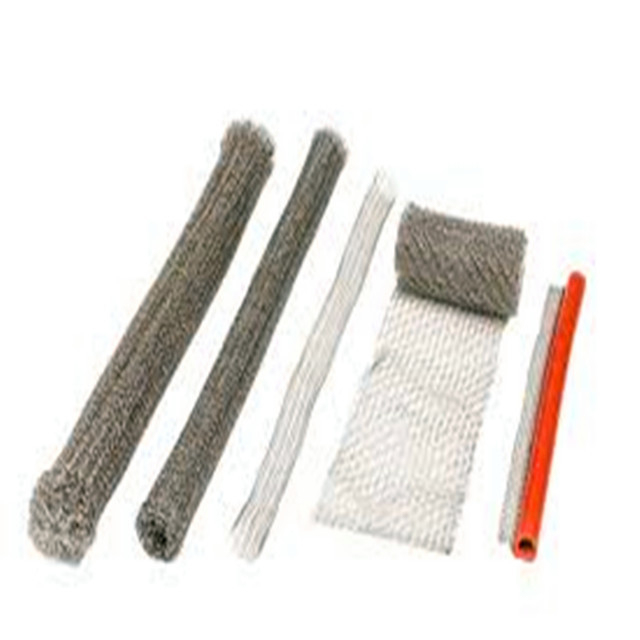

Knitted Wire Mesh:

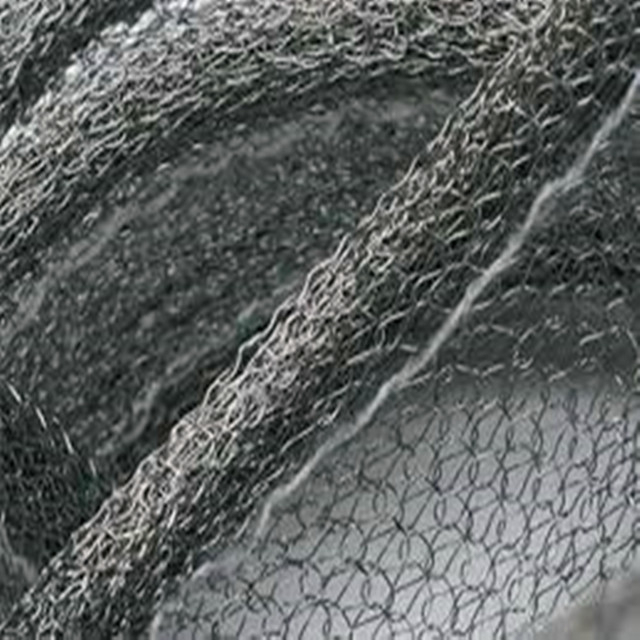

Knitted Wire Mesh Over Elastomer Core:
EMI Shielding Effectiveness:
1.Material:
Brass wire: copper 65%,zinc35%
Purple copper wire: copper 99.8%
Phosphorus copper wire :copper 85%-90%,tin 5%-15%
2.Characteristics: non-magnetic, wear resistance
3.Application:
Copper mesh frequently utilized in applications requiring shielding of electromagnetic interference (EMI).
The reduction or exclusion of electromagnetic interference is dependent upon the signal amplitude and
frequency in relation to the many combinations of mesh count wire diameter and weaving materials available.
4.Production rang:
Width: Standard 1M, Special requirement is accepted.
Length:30M/roll
Size:Standard 60/100/150 mesh/inch
Faraday cage shielding stainless steel wire mesh
Product Description
•Material: SUS302,201, 304, 304L, 316, 316L, 310, 310S etc
•Weave: plain, twill, dutch
•Mesh: 1-2800 mesh
•Application: EMI/RFI shielding, Faraday cages, RF window,
•Specification list for faraday cage shielding stainless steel wire mesh
| Mesh/inch | Wire dia(mm/inch) | Aperture(mm) | |
|
Stainless steel wire mesh |
100 | 0.089/0.0035 | 0.17 |
| 110 | 0.1060/0.0040 | 0.1295 | |
| 120 | 0.0904/0.0037 | 0.1168 | |
| 150 | 0.0660/0.0026 | 0.1041 | |
| 160 | 0.0635/0.0025 | 0.0965 | |
| 180 | 0.0584/0.0023 | 0.0838 | |
| 200 | 0.0533/0.0021 | 0.737 |
•Production rang for faraday cage shielding stainless steel wire mesh
Width: Standard 1M, Special requirement is accepted.
Length: 30M/roll
Mesh size: Standard 60/80/100/150 mesh/inch
•Weave type of faraday cage shielding stainless steel wire mesh
plain weave, twill weave, plain dutch weave,twill dutch weave
•Application for faraday cage shielding stainless steel wire mesh
1.screening and filtering
2.used in the industry like mining, petroleum, chemical, food, medicine, machinery manufacturing etc.

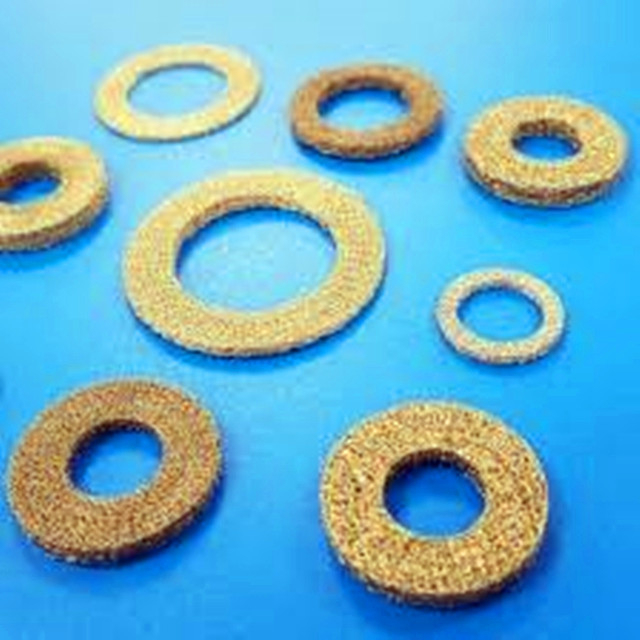

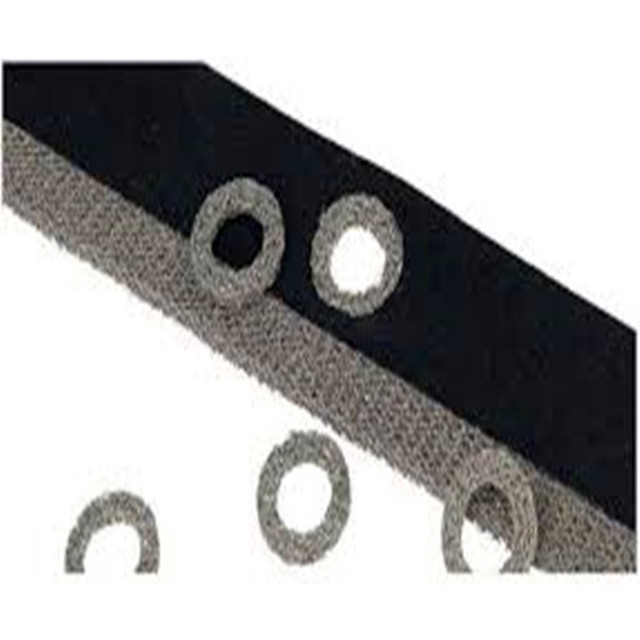

•Materials of EMI shielding compressed knitted wire mesh washer
| Wire type | specification |
| Sn/Ph/Bz | ASTM-B-105 wire diameter 0.114mm. Compliance to CDA C 50700 |
| Sn/Cu/Fe | ASTM-B-520 wire diameter 0.114mm |
| Ag/Brass | QQ-W-281 or AMS-4730 wire diameter 0.114mm |
| Monel | QQ-N-281 or AMS-4730 wire diameter 0.114mm |
