Based on the principle of having complex magnetic permeability equal (or nearly equal) to complex dielectric constant. Materials with this property exhibit an impedance equal to that of "free space" and therefore do not reflect radiated energy at normal incidence.

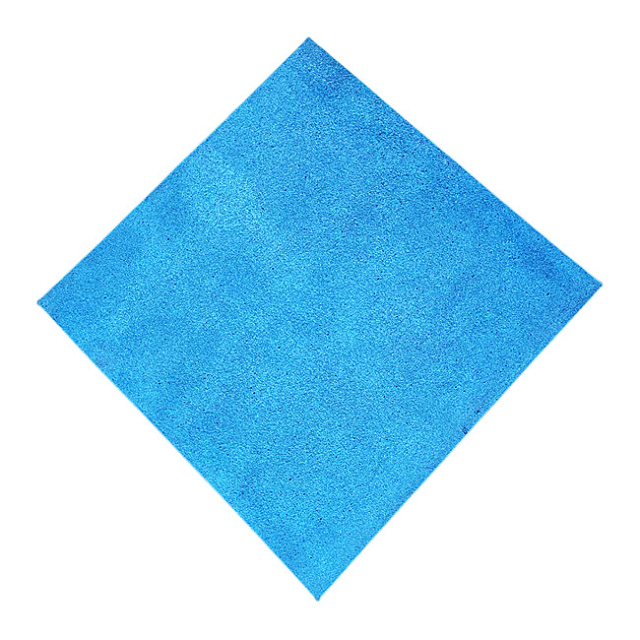

Ferrite Tile can provide 10dB - 25dB of absorption between 30MHz and 1GHz. Tiles are thin (approximately 0.26 inches), but can be heavy (roughly 10 lbs per square foot).
Application for RF shielding door for EMC chamber
- Nuclear magnetic resonance(NMR)
- Shielding room
- Communications room
- Security room and laboratory
- MRI room
- Military office

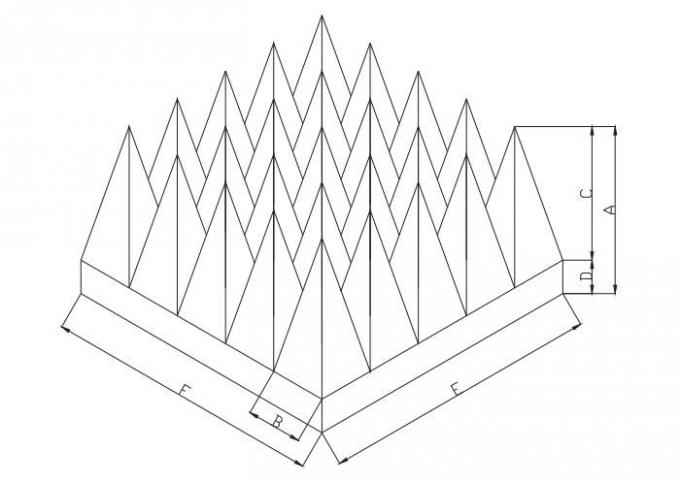

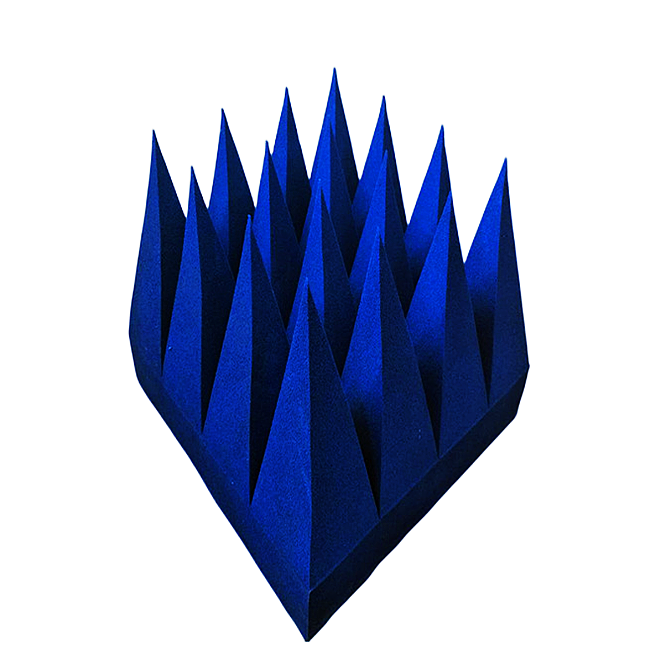

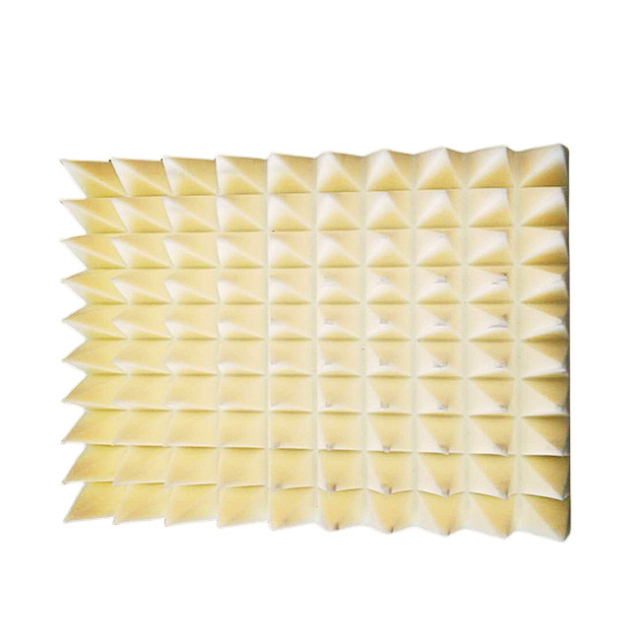

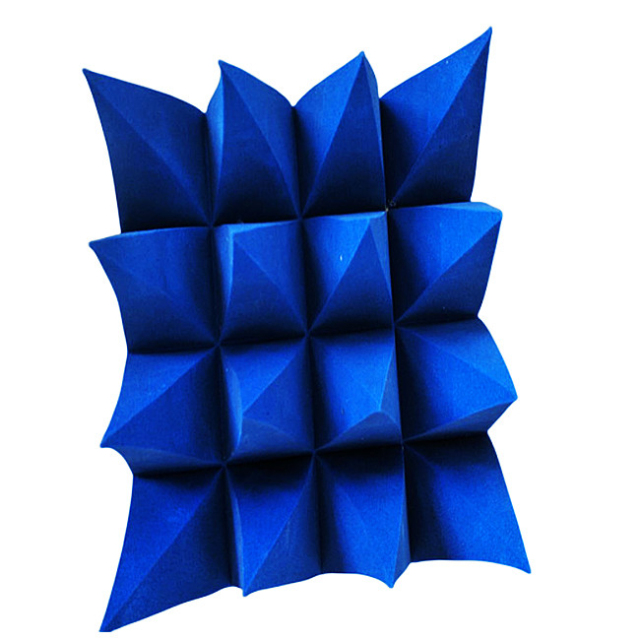

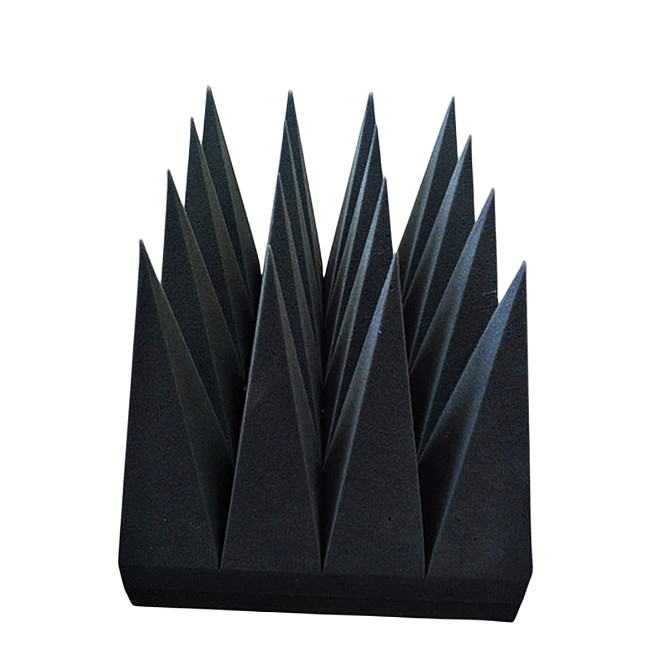

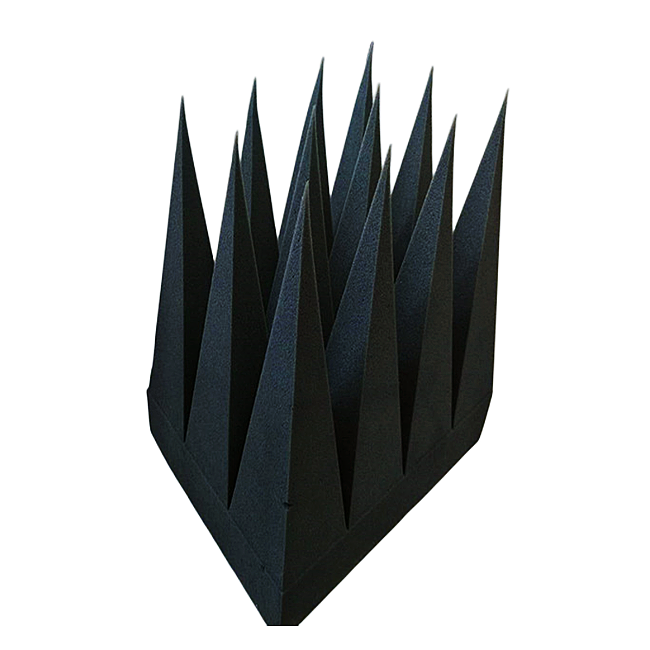

Microwave anechoic chamber material is a pyramidal shaped, carbon loaded elastic polyurethane foam EM absorber material. This material may be applied for covering of anechoic chambers, and for construction of test equipment for antenna measurements. Absorber is made in form of panel.
|
Features and Benefies
|

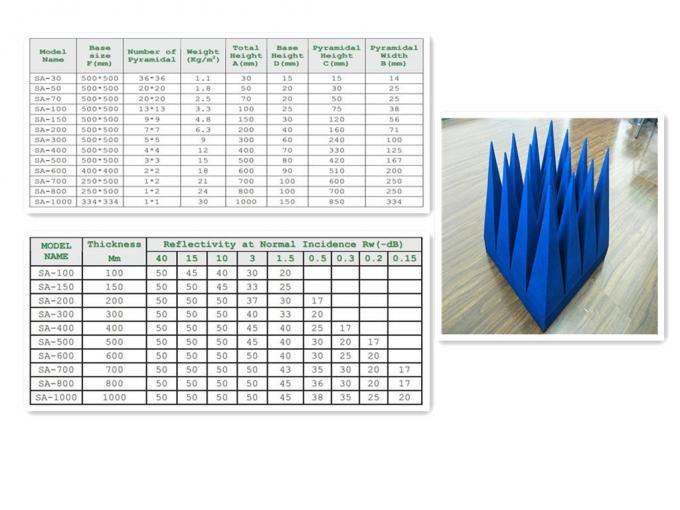

Specifications
|
Market
|
|
Flexible, foam material
Fire retardant Pyramid Electronic No requirement for the substrate. Blue or as request |
Frequency Range : ≥ 1 GHz
Service Temperature °C : -50-80oC Thickness Size Range : 20mm-1000mm |
Commercial Telecom
Security and Defense Electronic equipment test |
