Polyurethane foam pyramid magnetic shielding material for chamber
Adopt space scanning method to measure reflectivity
Traditional “Arch method” can measure the reflectivity in the range of 2-18GHz, beyond which the test precision will be lower. In our technology, microwave absorber measurement adopts new swing arms instrument that has the shape of number “7”, which works by space scanning. This method can cover a broad frequency band of 0.5GHz -70GHz and the scanning angle is multiple dimensions, thus the test precision is well improved.
RF Foam Absorber Types

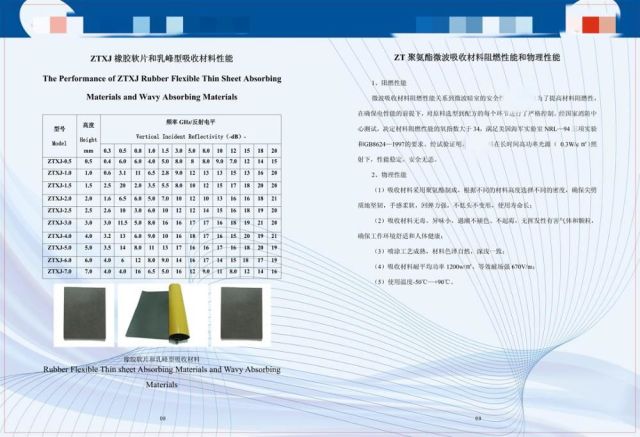

· Rubber sheet micromave absorber
· Carbon-based foam microwave absorber
· Honeycomb & high power microwave absorber
· Sprayable microwave absorber
· Rigid and castable microwave absorber

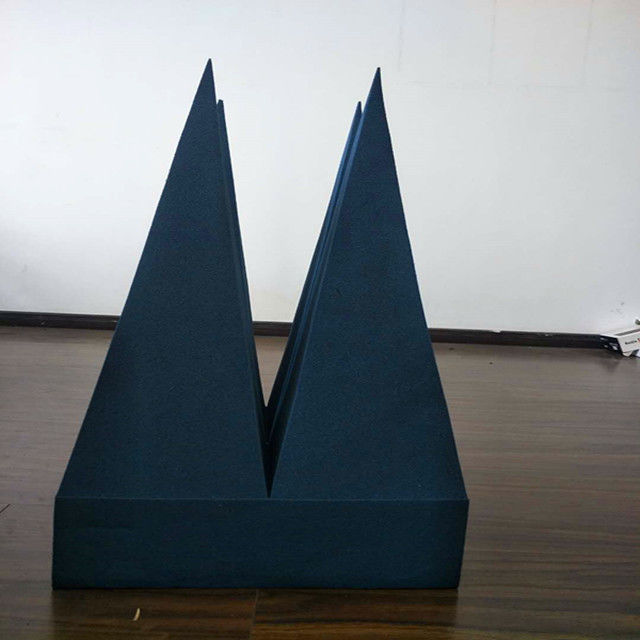

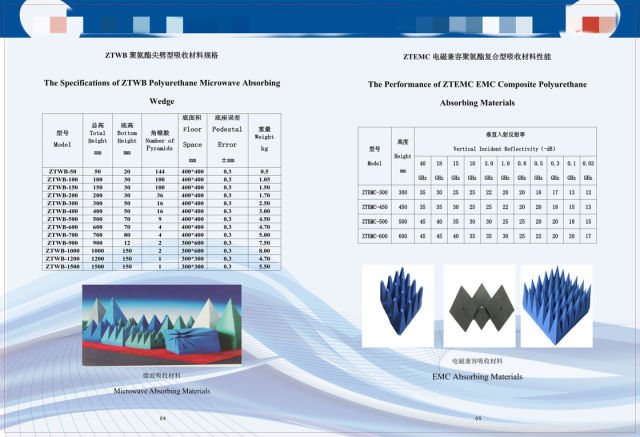

| TYPE | BASE SIZE | NUMBER OF PYRAMIDAL | WEIGHT | TOTAL HEIGHT | BASE HEIGHT | PYRAMIDAL HEIGHT |
PYRAMIDAL WIDTH |
| HZ-30 | 500*500 | 36*36 | 1.1 | 30 | 15 | 15 | 14 |
| HZ-50 | 500*500 | 20*20 | 1.8 | 50 | 20 | 30 | 25 |
| HZ-70 | 500*500 | 20*20 | 2.5 | 70 | 20 | 50 | 25 |
| HZ-100 | 500*500 | 13*13 | 3.3 | 100 | 25 | 75 | 38 |
| HZ-150 | 500*500 | 9*9 | 4.8 | 150 | 30 | 120 | 56 |
| HZ-200 | 500*500 | 7*7 | 6.3 | 200 | 40 | 160 | 71 |
| HZ-300 | 500*500 | 5*5 | 9 | 300 | 60 | 240 | 100 |
| HZ-400 | 500*500 | 4*4 | 12 | 400 | 70 | 330 | 125 |
| HZ-500 | 500*500 | 3*3 | 15 | 500 | 80 | 420 | 167 |
| HZ-600 | 400*400 | 2*2 | 18 | 600 | 90 | 510 | 200 |
| HZ-700 | 250*500 | 1*2 | 21 | 700 | 100 | 600 | 250 |
| HZ-800 | 250*500 | 1*2 | 24 | 800 | 100 | 700 | 250 |
| HZ-1000 | 334*334 | 1*1 | 30 | 1000 | 150 | 850 | 3 |

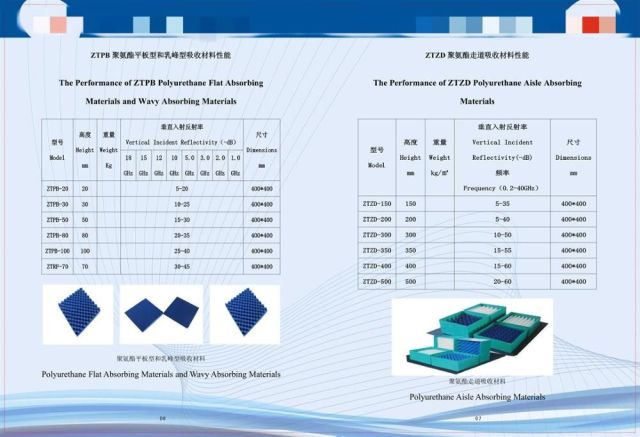

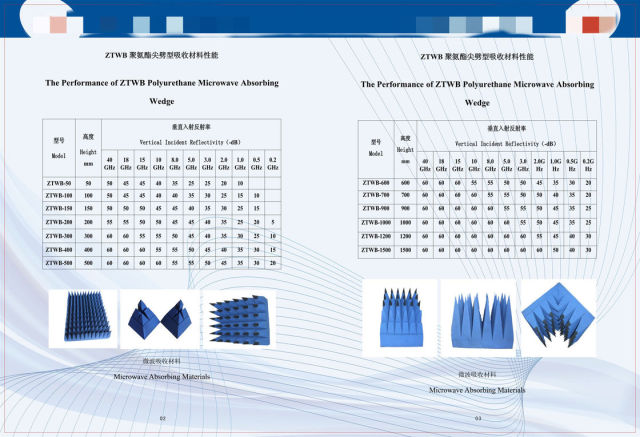

| TYPE | HEIGHT | REFLECTIVITY | ||||||||
| 40 | 15 | 10 | 3 | 1.5 | 0.5 | 0.3 | 0.2 | 0.15 | ||
| HZ-100 | 100 | 50 | 45 | 40 | 30 | 20 | ||||
| HZ-150 | 150 | 50 | 50 | 45 | 33 | 25 | ||||
| HZ-200 | 200 | 50 | 50 | 50 | 37 | 30 | 17 | |||
| HZ-300 | 300 | 50 | 50 | 50 | 40 | 33 | 20 | |||
| HZ-400 | 400 | 50 | 50 | 50 | 45 | 40 | 25 | 17 | ||
| HZ-500 | 500 | 50 | 50 | 50 | 45 | 40 | 30 | 20 | 17 | |
| HZ-600 | 600 | 50 | 50 | 50 | 50 | 40 | 30 | 25 | 20 | |
| HZ-700 | 700 | 50 | 50 | 50 | 50 | 43 | 35 | 30 | 20 | 17 |
| HZ-800 | 800 | 50 | 50 | 50 | 50 | 45 | 36 | 30 | 20 | 17 |
| HZ-1000 | 1000 | 50 | 50 | 50 | 50 | 45 | 38 | 35 | 25 | 20 |
RF Foam Absorber Basic Information

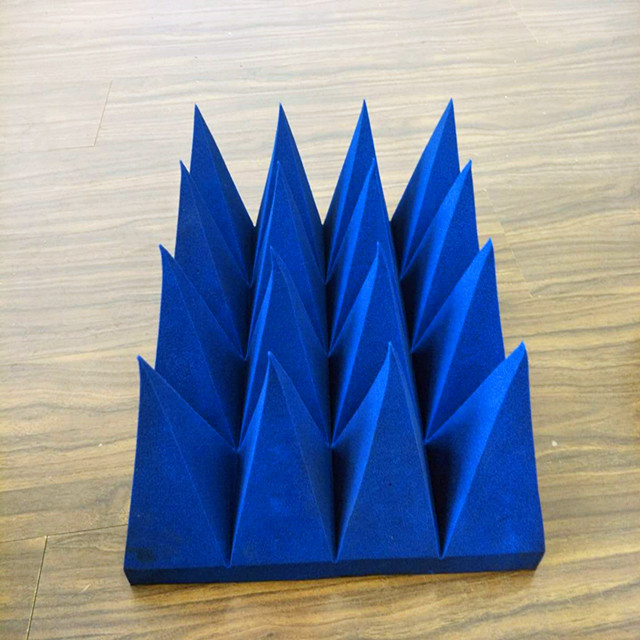

· Base size: 500*500mm, customized acceptable
· Standard height: 30,50,100,150,200,300,400,500,700,800,1000mm
RF Foam Absorber Features
· The traditional material for anechoic chambers
· Outstanding absorbing over a wide frequency range
· Flexible
