Our RF pyramid absorber provides superior electromagnetic interference reduction with flame-retardant, customizable foam panels. Ideal for anechoic chambers, it offers proven performance from a trusted anechoic chamber absorber manufacturer.
Purpose-Built Solution for EMC Professionals
Designed for engineers and procurement specialists managing electromagnetic compatibility challenges, this RF absorber manufacturer’s product precisely controls EMI by using optimized pyramid geometry. The foam material is suited for integration in RF shielding rooms and laboratory environments, enabling deeper suppression of radio frequency signals. The anechoic chamber absorber's modularity supports varied installation scales, benefiting those specifying absorbers for high-performance EMC test chamber absorber supplier needs or customized mitigation solutions across multiple frequency bands.
Advanced Design with Quantifiable Absorption Metrics
Crafted from flame retardant polyurethane foam, the microwave absorbing foam features irregular pyramid arrays to eliminate slot gaps, enhancing wave attenuation efficiency. Offered in standard 600 mm by 600 mm tiles with height options ranging from 10 mm to 1000 mm, these panels provide reflectivity attenuation from 10 dB up to 50 dB, quantifiably reducing reflections. As a pyramid absorber supplier, the product’s construction facilitates lightweight handling and precision cutting for tailored RF environments, delivering reliability under validated performance specifications critical to EMC absorber suppliers focusing on repeatable, measurable outcomes.
Critical Role Across Industry-Grade Shielding Applications
This custom RF absorber material supports multiple sectors including industrial test labs, medical imaging units, and defense-related shielding requirements. By effectively lining anechoic chambers, it ensures stable EM conditions for antenna characterization and radar wave suppression. As a microwave absorber wholesale product, it helps optimize environments requiring strict electromagnetic wave control to meet regulatory and functional compliance demands, enhancing overall system accuracy and equipment protection for environments relying on highly controlled RF absorption and mitigation.
Product Advantages
Innovative Structural Features Enabling Seamless Integration
The product incorporates a pyramid design engineered for maximum surface coverage without slot gaps, enabling seamless electromagnetic wave dissipation. Its modular 600x600 mm foam panels conform to customized site requirements, allowing EMC test chamber absorber suppliers to scale and configure shielding according to precise room geometries. Lightweight and flame retardant, the RF absorbing foam supplier’s solution supports ease of installation and retrofitting within existing RF shielding rooms. This design approach facilitates improved footprint utilization while maintaining industry standard compliance in shielding effectiveness.
Operational Efficiency Backed by High-Performance Absorption
Offering a broad attenuation range, the foam panels guarantee high suppression of radio and radar signals, reducing environmental EMI and enhancing signal integrity. Their flexible nature allows simple cutting and fitting without compromising reflectivity, thus lowering installation time and cost. From the perspective of an EMC pyramid absorber provider, this material delivers consistency over different frequency spectrums, providing engineers with dependable absorption characteristics that support long-term system stability and compliance with critical EMC standards.
Flame retardant easily cut with a sharp knife radar absorbent materials

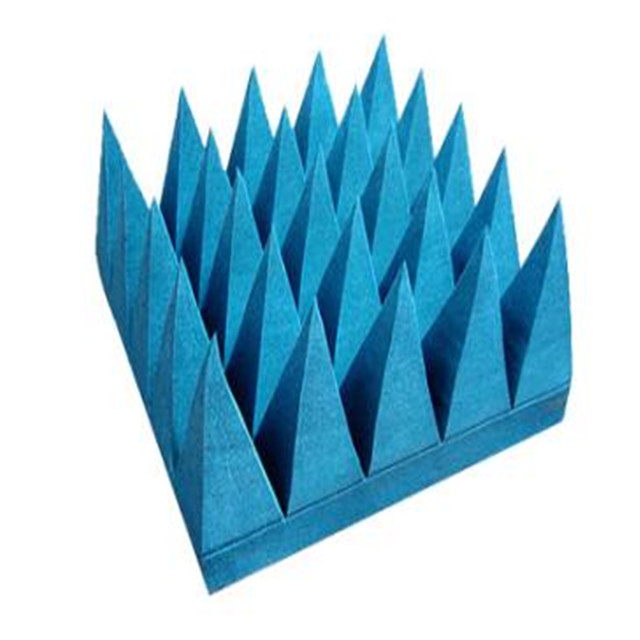

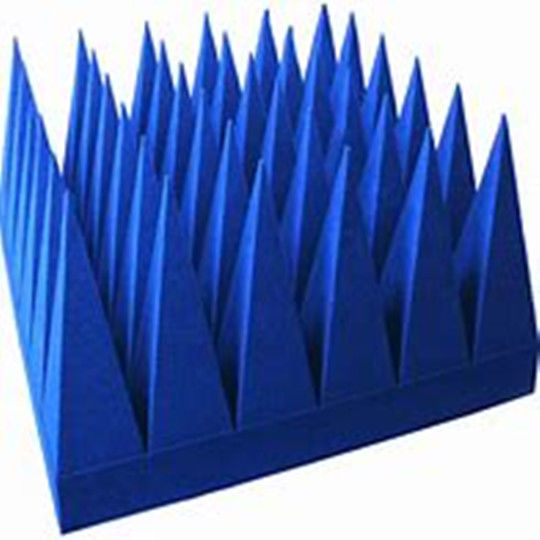

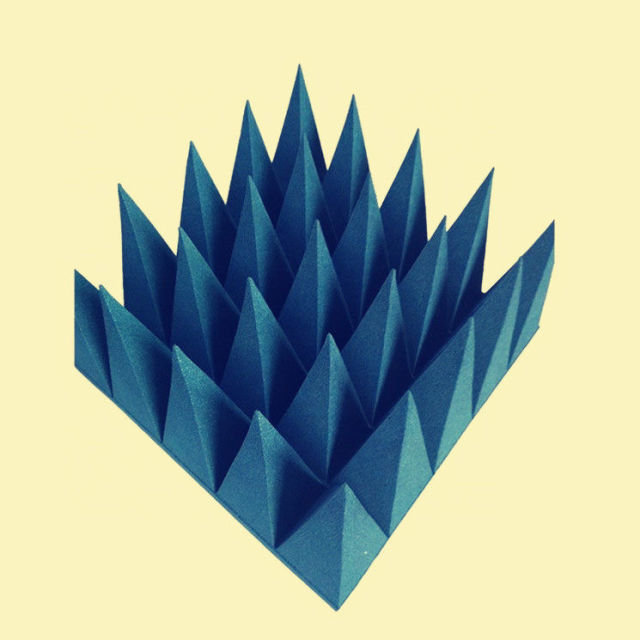

Special Type Pyramid Absorber

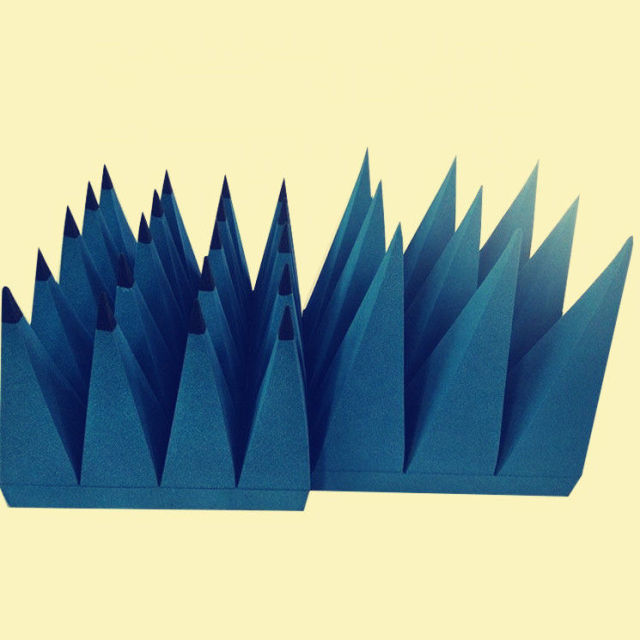

It adopts irregular array pyramids design that enlarges the space utilization of the piece. Individual pyramid arrays based on parallel diagonal, together with complementary left and right sides design, which ensures the no-slot joint between two pieces of absorbers.

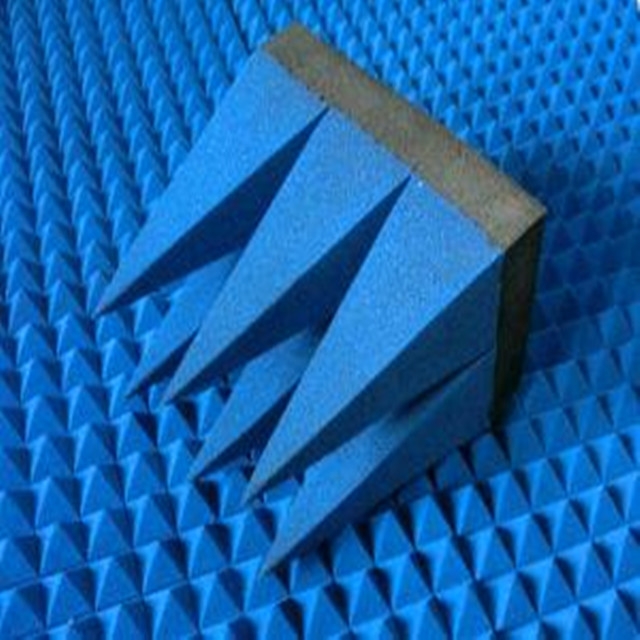

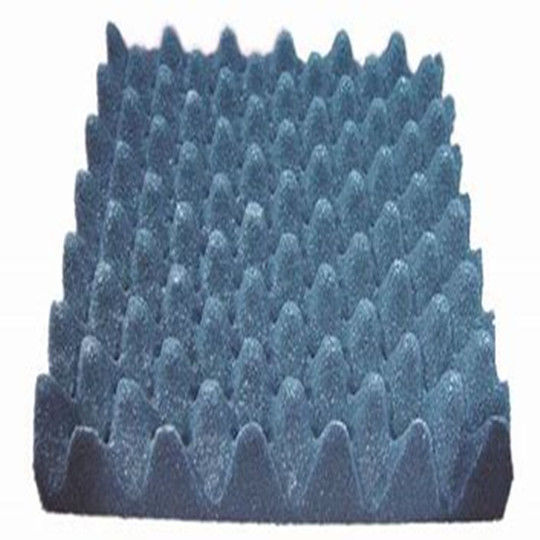

RF Foam Absorber Types
· Rubber sheet micromave absorber

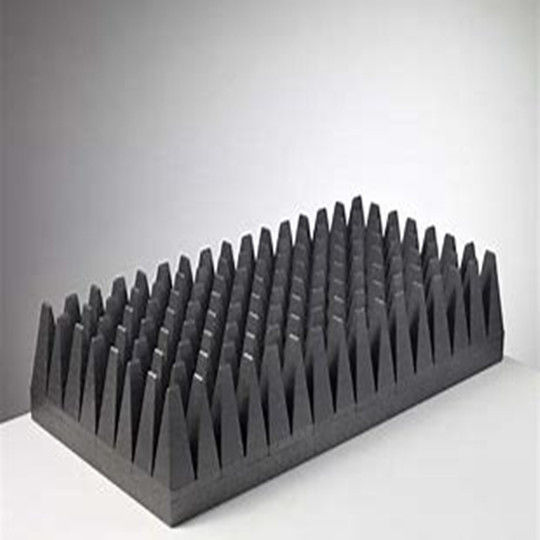

· Carbon-based foam microwave absorber
· Honeycomb & high power microwave absorber
· Sprayable microwave absorber
· Rigid and castable microwave absorber
| TYPE | BASE SIZE | NUMBER OF PYRAMIDAL | WEIGHT | TOTAL HEIGHT | BASE HEIGHT | PYRAMIDAL HEIGHT |
PYRAMIDAL WIDTH |
| HZ-30 | 500*500 | 36*36 | 1.1 | 30 | 15 | 15 | 14 |
| HZ-50 | 500*500 | 20*20 | 1.8 | 50 | 20 | 30 | 25 |
| HZ-70 | 500*500 | 20*20 | 2.5 | 70 | 20 | 50 | 25 |
| HZ-100 | 500*500 | 13*13 | 3.3 | 100 | 25 | 75 | 38 |
| HZ-150 | 500*500 | 9*9 | 4.8 | 150 | 30 | 120 | 56 |
| HZ-200 | 500*500 | 7*7 | 6.3 | 200 | 40 | 160 | 71 |
| HZ-300 | 500*500 | 5*5 | 9 | 300 | 60 | 240 | 100 |
| HZ-400 | 500*500 | 4*4 | 12 | 400 | 70 | 330 | 125 |
| HZ-500 | 500*500 | 3*3 | 15 | 500 | 80 | 420 | 167 |
| HZ-600 | 400*400 | 2*2 | 18 | 600 | 90 | 510 | 200 |
| HZ-700 | 250*500 | 1*2 | 21 | 700 | 100 | 600 | 250 |
| HZ-800 | 250*500 | 1*2 | 24 | 800 | 100 | 700 | 250 |
| HZ-1000 | 334*334 | 1*1 | 30 | 1000 | 150 | 850 | 3 |
| TYPE | HEIGHT | REFLECTIVITY | ||||||||
| 40 | 15 | 10 | 3 | 1.5 | 0.5 | 0.3 | 0.2 | 0.15 | ||
| HZ-100 | 100 | 50 | 45 | 40 | 30 | 20 | ||||
| HZ-150 | 150 | 50 | 50 | 45 | 33 | 25 | ||||
| HZ-200 | 200 | 50 | 50 | 50 | 37 | 30 | 17 | |||
| HZ-300 | 300 | 50 | 50 | 50 | 40 | 33 | 20 | |||
| HZ-400 | 400 | 50 | 50 | 50 | 45 | 40 | 25 | 17 | ||
| HZ-500 | 500 | 50 | 50 | 50 | 45 | 40 | 30 | 20 | 17 | |
| HZ-600 | 600 | 50 | 50 | 50 | 50 | 40 | 30 | 25 | 20 | |
| HZ-700 | 700 | 50 | 50 | 50 | 50 | 43 | 35 | 30 | 20 | 17 |
| HZ-800 | 800 | 50 | 50 | 50 | 50 | 45 | 36 | 30 | 20 | 17 |
| HZ-1000 | 1000 | 50 | 50 | 50 | 50 | 45 | 38 | 35 | 25 | 20 |
RF Foam Absorber Basic Information
· Base size: 500*500mm, customized acceptable
· Standard height: 30,50,100,150,200,300,400,500,700,800,1000mm
RF Foam Absorber Features
· The traditional material for anechoic chambers
· Outstanding absorbing over a wide frequency range
· Flexible
About US
Use Scenarios
Enhancing Electromagnetic Compatibility in RF Shielded Test Facilities

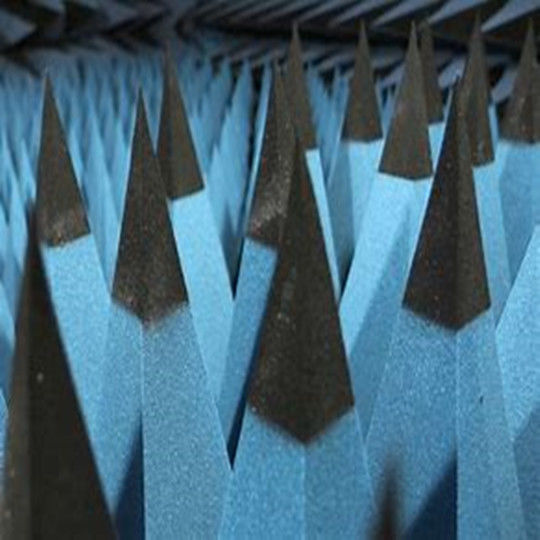

In industrial and research RF shielding rooms, electromagnetic interference degrades measurement accuracy and device functionality. The RF pyramid absorber serves a vital role in these environments by significantly reducing residual reflections and stray RF waves within shielded enclosures. Its integration helps adhere to strict EMC requirements, preventing test anomalies in signal analysis. As a reliable anechoic chamber absorber manufacturer, the product simplifies workflow integration by offering modular panels that adapt to complex room shapes while maintaining effective noise suppression in compliance with international EMC standards.
Optimizing Shielding Performance for Medical Imaging and Diagnostic Equipment
Hospitals and research facilities demand precise RF absorption materials to protect sensitive MRI and other diagnostic equipment from electromagnetic noise. This microwave absorbing foam is tailored to such critical environments, ensuring external RF signals do not interfere with imaging quality or patient safety. Serving as an EMC absorber supplier, it supports facility engineering teams to upgrade shielding rooms with customizable foam configurations, providing a cost-effective solution that aligns with healthcare sector regulations and improves operational reliability in electromagnetically sensitive applications.
Can you customize the size and shape of the RF pyramid absorber for specific shielding rooms?
Yes, we provide customization for the RF pyramid absorber in both size and height to suit unique shielding room requirements. Our radar absorbing foam materials can be tailored from the standard 600 mm x 600 mm base to larger or smaller dimensions as needed.
What type of material is used in your microwave absorbing foam, and is it safe for sensitive environments?
Our microwave absorbing foam is made from flame retardant, flexible polyurethane-based foam, ensuring safety and durability in sensitive EMI shielding rooms. The material complies with industry safety standards and is easy to cut for customized installation.
How do I install your EMC pyramid absorber to achieve optimal performance?
We recommend installing our EMC pyramid absorber with careful alignment to eliminate slot gaps between foam pieces, maximizing electromagnetic wave absorption. The lightweight and flexible properties allow for easy handling and adaptation to curved or irregular surfaces.
What is the typical lead time and after-supply support for orders of radar absorbing foam?
We ensure a short lead time for producing radar absorbing foam customized to your specifications. Before shipment, all foam absorbers are tested for quality and reflectivity. Our technical team provides 7/24 support to address any post-delivery questions or installation guidance.
