MRI Scanning Room Product Features:
- Pure, electrically deposited copper
- RF attenuation levels of > 100 dB up to 400 MHz frequencies
- Free standing, structurally isolated RF walls
- Light weight wall and ceiling panels
- Factory engineered and fabricated RF shield panels
- Contractor friendly interiors
In addition to being used for EMC chambers, RF shielded rooms have a number of different applications and form the basis for a wide variety of testing ranges. Comtest is able to design, build and deliver the following common RF shielded room types:
RF shielded data center
Main Equipment Rooms (also known as a MER room)
- Conference rooms and crisis control centers
- RF shielded control and amplifier rooms
- Conductive test chambers
- Reverberation chambers
- (Semi) Anechoic chambers
MRI Scanning Room Description:

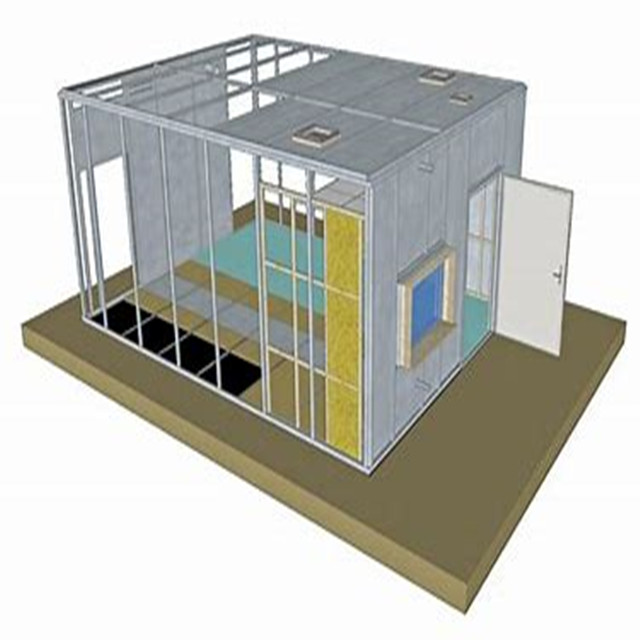

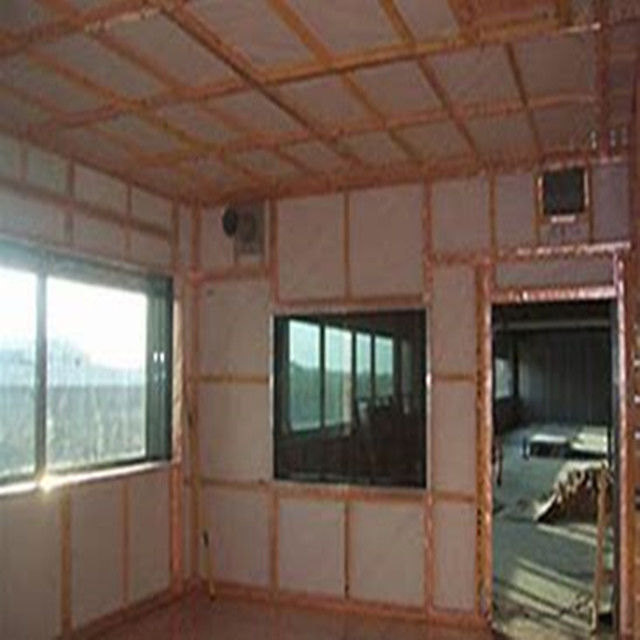

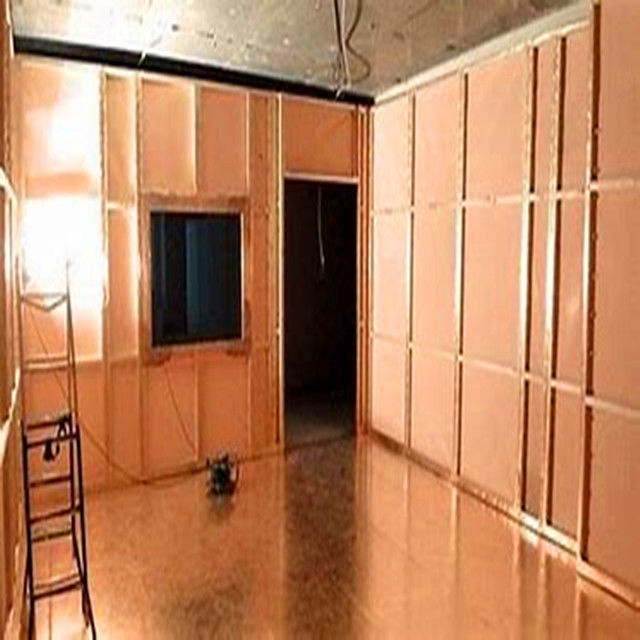

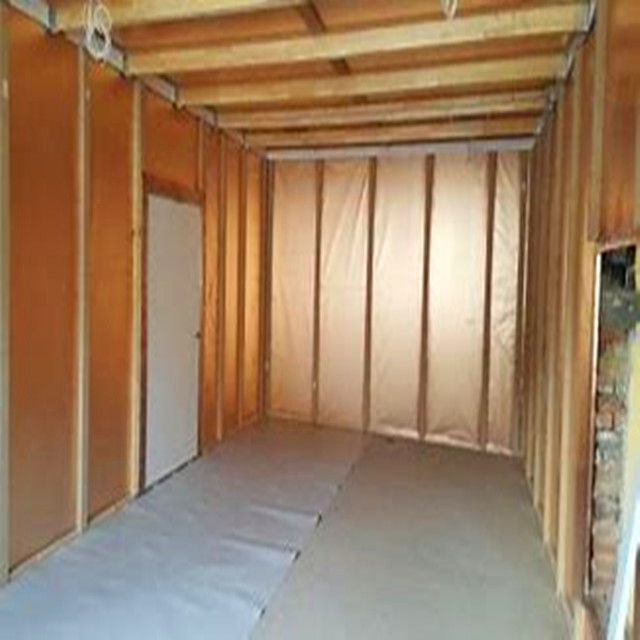

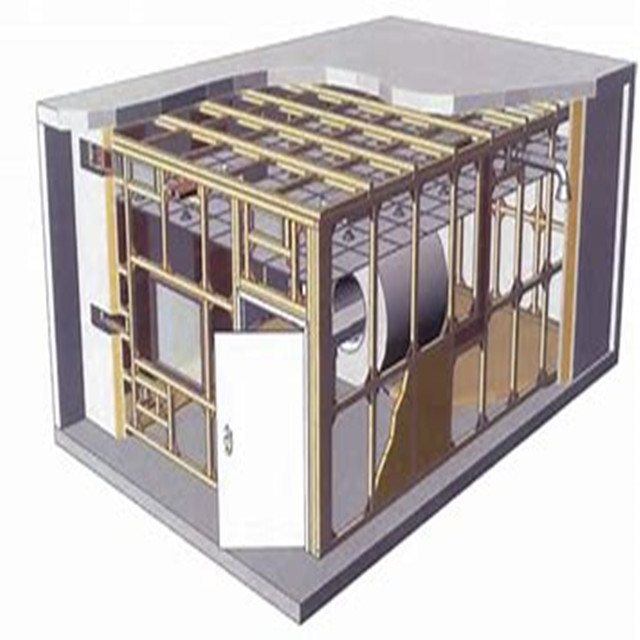

This modular frame construction is wrapped with electroplated copper which can conform to any design criteria. The engineered and bolted system enhances RF integrity with wide 4.4 cm (1 3/4") seams that are highly compressed, offering a seamless shield surface. Interior fasteners do not have to penetrate the shield surface by design, which enhances the long term life of the shield.
| Product Features |

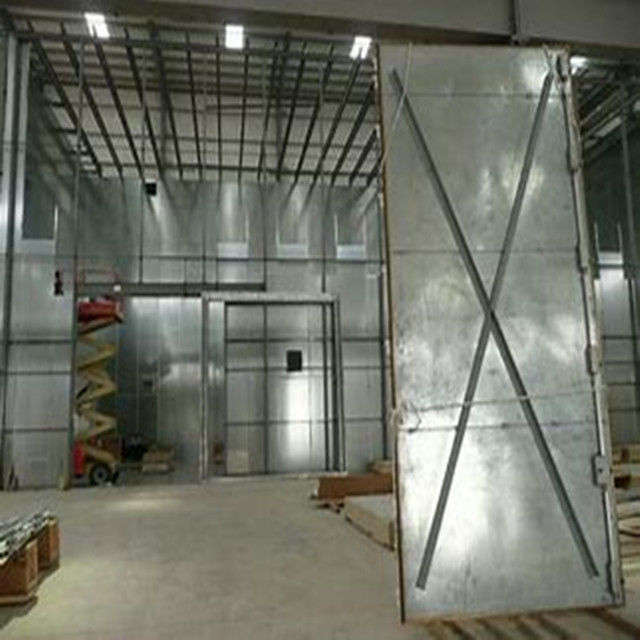

| Shielding panels are made of molded cold-rolled steel plates. They are jointed in way and welded with CO2 protection, which can restrain the plates from distortion and ensure the leveling of the steel plates. |
| Self-supported frame construction is made of section materials. |
| Shielding door is optional: standard electromotive door (electromotive / manual alternative), full-automatic shielding door (light-activated with password) sliding door. Subshining stainless steel decoration is on surface of the door. Standard dimension of the door is:0.85×2(m). |
| Large-scale hanging sliding shielding-door, electromotive sliding push-in door, electromotive sliding gasbag door, rotated door with track. |
| Ventilated window is designed in cellular wave-guide type with dimension:300×300(mm). |
| Power filter is in condition of high-performance and low-leakage. |
| Telephone, air-conditioning, fire-fight devices, optical fiber and CAT5 cables can be equipped customized. |
| Decoration will be arranged in the shielding room according to standard equipment room requirements. |
| Shielding Properties (dB) |
|
Magnetic field
|
14kHz |
85dB |
| 100KHz |
100dB |
| 200KHz |
110dB |
| Plane wave |
50-103MHz |
120dB |
|
Microware
|
1-10GHz |
110dB |
| 10-20GHz |
100dB |
| 20-40GHz |
80dB |
| Application Scope |
| EMC tesing |
| Items 1 |
Module Panel type, 2mm/3mm galvanized steel plate |
|
| Items 2 |
RF Shielding Door, Open size:1000*2000mm
Or Customized dimension |
|
| Items 3 |
Power Filters
16A/ 32A/50A/63A
Or Customized parameter |
|
| Items 4 |
Honeycomb Ventilation panels
300x300x25mm
300x600x25mm
Or Customized dimension |
|
| Items 5 |
RF Panel
300*200mm,including waveguide Ø4cm / L220cm x1 BNC*2/N*2/SMA*2
Or Customized dimension |
|
| Items 6 |
Floor
Anti-static floor or Laminate flooring
Or customized materials |
|
| Items 7 |
Foam RF absorber
Ferrite tile
High power absorber |
|
| Items 8 |
Beryllium copper Fingers |
|
| Items 9 |
Steel waveguide |
|
| Items 10 |
EMI Shielding Gasket |
|
MRI Scanning Room Accessories
| Accessories 1 |
MRI door 1.2x2.1M |
| Accessories 2 |
MRI window 0.8x1.2M |
| Accessories 3 |
EMI filter 16A/ 25A/ 30A |
| Accessories 4 |
Brass Honeycomb filter
300x300x25mm
300x600x25mm
|
| Accessories 5 |
Copper panel
Copper foil 1380mmx0.105mm
|
| Accessories 6 |
Brass waveguide |
| Accessories 7 |
Copper tape
25mm width 50M/Roll
50mm width 50M/Roll
|
| Accessories 8 |
Copper wool
2.5KGS/Roll
|
| Accessories 9 |
Beryllium copper fingers |
Before-sale:
1.All inquires will be replied with 8 hours. 7D/24H service,Please feel free to contact us with Email/TM/Skype.
2.Strong technical team and Professional sales.
3.Customized packaging is acceptable.
4.Welcom customers from all the world to visit our factory.
After-sale:
1.All emi filter will be tested and adjusted before shipping.
2.After receiving the products,Any question we will try our best to solve.

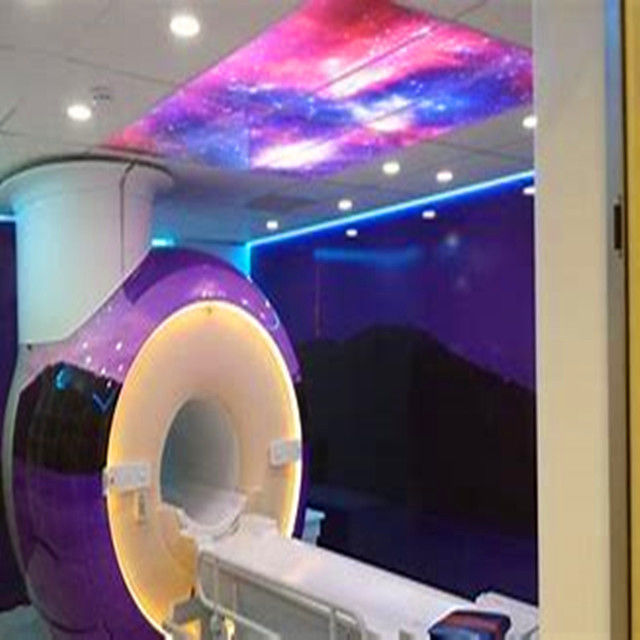

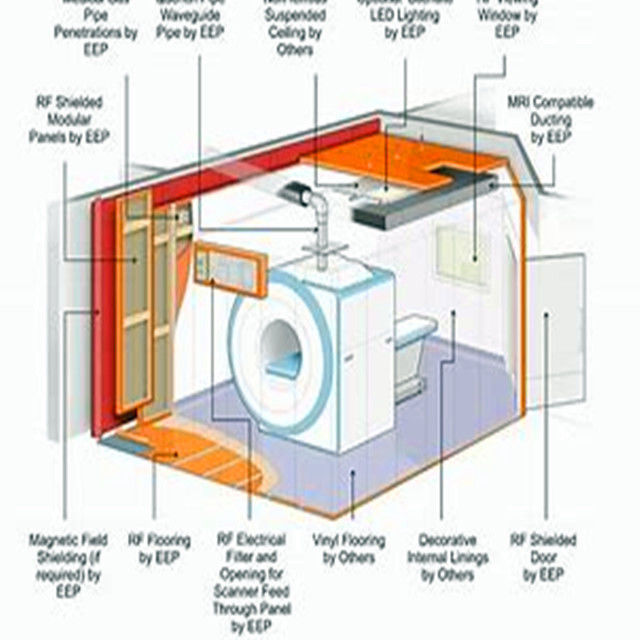

Optimized RF Shielding for MRI OperationsThe RF Cage MRI Shielding Room is specifically engineered to provide maximum protection against radio frequency interference in MRI facilities. Constructed as a Faraday cage, this enclosure ensures that sensitive MRI equipment is not exposed to disruptive external signals. The shielding system is made using high‑conductivity metal materials and includes copper mesh and conductive gasket interfaces to ensure signal integrity. By enclosing the MRI machine in a dedicated electromagnetic shielding zone, this room guarantees a stable and secure environment, improving imaging clarity and overall diagnostic accuracy during sensitive medical examinations.Modular Structure with Seamless IntegrationThe enclosure adopts a modular design using prefabricated metal panels that ensure fast on-site installation with minimal disruption. Each joint is securely fastened and sealed with electromagnetic-compatible materials, providing complete shielding continuity across the structure. Doors, power entry points, data lines, and ventilation systems are all integrated with shielding filters to prevent any leakage of electromagnetic interference. This smart configuration enables comprehensive protection while allowing utility and service access, making it ideal for both newly constructed MRI suites and retrofit medical facilities seeking EMI isolation.High-Performance Materials and CustomizationTo meet varying installation needs, this shielding room can be customized in terms of size, panel finish, door dimensions, and filtered access points. The panels are typically fabricated from galvanized steel or aluminum, and internal finishes are available in copper or conductive paint depending on application requirements. The filtering system is capable of suppressing EMI across a wide frequency spectrum, making the system suitable not only for 1.5T or 3.0T MRI but also for high-performance RF test setups. Whether used in hospitals, research labs, or diagnostic centers, this RF Cage provides reliable protection in all electromagnetic-critical applications. Product AdvantagesExceptional RF Attenuation PerformanceDesigned for over 100dB of shielding effectiveness, the RF Faraday Cage structure used in this product provides superior protection against electromagnetic and radio frequency interference. The sealed construction, using high-quality conductive joints and materials, ensures that all external EMI sources are effectively blocked. This is essential for MRI systems that require absolute signal clarity and noise-free operation. The shielding structure has been independently verified and tested to meet international standards for electromagnetic attenuation in medical environments.Reliable and Durable ConstructionBuilt from premium industrial-grade shielding materials, this MRI shielding room resists corrosion, wear, and performance degradation over time. The modular panels are reinforced for strength and precision-cut to eliminate air gaps that could compromise EMI integrity. The flooring is fully grounded, and shielded doors are equipped with high-compression gaskets and copper mesh contact to provide a tight seal. These construction advantages make the room extremely robust, suitable for high-traffic hospitals and imaging centers requiring long-term, maintenance-free EMI protection.Flexible Design for Diverse ApplicationsThis shielding room supports various applications, not just limited to MRI, including RF testing, electromagnetic compatibility (EMC) testing, and precision equipment protection. Its modular system enables flexible expansion or relocation. It can be configured to suit different MRI models or adapted for other RF-sensitive environments. Optional accessories include waveguide air vents, honeycomb ventilation panels, power line filters, and fiber optic passthroughs. These features add tremendous value to facilities with strict performance, compliance, and spatial requirements.
About UsHaozhuo is a leading China-based manufacturer specializing in EMC test systems, EMI shielding, and industrial filter solutions for medical, research, and electronic testing industries. With over a decade of expertise, we offer products that include RF shielding rooms, EMI filters, Faraday cages, power line filters, and low-pass filter systems. All products are designed, produced, and tested in strict accordance with CE, ISO, and MIL standards. We serve global customers as one of the most experienced emi filter manufacturers and rf shield box manufacturers, offering tailored solutions to meet specific client needs. Our engineering team works closely with hospital architects, device manufacturers, and EMC laboratories to provide professional installation, shielding verification, and technical support. Whether your project demands MRI shielding, radio interference control, or compliance testing, Haozhuo’s proven performance and reputation ensure reliable delivery every time. With clients in more than 30 countries and thousands of completed installations, we are committed to electromagnetic protection excellence.Contact Haozhuo today to build your RF Cage MRI Shielding Room with verified Faraday cage protection for MRI and RF testing precision.
