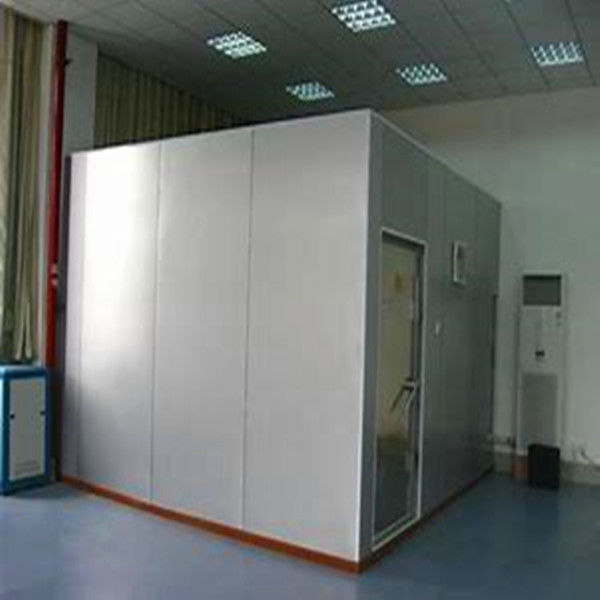

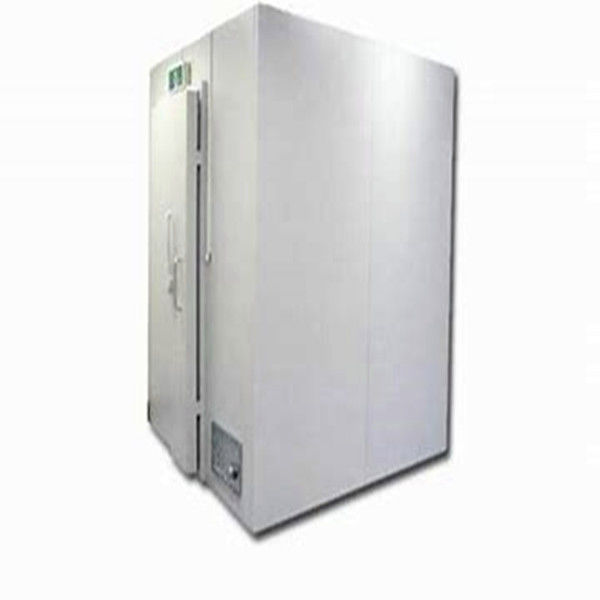

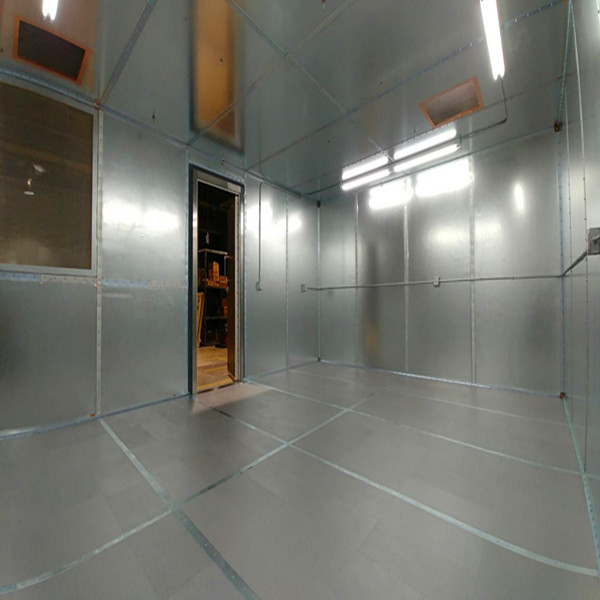

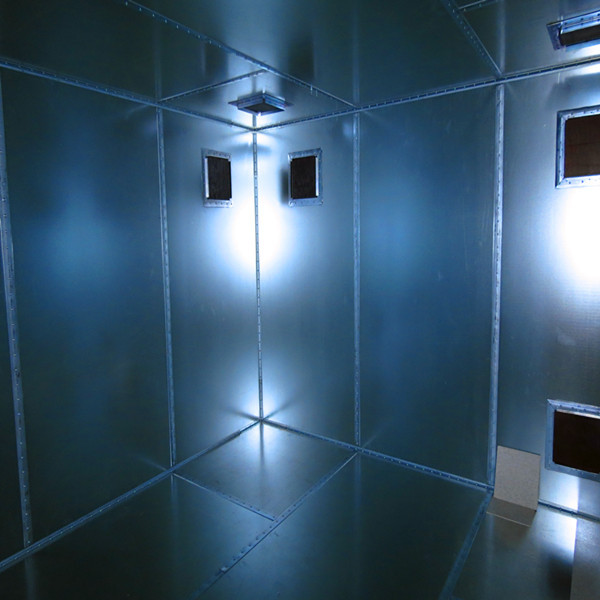

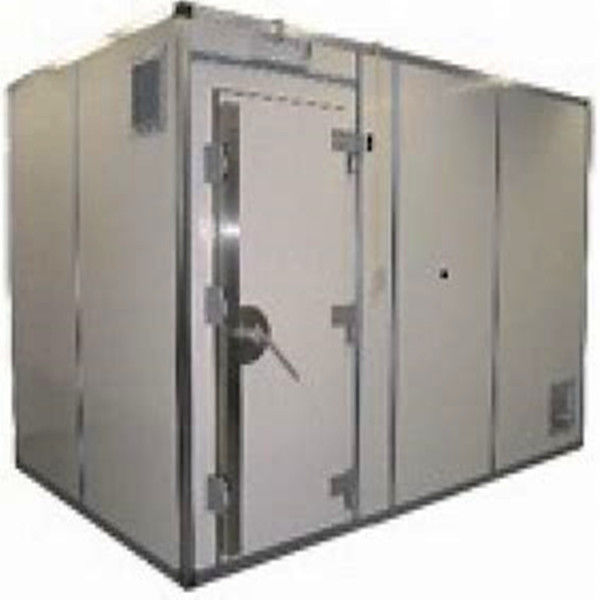

Rf Shielded Rooms Turnkey Projects Emi And Rfi Shielding Box RF shielded room

Name: Rf Shielded Rooms Turnkey Projects Emi And Rfi Shielding Box RF shielded room
Brand: changzhou hezi international trading co.,ltd.
Price: 10000.00 USD
Availability: InStock
Rating: 5 (1 reviews)

High Light

Emi And Rfi Shielding Box, Emi Rfi Shielding Box, Rf Shielded Rooms

Product

RF SHIELDING FACILITY TURNKEY PROJECT

Panel

2mm/3mm Steel Panel

Attenuation

14KHz-40GHz ≥100dB

Room Size

CUSTOMIZED

POWER SUPPLY

Electronic, Single Phase/ Three Phase

Rf Door/Singal Filter/Rf Window

Customized

Rf Floor/Ceiling

Standard

Place of Origin

P.R.CHINA

Brand Name

HAOZHUO

Certification

CE RoHS

Model Number

SR SERIES

Minimum Order Quantity

1 PCS PER ORDER

Price

USD 10000.00 PER PCS

Packaging Details

WOODEN CASE

Delivery Time

1 MONTH

Supply Ability

1 PCS PER ORDER

$10000.00

Get The Latest Quote

Description

RF SHIELDING ROOM TURNKEY PROJECTS INSTALL SERVICE SUPPLY HIGH QUALITY

When a shielded room is necessary?

· If your lab is near a broad spectrum emitter (i.e equipment that transmits multiple frequencies under 400Hz), radio tower, mobile phone transmitter or other large field generators, then you should consider a shielded room.

If your research is in the gamma band and you do not want to use a 60/50Hz notch filter to remove mains power noise, you might consider a shielded room. We recommend taking the steps above to first minimize the mains power noise. If that is not sufficient for your needs, then a shielded room may help.

Product Features
Shielding panels are made of molded cold-rolled steel plates. They are jointed in way and welded with CO2 protection, which can restrain the plates from distortion and ensure the leveling of the steel plates.
Self-supported frame construction is made of section materials.
Shielding door is optional: standard electromotive door (electromotive / manual alternative), full-automatic shielding door (light-activated with password) sliding door. Subshining stainless steel decoration is on surface of the door. Standard dimension of the door is:0.85×2(m).
Large-scale hanging sliding shielding-door, electromotive sliding push-in door, electromotive sliding gasbag door, rotated door with track.
Ventilated window is designed in cellular wave-guide type with dimension:300×300(mm).
Power filter is in condition of high-performance and low-leakage.
Telephone, air-conditioning, fire-fight devices, optical fiber and CAT5 cables can be equipped customized.
Decoration will be arranged in the shielding room according to standard equipment room requirements.
Shielding Properties (dB)
Magnetic field		14kHz			85dB
		100KHz			100dB
		200KHz			110dB
Plane wave		50-103MHz			120dB
Microware		1-10GHz			110dB
		10-20GHz			100dB
		20-40GHz			80dB
Application Scope
EMC tesing
Items 1	Module Panel type, 2mm/3mm galvanized steel plate
Items 2	RF Shielding Door, Open size:1000*2000mm Or Customized dimension
Items 3	Power Filters 16A/ 32A/50A/63A Or Customized parameter
Items 4	Honeycomb Ventilation panels 300x300x25mm 300x600x25mm Or Customized dimension
Items 5	RF Panel 300200mm,including waveguide Ø4cm / L220cm x1 BNC2/N2/SMA2 Or Customized dimension
Items 6	Floor Anti-static floor or Laminate flooring Or customized materials
Items 7	Foam RF absorber Ferrite tile High power absorber
Items 8	Beryllium copper Fingers
Items 9	Steel waveguide
Items 10	EMI Shielding Gasket
RF Anechoic chamber Shielding Properties (dB)
Magnetic field			14kHz	75dB
			100KHz	100dB
			200KHz	110dB
Plane wave			50-103MHz	120dB
Microware			1-10GHz	110dB
			10-20GHz	100dB

RF Anechoic chamber Shielding Properties (dB)
Magnetic field	14kHz	75dB
	100KHz	100dB
	200KHz	110dB
Plane wave	50-103MHz	120dB
Microware	1-10GHz	110dB
Microware	10-20GHz	100dB
