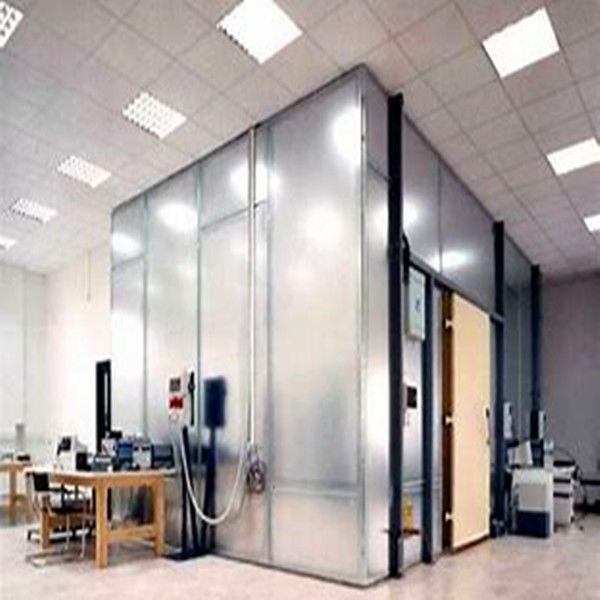

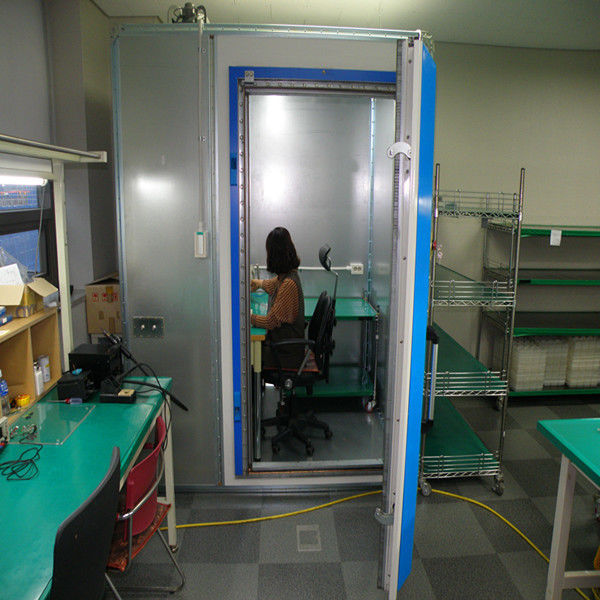

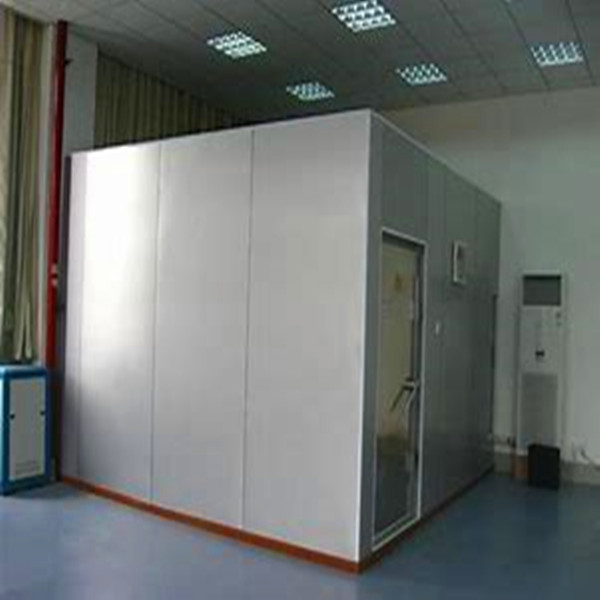

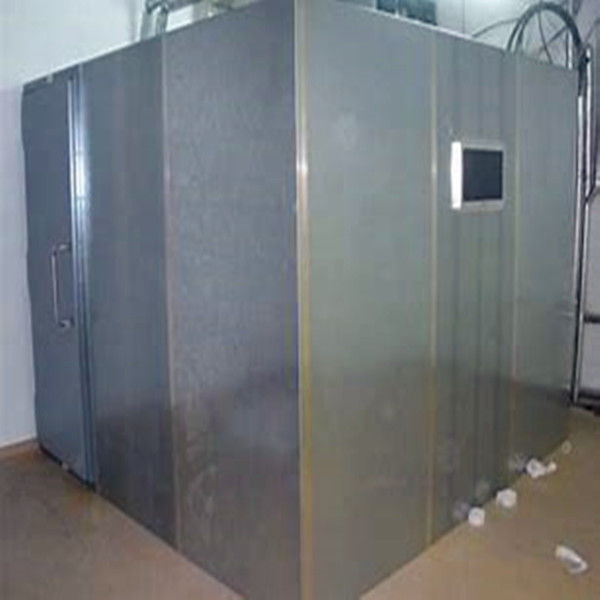

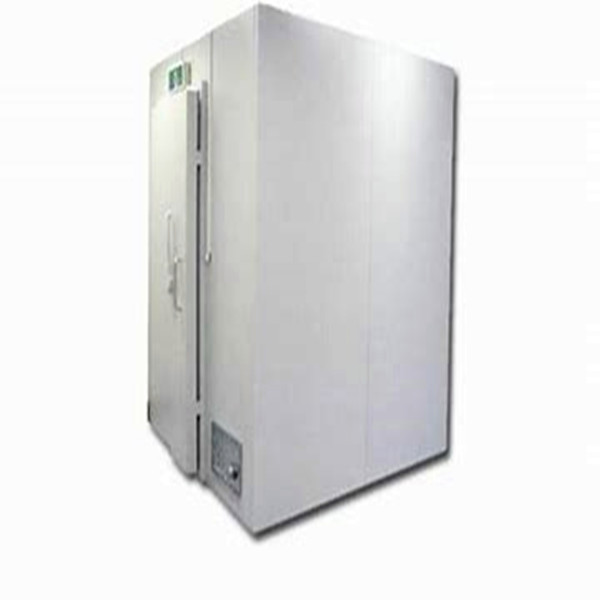

14KHz-40GHz more than 100dB for emc RF shielding testing chamber
RF noise free environments and RF noise containment are important for many applications including EMC / EMI testing, security, safety and regulatory compliance. With thousands of shielded rooms and anechoic chambers supplied globally to hospitals, government agencies, data centers, test labs and private organizations, you can be sure that we have the expertise and capabilities required.
When a shielded room is necessary?
· If your lab is near a broad spectrum emitter (i.e equipment that transmits multiple frequencies under 400Hz), radio tower, mobile phone transmitter or other large field generators, then you should consider a shielded room.
· If your research is in the gamma band and you do not want to use a 60/50Hz notch filter to remove mains power noise, you might consider a shielded room. We recommend taking the steps above to first minimize the mains power noise. If that is not sufficient for your needs, then a shielded room may help.
| Product Features | ||||

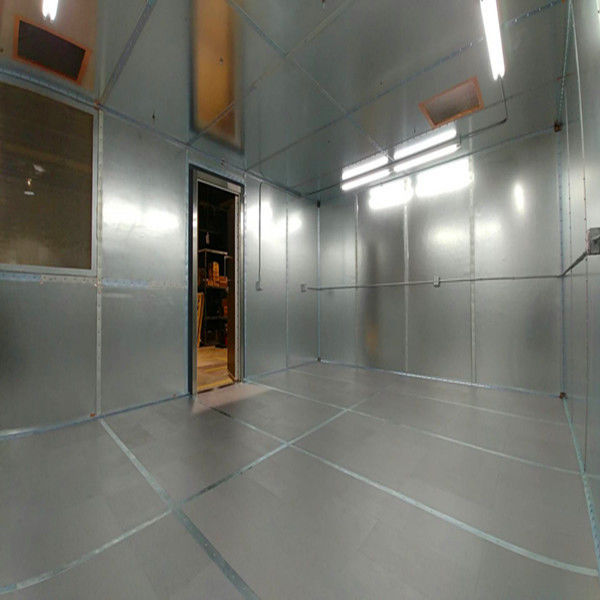

| Shielding panels are made of molded cold-rolled steel plates. They are jointed in way and welded with CO2 protection, which can restrain the plates from distortion and ensure the leveling of the steel plates. | ||||
| Self-supported frame construction is made of section materials. | ||||

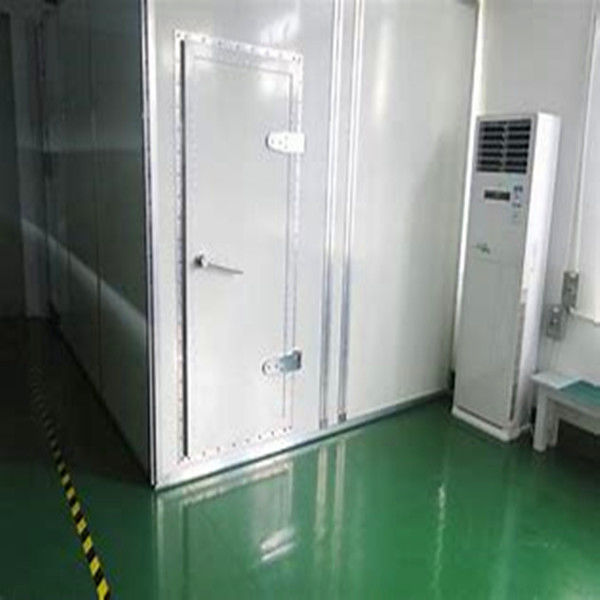

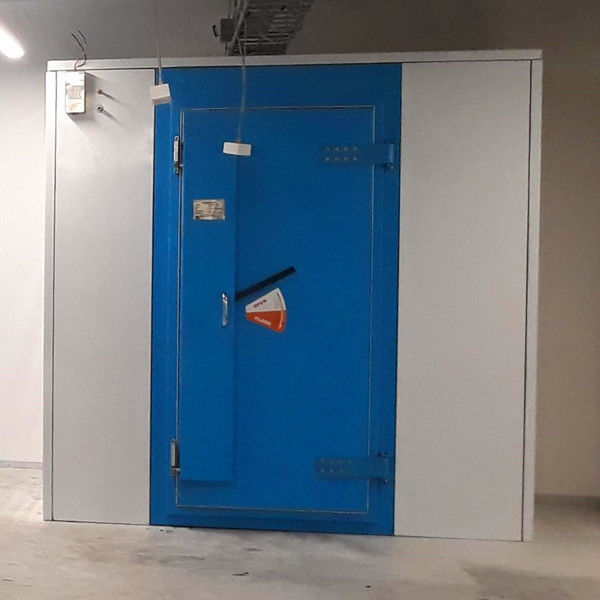

| Shielding door is optional: standard electromotive door (electromotive / manual alternative), full-automatic shielding door (light-activated with password) sliding door. Subshining stainless steel decoration is on surface of the door. Standard dimension of the door is:0.85×2(m). | ||||
| Large-scale hanging sliding shielding-door, electromotive sliding push-in door, electromotive sliding gasbag door, rotated door with track. | ||||
| Ventilated window is designed in cellular wave-guide type with dimension:300×300(mm). | ||||
| Power filter is in condition of high-performance and low-leakage. | ||||
| Telephone, air-conditioning, fire-fight devices, optical fiber and CAT5 cables can be equipped customized. | ||||
| Decoration will be arranged in the shielding room according to standard equipment room requirements. | ||||
| Shielding Properties (dB) | ||||
|
|
14kHz | 85dB | ||
| 100KHz | 100dB | |||
| 200KHz | 110dB | |||
| Plane wave | 50-103MHz | 120dB | ||
|
|
1-10GHz | 110dB | ||
| 10-20GHz | 100dB | |||
| 20-40GHz | 80dB | |||
| Application Scope | ||||
| EMC tesing | ||||
| Items 1 | Module Panel type, 2mm/3mm galvanized steel plate | |||
| Items 2 | RF Shielding Door, Open size:1000*2000mm Or Customized dimension |
|||
| Items 3 | Power Filters 16A/ 32A/50A/63A Or Customized parameter |
|||
| Items 4 | Honeycomb Ventilation panels 300x300x25mm 300x600x25mm Or Customized dimension |
|||
| Items 5 | RF Panel 300*200mm,including waveguide Ø4cm / L220cm x1 BNC*2/N*2/SMA*2 Or Customized dimension |
|||
| Items 6 | Floor Anti-static floor or Laminate flooring Or customized materials |
|||
| Items 7 | Foam RF absorber Ferrite tile High power absorber |
|||
| Items 8 | Beryllium copper Fingers | |||
| Items 9 | Steel waveguide | |||
| Items 10 | EMI Shielding Gasket | |||
| RF Anechoic chamber Shielding Properties (dB) | ||
|
|
14kHz | 75dB |
| 100KHz | 100dB | |
| 200KHz | 110dB | |
| Plane wave | 50-103MHz | 120dB |
|
|
1-10GHz | 110dB |
| 10-20GHz |
100dB |
|
Application in Military and Defense Testing Facilities
Defense laboratories require stringent electromagnetic isolation to ensure secure and interference-free environments for classified equipment testing and signal validation. This rf shielded room serves as a controlled enclosure where complex military communication devices and radars can be evaluated without external RF contamination. The chamber’s superior attenuation capabilities guarantee compliance with defense standards such as GJB151A, facilitating accurate performance verification. Integration into secure workflows is streamlined by the room’s customizable design, allowing seamless electrical and data feedthroughs essential for classified, real-time test procedures.
Role in Medical Imaging and Advanced Diagnostic Environments
Hospitals and diagnostic centers utilize the rf shielding room to safeguard high-precision imaging equipment such as MRI machines from electromagnetic disturbances that may affect accuracy and patient safety. The shielding chamber maintains an interference-free zone, protecting signals essential for clear imaging and diagnostics. Its ventilated window design ensures operational airflow requirements are met without compromising shielding effectiveness. This solution integrates directly into medical workflows, supporting compliance with stringent EMC standards while maximizing equipment uptime and diagnostic reliability in clinical settings.
What materials are used in the construction of Haozhuo’s RF shielding rooms?
Haozhuo’s RF shielding rooms are built with durable cold-rolled steel panels, assembled using CO₂ welding to ensure robust structural integrity and resistance to deformation under industrial conditions. This ensures long-lasting shielding performance with minimal maintenance.
Can I customize the size and door types of the RF shielding room?
Yes, Haozhuo offers fully customizable RF shielded rooms configurations, including various room sizes and door mechanisms such as sliding or electromotive shielding doors. This flexibility accommodates different lab setups and specific shielding requirements.
How are Haozhuo’s shielding rooms installed onsite?
The self-supported frame design enables efficient and rapid deployment of Haozhuo’s shielding rooms. Installation typically involves assembling pre-fabricated steel panels and integrating EMI filters, minimizing downtime without sacrificing shielding effectiveness.
Does Haozhuo provide EMI filters integrated within the shielding rooms?
Yes, the RF shielding room chambers include integrated high-performance EMI filters customizable for different power ratings (16A-63A). These filters reduce electromagnetic leakage, maintaining reliable isolation for applications such as EMC testing or data center protection.
