China supplier RF shield anechoic chamber
The types we provided for anechoic chamber room with RF absorber
- Compact chamber
- 3 Meter chamber
- 5 Meter chamber
- 10 Meter chamber
- Free space chamber
- MIL-STD chamber
- Customized Anechoic chamber acceptable

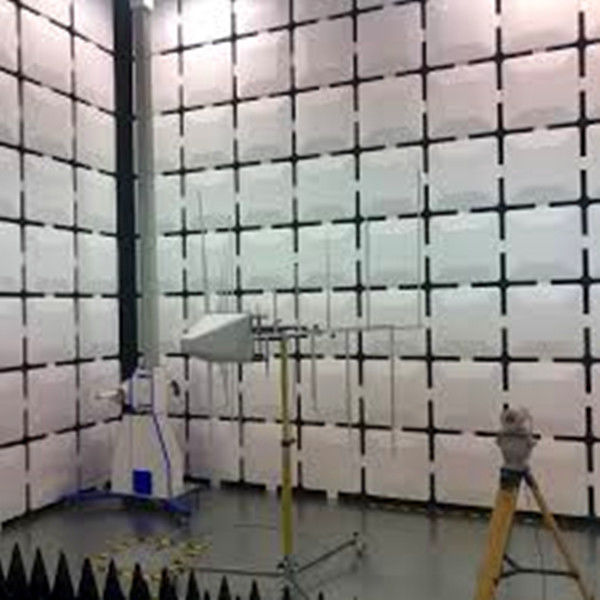

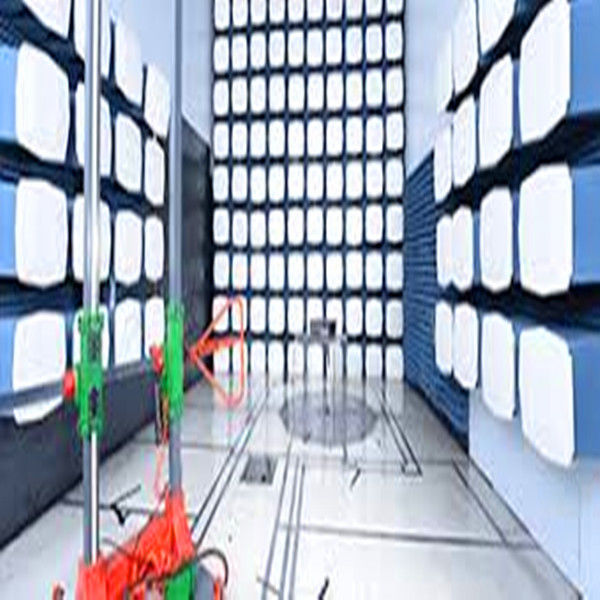

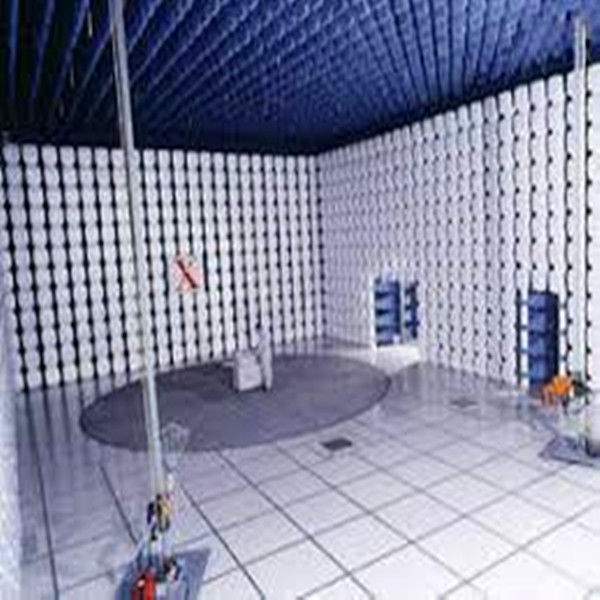

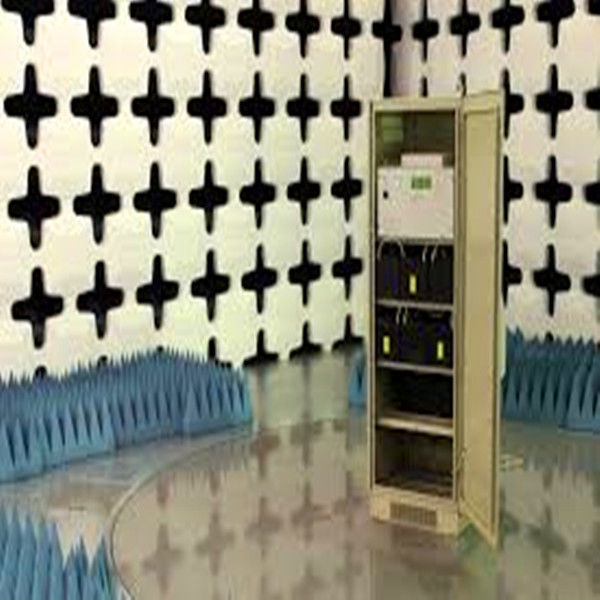

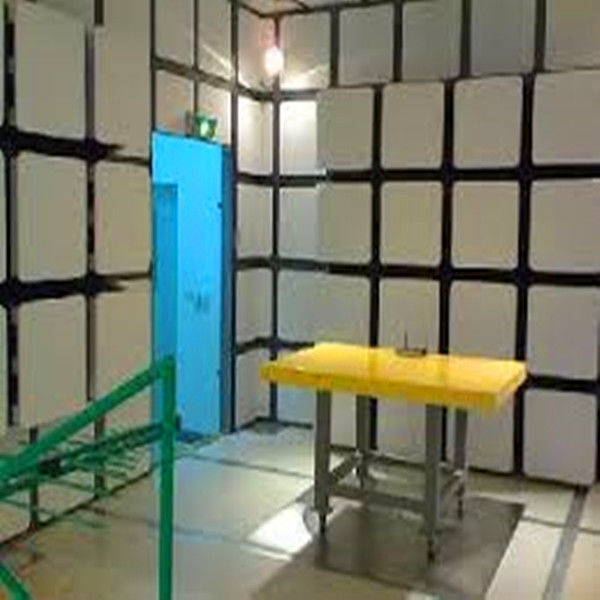

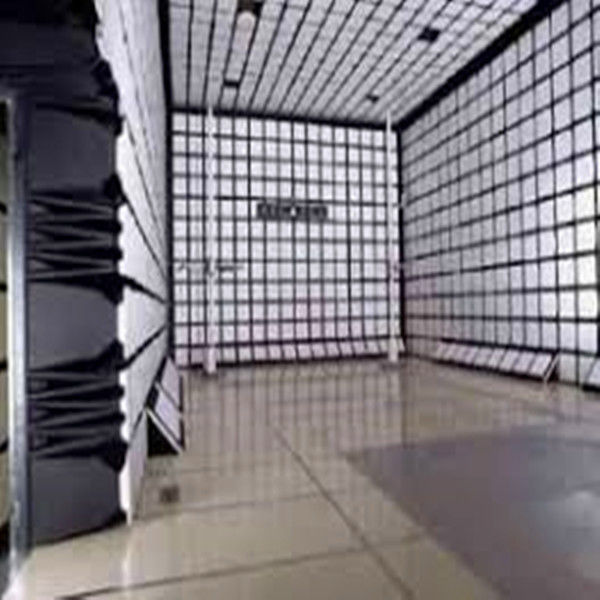

Anechoic Chamber
|
Anechoic Chamber Description we provide Semi-EMC Chamber and Full EMC Chamber for EMC Testing.

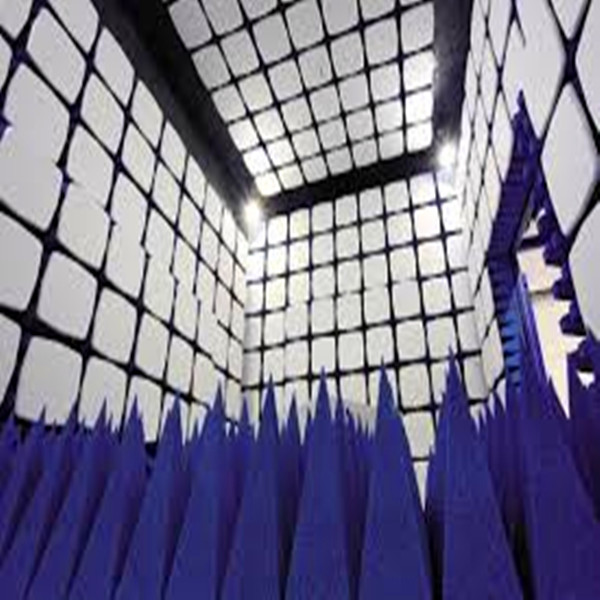

An Anechoic Chamber generally consists of an RF shielded room which is either partially or fully lined with RF absorber material. It is used to perform several types of testing and measurements.
our chambers are typically constructed from the modular shielding system.
EMC anechoic test chambers are used by industry to perform radiated emissions and radiated immunity testing of electrical/electronic equipment to various International specifications such as EN 50147 part 2 / ANSI C63.4 / EN55022 / EN61000-4-3 and various CISPR documents.
Chambers are also designed for EMC testing for testing in accordance with military and avionics specifications such as MIL STD 4612E, DO 160 and DEF STD 59-41.
we offers a fully range of anechoic chambers, including:
|
Shielding performance for anechoic chamber room with RF absorber
| Magnetic field | 14kHz | 75dB |
| 100KHz | 100dB | |
| 200KHz | 110dB | |
| Plane wave | 50-103MHz | 120dB |
| Microware | 1-10GHz | 110dB |
| 10-20GHz | 100dB | |
| 20-40GHz | 80dB |
