Functional Role and Target Users in EMC Systems
The Thickness 6.7mm Ferrite Tile Absorber is specifically designed for use within EMC anechoic chambers, catering primarily to engineers, procurement managers, and specialists focused on electromagnetic compatibility testing. This product operates to significantly reduce electromagnetic interference by absorbing radiated energy, thereby enhancing testing accuracy. It suits industries relying on ac power line filter systems and custom ac filters for rigorous regulatory compliance. The tile’s impedance matching characteristic minimizes reflection, enabling precise simulation of free-space environments critical for developing and certifying EMC systems.
Precision Technical Specifications Enhancing EMC Measurements
Constructed with a base dimension of 100mm by 100mm and a thickness of 6.7mm, the ferrite tile features a 10mm bore for secure and adaptable installation. Its high initial permeability of 5500 and a relative loss factor of 15 at 0.1 MHz contribute to superior electromagnetic absorption across a frequency range of 30 MHz to 1 GHz, delivering attenuation from 25.5 dB at lower frequencies to 10 dB at higher ranges. The tile’s resistivity of 100 ohm-cm and a density of 4.85 × 1000 kg/m³ ensure durability and effective performance under industrial conditions. These specifications reinforce its integration compatibility with ac emi filter solutions and other system-level electromagnetic filtering components.
Industry Applications and Benefits in EMC Compliance
This ferrite tile absorber is widely employed by industrial filter manufacturers and organizations needing to validate EMC shielding effectiveness in various electronic equipment. It provides reliable absorption to reduce reflected signals and background noise during compliance testing, allowing for improved RF interference measurement accuracy in research and development laboratories. The product supports integration into custom EMC chamber configurations requiring optimal thicknesses aligned with specific testing criteria. Moreover, its durability and absorption efficiency ensure consistent performance in high-demand environments where ac filter products and custom ac filters are essential for meeting industry standards.
Product Advantages
Structural and System Design Benefits
The absorber’s 6.7mm thickness strikes a balance between compactness and functional density, allowing seamless assembly within EMC testing chambers where space and modularity are critical. Its 100mm by 100mm base size and 10mm bore diameter facilitate versatile mounting and system integration alongside ac emi filter units and ac power line filter systems. Designed for industrial filter manufacturers, the tile ensures impedance matching close to free space, improving the overall effectiveness of electromagnetic absorption. Additionally, the durable ferrite composition withstands environmental stresses, enhancing long-term stability in testing setups requiring stringent electromagnetic interference control.
Performance Efficiency and Usability Value
From a performance perspective, this ferrite tile absorber delivers high attenuation values across a broad frequency spectrum, essential for accurate EMC testing workflows. Its compatibility with ac filter configurations supports streamlined system integration and reduces setup complexity for technical users. The product also benefits from professional technical support and customizable packaging, which accommodate diverse procurement and logistical requirements typical of industrial filter manufacturers. The result is enhanced usability and reduced downtime during installation or replacement phases in electromagnetic compatibility maintenance programs.

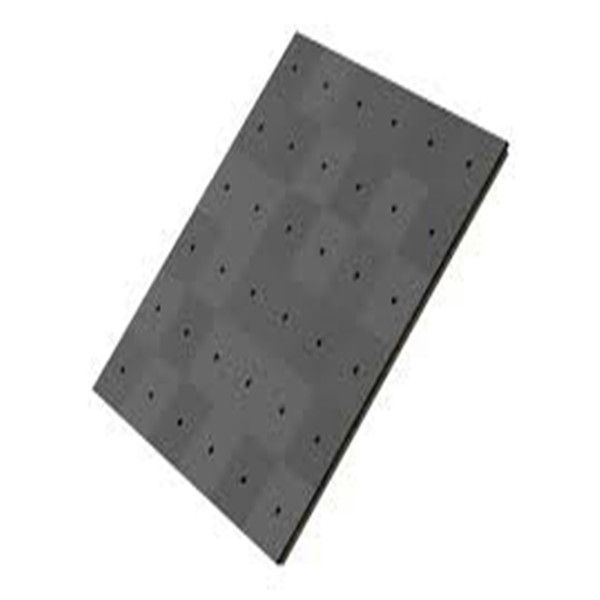

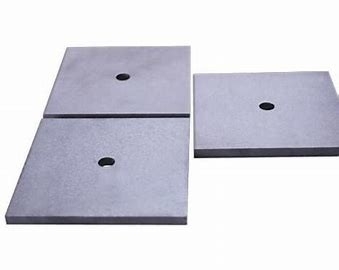

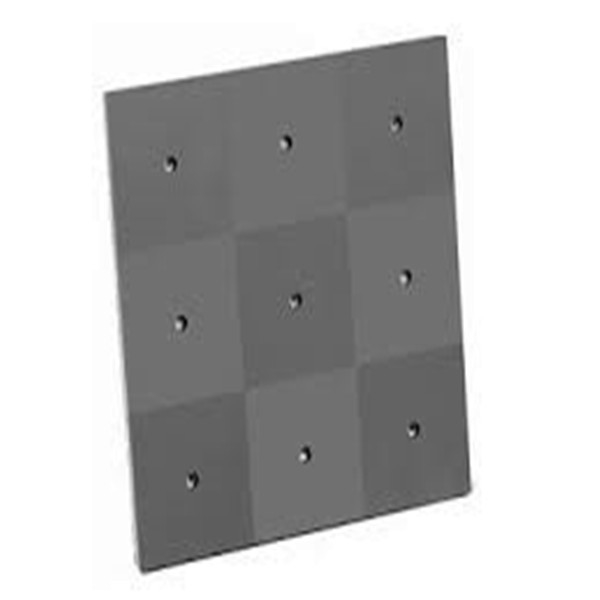

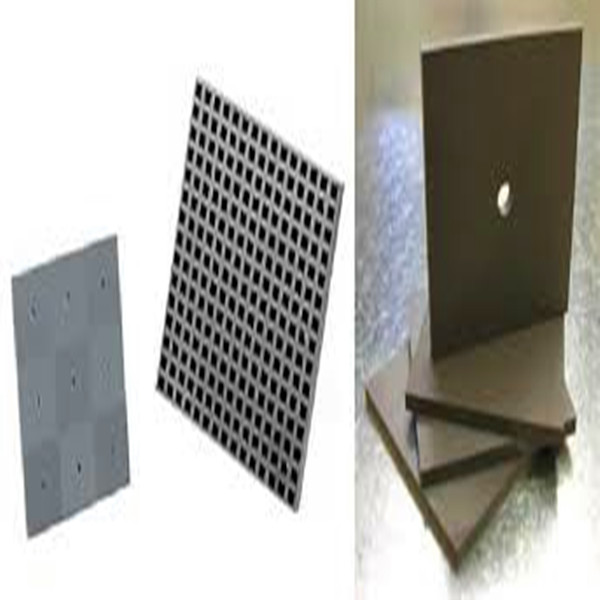

Ferrite Tile Size
• Base size: 100*100mm
• Standard height: 5.2mm, 6.7mm
• Diameter of bore: 10mm
Ferrite Tile Application

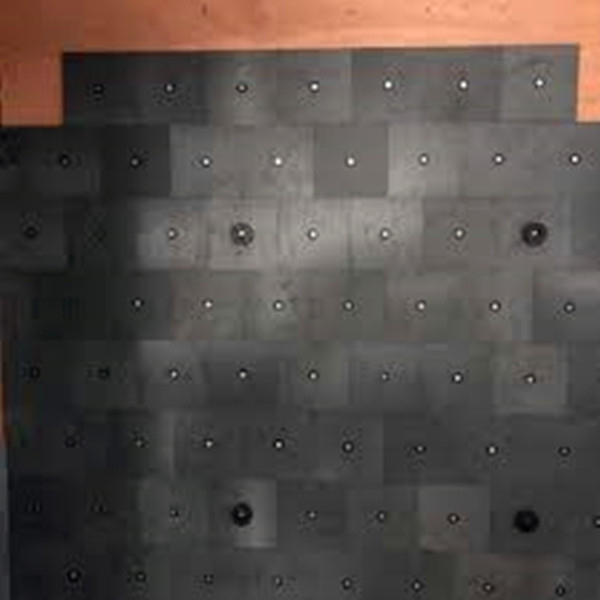

• Used for EMC chamber
Based on the principle of having complex magnetic permeability equal (or nearly equal) to complex dielectric constant. Materials with this property exhibit an impedance equal to that of "free space" and therefore do not reflect radiated energy at normal incidence.
Ferrite Tile can provide 10dB - 25dB of absorption between 30MHz and 1GHz. Tiles are thin (approximately 0.26 inches), but can be heavy (roughly 10 lbs per square foot).
Size for EMC chamber ferrite tile
• Base size: 100*100mm
• Standard height: 5.5mm, 6.7mm
• Diameter of bore: 10mm
Application for EMC chamber ferrite tile
Used for EMC chamber
Initial permeability 5500
Relative loss factor 15@0.1MHz
Saturation flux density 280(1194A/m)
Remanence 180
coercivity 3
Relative temp.factor 3
Curie temp. 90
Density 4.85*1000
Resistivity 100
Performance
30MHz -25.5dB
100MHz -38dB
300MHz -19.5dB
500MHz -16dB
700MHz -12dB
1000MHz
-10dB
