Optimized EMI Filtration for Electronic Equipment Integration

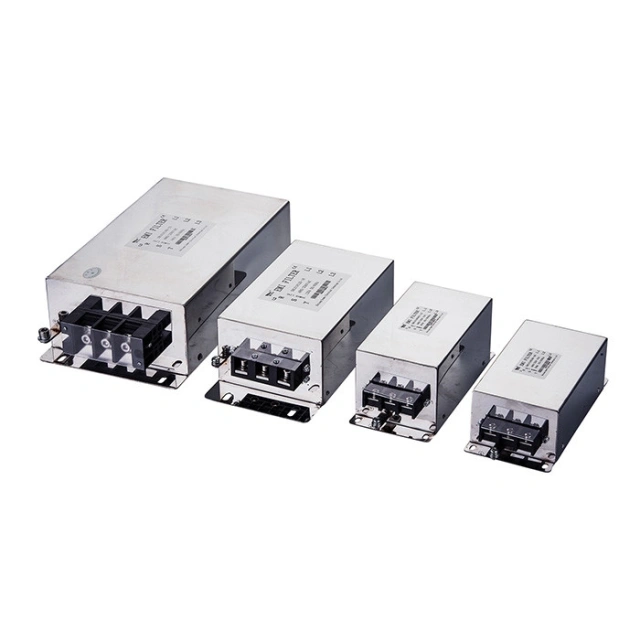

The 230 V EMI Power Line Filter is engineered for professionals requiring precise suppression of conducted electromagnetic interference on power lines. Targeted at design engineers, manufacturers, and system integrators, this four-line filter supports current capacities of 3 A, 5 A, and 10 A to accommodate diverse device requirements. It is particularly suitable for inclusion in power supply boards and shielded enclosures, enabling protection of sensitive electronics from EMI-induced malfunction. As a trusted solution from an established rf filters manufacturer, this product aligns with international certification standards and is complemented by comprehensive technical support, facilitating seamless integration into complex systems.
Advanced Electrical Characteristics Ensuring Robust EMI Mitigation
This EMI power line filter provides a wide stopband attenuation range of 70 to 100 dB and an insertion loss of up to 100 dB, covering frequencies up to 10 GHz. Its pass band extends to 7 kHz, while the device is rated for 250 VDC, ensuring compatibility with standard industrial applications. The through-hole package format enhances PCB mounting reliability and supports consistent impedance matching at 50 ohms, reducing signal reflection and interference. Manufactured under CE certification, this rf filter exhibits consistent performance metrics and durability, backed by in-house testing facilities equipped with spectrum analyzers and standard signal sources, underpinning proven electromagnetic compatibility.
Deployment Across High-Demand Industry Sectors
This EMI filter finds application spanning consumer electronics, industrial automation, and medical device sectors. It contributes to compliance with EMC regulations by efficiently blocking EMI noise that can compromise device functionality and safety. The product’s adaptability allows for OEM customization, making it suitable for integration into prototype development workflows and final production lines. By effectively limiting conducted emissions, it supports interference reduction in environments requiring stringent electromagnetic shielding such as RF shielded rooms and laboratory benches, delivering system-level benefits and compliance assurance for manufacturers and technical specialists.
4 lines 3a emi signal filter for fire alarm rf shielding room
Electronic equipment such as computers and other peripherals can leak sensitive information over conducted and radiated electromagnetic emanations. These signals transmitted down an unprotected telephone or a power line can potentially be intercepted by an enemy or a competitor over the same telephone or power cable many miles away. Our filters stop the high-frequency EM signals (or noise) emanating inside the secure environment so they can’t travel outside the room/ facility overpower or communication cables.
Product SPECIFICATION
| RATED VOLTAGE | 250VDC | ||
| RATED CURRENT | 3A 5A 10A | ||
| LINE NUMBER | 4 LINES | ||
| PASS BAND | 7k | ||
Electronic devices play a vital role in nearly every industry, from hospitals, to industrial manufacturing, to the military. Specific devices rely on uninterrupted and dependable electricity to operate correctly. However, as more and more electronic devices enter the market, they create electromagnetic interference that can cause these devices to malfunction, crash or fail. To protect electronic devices and systems from damage, EMI Filters block adverse inferences and allow a steady flow of power. Here, we'll take an in-depth look at EMI fundamentals, EMI filter applications and the consequences of EMI across various sectors.
There are two main types of EMI — conducted EMI and radiated EMI. Conducted EMI goes through conductors, such as wires or power lines, while radiated EMI travels through the air and does not require a conductor. Both conducted and radiated EMI can impact the performance of electronic devices through impairment, degradation, malfunctioning or system failure.
Product Advantages
Modular Design Enabling High Integration Flexibility
The filter’s structural design incorporates a four-line configuration within a compact, through-hole package, facilitating straightforward mounting on PCBs widely used in electronic assemblies. This modular approach allows engineers to select appropriate current ratings from 3 A to 10 A based on specific application demands. The robust electrical architecture supports consistent impedance at 50 ohms, critical for maintaining signal integrity in high-frequency operations. As a reliable rf filters supplier, the product’s compliance with CE standards and the availability of tailored packaging options further enhance its suitability for incorporation into diverse electronic systems requiring electromagnetic interference mitigation.
Superior Performance with Reliable User Implementation
This EMI filter delivers measurable attenuation and low insertion loss, ensuring that despite effective EMI suppression, the power integrity to connected devices remains uncompromised. Its high suppression capability up to 10 GHz minimizes the risk of EMI leakage, thereby safeguarding device performance and extending operational lifespan. The design supports easy integration into standard test setups and production environments, backed by manufacturer expertise providing both technical consultancy and after-sales support. These facets combine to offer users of rf filters a dependable component that helps maintain system efficiency while facilitating compliance with rigorous electromagnetic compatibility standards.
Use Scenarios
EMI Suppression in Consumer Electronics Pre-Compliance Testing
Within consumer electronics manufacturing, engineers must ensure devices conform to EMC regulatory limits before market release. The EMI power line filter acts as a critical component in lab benches and test rigs, filtering high-frequency noise on power lines during product pre-compliance testing. Its broad frequency suppression capabilities enable detailed analysis and remediation of emission issues, allowing manufacturers to optimize designs early in development. This facilitates alignment with standards such as CISPR, minimizing costly rework. The device integrates directly into EMI test setups, ensuring realistic load conditions while providing reliable attenuation as specified by the rf filters manufacturer.
Implementation in Industrial Automation and Shielded Environments
Industrial automation sectors frequently require robust EMI filters to maintain operational stability amidst heavy electromagnetic noise. Installed in shielded enclosures and alongside frequency inverter drives, the EMI filter safeguards control circuitry from conducted interference that could prompt system malfunctions. Its high attenuation performance combined with a resilient through-hole mounting design yields superior longevity and compliance adherence. The filter’s configuration supports system integrators by simplifying installation and maintenance within complex electrical cabinets, and its CE certification guarantees conformity to international electromagnetic compatibility mandates, a priority for industrial equipment manufacturers utilizing rf filters supplier solutions.
